Tern HSD S00
Tern HSD S00
Couldn't load pickup availability

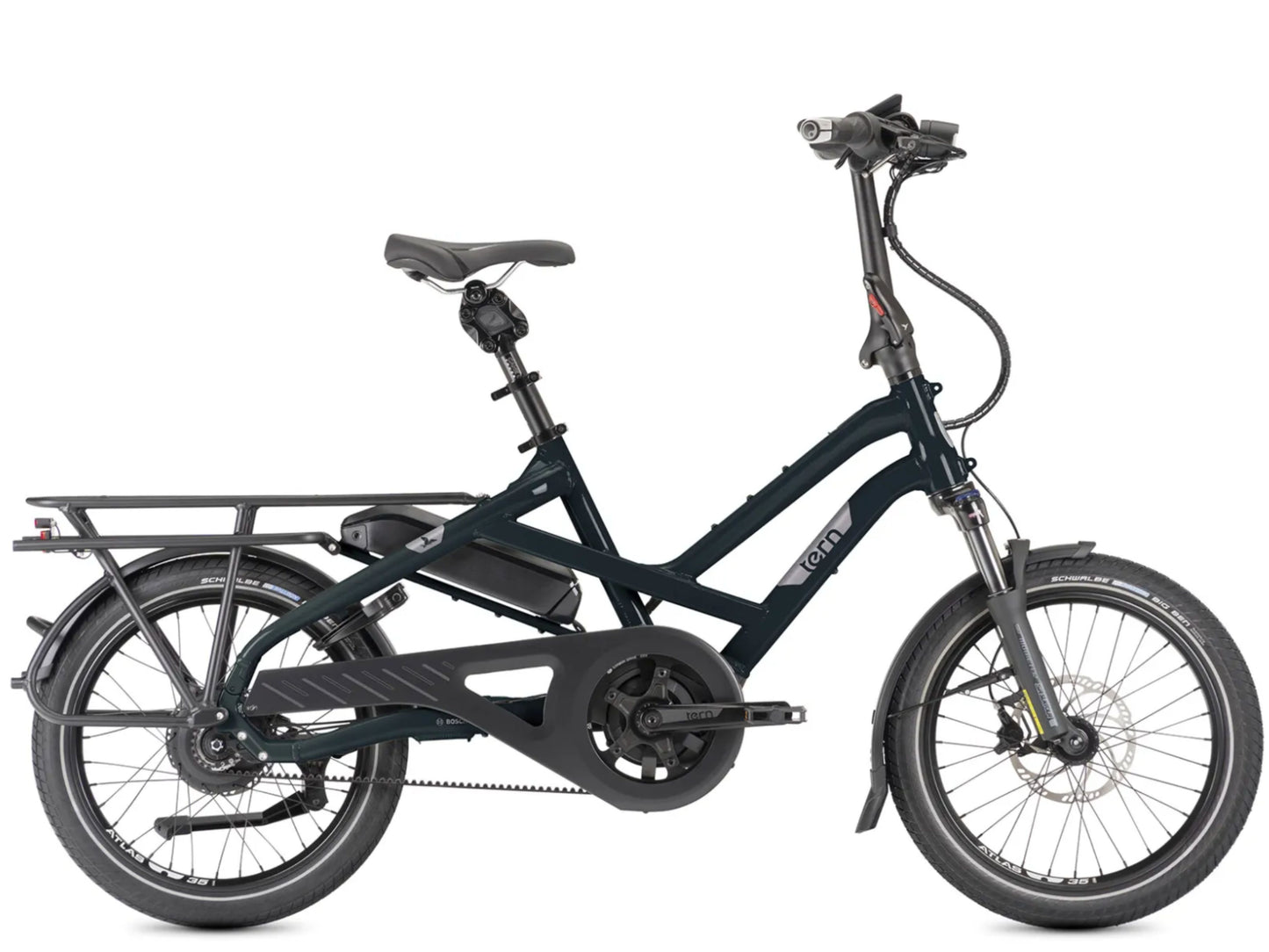

The Full Scoop on Tern HSD S00
The HSD offers the benefits of cargo with the convenience and handling of less bulky cargo bikes. A hauling capacity of 397lbs in a sleak, lean and nimble package. Load up on groceries, take your furry friends or the kiddos out to run errands, without the worry of overloading. Safety and reliabilty you can count on.
*Optional accessories available
The HSD offers the benefits of cargo with the convenience and handling of less bulky cargo bikes. A hauling capacity of 397lbs in a sleak, lean and nimble package. Load up on groceries, take your furry friends or the kiddos out to run errands, without the worry of overloading. Safety and reliabilty you can count on.
*Optional accessories available
| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |

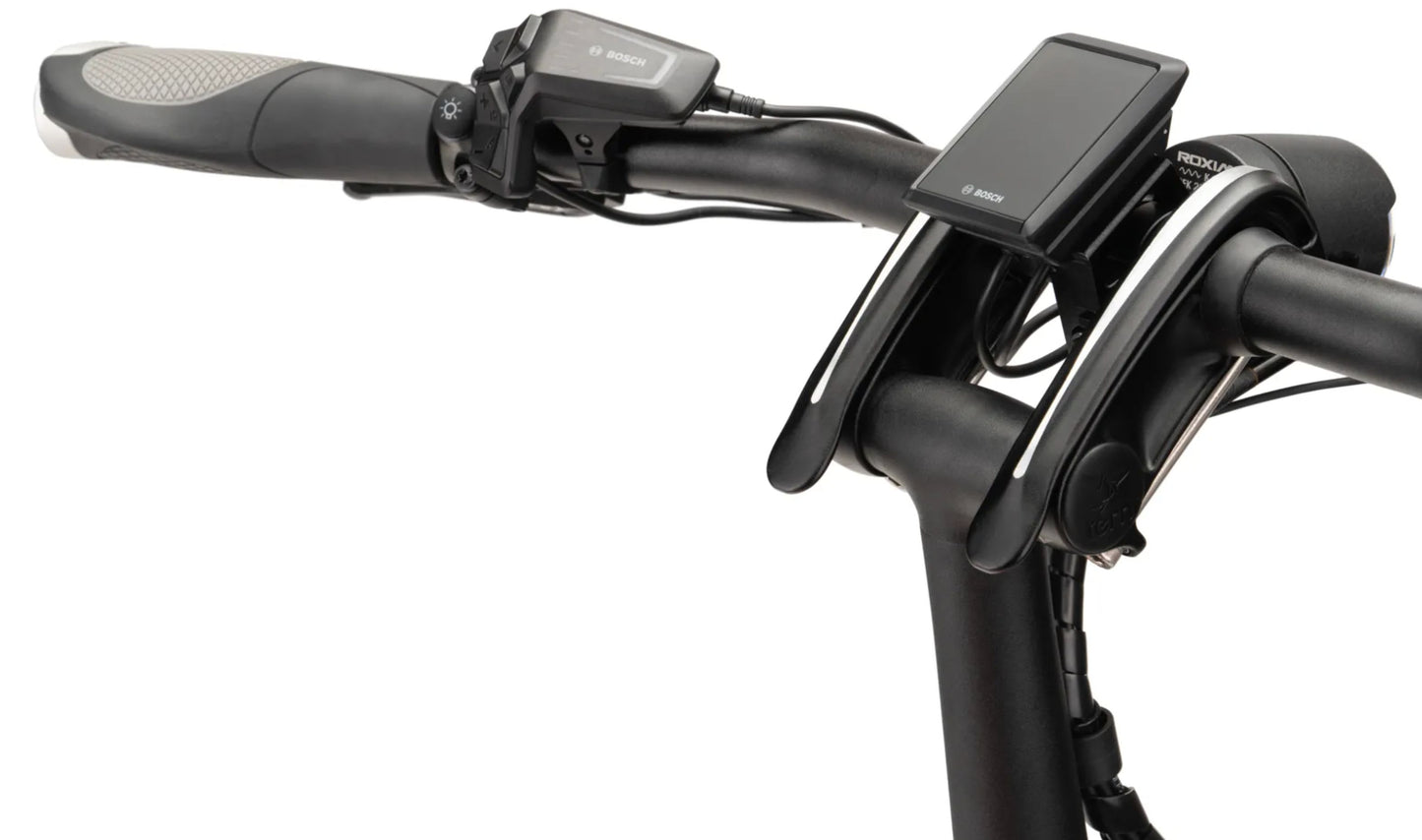

| Display | Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 4A |
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Rear Shock | Not applicable |
| Front Brake | Magura MT4, hydraulic disc, 180 mm rotor |
| Rear Brake | Magura MT4, hydraulic disc, 160 mm rotor |
| Rear Derailleur | Not applicable |
| Shift Levers | Enviolo, Twist |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Tern Atlas H, wide 35 mm |
| Front Hub | Novatec, Thru-axle, sealed bearings |
| Rear Hub | Enviolo Heavy Duty, 380% continuously variable range |
| Front Tire | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Rear Tire | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern Upright by Velo |
| Seat post | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
| Pedals | Urban with non-slip surface, sealed bearings |
| Front Light | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light | RearStop Brake Light, Always on |
| Kickstand | Ursus rear mount |
| Rear Carrier | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity |
| Fenders | SKS, stainless hardware |
| Bell | Pitch Plus, brass |
| Lock | ABUS, keyed-alike with Bosch battery |
| Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::64.8 lb
GEAR INCHES::28"-106"

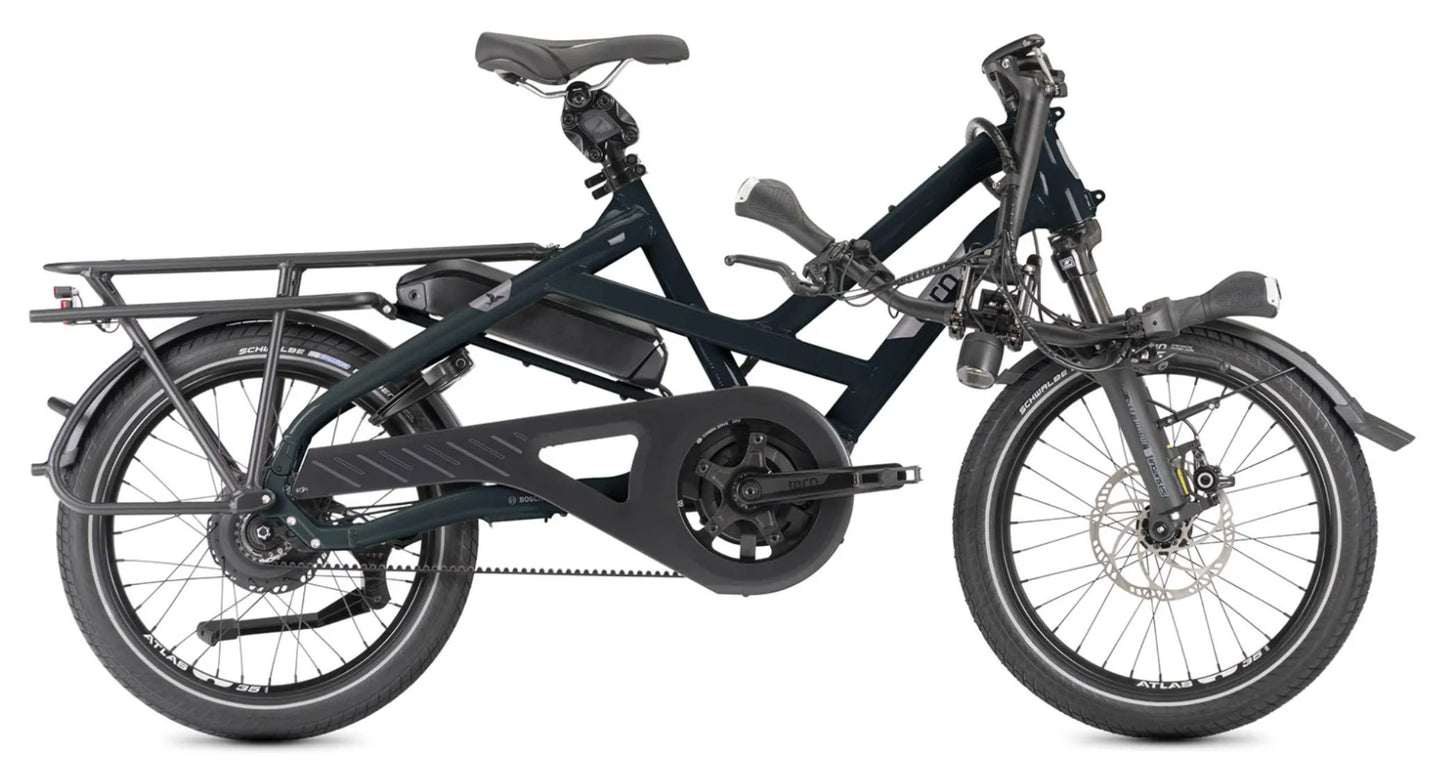

FOLDING SIZE::65 × 15.6 × 34.3 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::20.5 - 24.6 in
DISTANCE, SADDLE TO PEDAL::29.9 - 43.3 in

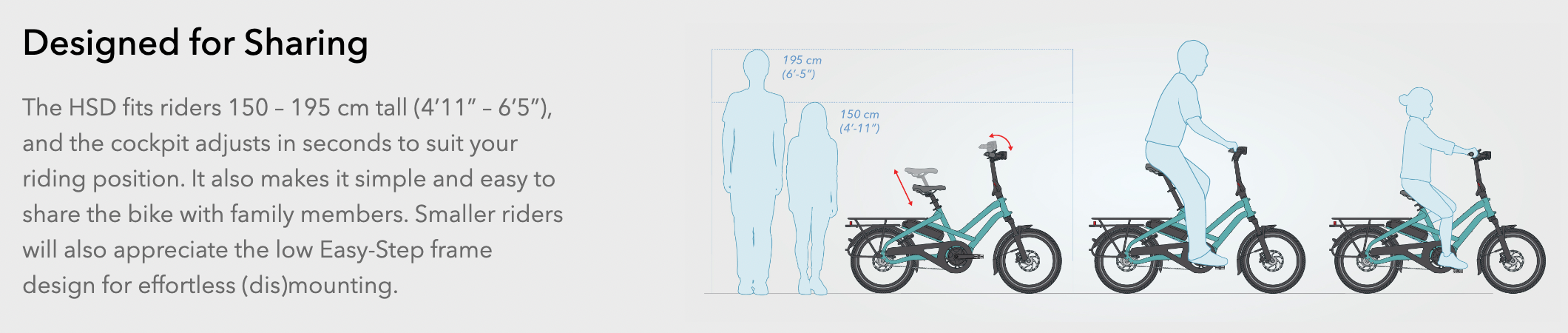

SUGGESTED RIDER HEIGHT::59.1 - 76.8 in
MAX GROSS VEHICLE WEIGHT::396.8 lb
MAX RIDER WEIGHT::264.6 lb
The Full Scoop on Tern HSD S00
The HSD offers the benefits of cargo with the convenience and handling of less bulky cargo bikes. A hauling capacity of 397lbs in a sleak, lean and nimble package. Load up on groceries, take your furry friends or the kiddos out to run errands, without the worry of overloading. Safety and reliabilty you can count on.
*Optional accessories available
Description
The HSD offers the benefits of cargo with the convenience and handling of less bulky cargo bikes. A hauling capacity of 397lbs in a sleak, lean and nimble package. Load up on groceries, take your furry friends or the kiddos out to run errands, without the worry of overloading. Safety and reliabilty you can count on.
*Optional accessories available
Motor System
| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |
| Display | Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 4A |
Components
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Rear Shock | Not applicable |
| Front Brake | Magura MT4, hydraulic disc, 180 mm rotor |
| Rear Brake | Magura MT4, hydraulic disc, 160 mm rotor |
| Rear Derailleur | Not applicable |
| Shift Levers | Enviolo, Twist |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Tern Atlas H, wide 35 mm |
| Front Hub | Novatec, Thru-axle, sealed bearings |
| Rear Hub | Enviolo Heavy Duty, 380% continuously variable range |
| Front Tire | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Rear Tire | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern Upright by Velo |
| Seat post | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
Extras
| Pedals | Urban with non-slip surface, sealed bearings |
| Front Light | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light | RearStop Brake Light, Always on |
| Kickstand | Ursus rear mount |
| Rear Carrier | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity |
| Fenders | SKS, stainless hardware |
| Bell | Pitch Plus, brass |
| Lock | ABUS, keyed-alike with Bosch battery |
| Mirror | Not applicable |
Geometry
FRAME SIZE:: One Size
WEIGHT::64.8 lb
GEAR INCHES::28"-106"
FOLDING SIZE::65 × 15.6 × 34.3 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::20.5 - 24.6 in
DISTANCE, SADDLE TO PEDAL::29.9 - 43.3 in
SUGGESTED RIDER HEIGHT::59.1 - 76.8 in
MAX GROSS VEHICLE WEIGHT::396.8 lb
MAX RIDER WEIGHT::264.6 lb
