The Full Scoop on the 2021 Tern HSD S11

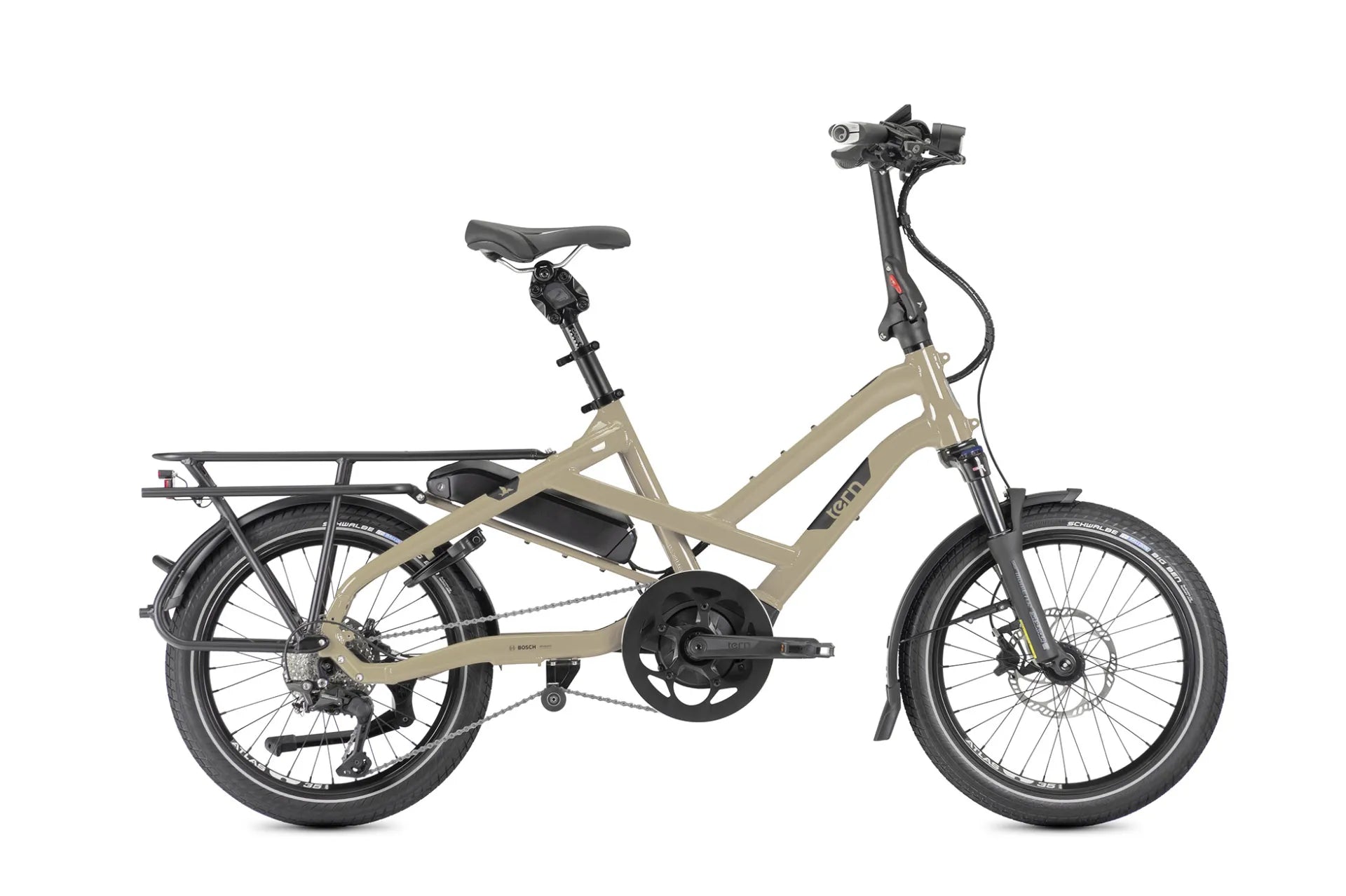

  • The HSD is mighty but mini: It’s easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that’s shorter than a standard bicycle.

  • Components subject to manufacturer changes

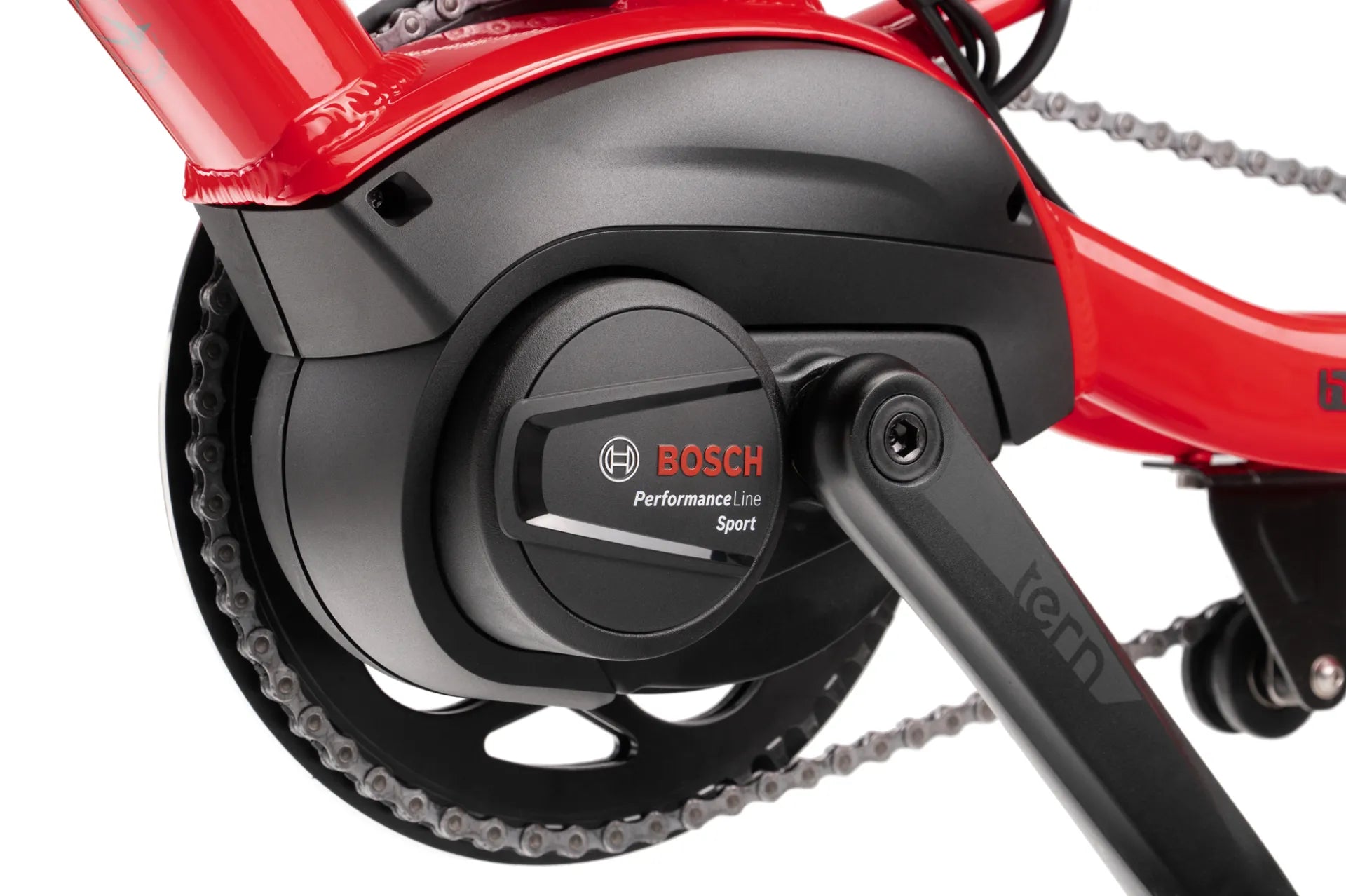

  • Motor Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph (US)
    Battery Bosch PowerPack 500

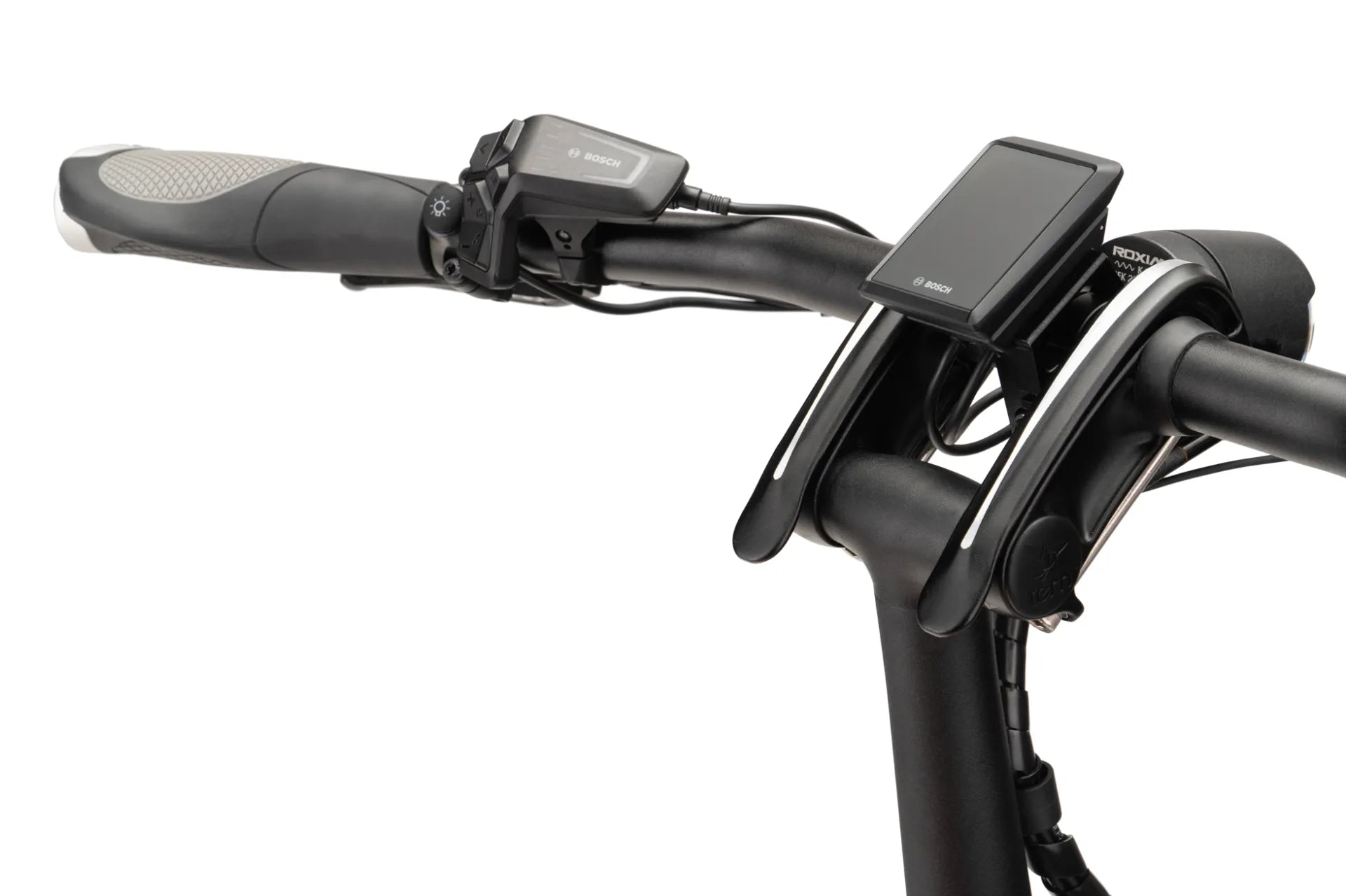

    Display Bosch Intuvia
  • Fork Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE Tri-Test approved: 170 kg
    Brakes Magura MT5, hydraulic disc, 180 mm rotor, 160mm rear
    Shifters Shimano Deore XT, 1 x 11 spd
    Headset Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
    Stem Tern Andros, adjustable, forged construction, patented technology
    Seatpost Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
    Tires

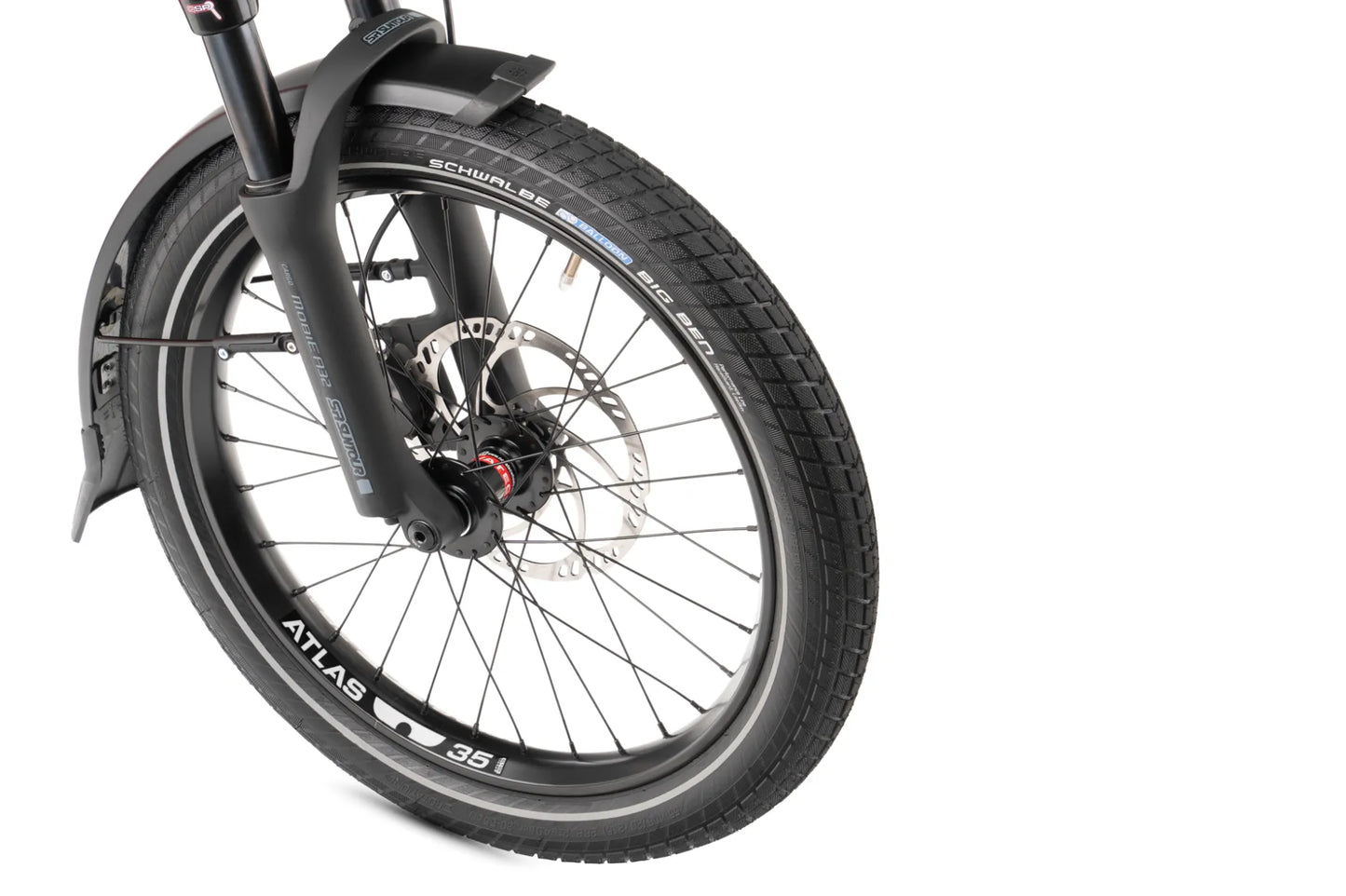

    Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification
    Rims Tern Atlas H, wide 35 mm
    Front Hub Novatec, Thru-axle, sealed bearings
    Rear Hub Novatec, sealed cartridge bearing, disc
    Crankset Tern HSD custom
    Cassette 1-36T, 11 spd
    Chain
    KMC 11 spd, EPT corrosion resistant coating
    Saddle Tern HSD
    Handlebar Tern Sweep, 6061-AL, Tern Andros adapted
    Handlepost Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
    Pedals Urban with non-slip surface, sealed bearings
  • Grips Ergon

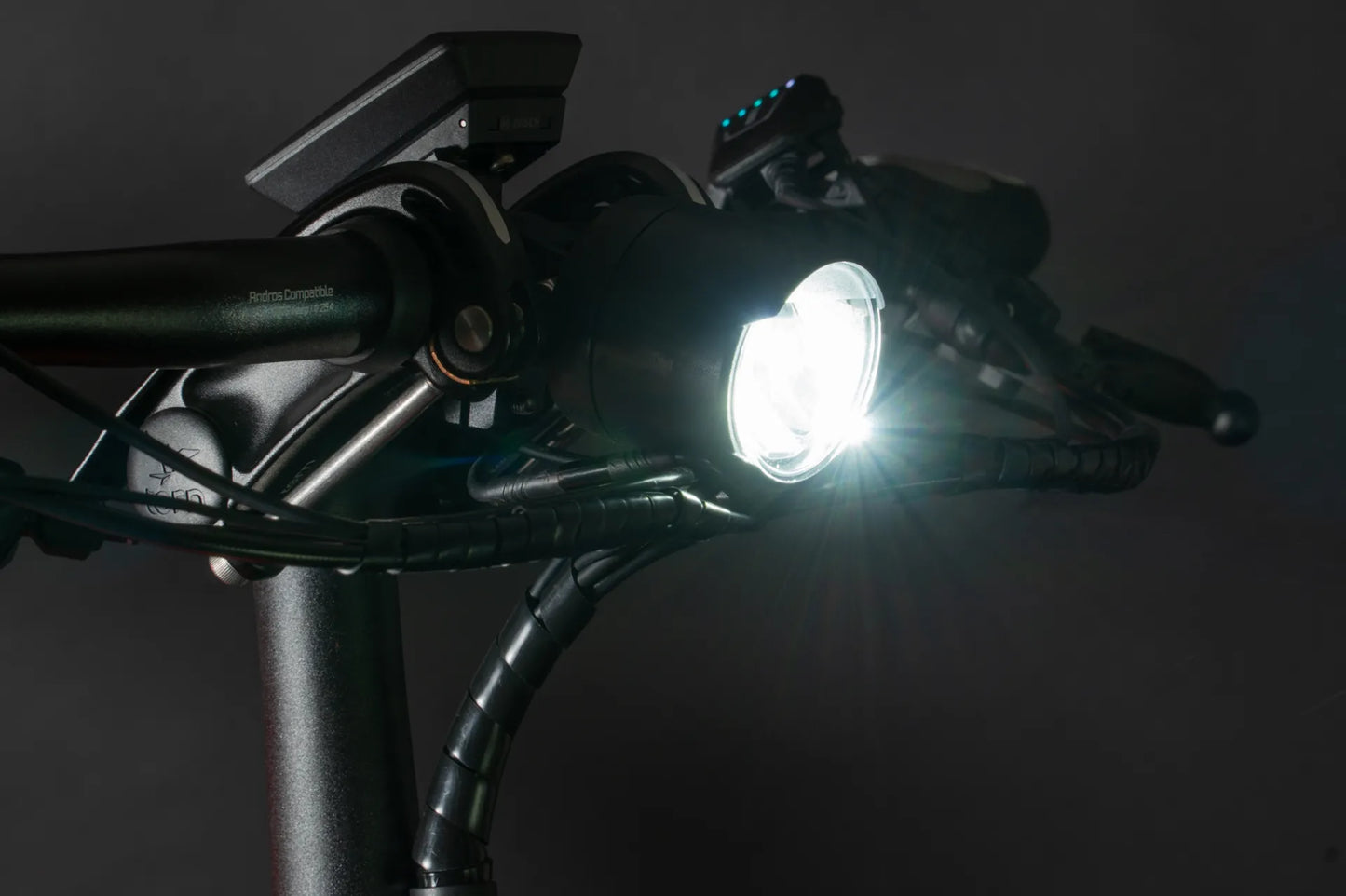

    Front Light Tern Valo Direct 190 lumens
    Tail Light Herrmans H-Trace, for eBike
    Fenders SKS, stainless hardware
    Luggage Socket combo mount
    Rack(s) Atlas H rack, Atlas Rack Mount, 6 point mounting
    Bell aluminum
    Kickstand Ursus, rear mount
  • One Size
    WEIGHT:

    265.7 kg (58.7 lb)

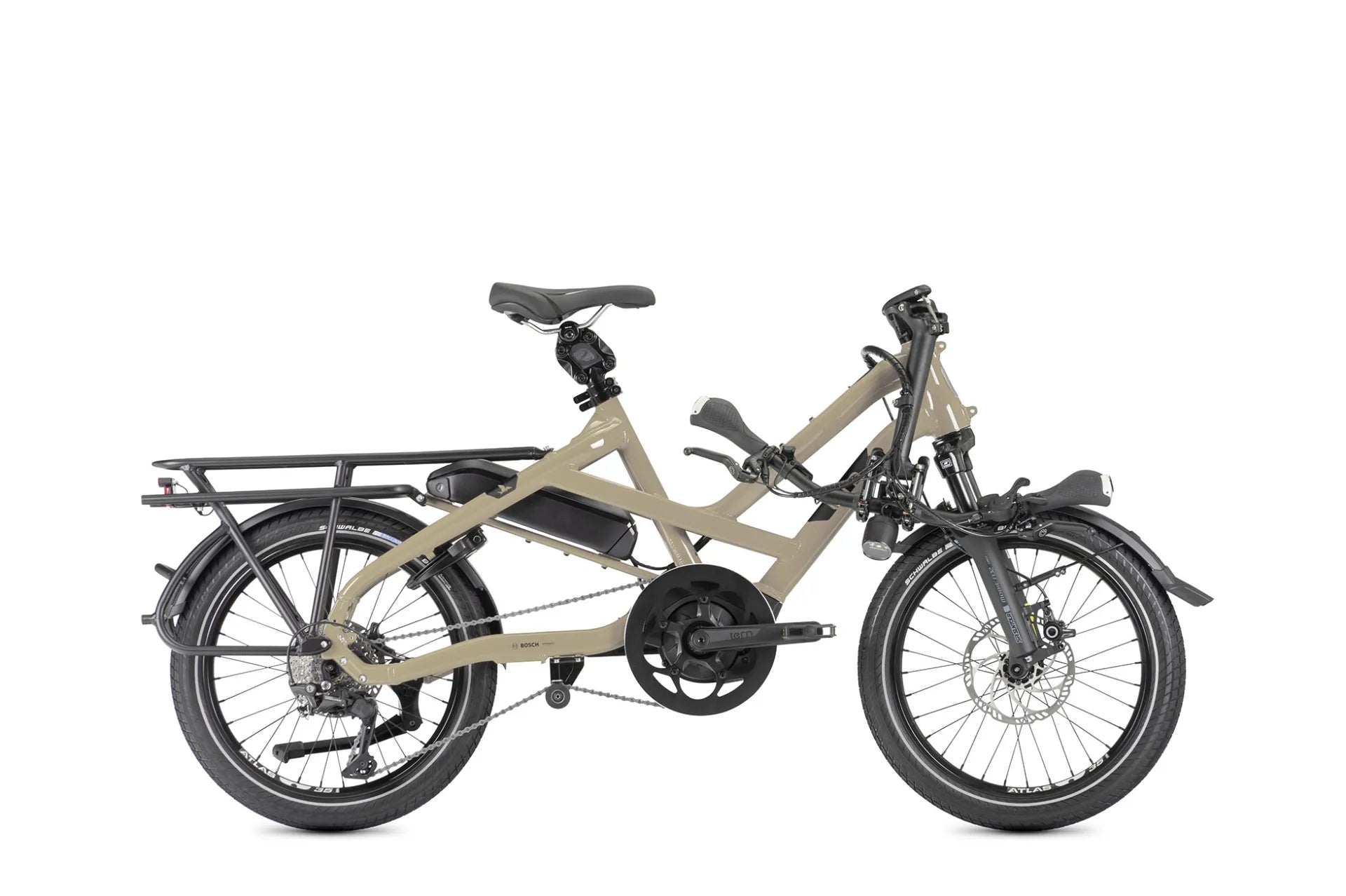

    FOLDING SIZE:
    163 x 40.5 x 86 cm (64" x 15.9" x 34")
    FOLDING TIME:
    5 sec
    FRAME SIZES:
    One size
    GEAR INCHES:
    29" - 111" (2.34 - 8.89 m)
    DISTANCE: SEATPOST TO HANDLEBAR:
    Min: 490 mm (19.3"); Max: 590 mm (23")
    DISTANCE: SADDLE TO PEDAL:
    Min: 690 mm (27.2") Max: 1050 mm (41.3")
    SUGGESTED RIDER HEIGHT:
    150 - 195 cm (4'11" - 6'5")
    MAX GROSS VEHICLE WEIGHT:
    170 kg (374 lbs)
    MAX RIDER WEIGHT:
    120 kg. (264 lbs.)

Not sure which model is right for you?

Please note: Specs and components are provided by the manufacturer, and are subject to change.
