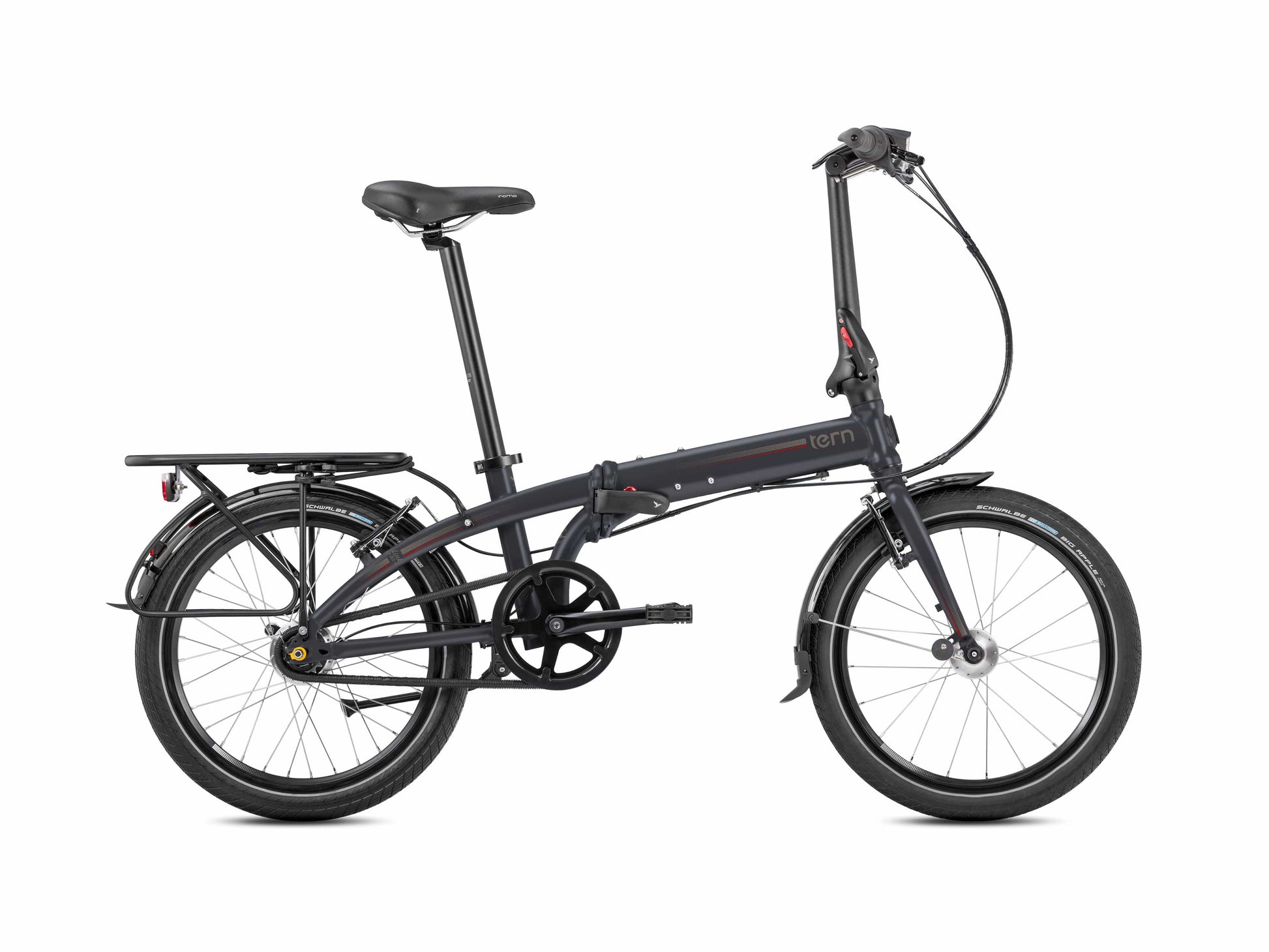

Tern Link D7i

Sizing Guide
Tern Link D7i

Tern Bikes are available for pick up only at one of our locations in San Diego or Los Angeles.

THE STEALTHY ONE



The Link D7i is perfect for getting around in the city, hauling gear, and riding day-in-day-out. Because it’s built around a durable low seven-speed Nexus internal hub, it’s ideal for carrying onto buses or riding in the rain. Rear rack and integrated lighting with electricity-generating hub are included.

  • 7-speed internal geared Shimano hub for versatility and low maintenance
  • Andros™ handlebar stem for tool-free riding position adjustments on the fly
  • FreeDrive™ chain cover protects your clothes from grease and dirt
  • Bomb-proof wheels built with Sapim spokes
  • Schwalbe Big Apple tires with Kevlar puncture protection
  • Fenders for rainy days

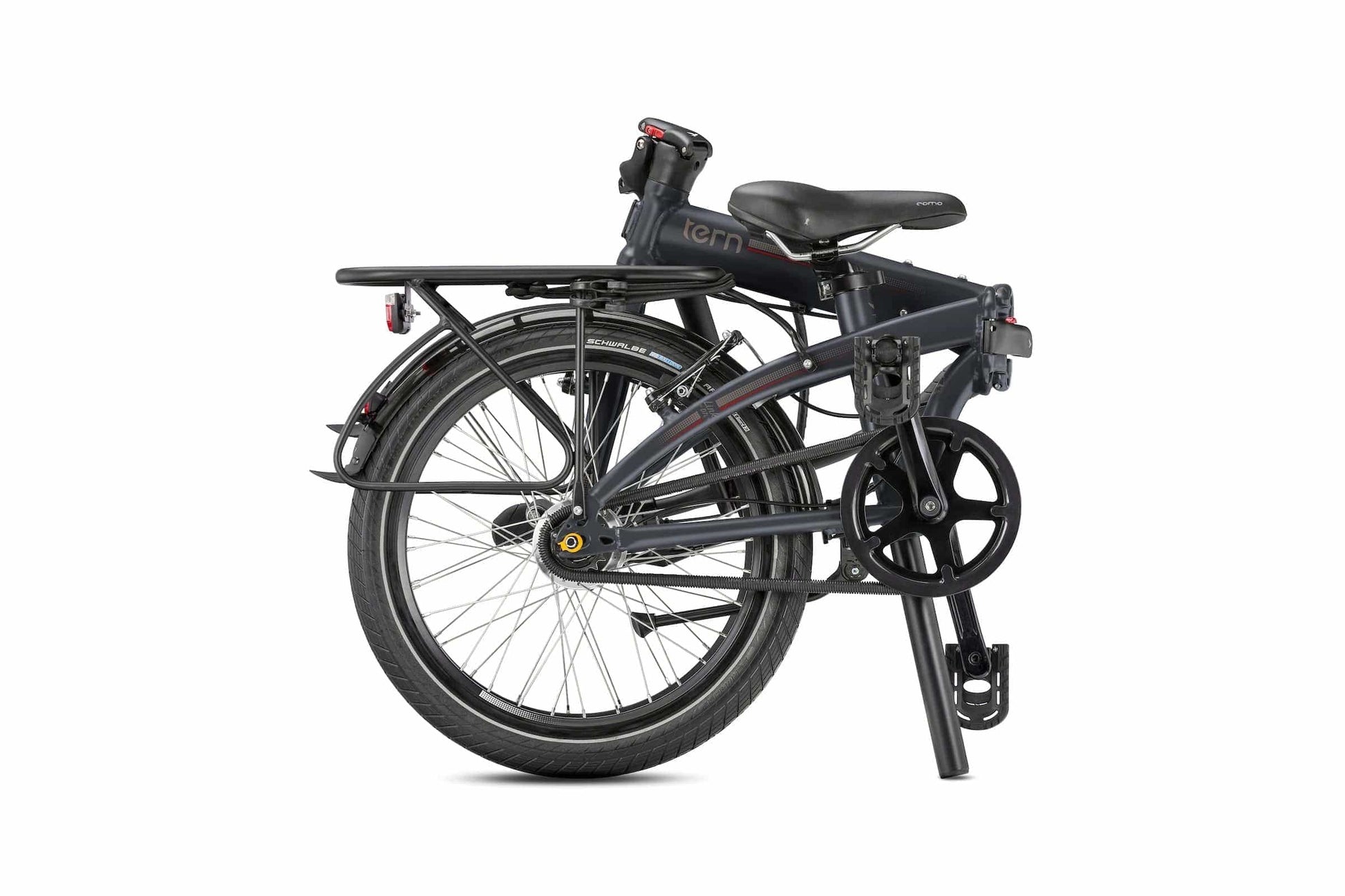

  • Folds compactly in 10 seconds for storage and transport
  • Rear rack and integrated lighting included

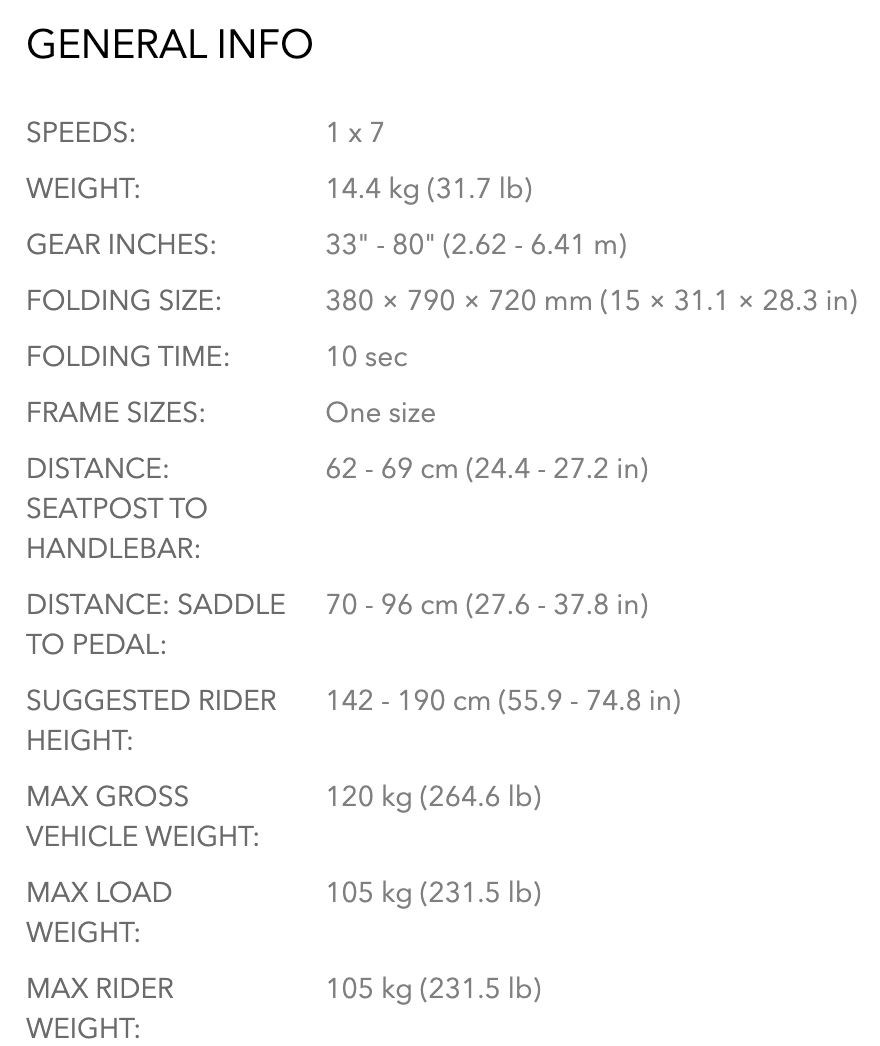

GENERAL INFO

WHEEL SIZE: 20" wheels
SPEEDS: 1 x 7
WEIGHT: 14.4 kg (31.7 lb)
FOLDING SIZE: 38 x 79 x 72 cm (15" x 31.1" x 28.3")
FOLDING TIME: 10 sec
FRAME SIZES: One size
GEAR INCHES: 33" - 80" (2.62 - 6.41 m)
DISTANCE: SEATPOST TO HANDLEBAR: 600 mm (23.6")
DISTANCE: SADDLE TO PEDAL: Min: 700 mm (27.6") Max: 960 mm (37.8")
SUGGESTED RIDER HEIGHT: 142 - 190 cm (4'8" - 6'3")
MAX LOAD WEIGHT: 105 kg (230 lb)
________
FRAME
FRAME: Tern Link, aluminum, OCL Joint, 3 patented technologies
FORK: Integrated, hi-tensile steel
________
COCKPIT
HANDLEPOST: Tern Physis 3D (G2), 3D forged, 5 patented technologies
STEM: Tern Andros (G2), adjustable, forged construction, patented technology
HEADSET: Flux, cartridge bearings, Physis integrated
HANDLEBAR: Flat bar, 6061-Al, Andros butted
GRIPS/BAR TAPE: Velo ergonomic, lock-on
SADDLE: BioLogic Como DLX
SEATPOST: SuperOversize, 6061-Al, micro-adjust clamp
SEATPOST CLAMP: SuperOversize, 6061-Al
________
BRAKES
FRONT BRAKE: V, aluminum, linear spring
REAR BRAKE: V, aluminum, linear spring
BRAKE LEVERS: V, aluminum bracket/lever
BRAKE CABLE & HOUSING: Anti-compression housing, slick cables
________
WHEELS
FRONT HUB: Mini, aluminum; Opt: BioLogic Joule II dynamo
REAR HUB: Shimano Nexus 7 freewheel
SPOKES AND NIPPLES: Sapim Leader, stainless steel
RIMS: Doublewall aluminum
TIRES: Schwalbe Big Apple, 50-406, puncture protection, Reflex
________
TRANSMISSION
SHIFTER(S): Shimano Nexus 7 spd
CRANKSET: Forged 6061 aluminum crank arms, hand-polished
CASSETTE/FREEWHEEL: 17T
BOTTOM BRACKET: Cartridge, sealed bearings
CHAIN: 408H
PEDALS: Folding, alloy body
SHIFTER CABLE & HOUSING: Shimano
________
BELLS & WHISTLES
BELL: Aluminum
CHAINGUARD: BioLogic FreeDrive
KICKSTAND: Deluxe center mount
CLIP SYSTEM: Magnetix 2.0
LUGGAGE SOCKET: Yes
FRONT LIGHT: Included: Tern Valo 2, integrated, 41 lux/150 lumens
REAR LIGHT: Included: Deluxe LED
FENDERS: RP Chromeplastic, stainless hardware
RACK(S): Included: Tern Loader Rack


Not sure which model is right for you?

Call or text a specialist at (619) 399-2792

Please note: Specs and components are provided by the manufacturer, and are subject to change.
