The Full Scoop on the Tern Long Haul D9
Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic, but built extra tough to safely carry 2 kids or your biggest Costco hauls. Best of all, it’s a funner, freer way to get around for you and your family without putting strain on the environment.
*Components subject to manufacturer changes

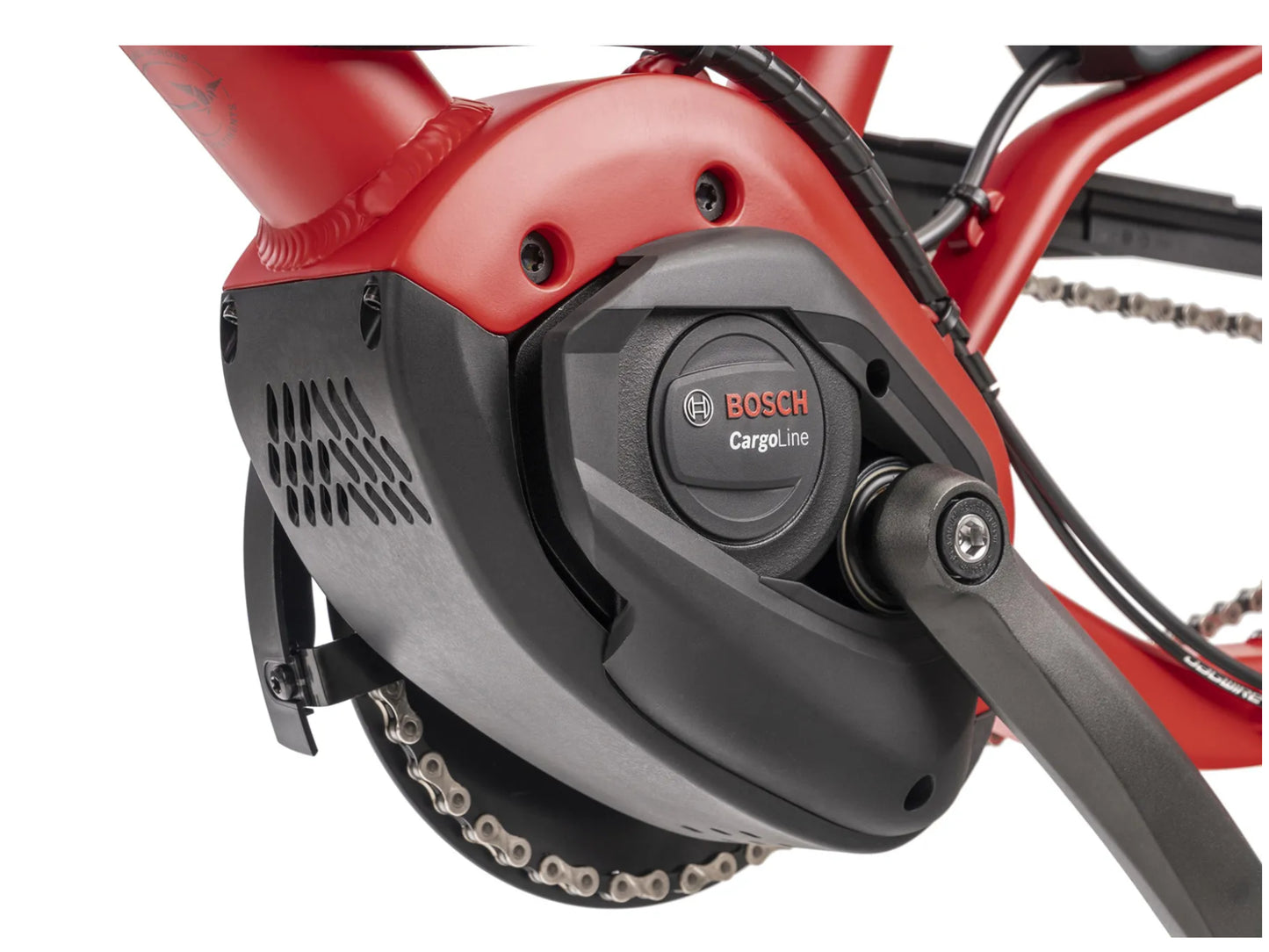

| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 500Wh |
| Display | Bosch Purion |
| Charger | Bosch4a |
| Frame | Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb) |
| Fork | Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb) |
| Rear Shock | Not applicable |
| Front Brake | Tektro hydraulic disc |
| Rear Brake | Tektro hydraulic disc |
| Rear Derailleur | Tektro custom for Tern, 1 x 9 spd |
| Shift Levers | Tektro, 1 x 9 spd, trigger |
| Chain | KMC for eBike, 9 spd |
| Cassette | Tektro 11-42T, 9 spd |
| Crankset | Tern custom, forged 6061-AL crankarm, anti-drop chain |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Tern Atlas H, cargo |
| Front Hub | Disc, aluminum |
| Rear Hub | 9 spd, disc, aluminum, Boost |
| Front Tire | Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex |
| Rear Tire | Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex |
| Handlebar | Low riser, ergo, 31.8, 6061-AL |
| Stem | Speedlifter, adjustable, 3D Forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Grips | Velo ergonomic, lock-on |
| Saddle | Velo comfort |
| Seatpost | 34.9 mm, 6061-AL, micro-adjust clamp |
| Pedals | Urban with non-slip surface |
| Front Light | 90 lux, StVZO approved |
| Rear Light | Herrmans |
| Kickstand | Atlas Kickstand, for cargo |
| Rear Carrier | Atlas L, 198 lb capacity |
| Fenders | SplashGuard, stainless hardware |
| Bell | Aluminum |
| Lock | ABUS or AXA, keyed-alike with Bosch battery |
| Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::64.6 lb
GEAR INCHES::23" - 89"
DISTANCE, SEATPOST TO HANDLEBAR::23.6-25.2 in
DISTANCE, SADDLE TO PEDAL::29.9 - 39 in
SUGGESTED RIDER HEIGHT::61 - 72.8 in
MAX GROSS VEHICLE WEIGHT::418.9 lb
MAX RIDER WEIGHT::264.6 lb
The Full Scoop on the Tern Long Haul D9
Quick Haul Long is a compact cargo bike for families on the go. It’s similar in length to a regular bike for easy maneuvering past traffic, but built extra tough to safely carry 2 kids or your biggest Costco hauls. Best of all, it’s a funner, freer way to get around for you and your family without putting strain on the environment.
*Components subject to manufacturer changes
Motor System
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch PowerPack 500Wh |
| Display | Bosch Purion |
| Charger | Bosch4a |
Components
| Frame | Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb) |
| Fork | Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb) |
| Rear Shock | Not applicable |
| Front Brake | Tektro hydraulic disc |
| Rear Brake | Tektro hydraulic disc |
| Rear Derailleur | Tektro custom for Tern, 1 x 9 spd |
| Shift Levers | Tektro, 1 x 9 spd, trigger |
| Chain | KMC for eBike, 9 spd |
| Cassette | Tektro 11-42T, 9 spd |
| Crankset | Tern custom, forged 6061-AL crankarm, anti-drop chain |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Tern Atlas H, cargo |
| Front Hub | Disc, aluminum |
| Rear Hub | 9 spd, disc, aluminum, Boost |
| Front Tire | Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex |
| Rear Tire | Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex |
| Handlebar | Low riser, ergo, 31.8, 6061-AL |
| Stem | Speedlifter, adjustable, 3D Forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Grips | Velo ergonomic, lock-on |
| Saddle | Velo comfort |
| Seatpost | 34.9 mm, 6061-AL, micro-adjust clamp |
Extras
| Pedals | Urban with non-slip surface |

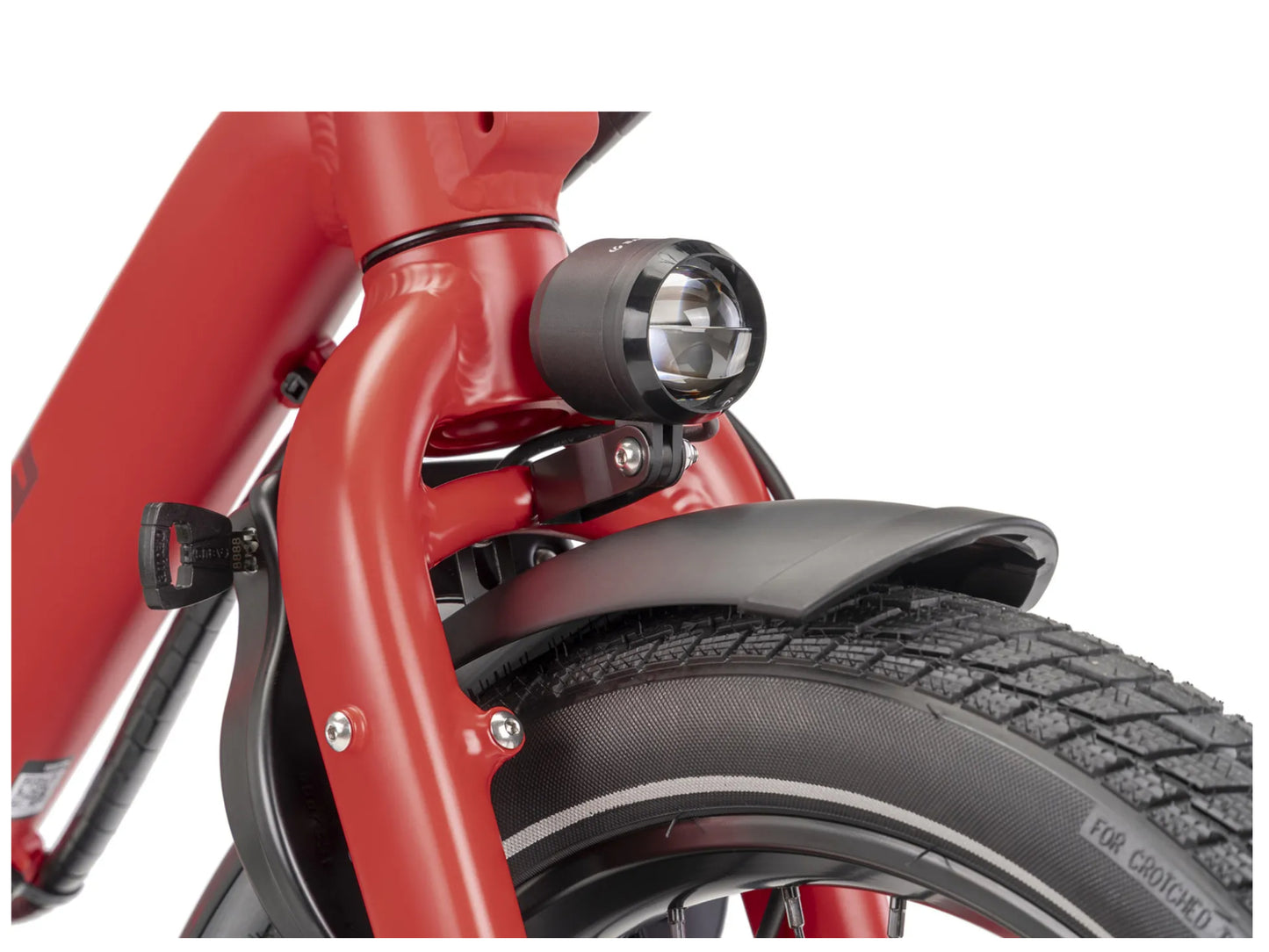

| Front Light | 90 lux, StVZO approved |
| Rear Light | Herrmans |

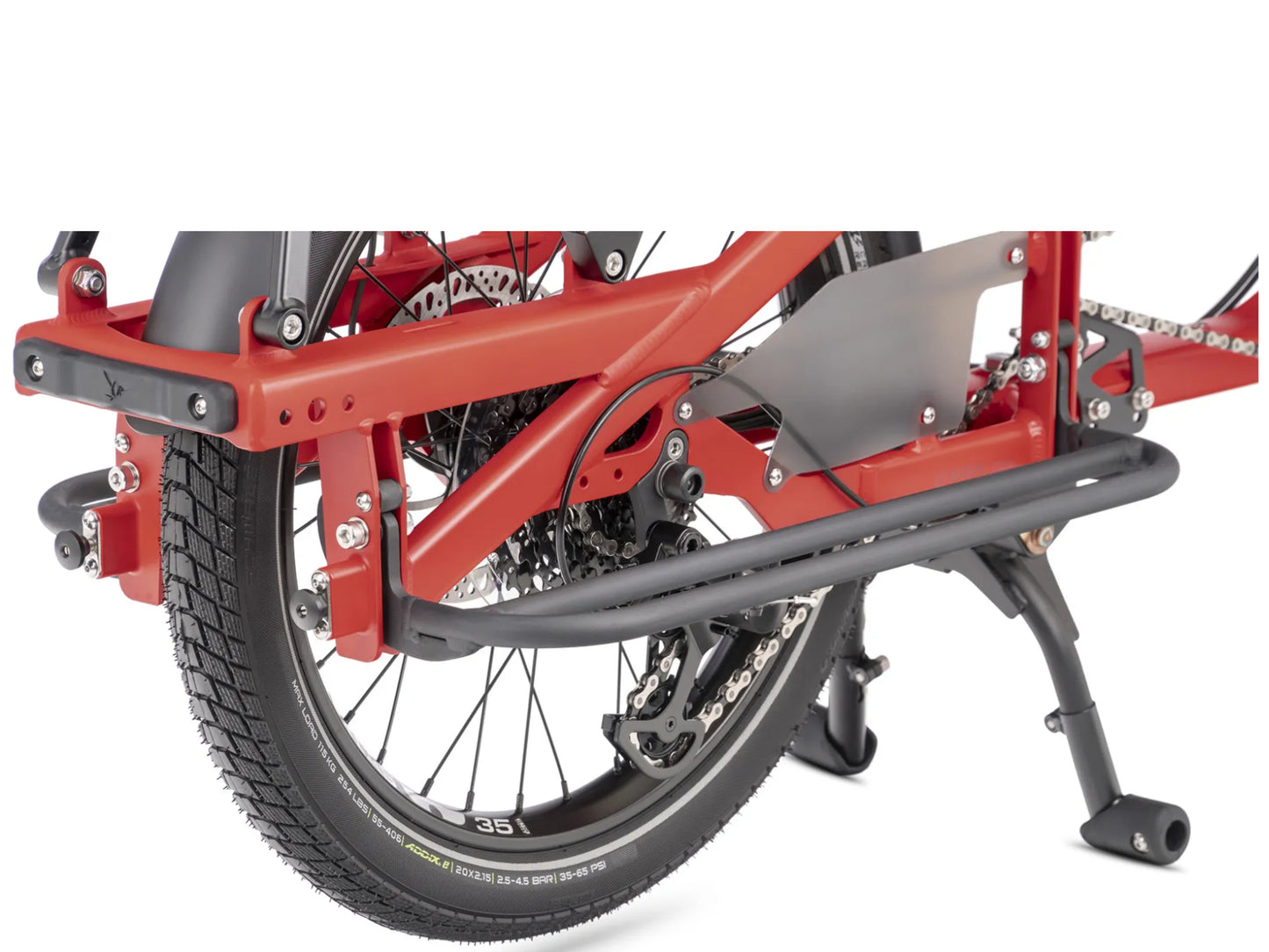

| Kickstand | Atlas Kickstand, for cargo |
| Rear Carrier | Atlas L, 198 lb capacity |
| Fenders | SplashGuard, stainless hardware |
| Bell | Aluminum |
| Lock | ABUS or AXA, keyed-alike with Bosch battery |
| Mirror | Not applicable |
Geometry
FRAME SIZE:: One Size
WEIGHT::64.6 lb
GEAR INCHES::23" - 89"
DISTANCE, SEATPOST TO HANDLEBAR::23.6-25.2 in
DISTANCE, SADDLE TO PEDAL::29.9 - 39 in

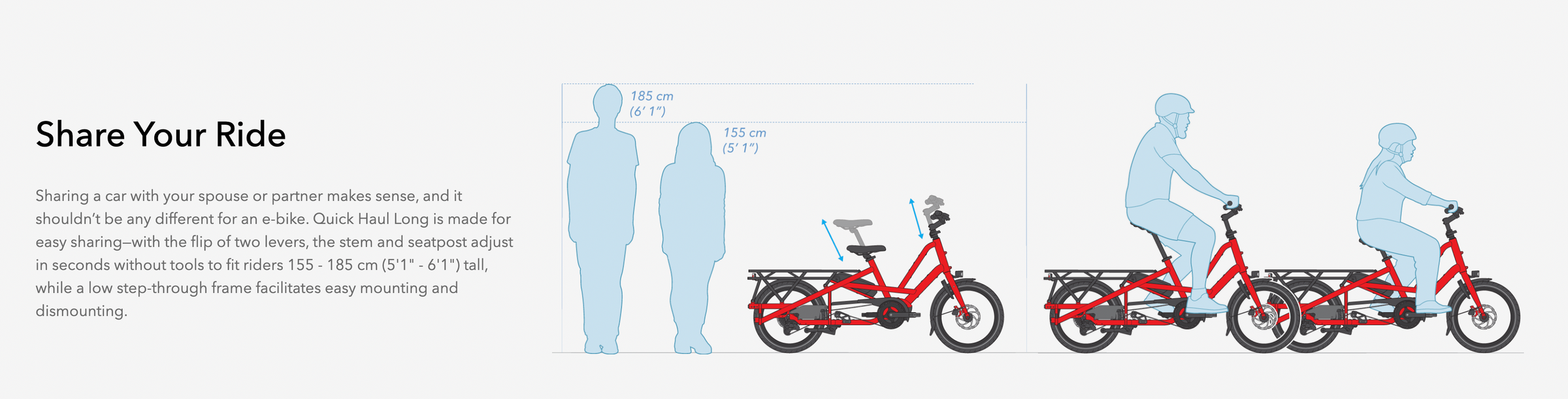

SUGGESTED RIDER HEIGHT::61 - 72.8 in
MAX GROSS VEHICLE WEIGHT::418.9 lb
MAX RIDER WEIGHT::264.6 lb
