The Full Scoop on the Tern NBD P8i

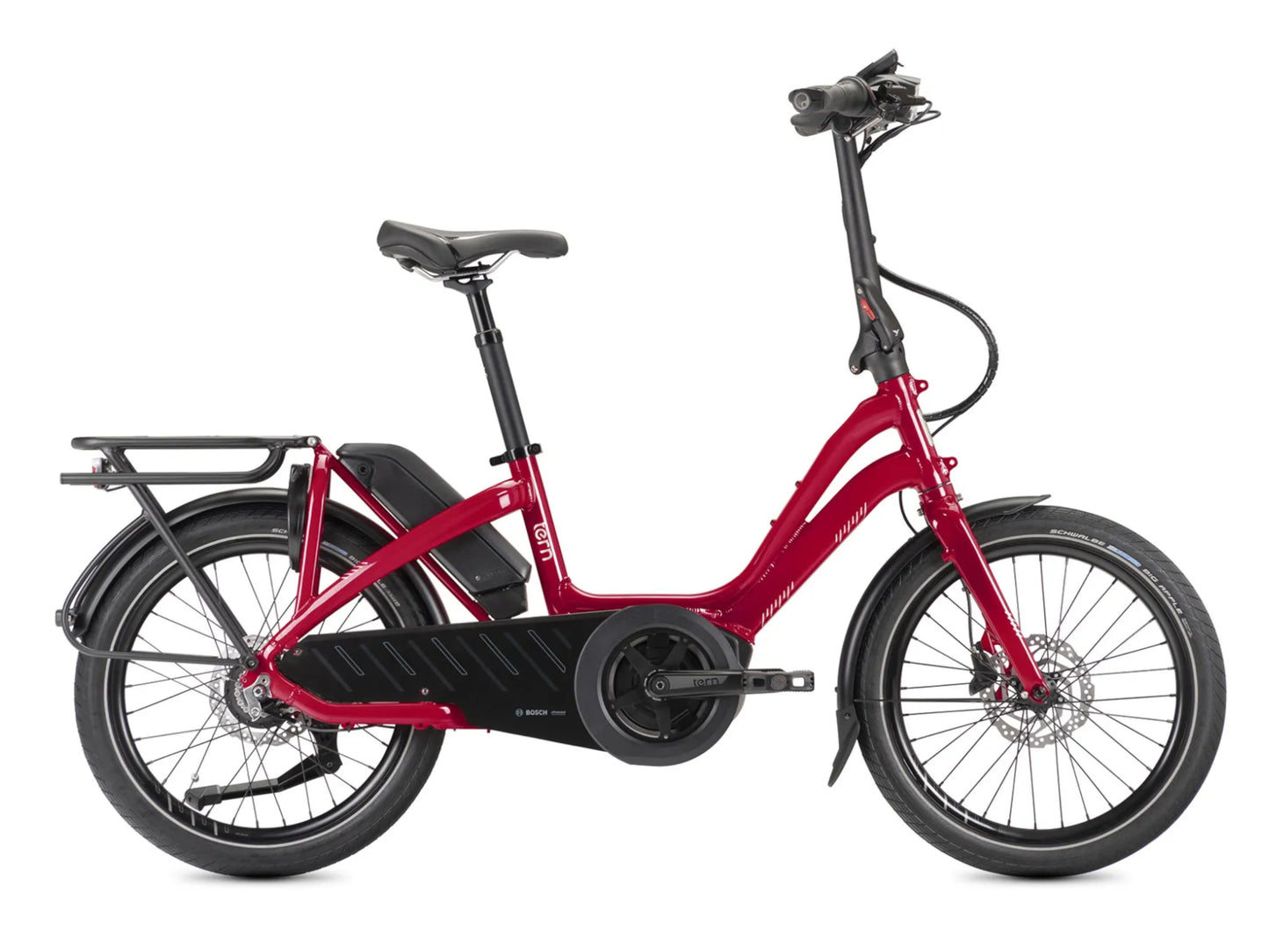

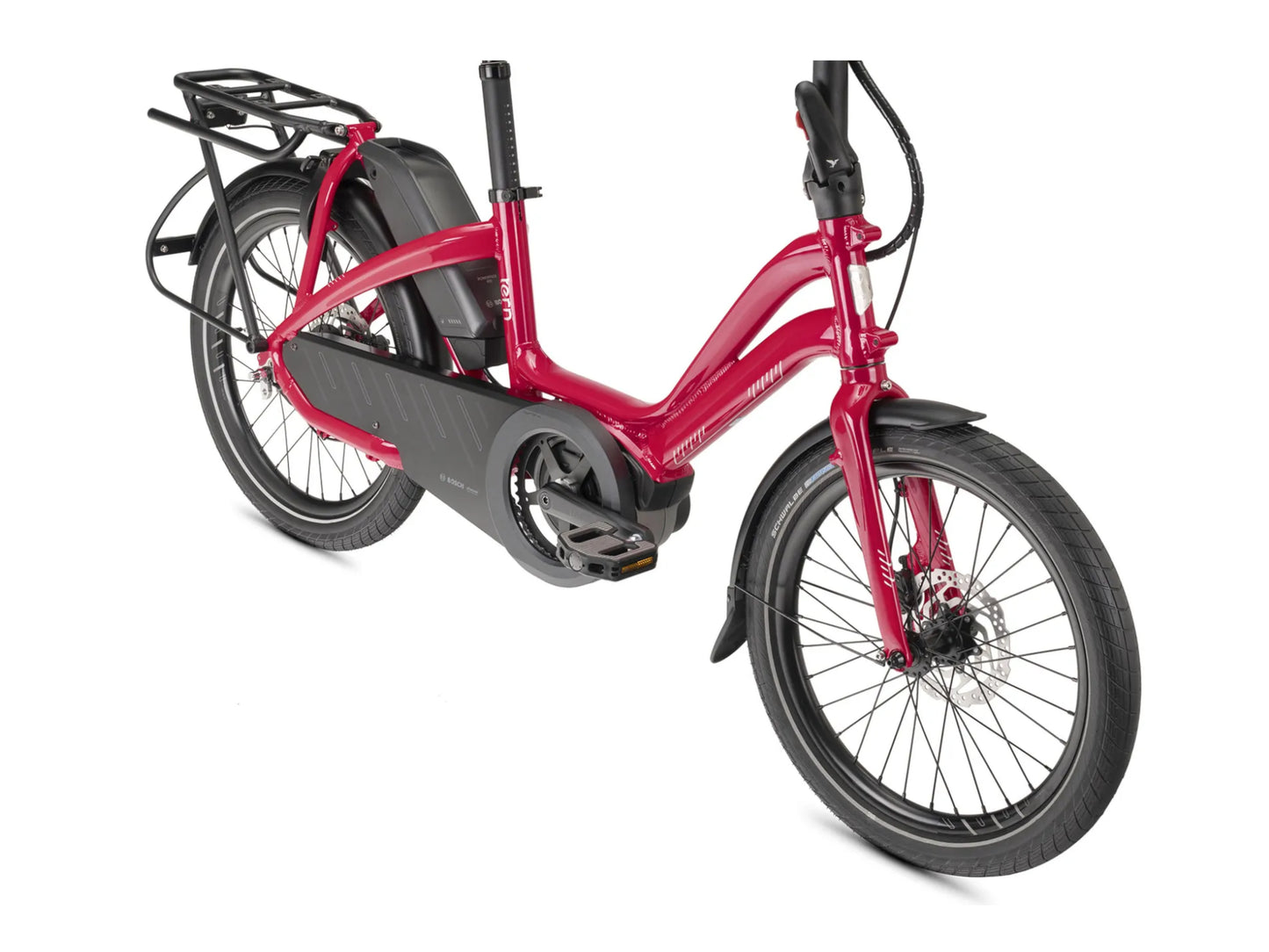

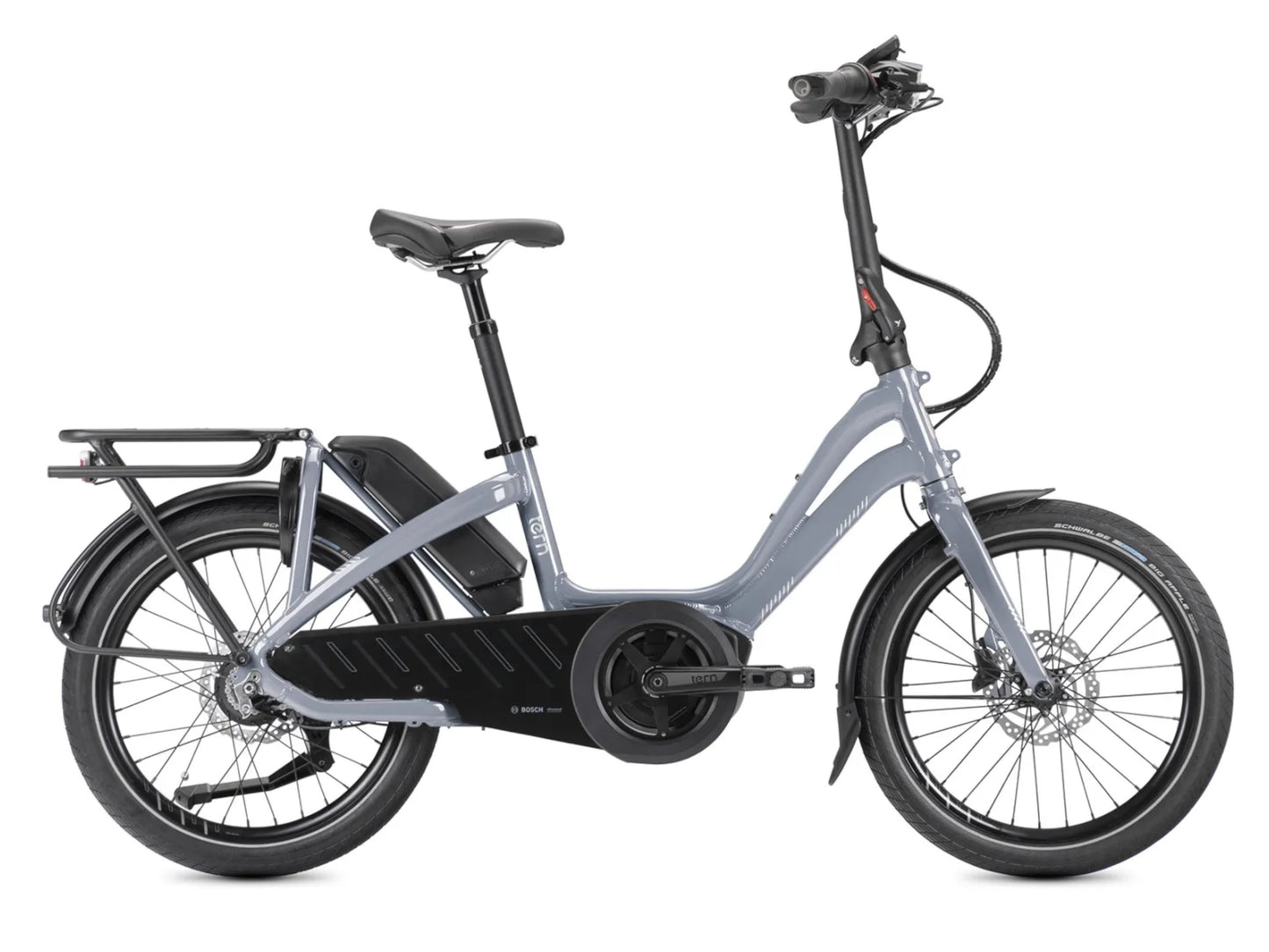

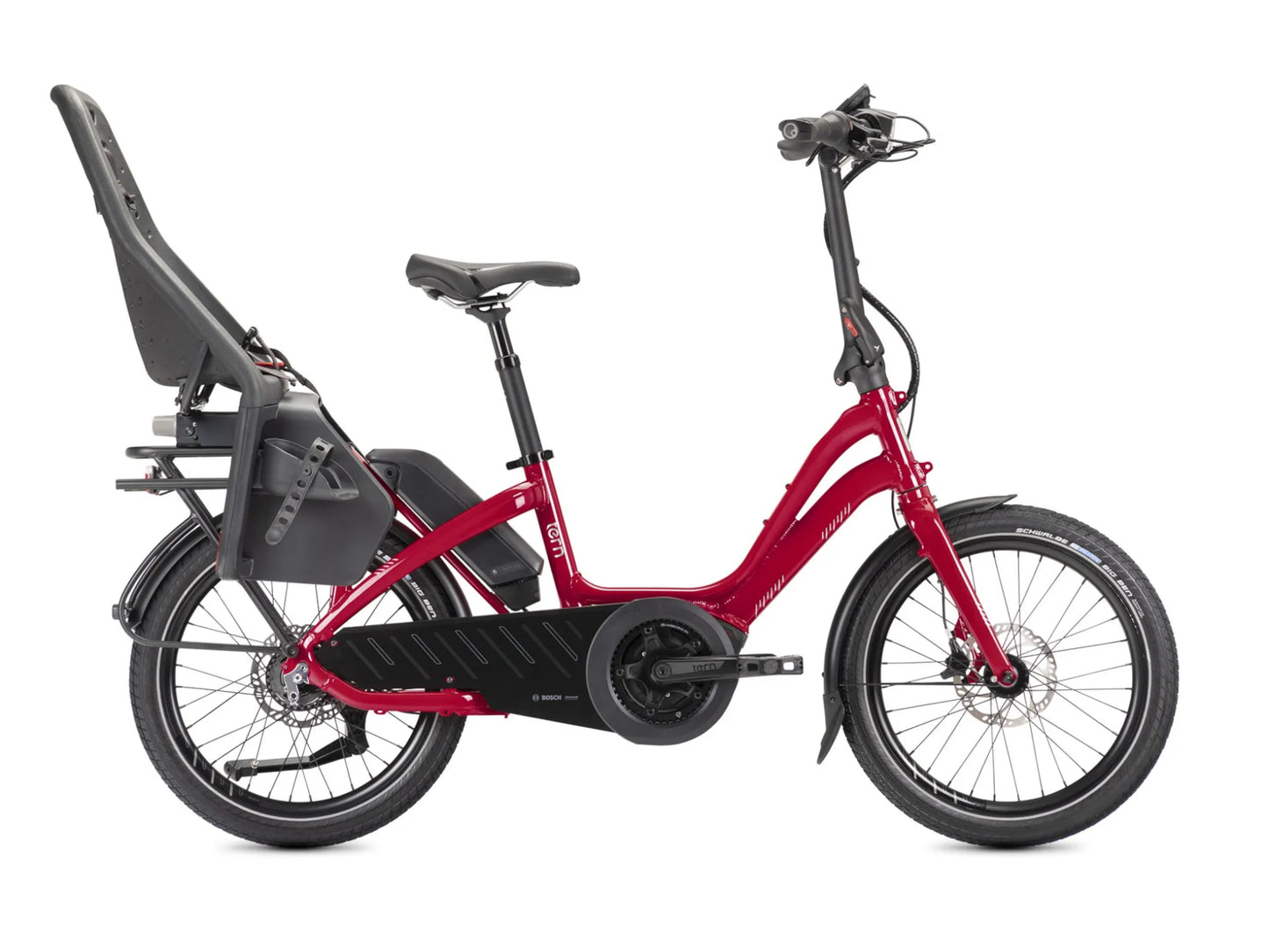

Small in size but big on smiles, the NBD is an easy-to-ride, ultra-low step e-bike that's comfy and welcoming—just like your favorite bike should be. Whether you're a seasoned rider or just thinking about your first e-bike, or whether you're doing a quick grocery run or setting off on a new adventure with your kid, the NBD will bring a smile to your face. Maneuvering along streets and paths or through playgrounds and parks is child’s play thanks to a low center of gravity. Riders have maximum control, and the ultra-low stepover height makes getting off and then back on again a breeze—even when taking a kiddo. The NBD has an adjustable cockpit that only takes seconds to resize, all without tools. Riders 4’10” – 6’3" comfortably fit the NBD, so it comes ready for the whole family to share.
*Components subject to manufacturer changes

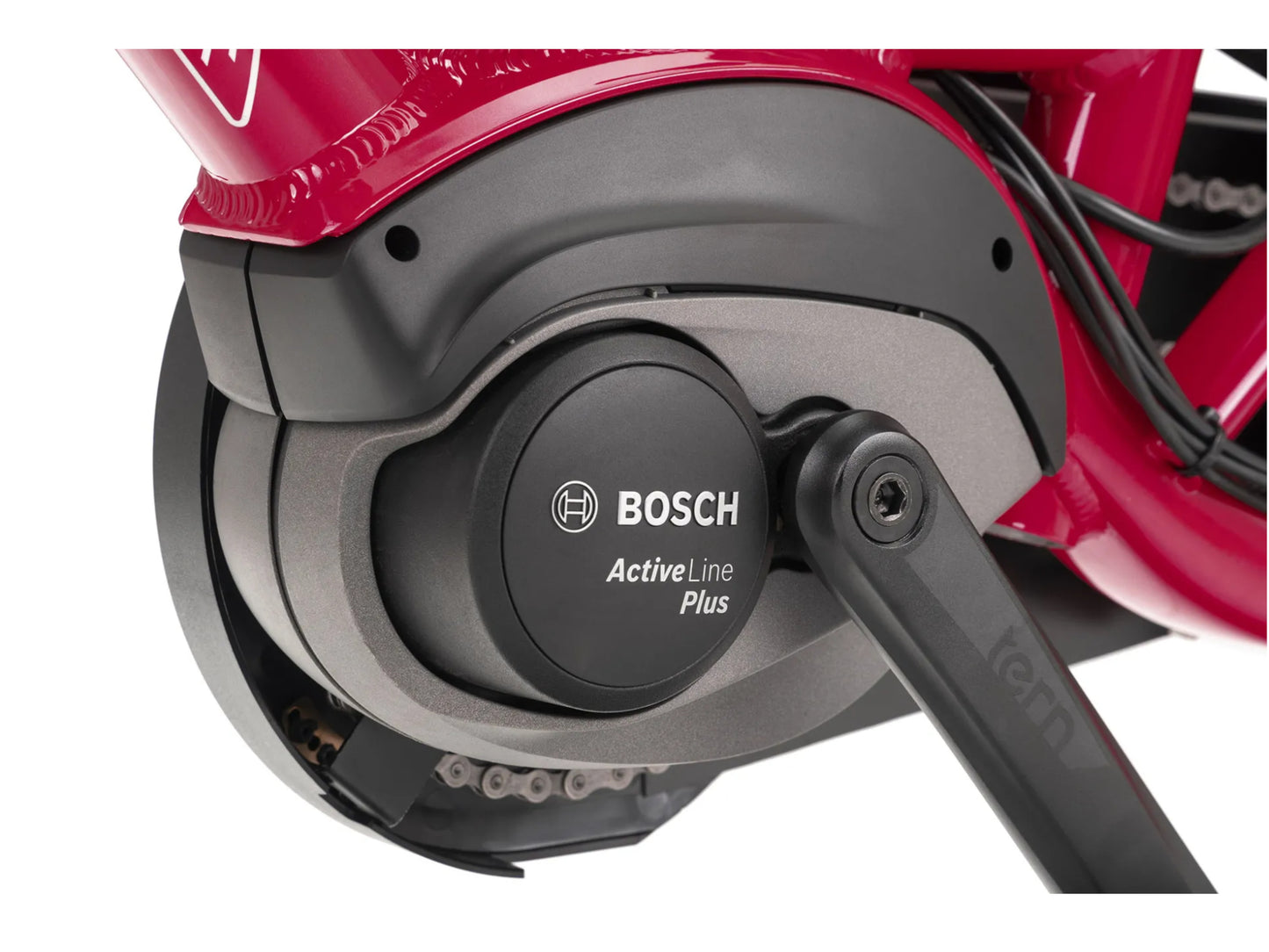

Motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |

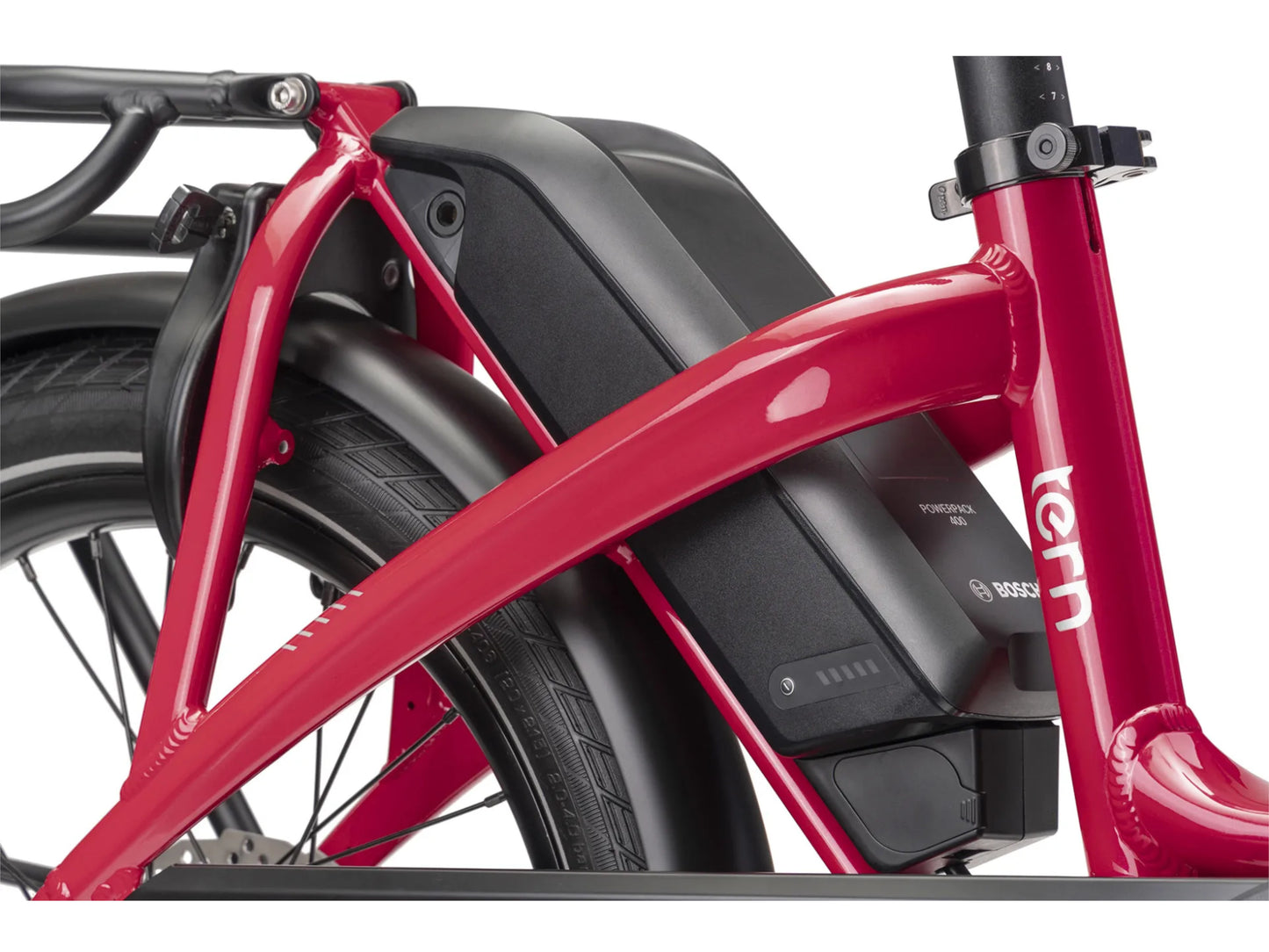

Battery | Bosch PowerPack 400Wh |

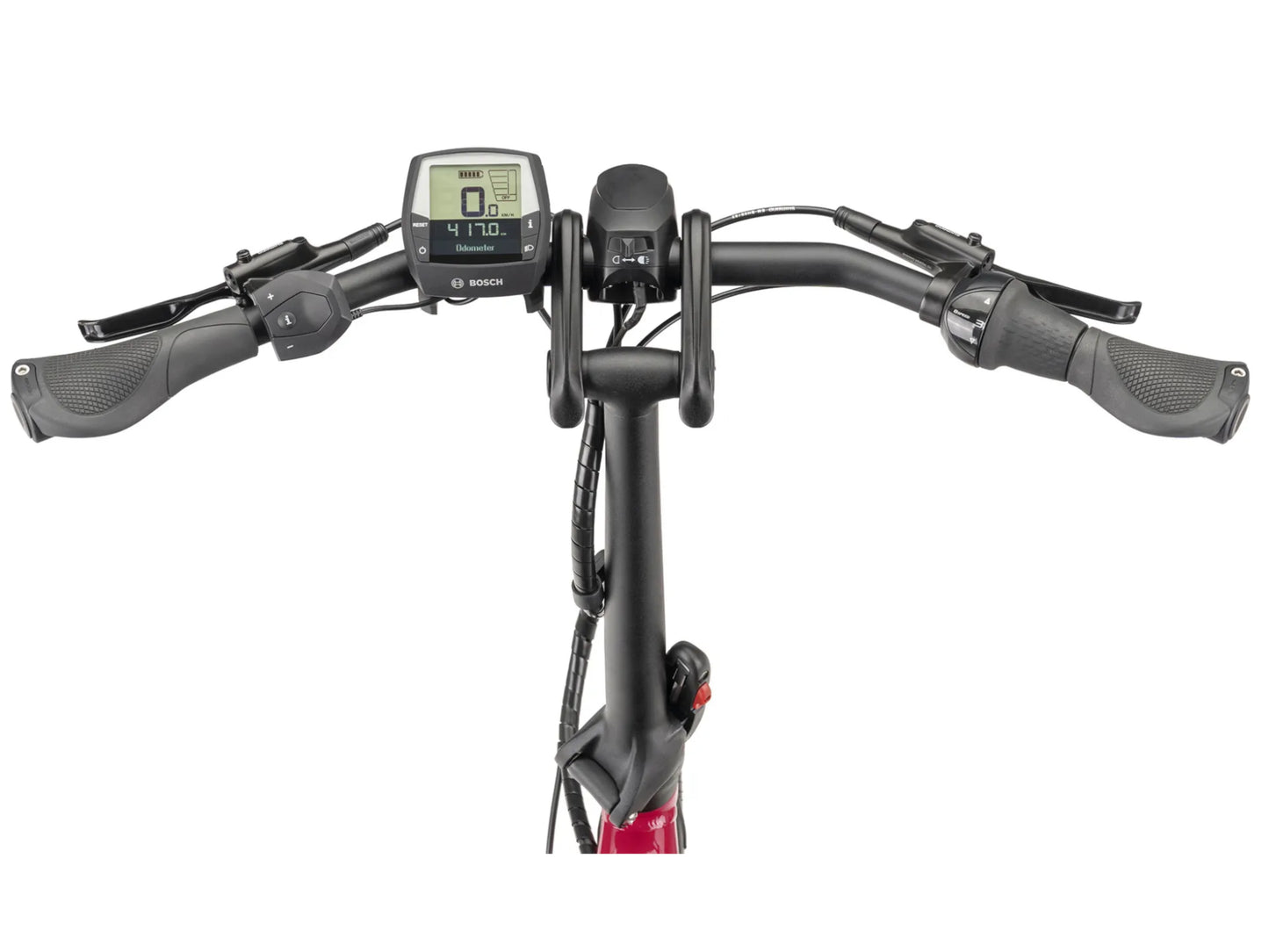

Display | Bosch Intuvia |
Charger | Bosch Standard charger |
Frame | Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 308lbs |
Fork | Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 308lbs |
Rear Shock | Not applicable |
Front Brake | Shimano, hydraulic disc |
Rear Brake | Shimano, hydraulic disc |
Rear Derailleur | Spec not provided |
Shift Levers | Shimano 8 speed |
Chain | KMC for eBike, EPT corrosion resistant coating |
Cassette | 16T |

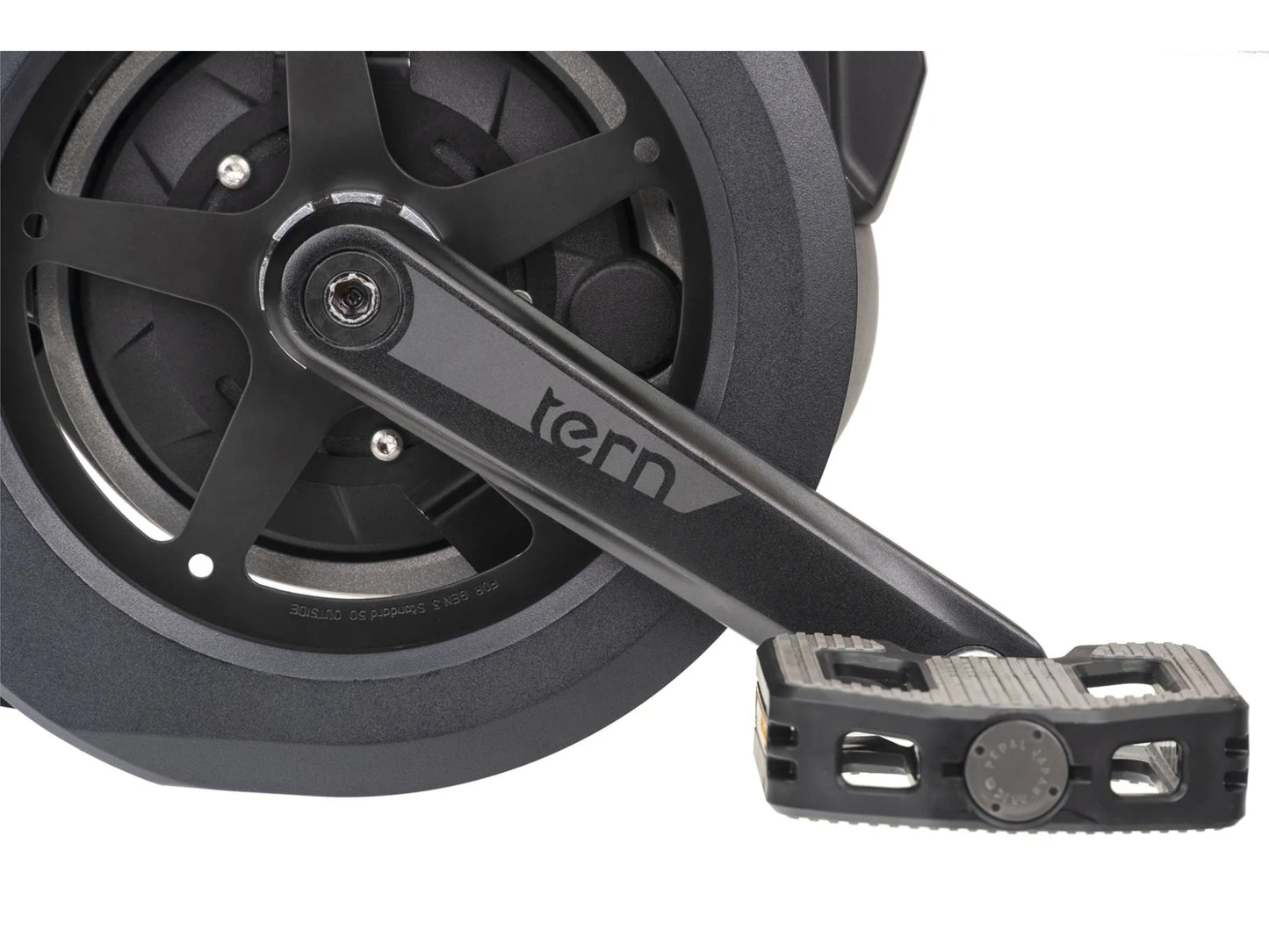

Crankset | Tern NBD custom, forged 6061-AL crankarm |
Chain Ring | Spec not provided |
Chain Guard | Spec not provided |
Rims | Kinetix Comp, for disc |
Front Hub | Shimano disc |
Rear Hub | Shimano Nexus 8 |
Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm |
Stem | Tern Andros, adjustable, forged construction, patented technology |
Headset | Tern Flux, cartridge bearings, Physis integrated |
Grips | Ergon |
Saddle | Tern Upright by Velo |
Seatpost | Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable |
Pedals | MKS Platform, Tern custom design |
Front Light | Tern Valo direct, 190 lumens |
Rear Light | Herrmans |

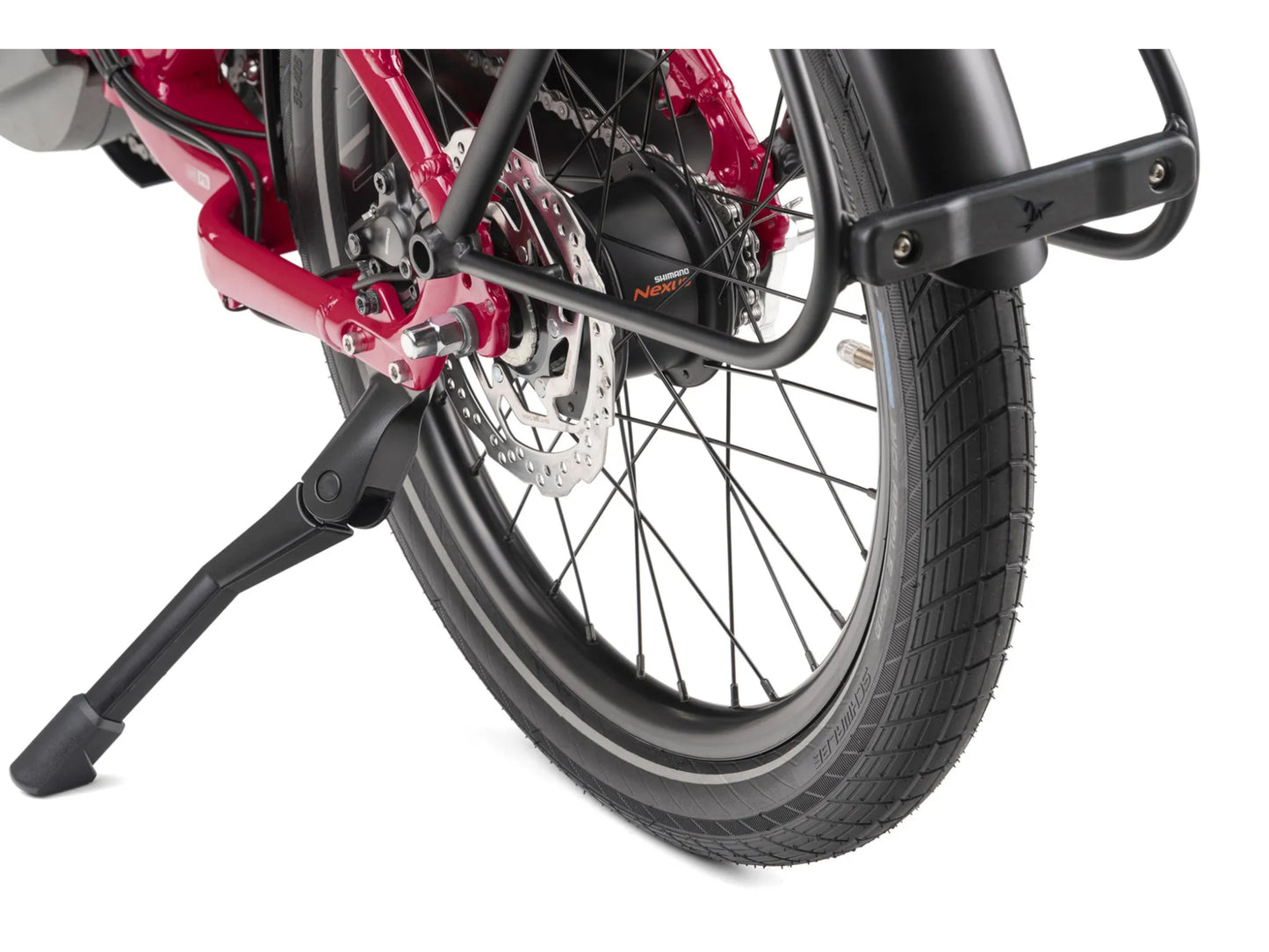

Kickstand | Ursus, rear mount |
Rear Carrier | Gaia Rack, 27 kg capacity, Vertical Parking |
Fenders | SplashGuard, stainless hardware |
Bell | Aluminum |
Lock | ABUS Keyed-alike |
Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::52.2 lb
GEAR INCHES::35" - 85"

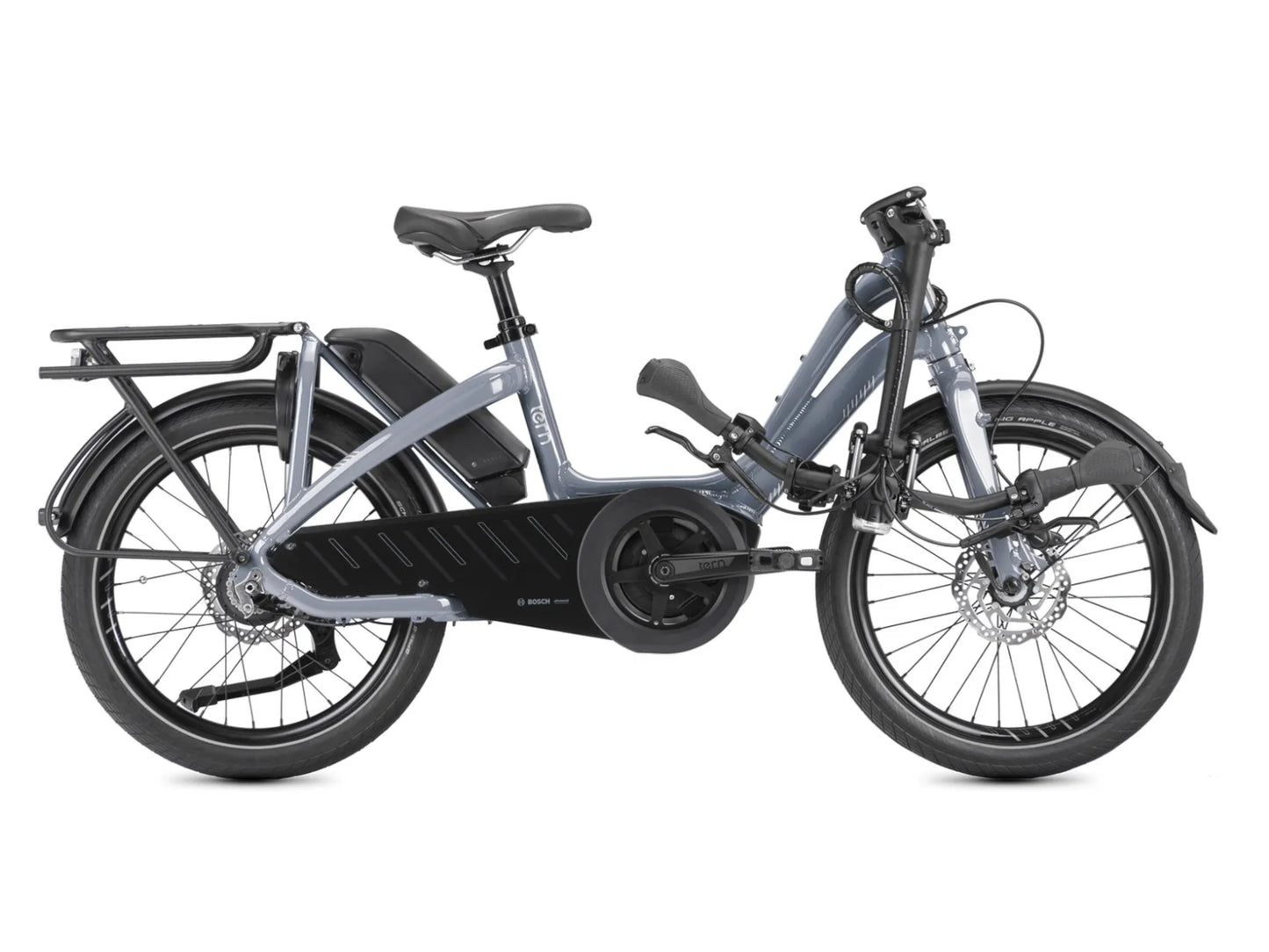

FOLDING SIZE::15 × 61.4 × 31.1 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::17.7 - 20.5 in
DISTANCE, SADDLE TO PEDAL::27.6 - 39.4 in
SUGGESTED RIDER HEIGHT::57.9 - 76.8 in
MAX GROSS VEHICLE WEIGHT::308.6 lb
MAX RIDER WEIGHT::264.6 lb
The Full Scoop on the Tern NBD P8i
Description
Small in size but big on smiles, the NBD is an easy-to-ride, ultra-low step e-bike that's comfy and welcoming—just like your favorite bike should be. Whether you're a seasoned rider or just thinking about your first e-bike, or whether you're doing a quick grocery run or setting off on a new adventure with your kid, the NBD will bring a smile to your face. Maneuvering along streets and paths or through playgrounds and parks is child’s play thanks to a low center of gravity. Riders have maximum control, and the ultra-low stepover height makes getting off and then back on again a breeze—even when taking a kiddo. The NBD has an adjustable cockpit that only takes seconds to resize, all without tools. Riders 4’10” – 6’3" comfortably fit the NBD, so it comes ready for the whole family to share.
*Components subject to manufacturer changes
Motor System
Motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
Battery | Bosch PowerPack 400Wh |
Display | Bosch Intuvia |
Charger | Bosch Standard charger |
Components
Frame | Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 308lbs |
Fork | Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 308lbs |
Rear Shock | Not applicable |
Front Brake | Shimano, hydraulic disc |
Rear Brake | Shimano, hydraulic disc |
Rear Derailleur | Spec not provided |
Shift Levers | Shimano 8 speed |
Chain | KMC for eBike, EPT corrosion resistant coating |
Cassette | 16T |
Crankset | Tern NBD custom, forged 6061-AL crankarm |
Chain Ring | Spec not provided |
Chain Guard | Spec not provided |
Rims | Kinetix Comp, for disc |
Front Hub | Shimano disc |
Rear Hub | Shimano Nexus 8 |
Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm |
Stem | Tern Andros, adjustable, forged construction, patented technology |
Headset | Tern Flux, cartridge bearings, Physis integrated |
Grips | Ergon |

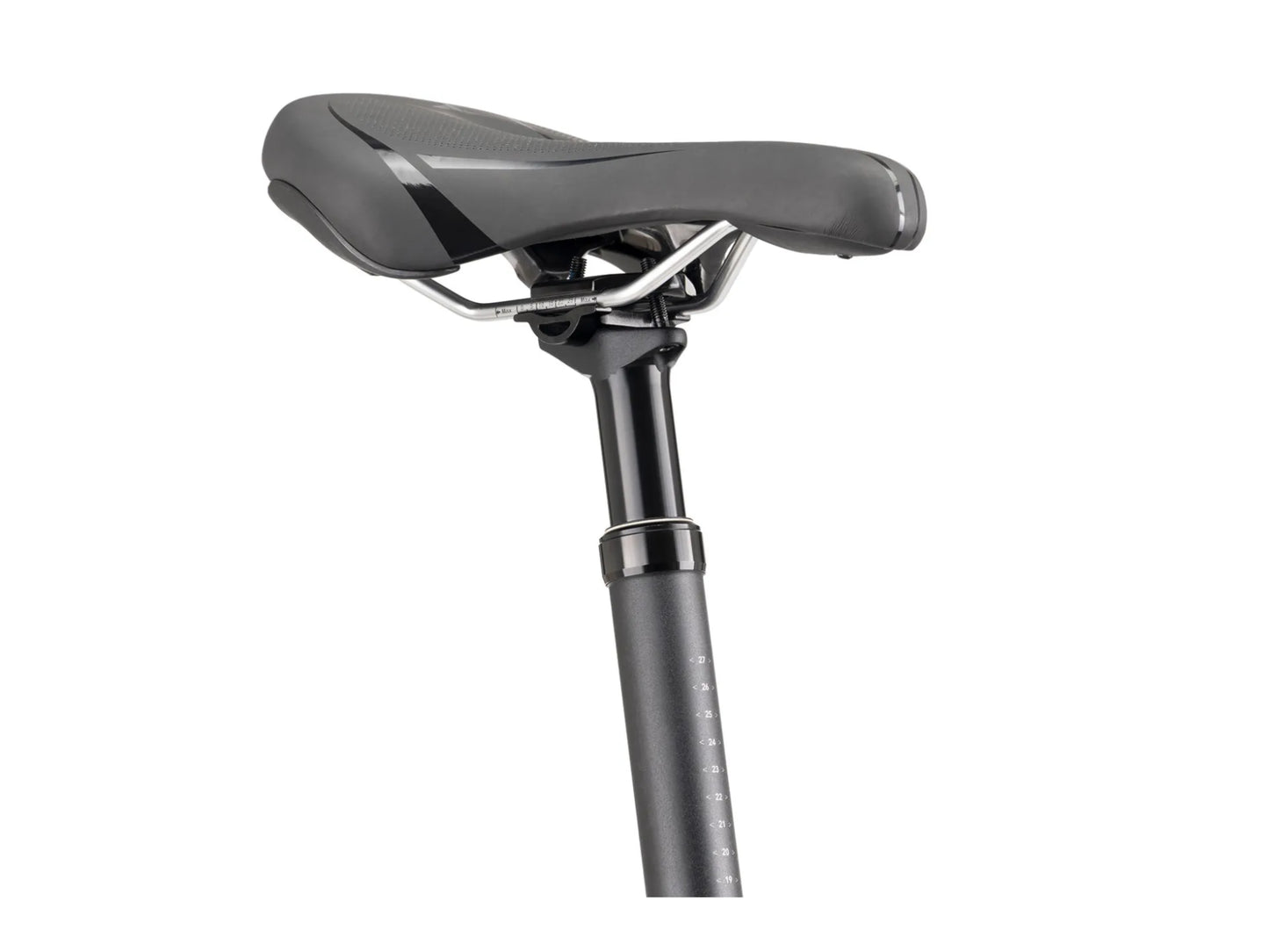

Saddle | Tern Upright by Velo |
Seatpost | Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable |
Extras

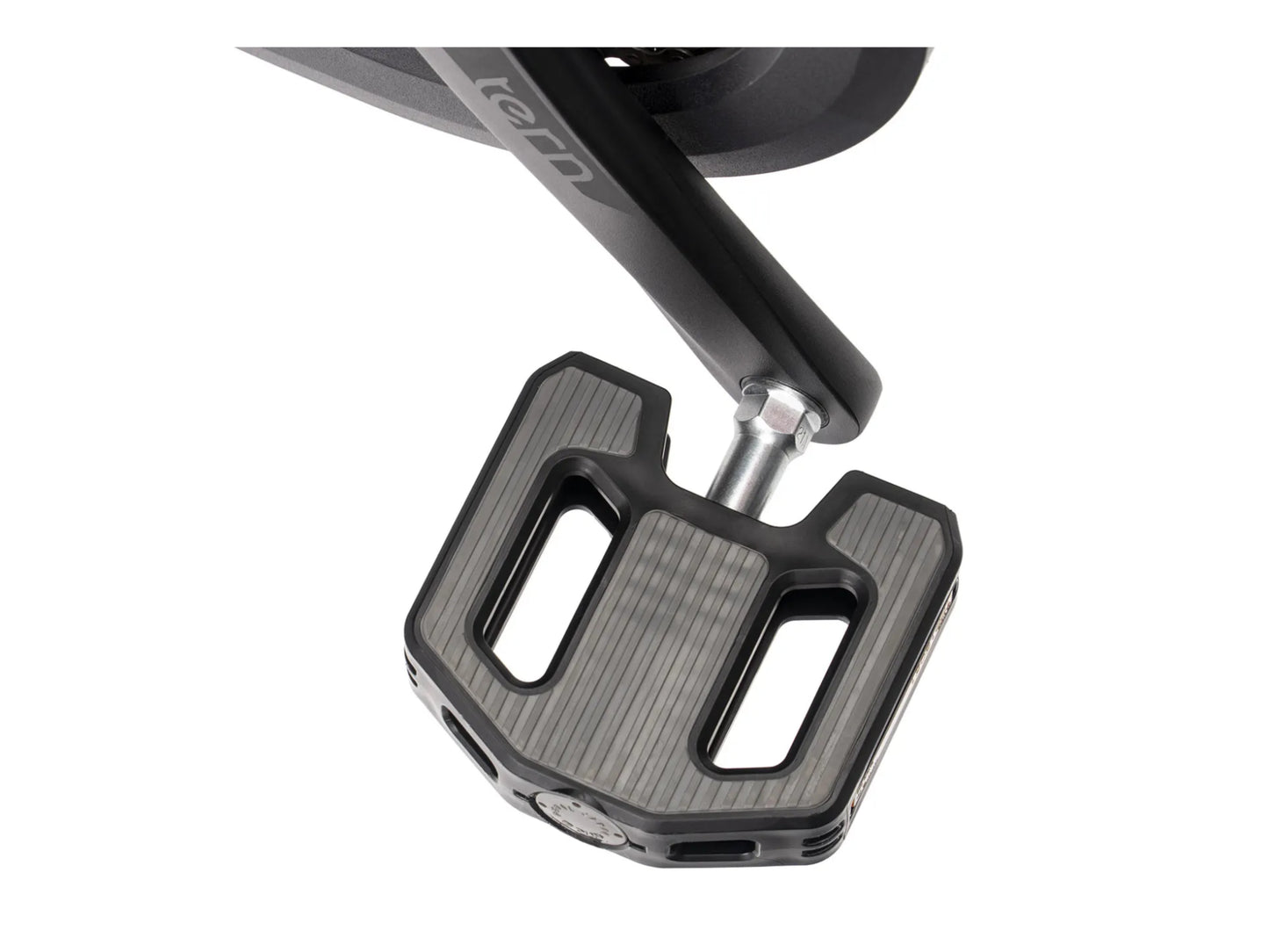

Pedals | MKS Platform, Tern custom design |

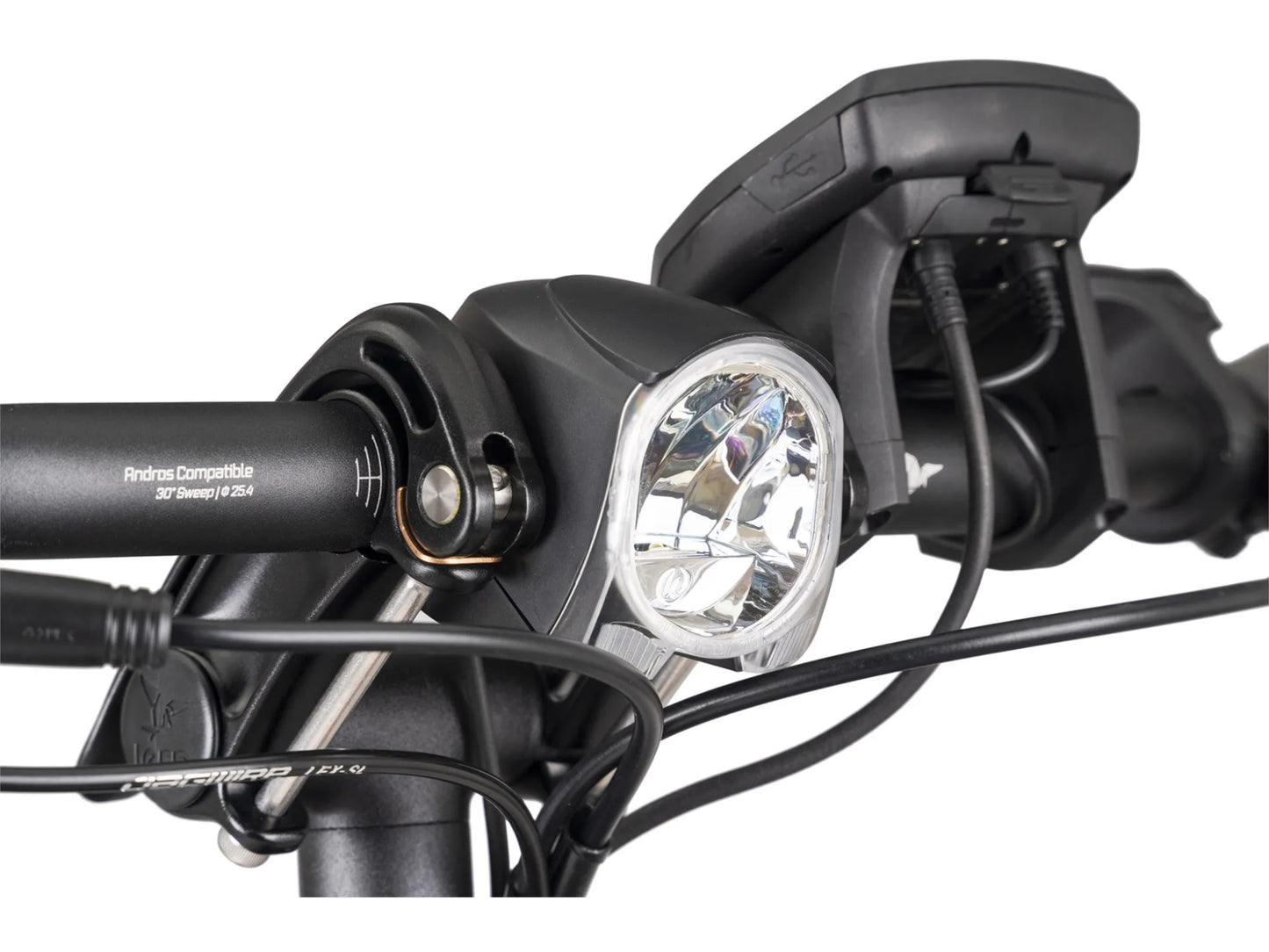

Front Light | Tern Valo direct, 190 lumens |
Rear Light | Herrmans |
Kickstand | Ursus, rear mount |

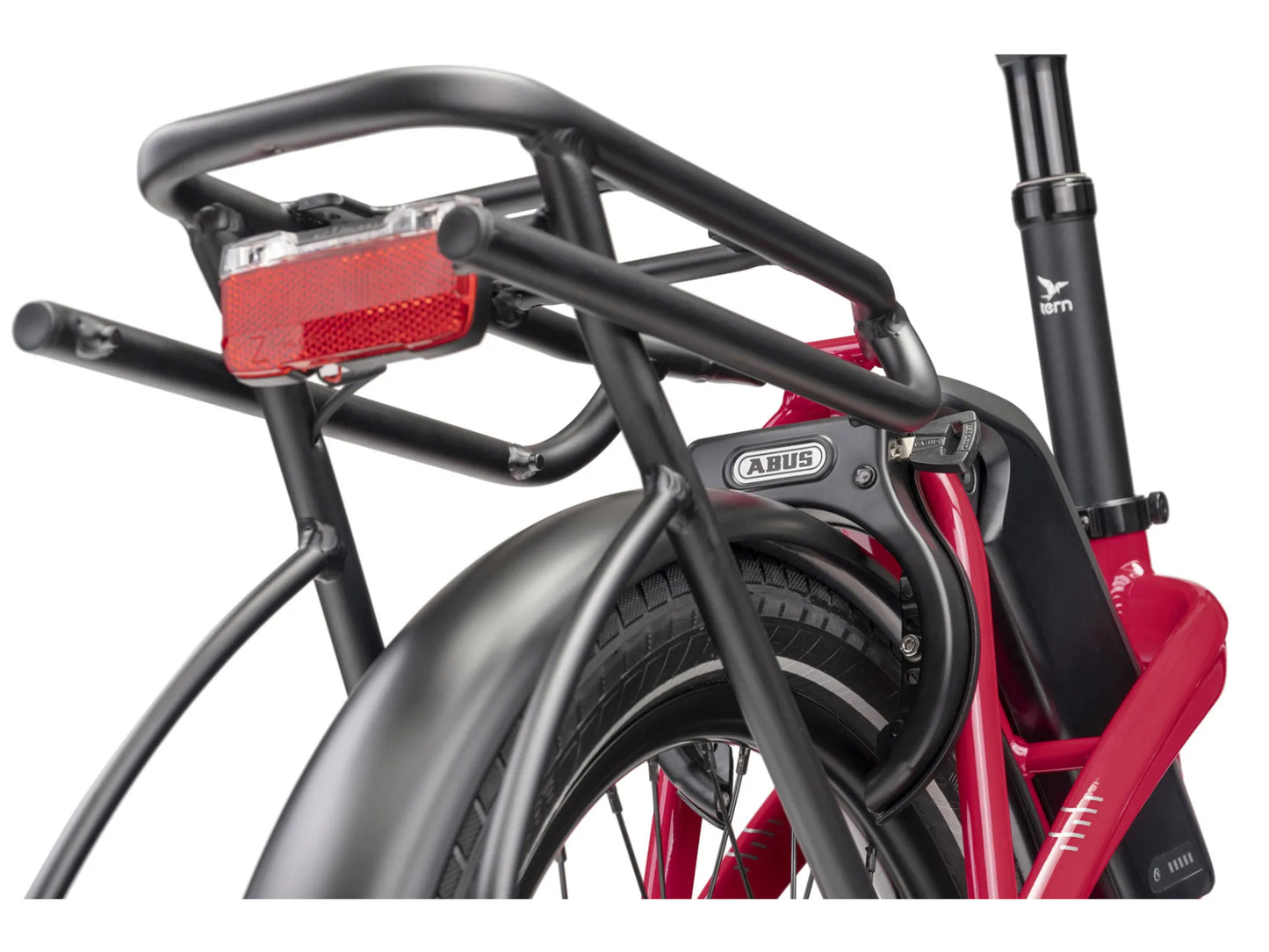

Rear Carrier | Gaia Rack, 27 kg capacity, Vertical Parking |
Fenders | SplashGuard, stainless hardware |
Bell | Aluminum |
Lock | ABUS Keyed-alike |
Mirror | Not applicable |
Geometry
FRAME SIZE:: One Size
WEIGHT::52.2 lb
GEAR INCHES::35" - 85"
FOLDING SIZE::15 × 61.4 × 31.1 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::17.7 - 20.5 in
DISTANCE, SADDLE TO PEDAL::27.6 - 39.4 in
SUGGESTED RIDER HEIGHT::57.9 - 76.8 in
MAX GROSS VEHICLE WEIGHT::308.6 lb
MAX RIDER WEIGHT::264.6 lb
