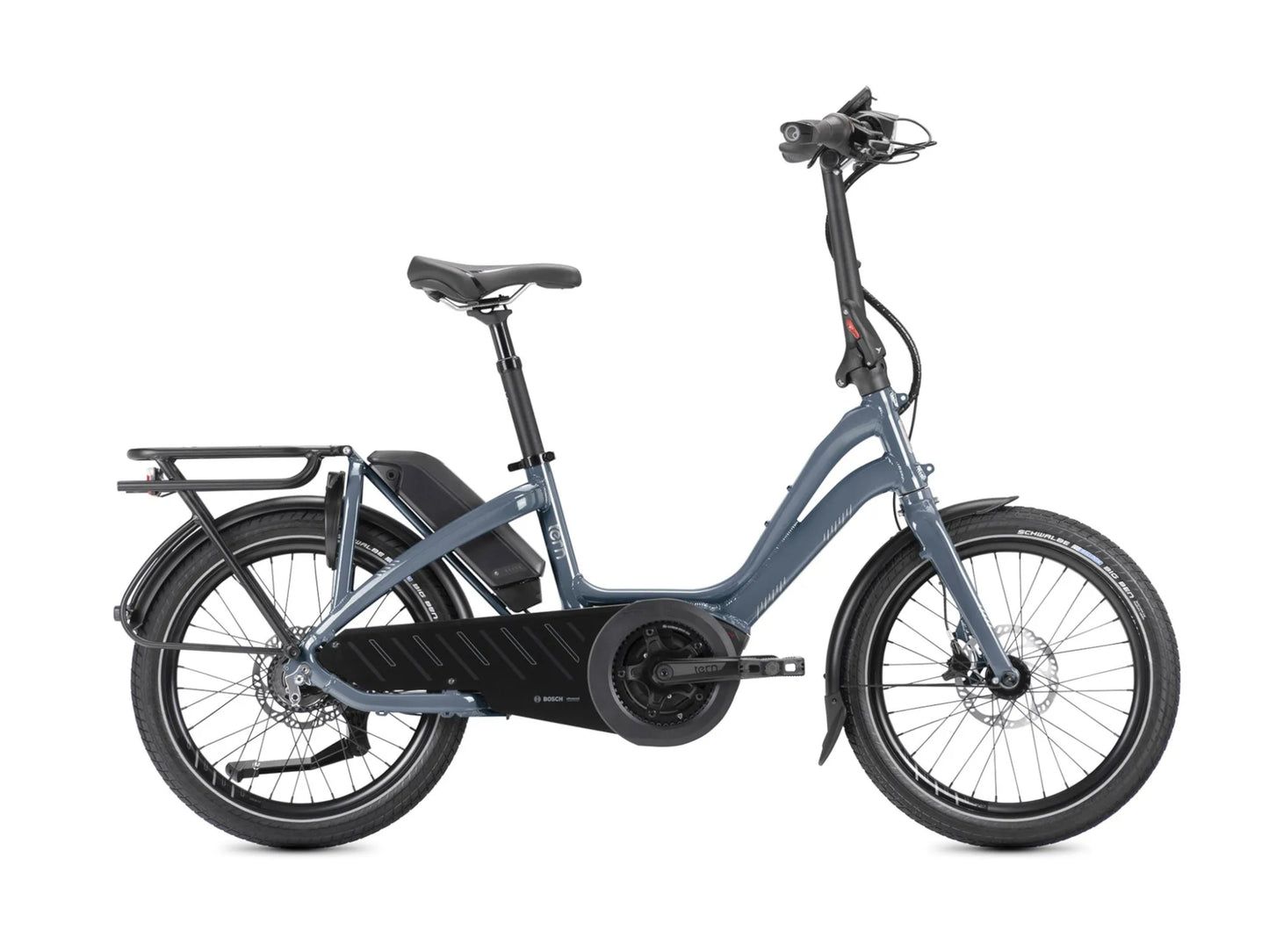

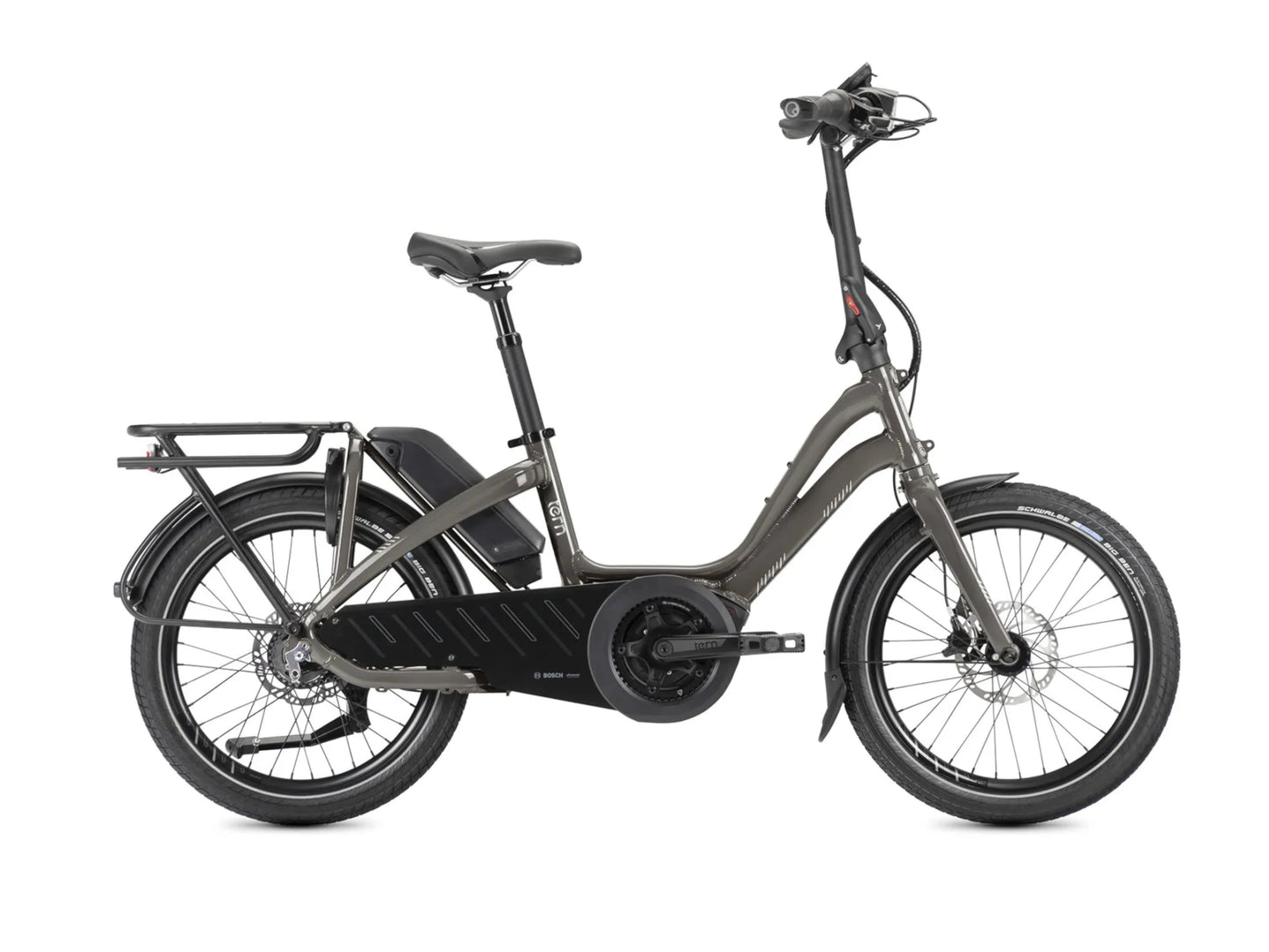

Tern NBD S5i
Tern NBD S5i
The Full Scoop on Tern NBD S5i
Small in size but big on smiles, the NBD is an easy-to-ride, ultra-low step e-bike that's comfy and welcoming—just like your favorite bike should be. Whether you're a seasoned rider or just thinking about your first e-bike, or whether you're doing a quick grocery run or setting off on a new adventure with your kid, the NBD will bring a smile to your face. Maneuvering along streets and paths or through playgrounds and parks is child’s play thanks to a low center of gravity. Riders have maximum control, and the ultra-low stepover height makes getting off and then back on again a breeze—even when taking a kiddo. The NBD has an adjustable cockpit that only takes seconds to resize, all without tools. Riders 4’10” – 6’3" comfortably fit the NBD, so it comes ready for the whole family to share.
*Components subject to manufacturer changes

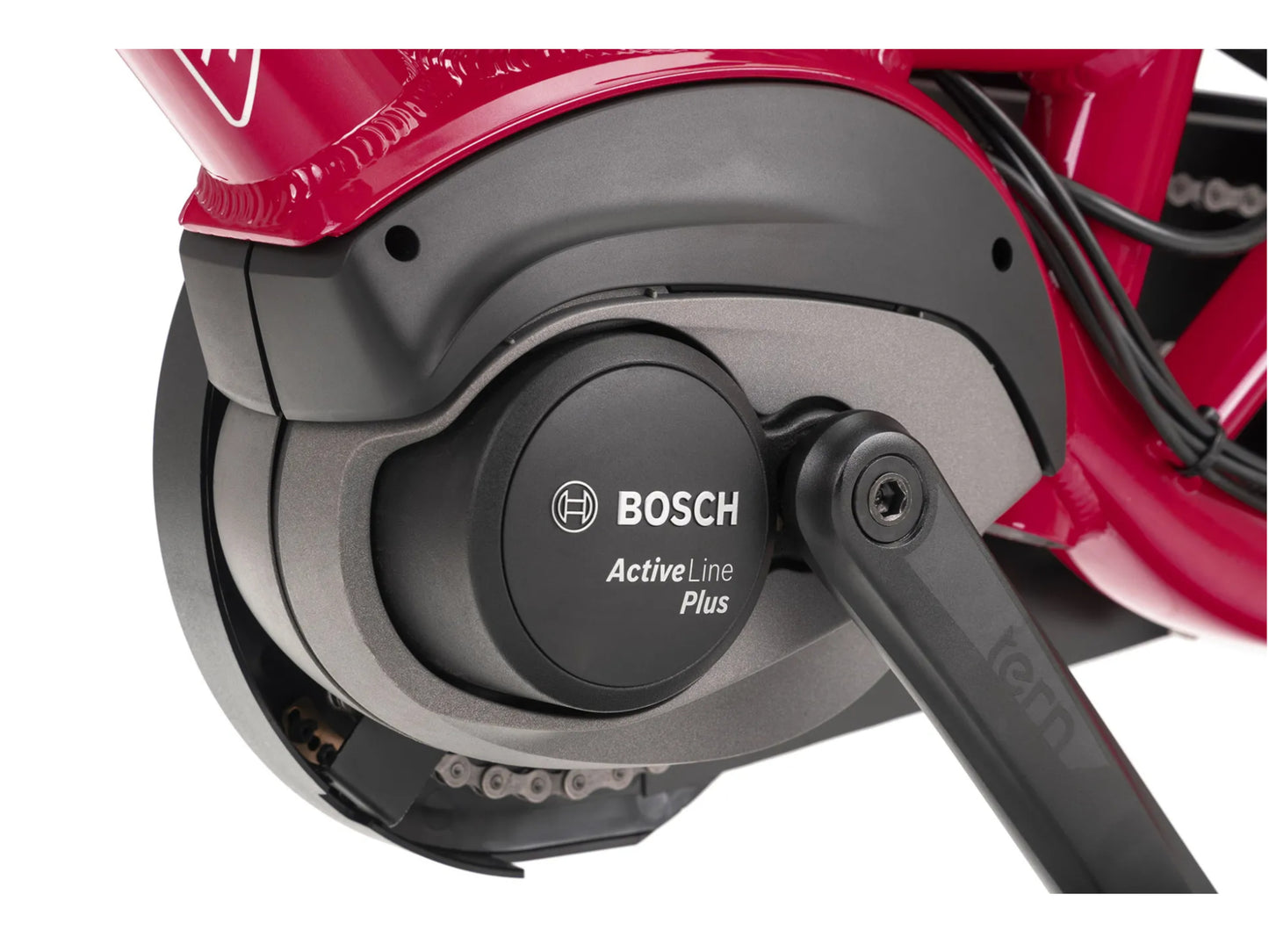

| Motor | Bosch Performance, 300% Assist, 65 Nm Torque, max speed 20 mph |

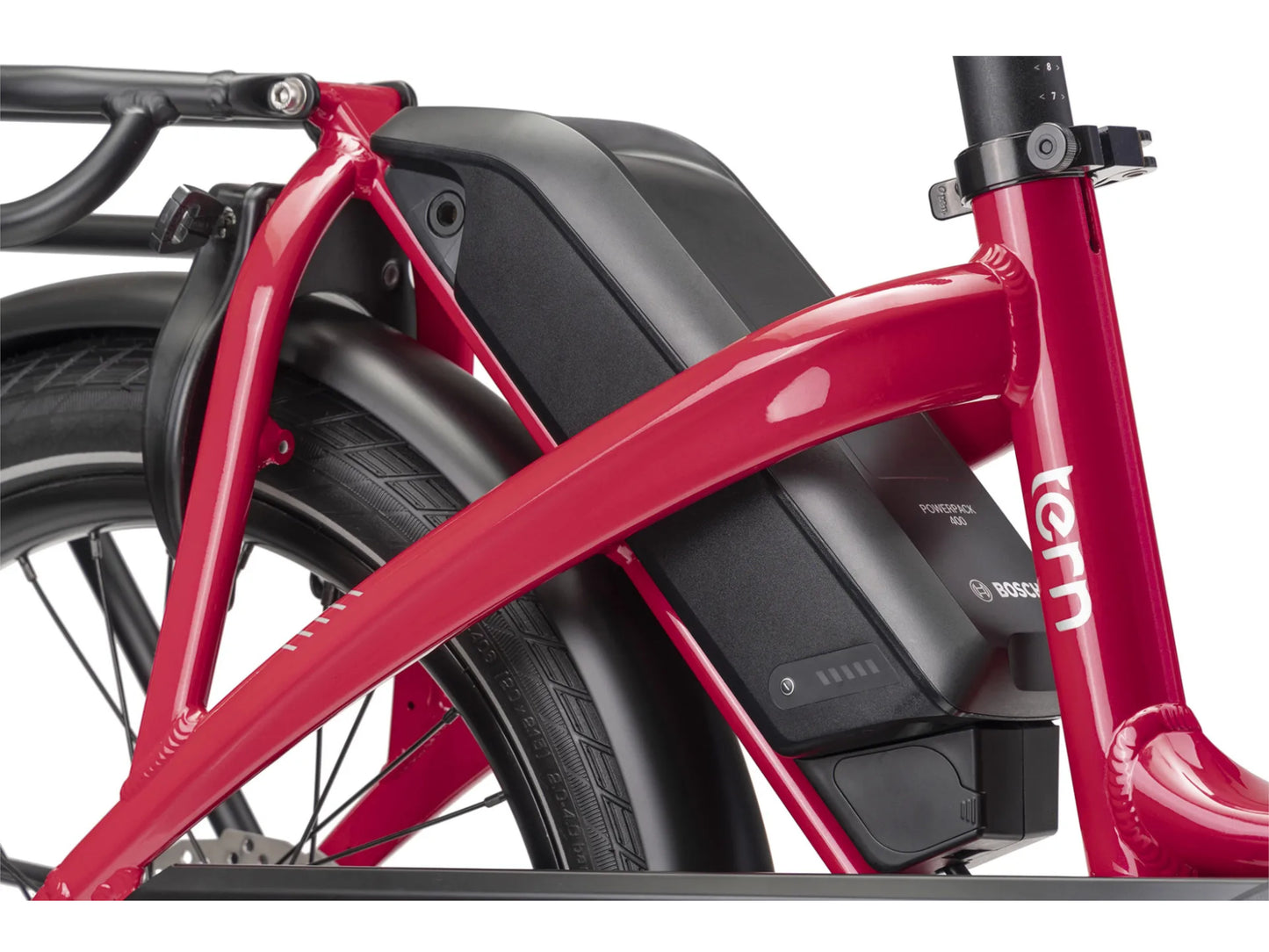

| Battery | Bosch PowerPack 500Wh |
| Display | Bosch Intuvia |
| Charger | Bosch Standard charger |
| Frame | Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 308lbs |
| Fork | Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 308lbs |
| Rear Shock | Not applicable |
| Front Brake | Magura MT4, hydraulic disc |
| Rear Brake | Magura MT4, hydraulic disc |
| Rear Derailleur | Spec not provided |
| Shift Levers | Shimano 5 speed |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |

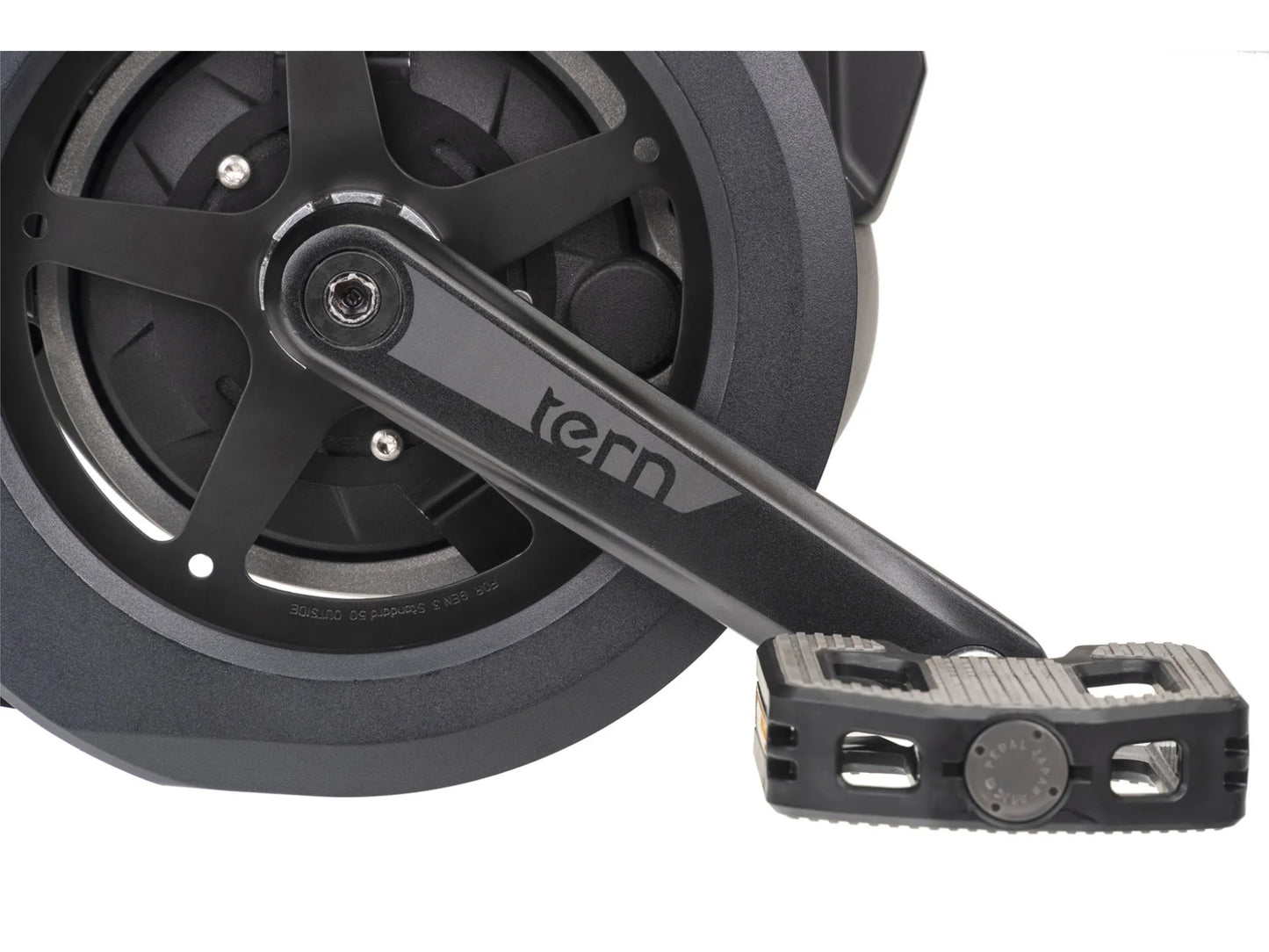

| Crankset | Tern NBD custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Kinetix Comp, for disc |
| Front Hub | Shimano disc |
| Rear Hub | Shimano disc |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux, cartridge bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern Upright by Velo |

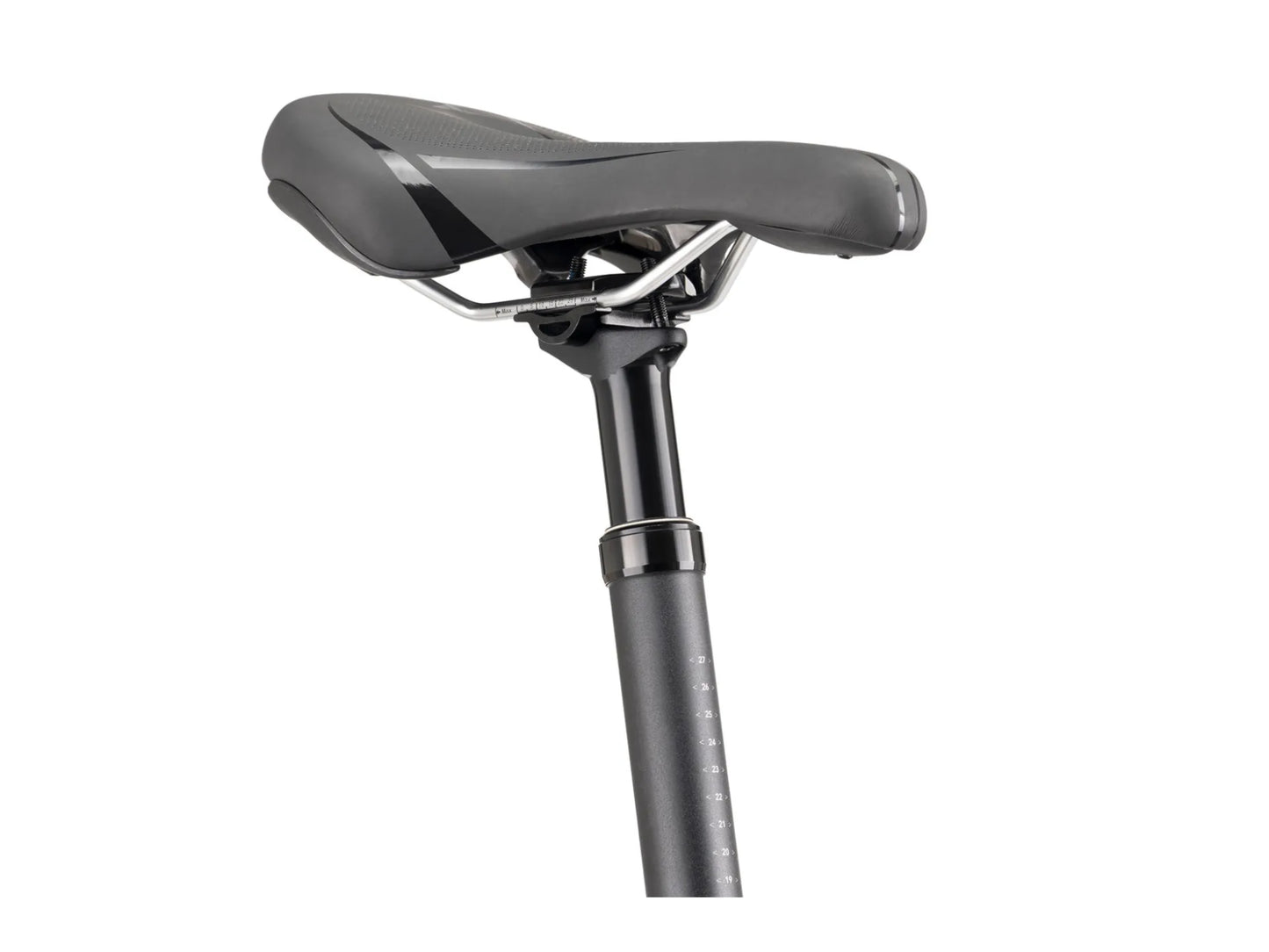

| Seatpost | Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable |
| Pedals | MKS Platform, Tern custom design |
| Front Light | Tern Valo direct, 190 lumens |
| Rear Light | Herrmans |

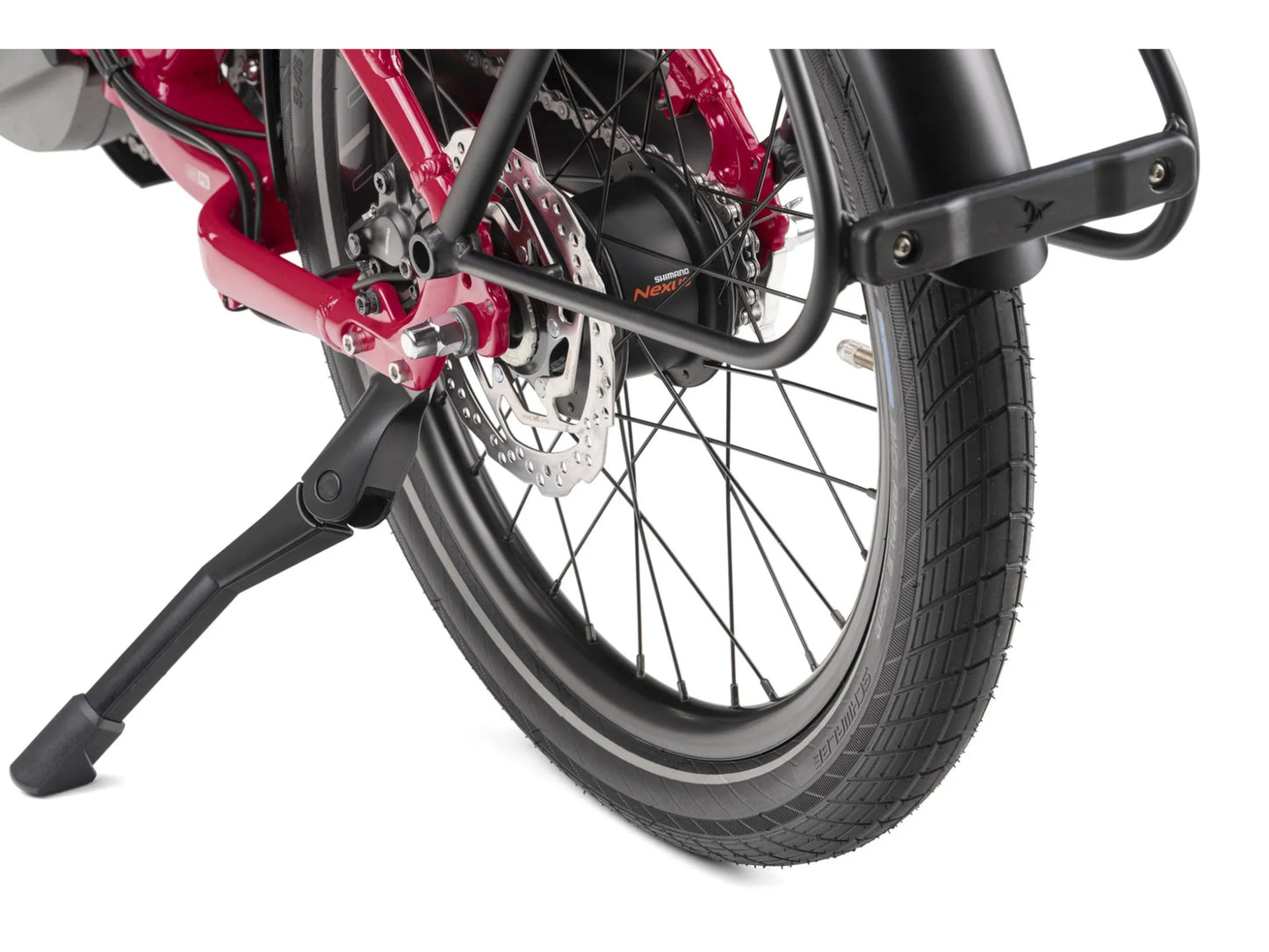

| Kickstand | Ursus, rear mount |

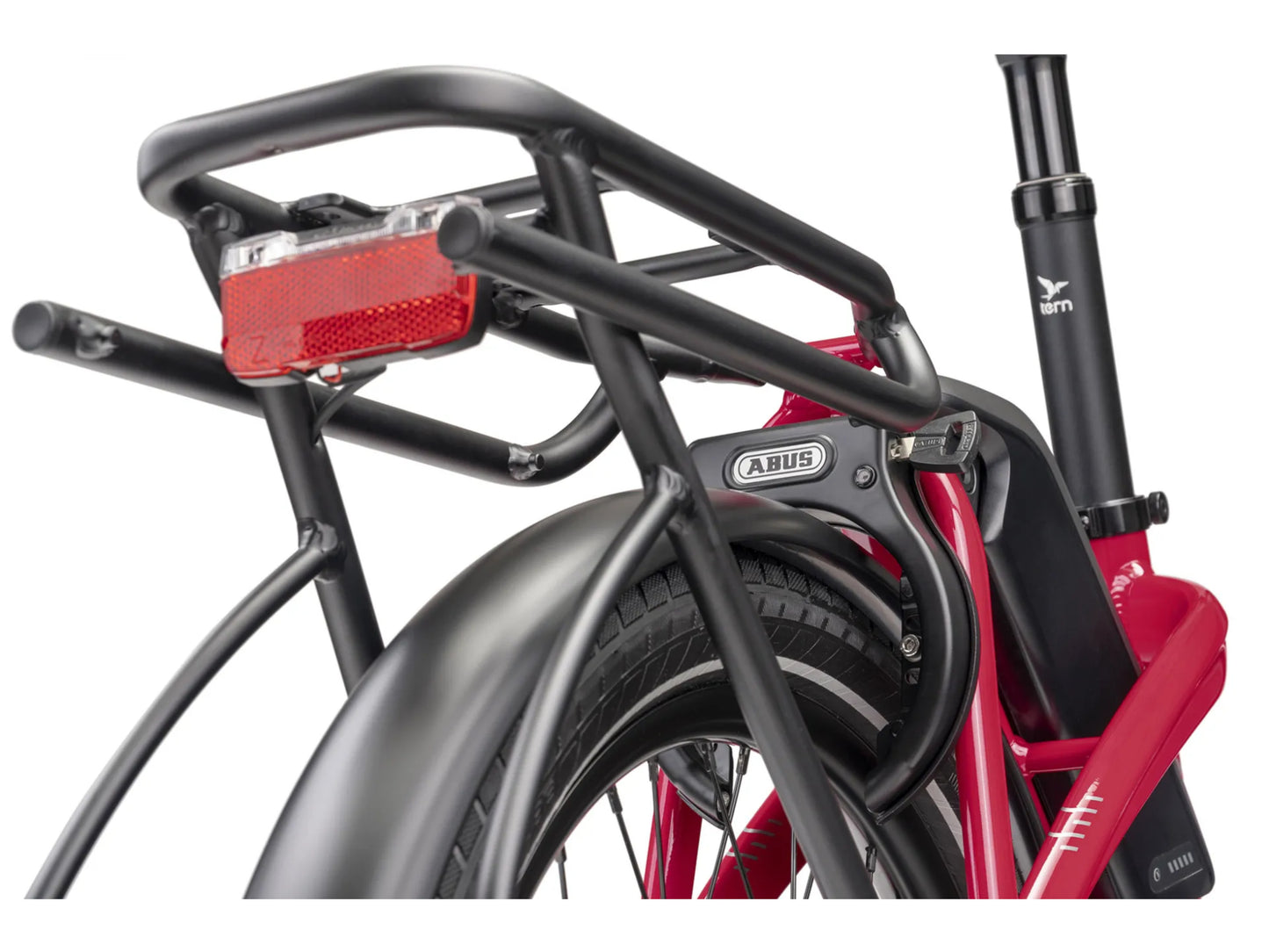

| Rear Carrier | Gaia Rack, 27 kg capacity, Vertical Parking |
| Fenders | SplashGuard, stainless hardware |
| Bell | Aluminum |
| Lock | ABUS Keyed-alike |
| Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::51.6 lb
GEAR INCHES::34" - 90"

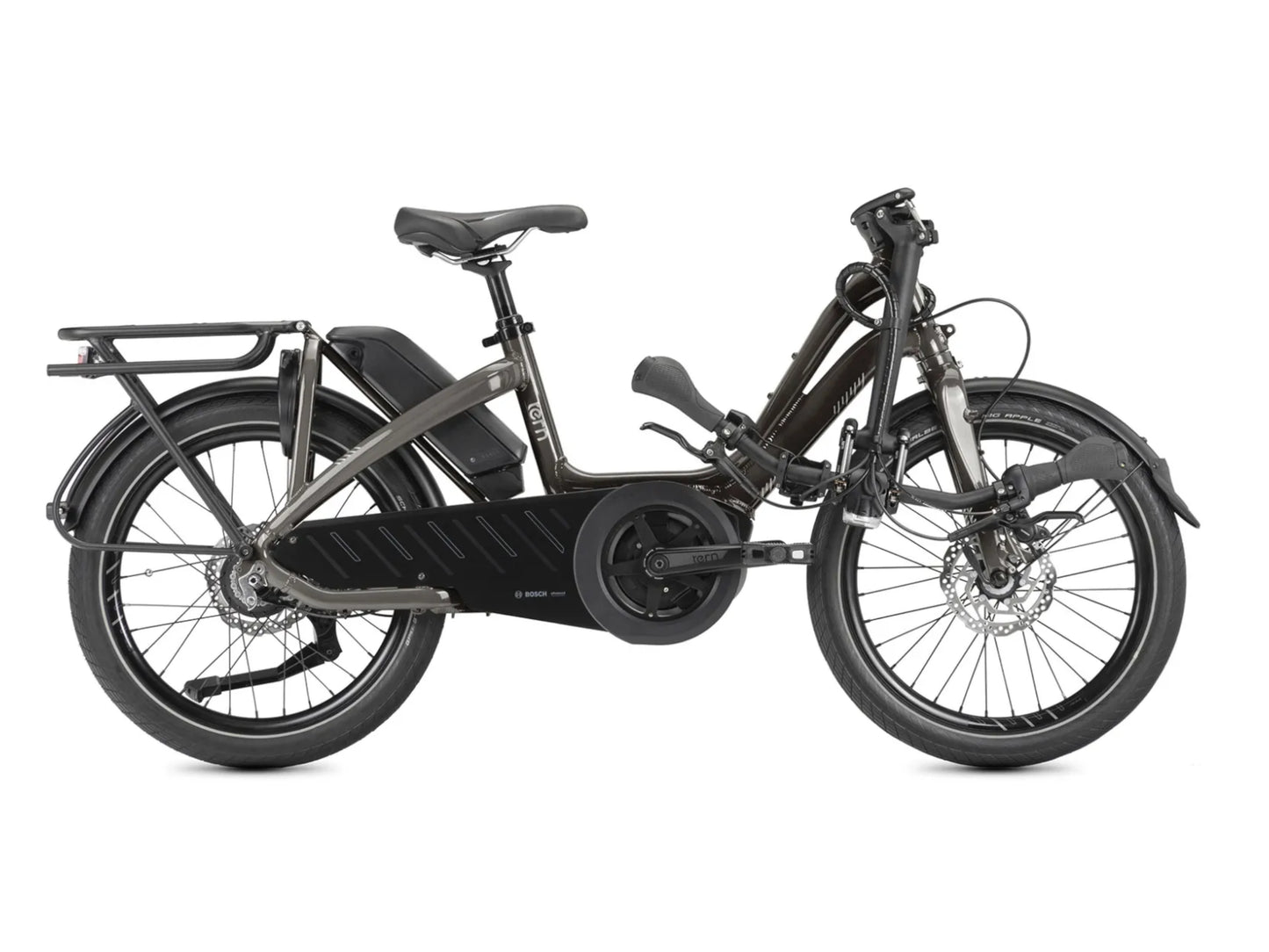

FOLDING SIZE::15 × 61.4 × 31.1 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::17.7 - 20.5 in
DISTANCE, SADDLE TO PEDAL::26.4 - 43.3 in
SUGGESTED RIDER HEIGHT::57.9 - 76.8 in
MAX GROSS VEHICLE WEIGHT::308.6 lb
MAX RIDER WEIGHT::264.6 lb
The Full Scoop on Tern NBD S5i

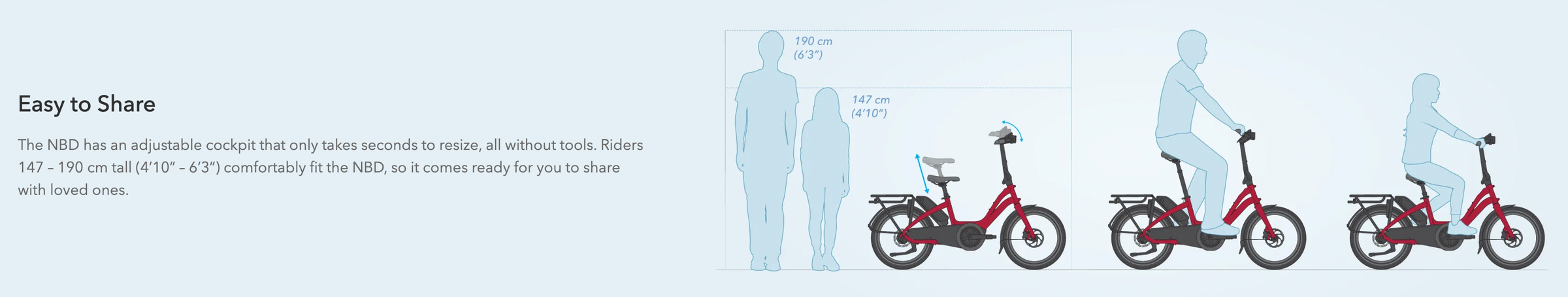

Small in size but big on smiles, the NBD is an easy-to-ride, ultra-low step e-bike that's comfy and welcoming—just like your favorite bike should be. Whether you're a seasoned rider or just thinking about your first e-bike, or whether you're doing a quick grocery run or setting off on a new adventure with your kid, the NBD will bring a smile to your face. Maneuvering along streets and paths or through playgrounds and parks is child’s play thanks to a low center of gravity. Riders have maximum control, and the ultra-low stepover height makes getting off and then back on again a breeze—even when taking a kiddo. The NBD has an adjustable cockpit that only takes seconds to resize, all without tools. Riders 4’10” – 6’3" comfortably fit the NBD, so it comes ready for the whole family to share.
*Components subject to manufacturer changes
Motor System
| Motor | Bosch Performance, 300% Assist, 65 Nm Torque, max speed 20 mph |
| Battery | Bosch PowerPack 500Wh |

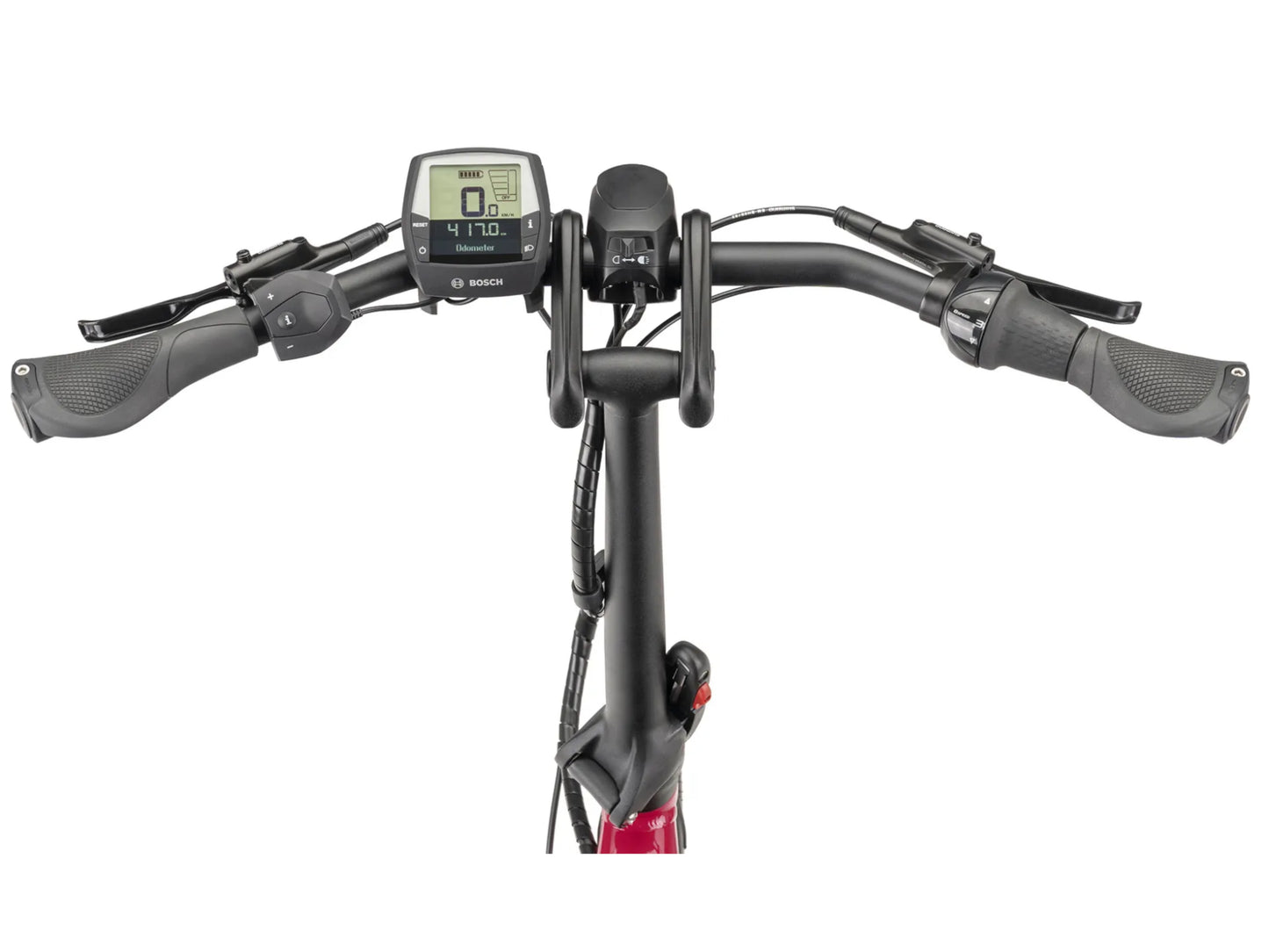

| Display | Bosch Intuvia |
| Charger | Bosch Standard charger |
Components
| Frame | Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 308lbs |
| Fork | Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 308lbs |
| Rear Shock | Not applicable |
| Front Brake | Magura MT4, hydraulic disc |
| Rear Brake | Magura MT4, hydraulic disc |
| Rear Derailleur | Spec not provided |
| Shift Levers | Shimano 5 speed |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern NBD custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Kinetix Comp, for disc |
| Front Hub | Shimano disc |
| Rear Hub | Shimano disc |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux, cartridge bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern Upright by Velo |
| Seatpost | Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable |
Extras

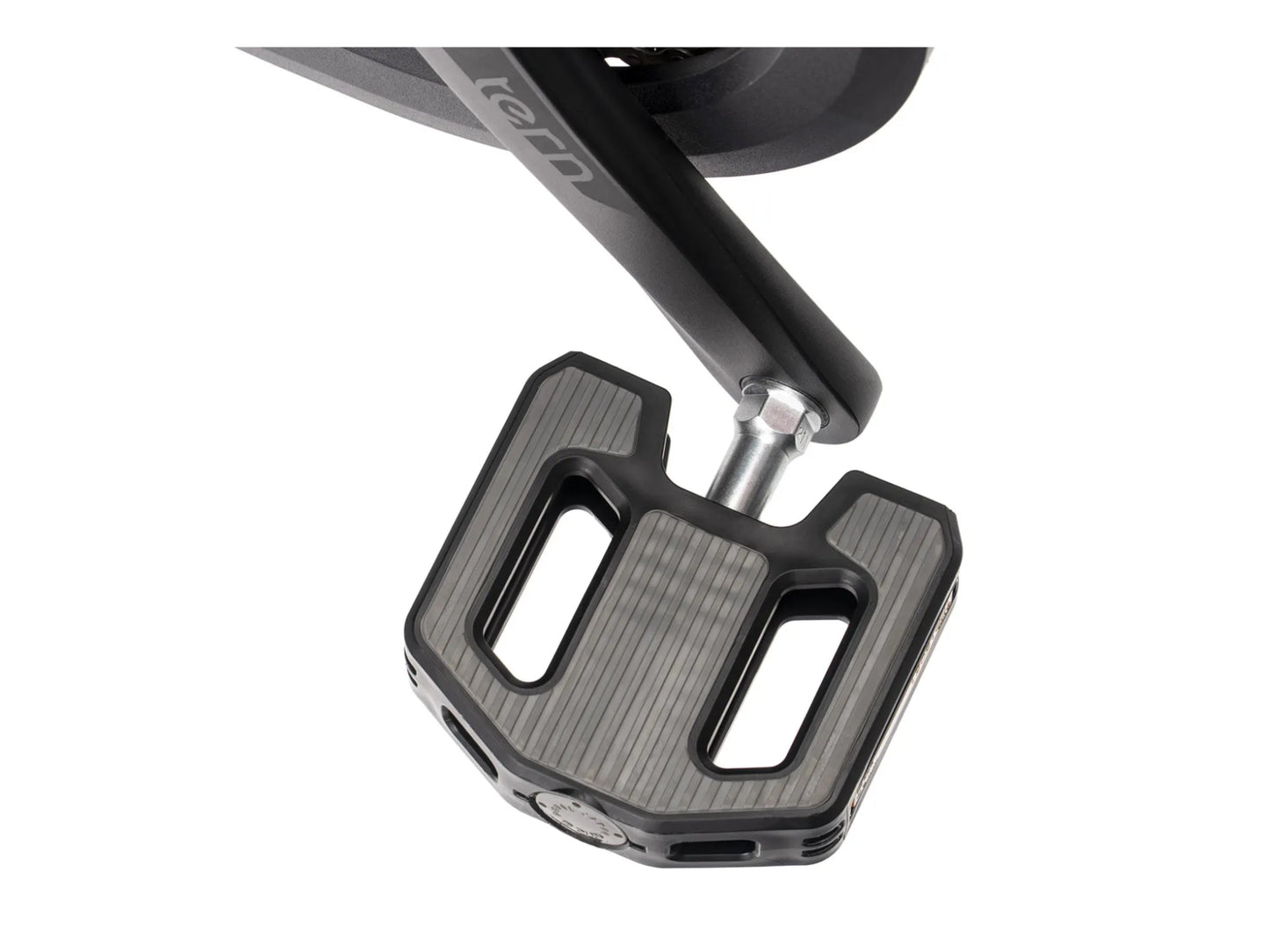

| Pedals | MKS Platform, Tern custom design |

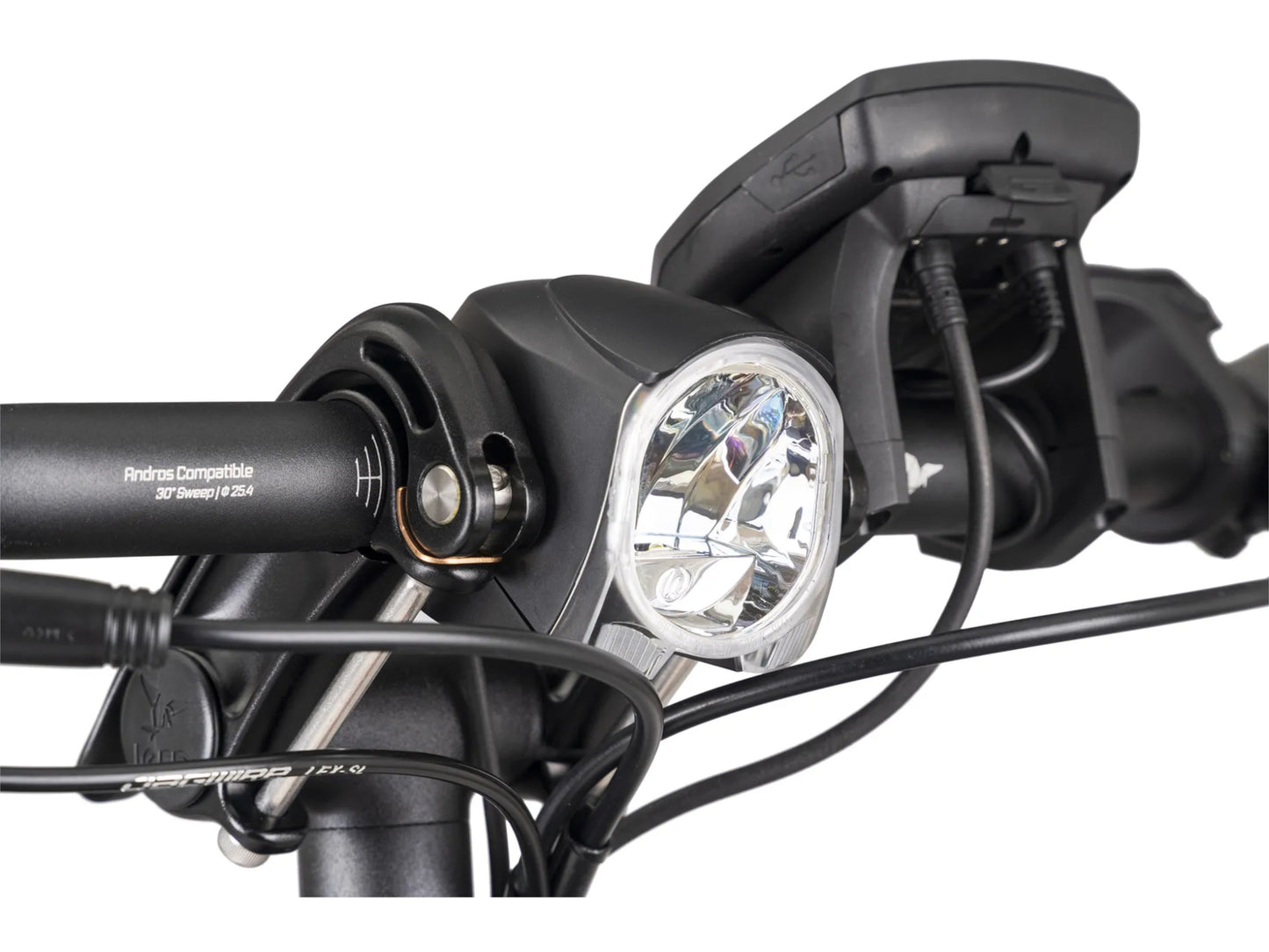

| Front Light | Tern Valo direct, 190 lumens |
| Rear Light | Herrmans |
| Kickstand | Ursus, rear mount |
| Rear Carrier | Gaia Rack, 27 kg capacity, Vertical Parking |
| Fenders | SplashGuard, stainless hardware |
| Bell | Aluminum |
| Lock | ABUS Keyed-alike |
| Mirror | Not applicable |
Geometry
FRAME SIZE:: One Size
WEIGHT::51.6 lb
GEAR INCHES::34" - 90"
FOLDING SIZE::15 × 61.4 × 31.1 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::17.7 - 20.5 in
DISTANCE, SADDLE TO PEDAL::26.4 - 43.3 in
SUGGESTED RIDER HEIGHT::57.9 - 76.8 in
MAX GROSS VEHICLE WEIGHT::308.6 lb
MAX RIDER WEIGHT::264.6 lb
