The Full Scoop on the Tern Orox R14
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. With a massive Max Gross Vehicle Weight of up to 462 lb and up to two XL batteries offering 1600 Wh,the Orox lets you power through extended off-grid explorations, and redefine what’s possible by bike.
*Components subject to manufacturer changes
* MANY optional accessories

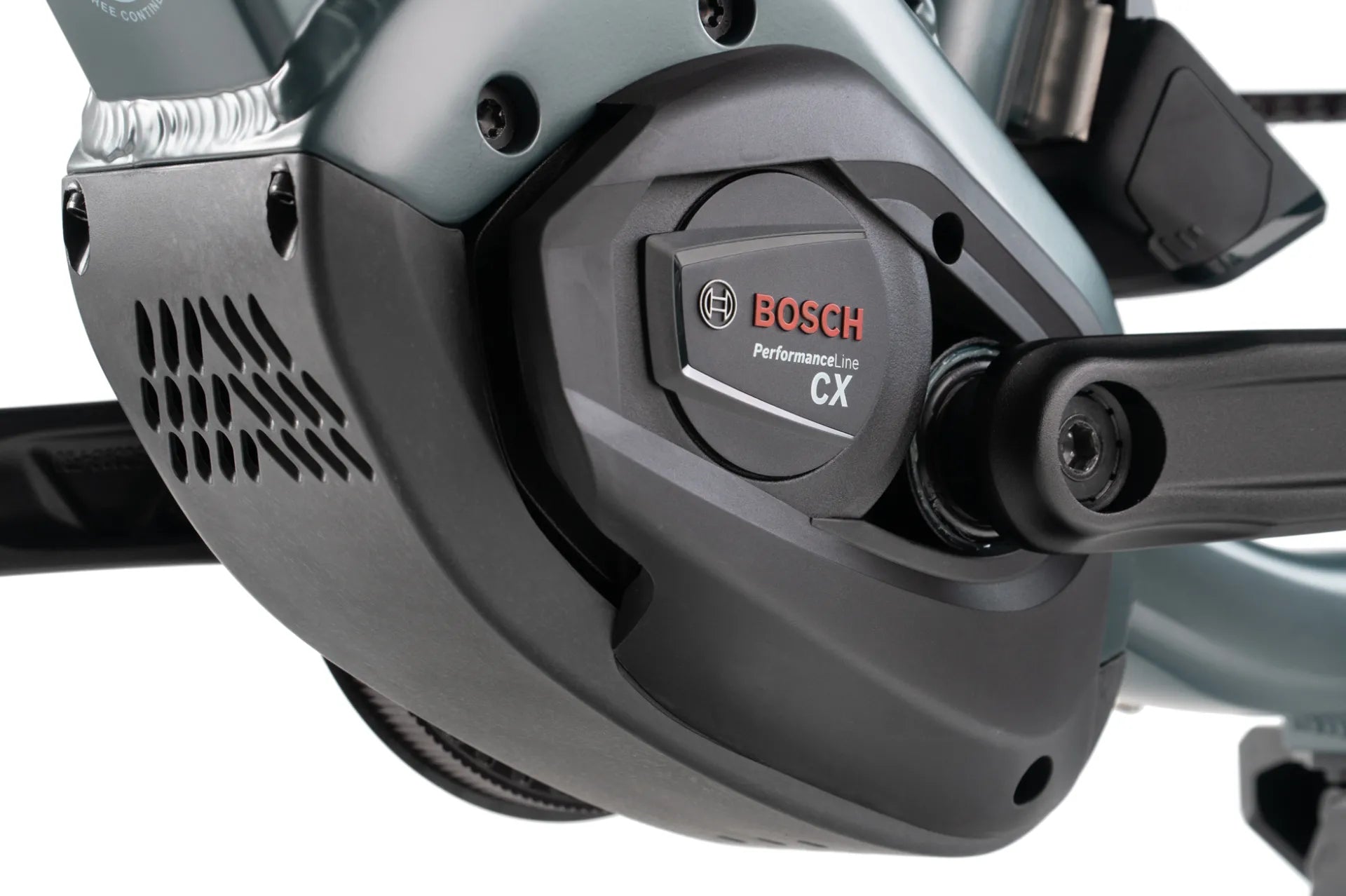

| Motor | Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US) |

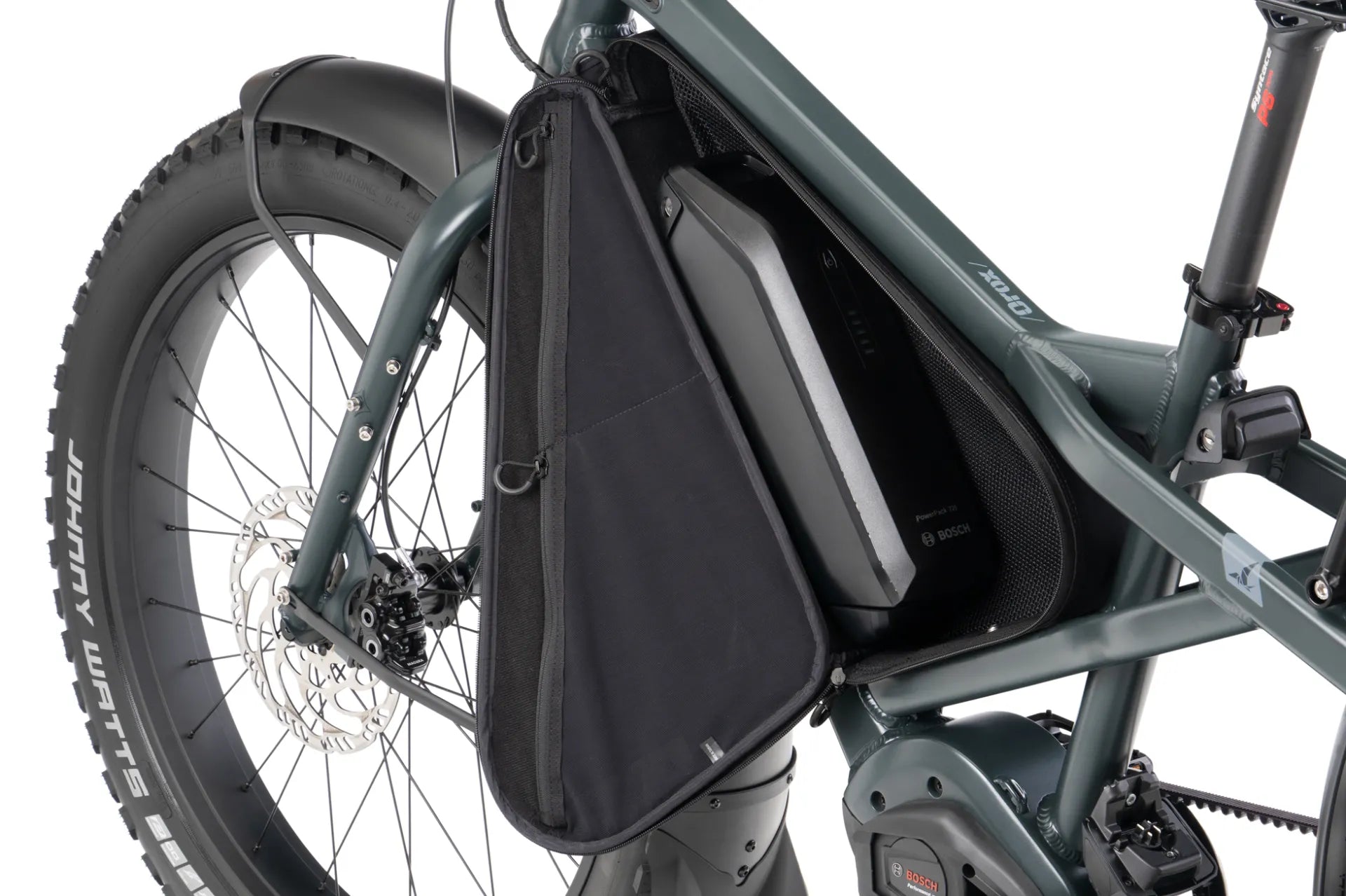

| Battery | 800 Wh, Bosch Dual Battery pack ready |
| Display | Bosch Kiox 300 w/ LED remote, electronic bike lock |
| Charger | 100-240V, 4A (US) |
| Frame | Tern Orox, 6061-AL, patented design, EFBE tested and approved |
| Fork | Atlas X, butted chromoly steel, EFBE tested and approved |
| Rear Shock | Not applicable |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
| Rear Derailleur | Spec not provided |
| Shift Levers | Rohloff Twist |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern Orox custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Custom Bash Guard |
| Rims | Tern Atlas X, custom doublewall construction |
| Front Hub | Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx |

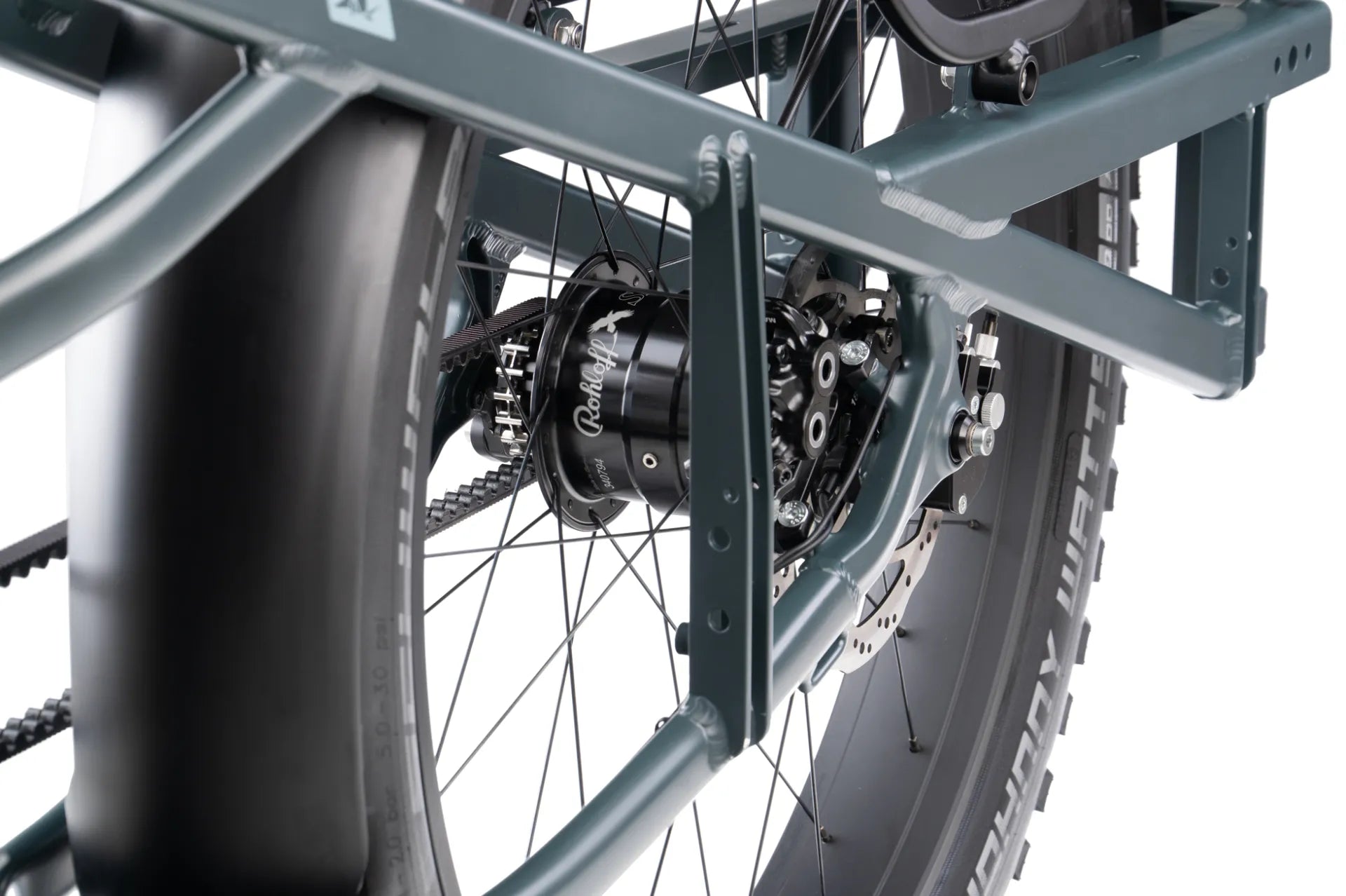

| Rear Hub | Rohloff, 526% range, Boost |
| Front Tire | Schwalbe Johnny Watts 27.5" x 4" |
| Rear Tire | Schwalbe Johnny Watts 27.5" x 4" |
| Handlebar | Level Nine, AL-7050, 800 mm, riser, eMTB approved |
| Stem | Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified |
| Headset | FSA, 1.5", angular contact bearings |
| Grips | Ergon |
| Saddle | Ergon SM, E-Mountain Sport, CrMo Rail |
| Seatpost | Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved |
| Pedals | MTB, non-slip |
| Front Light | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light | LED w/ G-Sensed Brake Light |
| Kickstand | Atlas Kickstand XL Cargo ready |
| Rear Carrier | Atlas X, 100 kg (220 lb) capacity |
| Fenders | Aluminum, heavy duty construction, oversize stays, 27.5" |
| Bell | Pitch Plus, brass |
| Lock | Not applicable |
| Mirror | Not applicable |
FRAME SIZE:: Medium, Large
WEIGHT::Medium, 74.5lb
GEAR INCHES::18" - 96"
DISTANCE, SEATPOST TO HANDLEBAR::M: 24 - 26 in ;L: 26.4 - 28.7 in
DISTANCE, SADDLE TO PEDAL::M: 28 - 39 in ;L: 30.1 - 41.1 in
SUGGESTED RIDER HEIGHT::M: 61 - 72.8 in ;L: 65 - 76.8 in
MAX GROSS VEHICLE WEIGHT::On road: 463lb.; Off road: 396.8lb.
MAX RIDER WEIGHT::286.6 lb
The Full Scoop on the Tern Orox R14
The Orox adventure cargo bike defies extreme conditions to keep you going—no roads needed. With a massive Max Gross Vehicle Weight of up to 462 lb and up to two XL batteries offering 1600 Wh,the Orox lets you power through extended off-grid explorations, and redefine what’s possible by bike.
*Components subject to manufacturer changes
* MANY optional accessories
Motor System
| Motor | Bosch Performance CX, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | 800 Wh, Bosch Dual Battery pack ready |
| Display | Bosch Kiox 300 w/ LED remote, electronic bike lock |
| Charger | 100-240V, 4A (US) |
Components
| Frame | Tern Orox, 6061-AL, patented design, EFBE tested and approved |
| Fork | Atlas X, butted chromoly steel, EFBE tested and approved |
| Rear Shock | Not applicable |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 203 mm rotor |
| Rear Derailleur | Spec not provided |
| Shift Levers | Rohloff Twist |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern Orox custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Custom Bash Guard |
| Rims | Tern Atlas X, custom doublewall construction |
| Front Hub | Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx |
| Rear Hub | Rohloff, 526% range, Boost |
| Front Tire | Schwalbe Johnny Watts 27.5" x 4" |
| Rear Tire | Schwalbe Johnny Watts 27.5" x 4" |
| Handlebar | Level Nine, AL-7050, 800 mm, riser, eMTB approved |
| Stem | Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified |
| Headset | FSA, 1.5", angular contact bearings |
| Grips | Ergon |
| Saddle | Ergon SM, E-Mountain Sport, CrMo Rail |
| Seatpost | Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved |
Extras
| Pedals | MTB, non-slip |
| Front Light | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light | LED w/ G-Sensed Brake Light |
| Kickstand | Atlas Kickstand XL Cargo ready |
| Rear Carrier | Atlas X, 100 kg (220 lb) capacity |
| Fenders | Aluminum, heavy duty construction, oversize stays, 27.5" |
| Bell | Pitch Plus, brass |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
FRAME SIZE:: Medium, Large
WEIGHT::Medium, 74.5lb
GEAR INCHES::18" - 96"
DISTANCE, SEATPOST TO HANDLEBAR::M: 24 - 26 in ;L: 26.4 - 28.7 in
DISTANCE, SADDLE TO PEDAL::M: 28 - 39 in ;L: 30.1 - 41.1 in
SUGGESTED RIDER HEIGHT::M: 61 - 72.8 in ;L: 65 - 76.8 in
MAX GROSS VEHICLE WEIGHT::On road: 463lb.; Off road: 396.8lb.
MAX RIDER WEIGHT::286.6 lb
