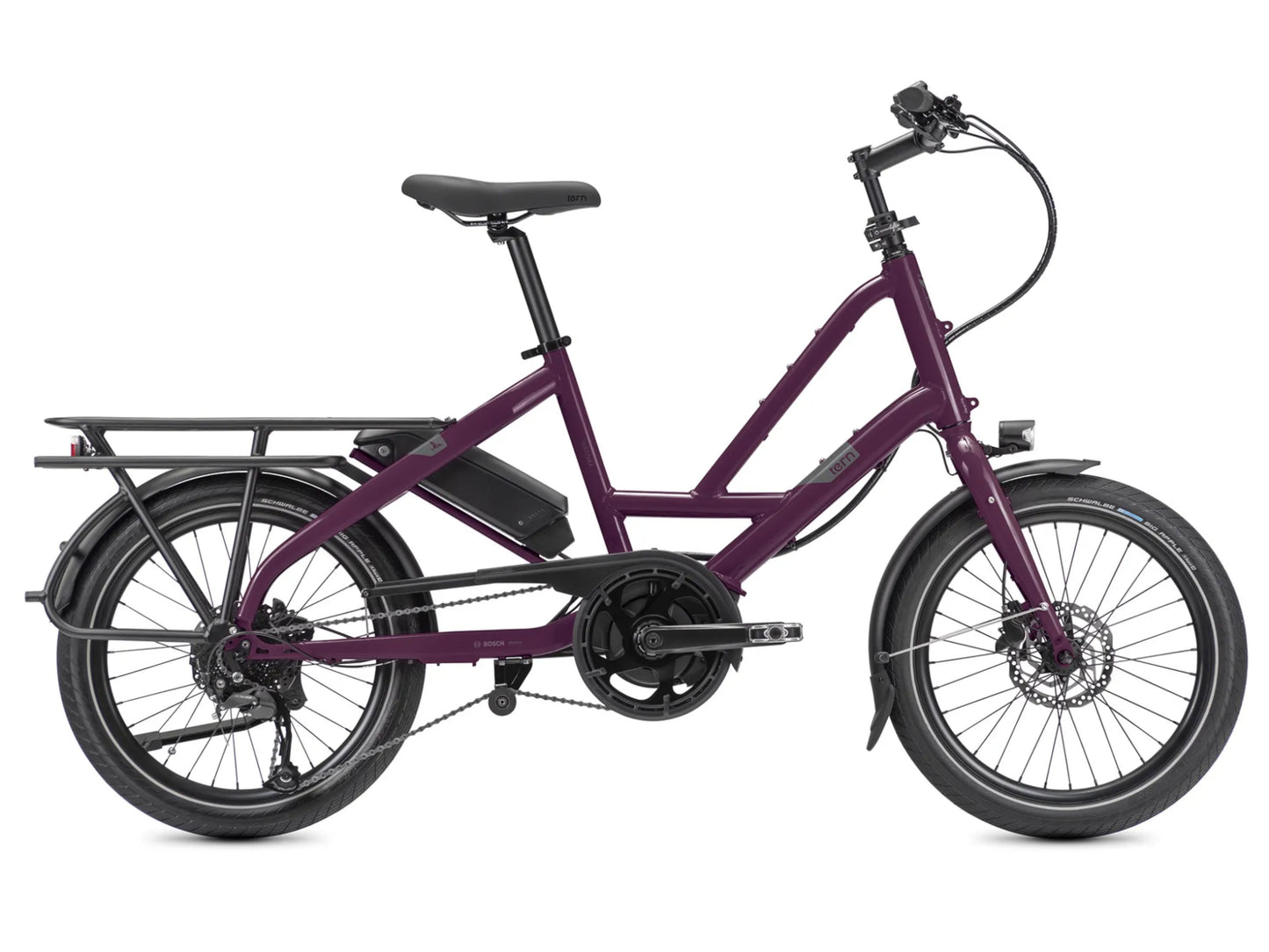

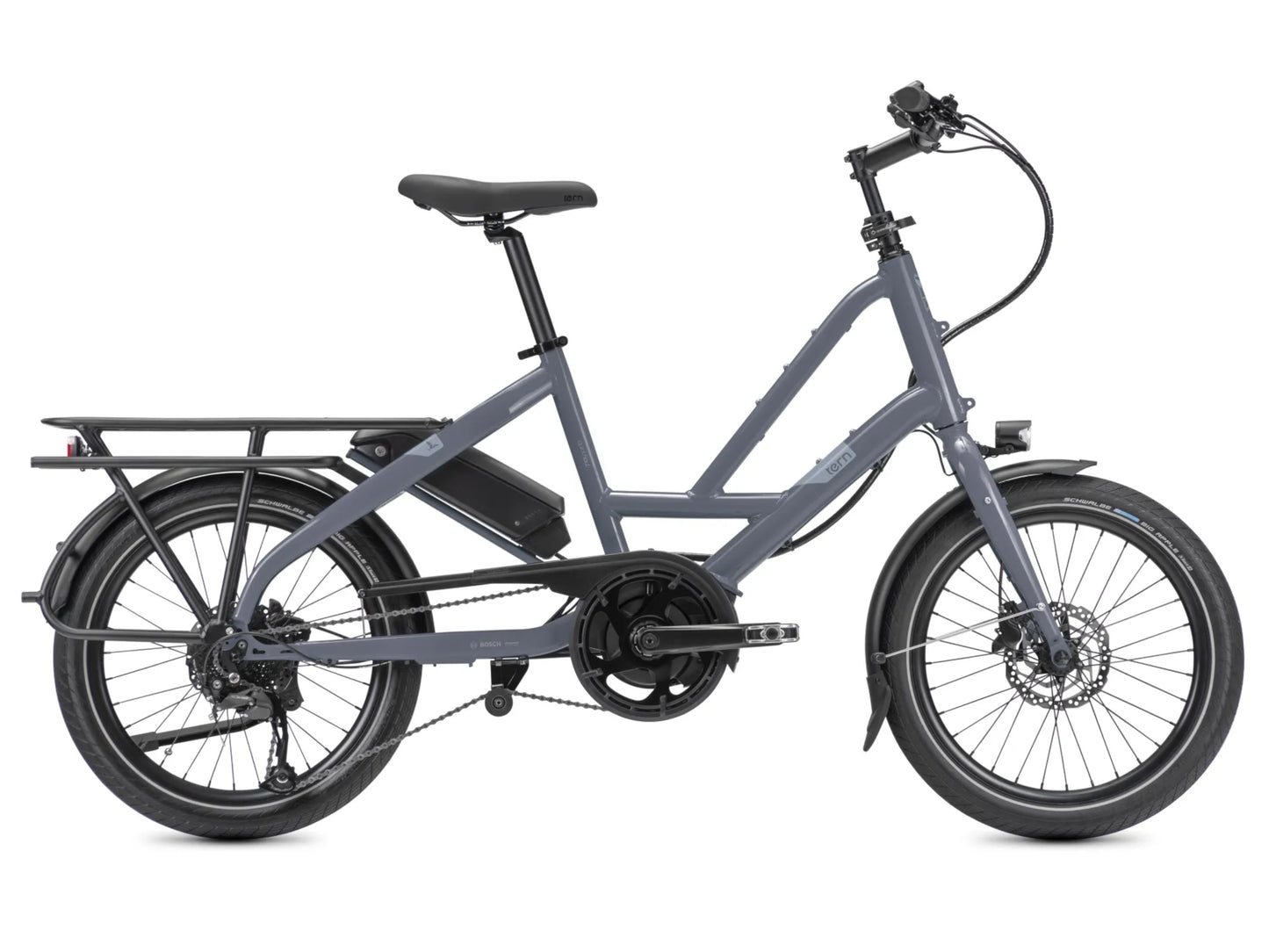

The Full Scoop on the Tern Quick Haul P9 Sport
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. The multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse. The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport. The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 110 lb capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.
*Components subject to manufacturer changes
| Motor | Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph |
| Battery | Bosch PowerPack 400Wh |
| Display | Bosch Purion |
| Charger | Bosch Compact 2A |
| Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
| Fork | Cargo, steel, EFBE approved: 150 kg |
| Rear Shock | Not applicable |
| Front Brake | Shimano hydraulic disc brake |
| Rear Brake | Shimano hydraulic disc brake |
| Rear Derailleur | Shimano Alivio Shadow |
| Shift Levers | Shimano Alivio, 1 x 9 spd, trigger |
| Chain | KMC for eBike, 9 spd |
| Cassette | Shimano 11-34T, 9 spd |
| Crankset | Tern custom, forged 6061-AL crankarm |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Kinetix Comp, for disc |
| Front Hub | Shimano disc |
| Rear Hub | Shimano disc |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Low riser, 31.8, 6061-AL |
| Stem | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Grips | Velo ergonomic, lock-on |
| Saddle | Velo Comfort |
| Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp |
| Pedals | Urban with non-slip surface |
| Front Light | Hermans, 120 lumens |
| Rear Light | Herrmans |
| Kickstand | pletscher, rear mount |
| Rear Carrier | Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 110lb. capacity |
| Fenders | Chromeplastic, stainless hardware |
| Bell | Aluminum |
| Lock | Spec not provided |
| Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::50.3 lb
GEAR INCHES::31" - 95"
DISTANCE, SEATPOST TO HANDLEBAR::23.6-25.2 in
DISTANCE, SADDLE TO PEDAL::26.8 - 43.3 in
SUGGESTED RIDER HEIGHT::63 - 76.8 in
MAX GROSS VEHICLE WEIGHT::330.7 lb
MAX RIDER WEIGHT::264.6 lb
The Full Scoop on the Tern Quick Haul P9 Sport
The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. The multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse. The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport. The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 110 lb capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.
*Components subject to manufacturer changes
Motor System

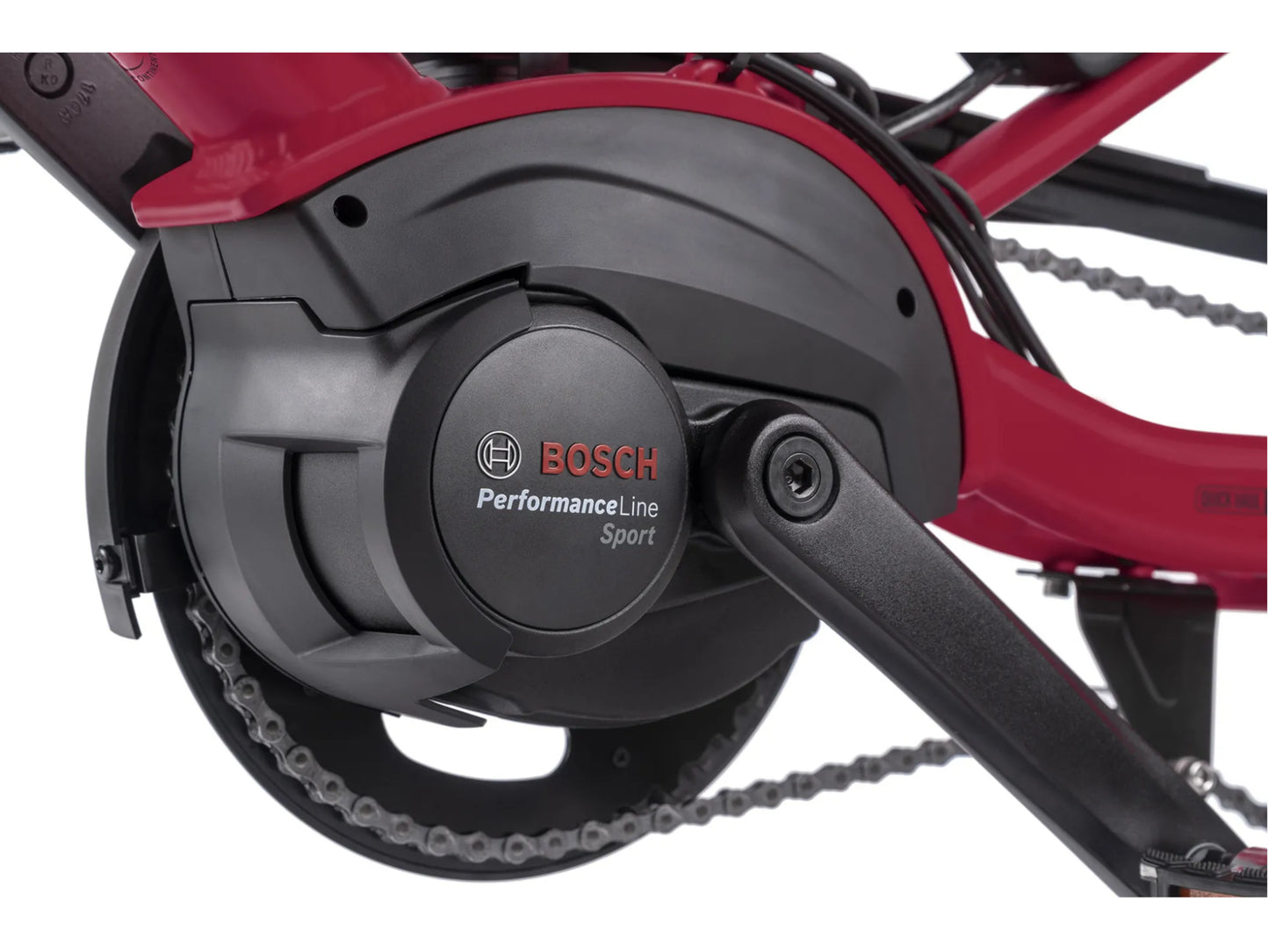

| Motor | Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph |

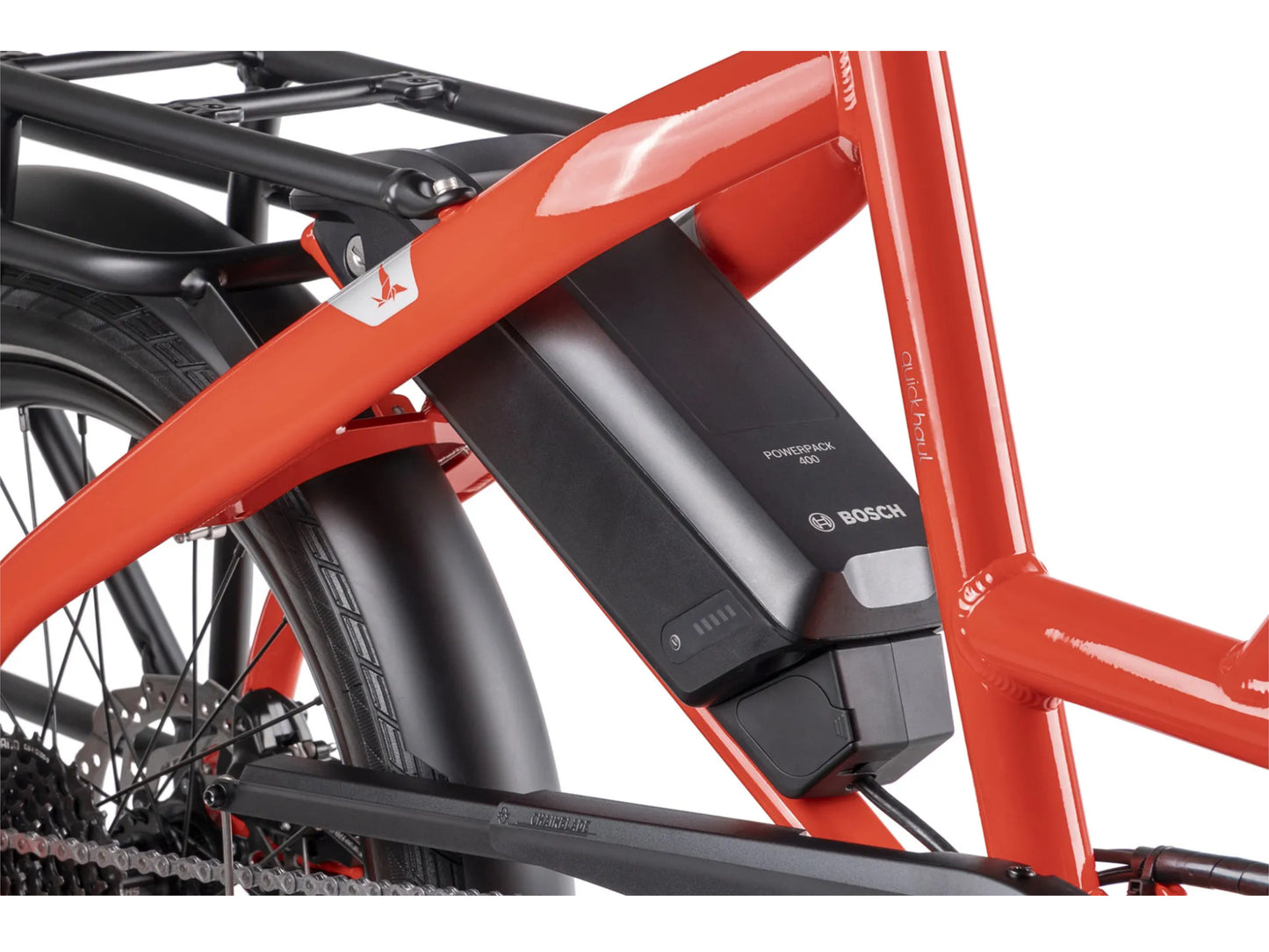

| Battery | Bosch PowerPack 400Wh |

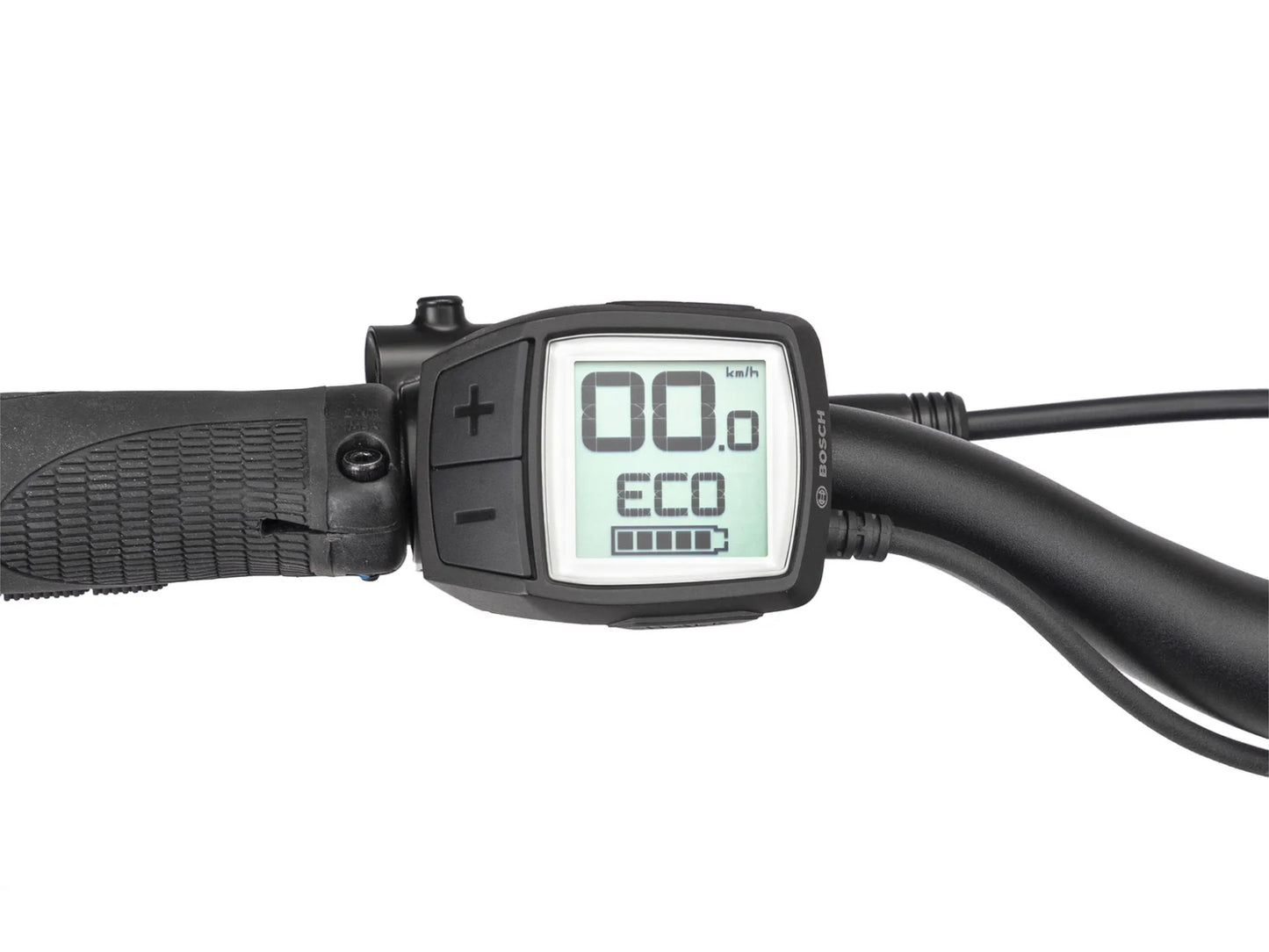

| Display | Bosch Purion |
| Charger | Bosch Compact 2A |
Components
| Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
| Fork | Cargo, steel, EFBE approved: 150 kg |
| Rear Shock | Not applicable |
| Front Brake | Shimano hydraulic disc brake |
| Rear Brake | Shimano hydraulic disc brake |
| Rear Derailleur | Shimano Alivio Shadow |
| Shift Levers | Shimano Alivio, 1 x 9 spd, trigger |
| Chain | KMC for eBike, 9 spd |
| Cassette | Shimano 11-34T, 9 spd |
| Crankset | Tern custom, forged 6061-AL crankarm |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Kinetix Comp, for disc |
| Front Hub | Shimano disc |
| Rear Hub | Shimano disc |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Low riser, 31.8, 6061-AL |

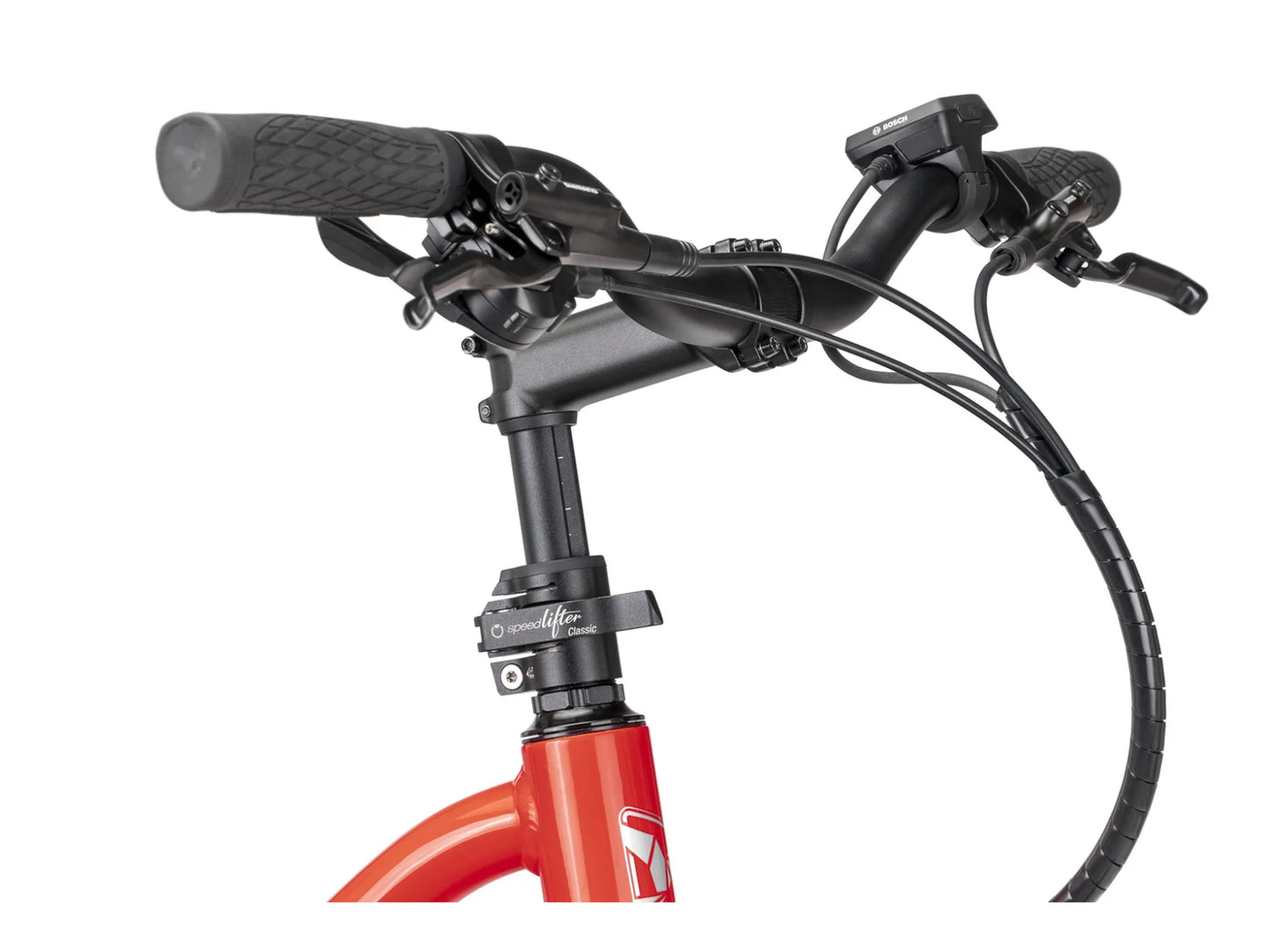

| Stem | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Grips | Velo ergonomic, lock-on |
| Saddle | Velo Comfort |
| Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp |
Extras
| Pedals | Urban with non-slip surface |

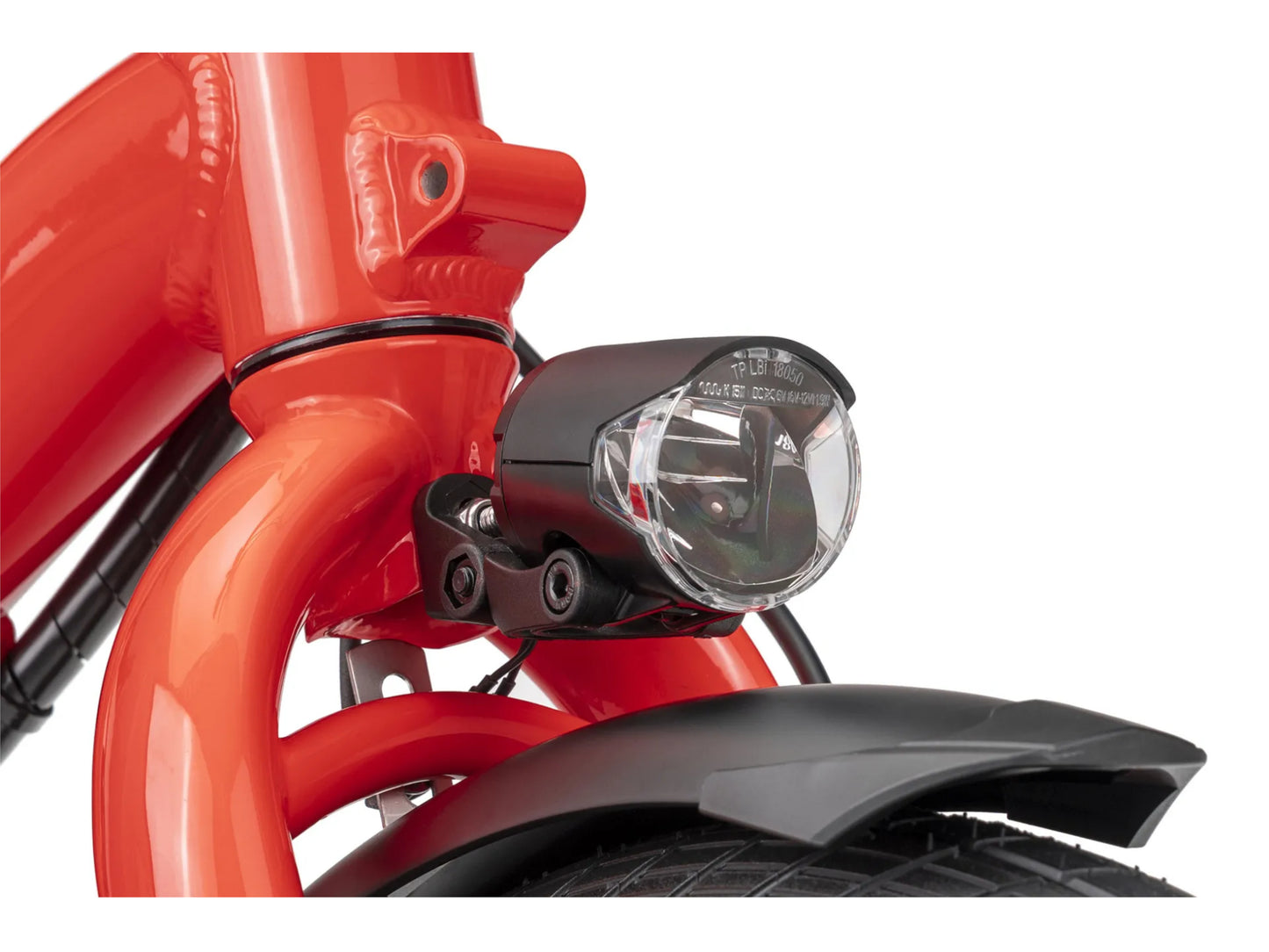

| Front Light | Hermans, 120 lumens |
| Rear Light | Herrmans |
| Kickstand | pletscher, rear mount |

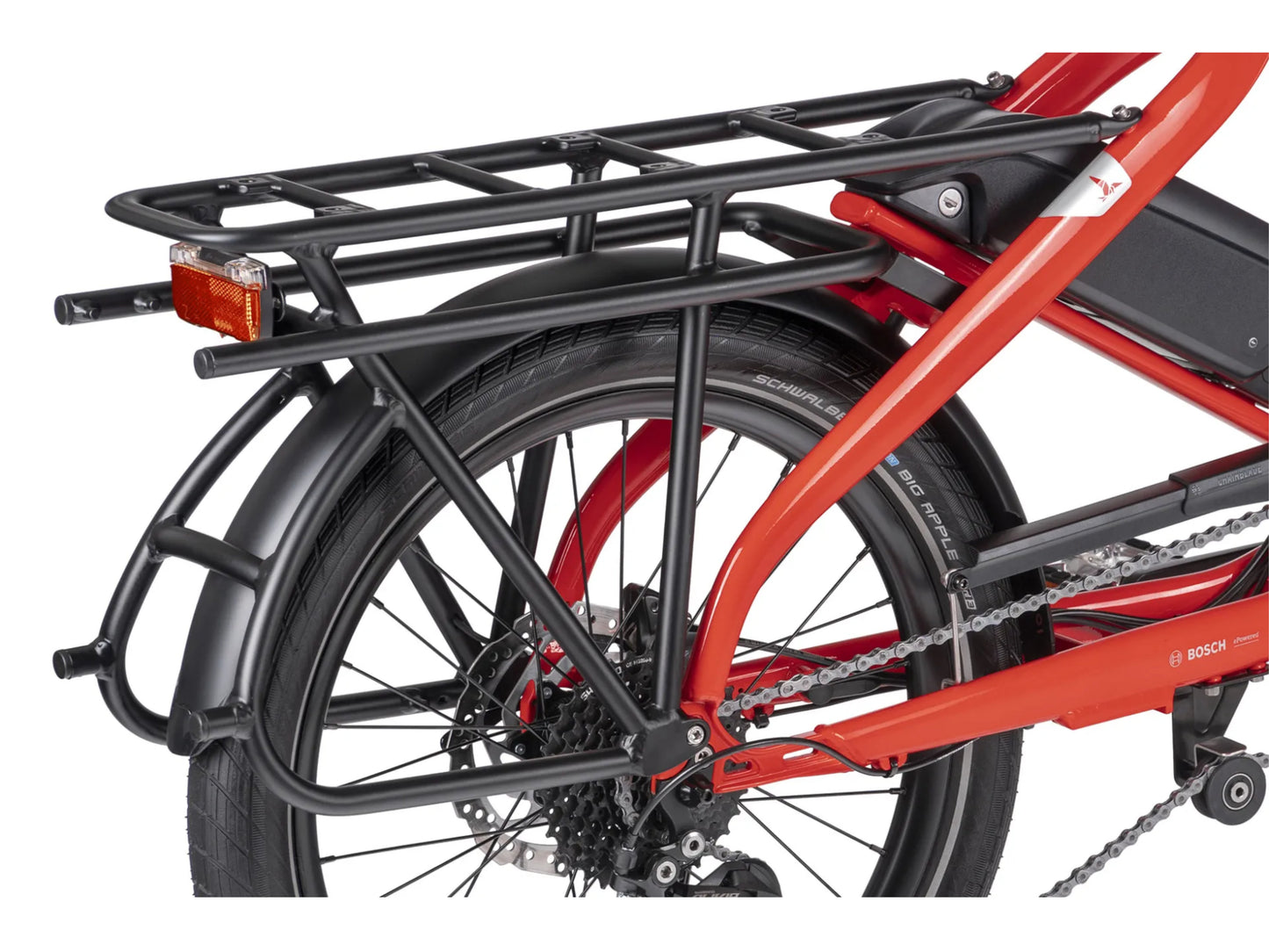

| Rear Carrier | Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 110lb. capacity |
| Fenders | Chromeplastic, stainless hardware |
| Bell | Aluminum |
| Lock | Spec not provided |
| Mirror | Not applicable |
Geometry
FRAME SIZE:: One Size
WEIGHT::50.3 lb
GEAR INCHES::31" - 95"
DISTANCE, SEATPOST TO HANDLEBAR::23.6-25.2 in
DISTANCE, SADDLE TO PEDAL::26.8 - 43.3 in
SUGGESTED RIDER HEIGHT::63 - 76.8 in
MAX GROSS VEHICLE WEIGHT::330.7 lb
MAX RIDER WEIGHT::264.6 lb
