The Full Scoop on the Tern Vektron P10
The Tern Vektron P10 is a folding e-bike built for riders who want real commuting power in a package that fits anywhere. Powered by a Bosch Performance Line mid-drive motor and paired with a Shimano Deore 1×10 drivetrain, it delivers smooth, confident rides across town — then folds in 10 seconds flat to slide under a desk, into a trunk, or onto a train.
The Gen 4 Vektron introduces a reinforced OCL+ frame joint, a new 3D-forged Physis handlepost, and an adjustable cockpit that fits riders from 4'10" to 6'5" without tools. The integrated Atlas V rack carries up to 59 lbs of cargo, and the bike stands upright and rolls on its own wheels when folded.
With Magura hydraulic disc brakes, a 400Wh battery good for up to 70 miles of range, and a 10-year frame warranty, this is a folding e-bike that takes commuting seriously.
| Motor | Bosch BES2 Performance Line, 300% Assist, 65 Nm Torque, Class 1 (20 mph) |
| Battery | Bosch PowerPack 400 Wh |
| Range | 28–70 miles (45–112 km) |
| Display | Bosch Purion, 4 modes + walk assist |
| Charger | 100-120V, 4A — ~3 hrs to 50%, ~6.5 hrs to full |
| Assist Modes | Eco, Tour+, Sport, Turbo |
| Certified | UL 2849, EN 15194 |
| Frame | Tern Vektron 6061-AL, hydroformed, OCL+ frame joint |
| Fork | Tern Tarsus 6061-AL, hydroformed |
| Drivetrain | Shimano Deore 1×10 speed, 11-36T cassette |
| Brakes | Magura MT4 hydraulic disc, 160mm rotors |
| Handlepost | Tern Physis 3D, forged aluminum |
| Stem | Tern Andros, adjustable, tool-free |
| Wheels | Kinetix Comp rims, Novatec sealed bearing hubs |
| Tires | Schwalbe Big Apple 20×2.15, puncture protection, reflective sidewall |
| Saddle | Tern Porter+ by Velo, PrimeGel |
| Pedals | MKS EZY quick-release |
| Grips | Ergon |
| Front Light | Tern Valo Direct, 190 lumens, e-bike powered |
| Rear Light | Herrmans H-Trace, e-bike powered |
| Rack | Atlas V, 8-point mounting, 27 kg (59 lb) capacity |
| Rack Compatibility | KLICKfix, Racktime SNAPIT 2.0, Ortlieb Quick-Lock |
| Fenders | SplashGuard, stainless hardware |
| Kickstand | URSUS, rear-mount |

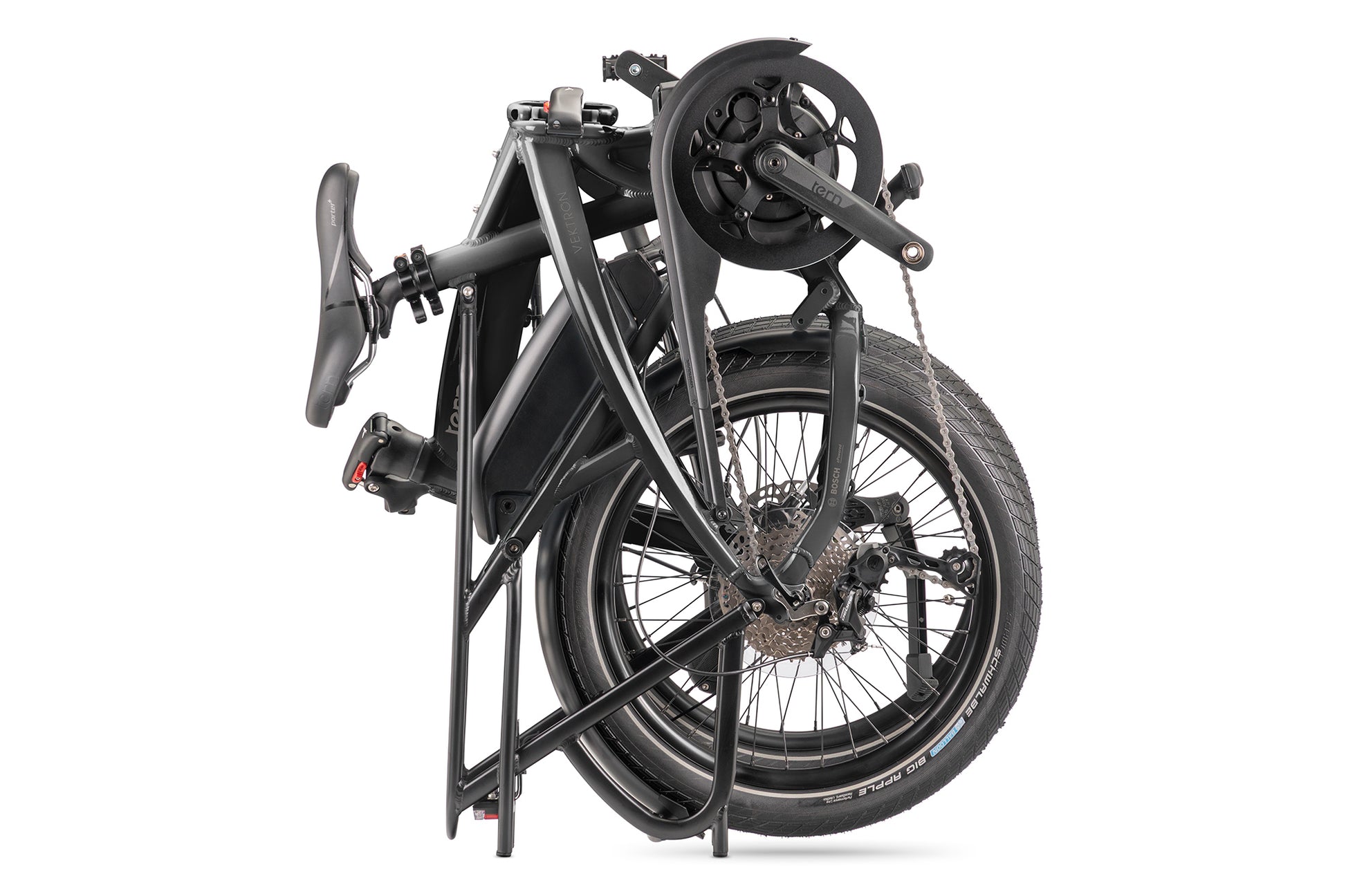

| Fold System | Magnetix 3.0, stands upright when folded |
| Chainguard | SKS Chainblade |
The Full Scoop on the Tern Vektron P10
The Tern Vektron P10 is a folding e-bike built for riders who want real commuting power in a package that fits anywhere. Powered by a Bosch Performance Line mid-drive motor and paired with a Shimano Deore 1×10 drivetrain, it delivers smooth, confident rides across town — then folds in 10 seconds flat to slide under a desk, into a trunk, or onto a train.
The Gen 4 Vektron introduces a reinforced OCL+ frame joint, a new 3D-forged Physis handlepost, and an adjustable cockpit that fits riders from 4'10" to 6'5" without tools. The integrated Atlas V rack carries up to 59 lbs of cargo, and the bike stands upright and rolls on its own wheels when folded.
With Magura hydraulic disc brakes, a 400Wh battery good for up to 70 miles of range, and a 10-year frame warranty, this is a folding e-bike that takes commuting seriously.
Motor System
| Motor | Bosch BES2 Performance Line, 300% Assist, 65 Nm Torque, Class 1 (20 mph) |
| Battery | Bosch PowerPack 400 Wh |
| Range | 28–70 miles (45–112 km) |
| Display | Bosch Purion, 4 modes + walk assist |
| Charger | 100-120V, 4A — ~3 hrs to 50%, ~6.5 hrs to full |
| Assist Modes | Eco, Tour+, Sport, Turbo |
| Certified | UL 2849, EN 15194 |
Components
| Frame | Tern Vektron 6061-AL, hydroformed, OCL+ frame joint |
| Fork | Tern Tarsus 6061-AL, hydroformed |
| Drivetrain | Shimano Deore 1×10 speed, 11-36T cassette |
| Brakes | Magura MT4 hydraulic disc, 160mm rotors |
| Handlepost | Tern Physis 3D, forged aluminum |
| Stem | Tern Andros, adjustable, tool-free |
| Wheels | Kinetix Comp rims, Novatec sealed bearing hubs |
| Tires | Schwalbe Big Apple 20×2.15, puncture protection, reflective sidewall |
| Saddle | Tern Porter+ by Velo, PrimeGel |
| Pedals | MKS EZY quick-release |
| Grips | Ergon |
Extras
| Front Light | Tern Valo Direct, 190 lumens, e-bike powered |
| Rear Light | Herrmans H-Trace, e-bike powered |
| Rack | Atlas V, 8-point mounting, 27 kg (59 lb) capacity |
| Rack Compatibility | KLICKfix, Racktime SNAPIT 2.0, Ortlieb Quick-Lock |
| Fenders | SplashGuard, stainless hardware |
| Kickstand | URSUS, rear-mount |
| Fold System | Magnetix 3.0, stands upright when folded |
| Chainguard | SKS Chainblade |
