Tern Vektron S10

The Full Scoop on the Tern Vektron S10

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Tern bikes are available for purchase at our local shops in San Diego and Los Angeles

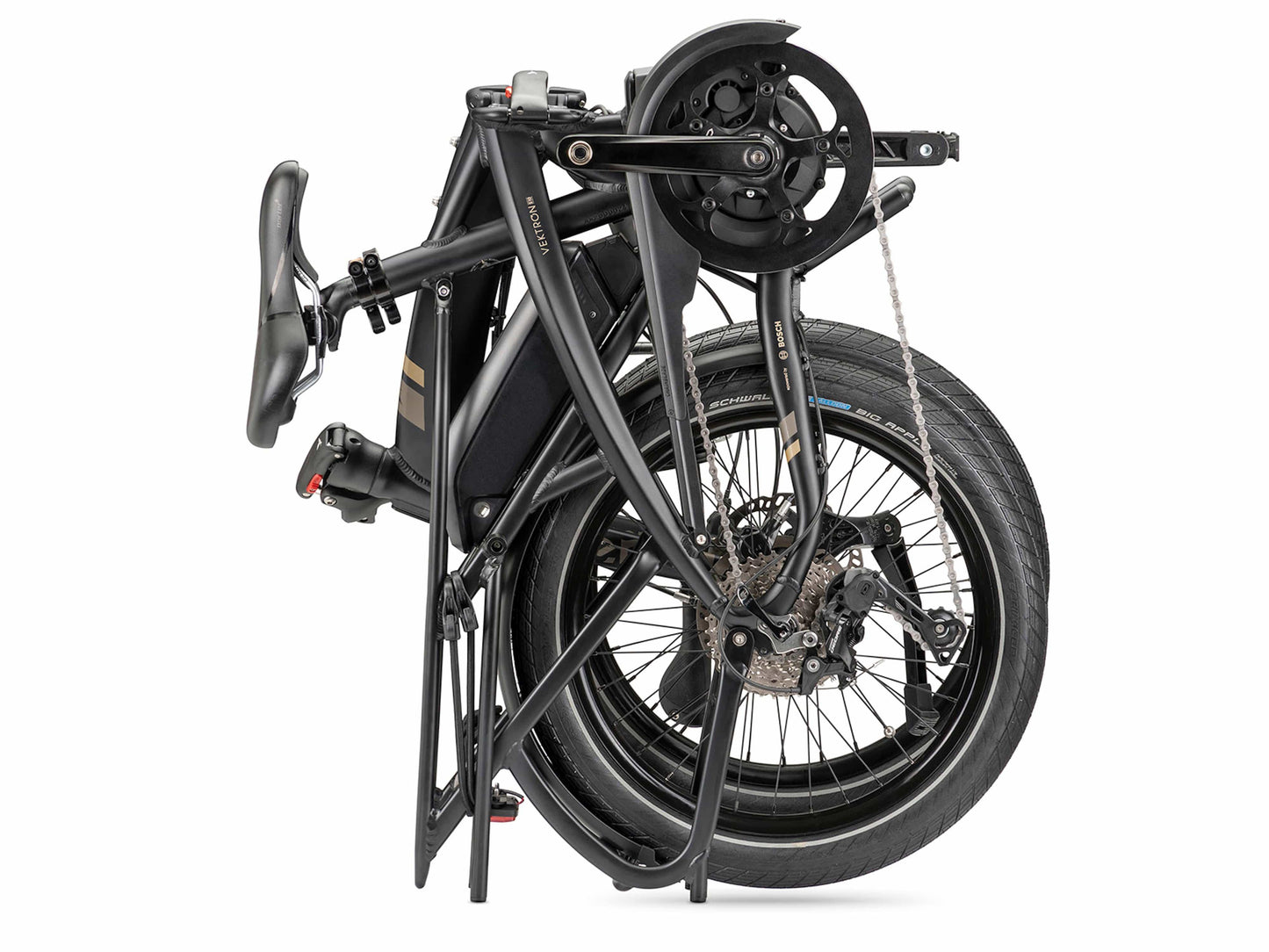

• The Tern Vektron S10 is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further. The Bosch-equipped Tern Vektron S10 can take you up to 20 mph, maintaining its excellent performance while delivering a quiet ride with less pedal resistance. The Tern Vektron S10 has a low-step frame design and resizes in seconds—no tools required—to fit riders between 145 and 195 cm (4’10” – 6’5”), so you can share the bike with anyone in your family.

• Components subject to manufacturer changes * MANY optional accessories .

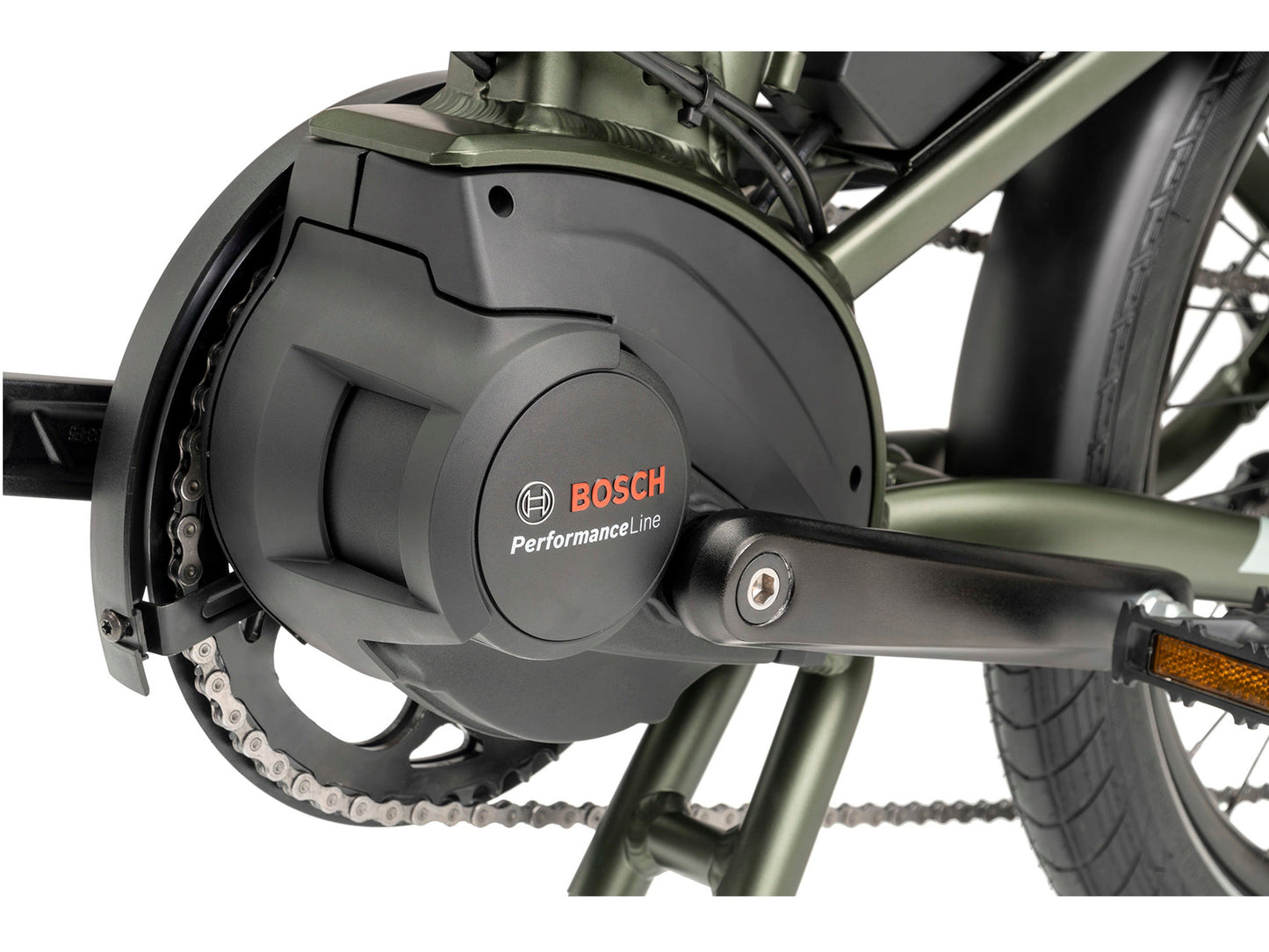

• Motor	Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph
  Battery	Bosch PowerPack 400 Wh
  Display	Bosch Purion, 4 mode selectable, walk assist
  Charger	220V, 4A (EU); 100-240V, 4A (US)

• Frame	Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
  Fork	Tern Tarsus, 6061-Al, hydroformed
  Rear Shock	Not applicable
  Front Brake	Magura MT4, hydraulic disc
  Rear Brake	Magura MT4, hydraulic disc
  Rear Derailleur	Shimano Deore Shadow+
  Shift Levers	Shimano Deore, 1 x 10 spd
  Chain	10 spd, DHT for eBike, GST corrosion resistant coating
  Cassette	Shimano 11-36T, 10 spd
  Crankset	Vektron custom, forged AL6061 crankarm
  Chain Ring	Spec not provided
  Chain Guard	SKS Chainblade
  Rims	Kinetix Comp, for disc
  Front Hub	Novatec, sealed cartridge bearing, disc
  Rear Hub	Novatec, sealed cartridge bearing, disc
  Front Tire	Schwalbe Big Apple, Active Line, 55-406, puncture protection, Reflex
  Rear Tire	Schwalbe Big Apple, Active Line, 55-406, puncture protection, Reflex
  Handlebar	Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
  Stem	Tern Andros, adjustable, forged construction, patented technology
  Headset	Flux Pro, angular contact bearings, Physis integrated
  Grips	Ergon

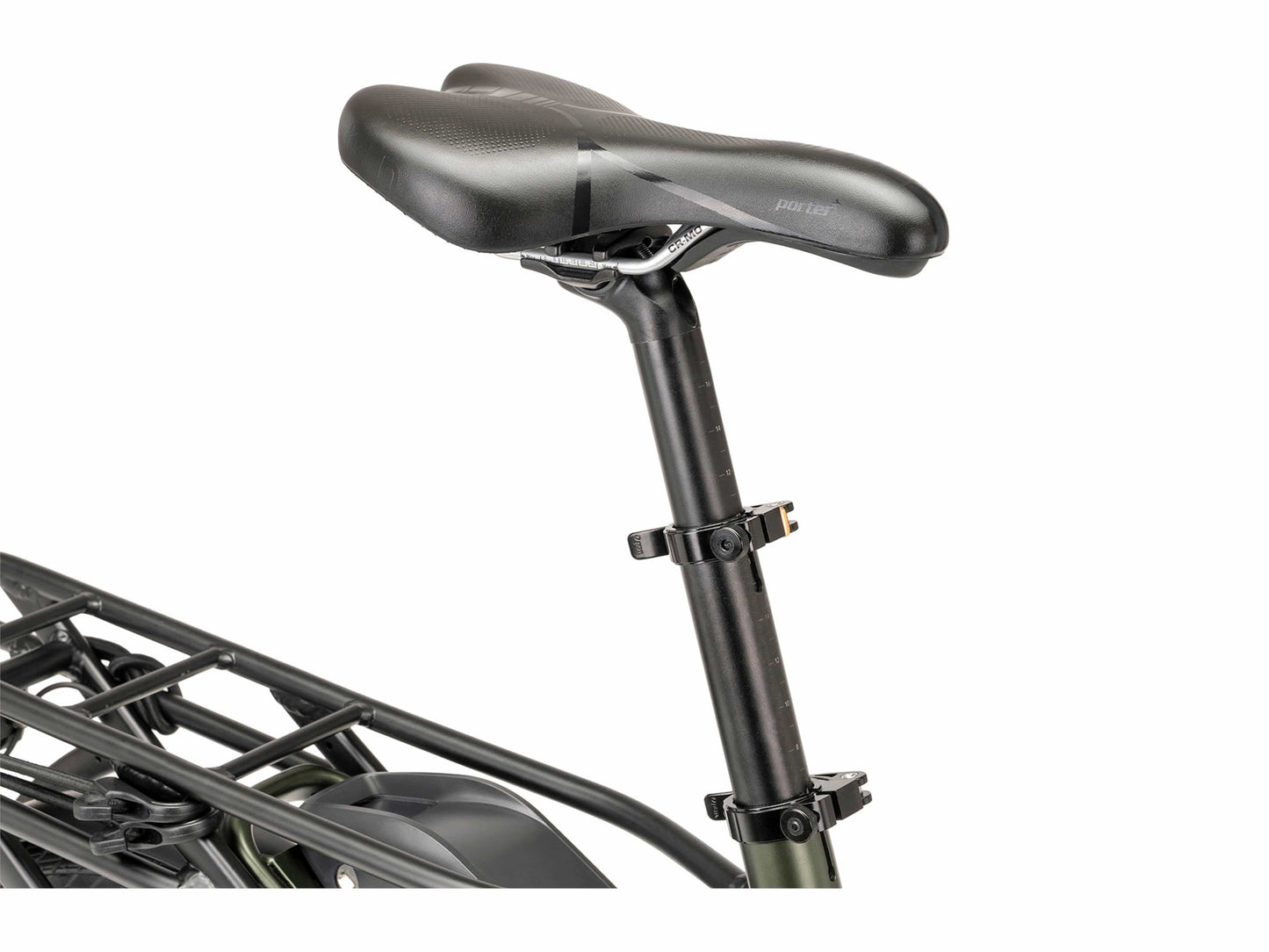

  Saddle	Tern Porter+, patented GripPad design, PrimeGel padding
  Seatpost	Tern Telescope, 34.9/30.9 mm, 2014-AL

• Pedals	MKS EZY
  Front Light	Tern Valo Direct, 190 lumens
  Rear Light	Herrmans H-Trace, for eBike
  Kickstand	URSUS, rear mount

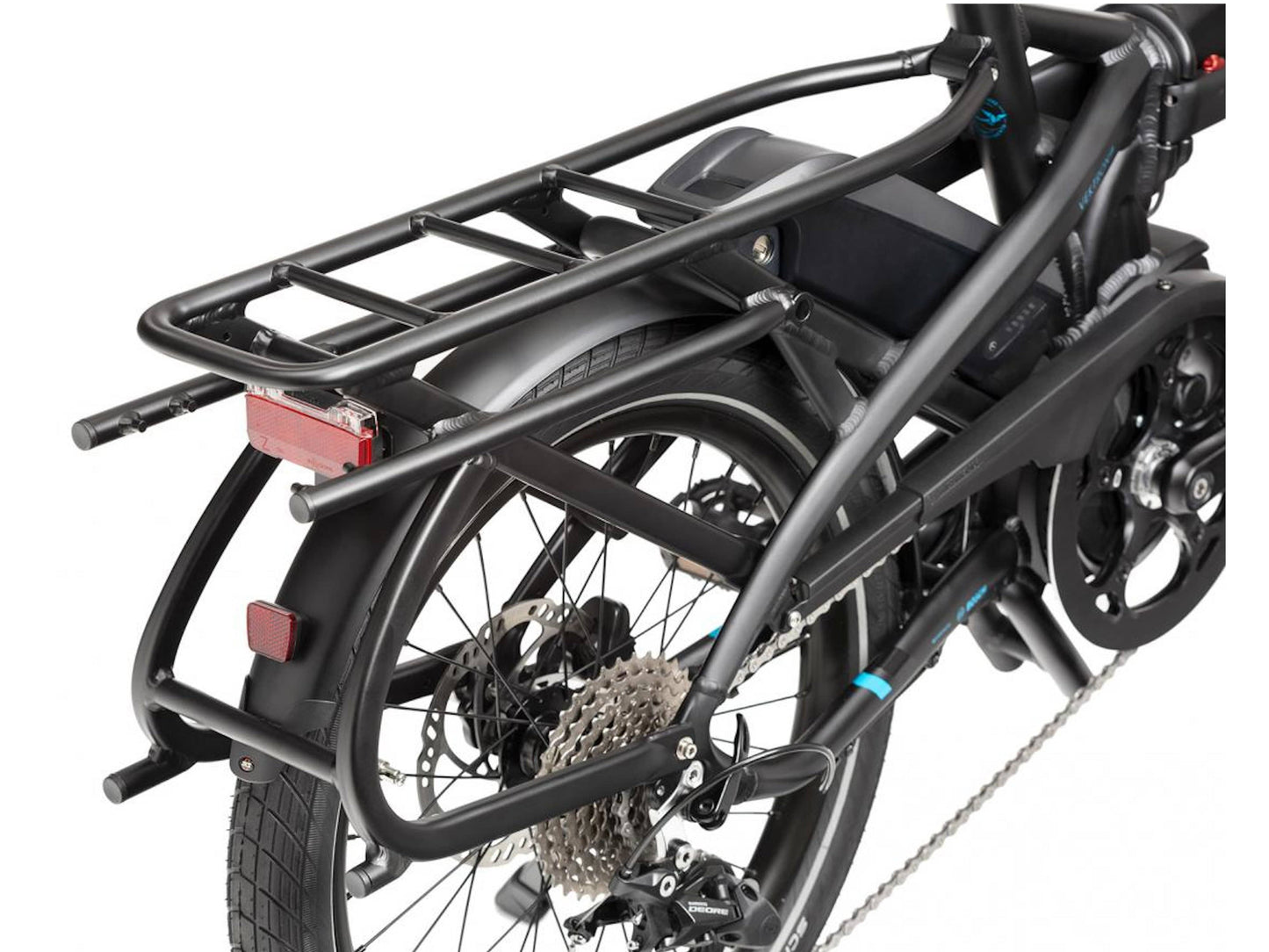

  Rear Carrier	Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
  Fenders	SKS, stainless hardware
  Bell	Aluminum
  Lock	Not applicable
  Mirror	Not applicable

• Size Guide
