Tern Verge D9
Tern Verge D9




The Full Scoop on the Tern Verge D9
The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned™ geometry, and a wide 1x drivetrain. It’s about as much value as we could condense into one bike, and it’s ready for any upgrades you can throw at it.
*Components subject to manufacture change without notice.
Frame | Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies |
Fork | Integrated, hi-tensile steel, for disc |
Rear Shock | Not applicable |
Front Brake | Shimano, hydraulic disc |
Rear Brake | Shimano, hydraulic disc |
Rear Derailleur | Shimano Acera, Shadow RD |
Shift Levers | Shimano,1 x 9 spd, trigger |
Chain | KMC, 9 spd |
Cassette | 11-36T, 9 spd |
Crankset | Forged 6061-AL, 53T |
Chain Ring | Spec not provided |
Chain Guard | Not applicable |
Rims | Doublewall aluminum |
Front Hub | Shimano disc |
Rear Hub | Shimano disc |
Front Tire | CST, 37-451, light skinwall, 60 tpi |
Rear Tire | CST, 37-451, light skinwall, 60 tpi |
Handlebar | Flat bar, 6061-Al |
Headset | Flux, cartridge bearings, Physis integrated |
Grips | Velo ergonomic, lock-on |
Saddle | Tern Porter, patented GripPad design |
Seatpost | SuperOversize, 6061-AL, micro-adjust clamp |
Pedals | Folding, alloy body |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Deluxe rear mount |
Rear Carrier | Not applicable |
Fenders | Optional -RP Chromeplastic, stainless hardware |
Bell | Aluminum |
Lock | Not applicable |
Mirror | Not applicable |

The Full Scoop on the Tern Verge D9
Description
The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned™ geometry, and a wide 1x drivetrain. It’s about as much value as we could condense into one bike, and it’s ready for any upgrades you can throw at it.
*Components subject to manufacture change without notice.
Components
Frame | Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies |
Fork | Integrated, hi-tensile steel, for disc |
Rear Shock | Not applicable |
Front Brake | Shimano, hydraulic disc |
Rear Brake | Shimano, hydraulic disc |
Rear Derailleur | Shimano Acera, Shadow RD |
Shift Levers | Shimano,1 x 9 spd, trigger |
Chain | KMC, 9 spd |
Cassette | 11-36T, 9 spd |
Crankset | Forged 6061-AL, 53T |
Chain Ring | Spec not provided |
Chain Guard | Not applicable |
Rims | Doublewall aluminum |
Front Hub | Shimano disc |
Rear Hub | Shimano disc |
Front Tire | CST, 37-451, light skinwall, 60 tpi |
Rear Tire | CST, 37-451, light skinwall, 60 tpi |
Handlebar | Flat bar, 6061-Al |
Headset | Flux, cartridge bearings, Physis integrated |
Grips | Velo ergonomic, lock-on |
Saddle | Tern Porter, patented GripPad design |
Seatpost | SuperOversize, 6061-AL, micro-adjust clamp |
Extras
Pedals | Folding, alloy body |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Deluxe rear mount |
Rear Carrier | Not applicable |
Fenders | Optional -RP Chromeplastic, stainless hardware |
Bell | Aluminum |
Lock | Not applicable |
Mirror | Not applicable |

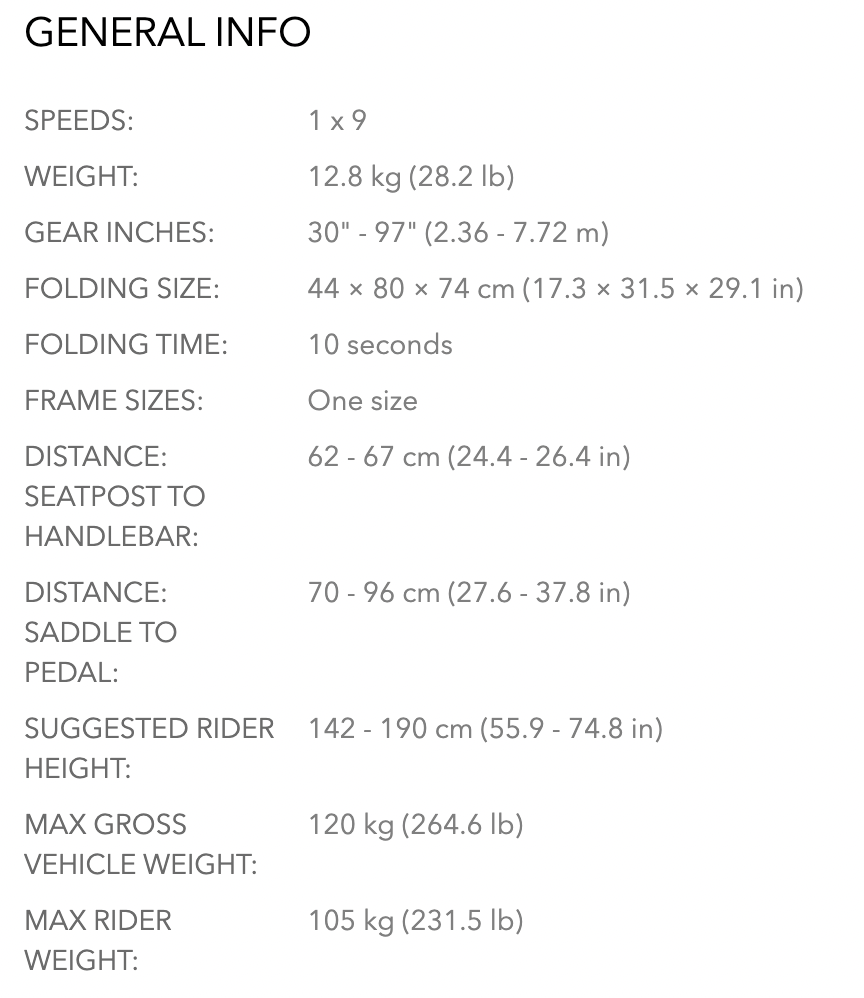

Geometry
