Tern Verge S8i
Tern Verge S8i
The Full Scoop on the Tern Verge S8i
The Verge S8i is the world’s most versatile ultra-low-maintenance folding bike. It’s designed around a Gates belt drive and Shimano’s 8-speed internal-gear Alfine hub. The result is a practically silent super-commuter with no greasy parts or protruding derailleurs, plus a gear range for any incline. The S8i has an extra-long wheelbase and Schwalbe Big Apple tires, so it rolls confidently over any and all potholes. It will get you there quickly, cleanly and most importantly, in style.
*Components subject to manufacture change without notice.
| Frame | Tern Verge, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies |
| Fork | Tern Tarsus, 6061-AL, hydroformed |
| Rear Shock | Not applicable |
| Front Brake | Shimano, hydraulic disc |
| Rear Brake | Shimano, hydraulic disc |
| Rear Derailleur | Spec not provided |
| Shift Levers | Shimano Alfine, 1 x 8 spd |

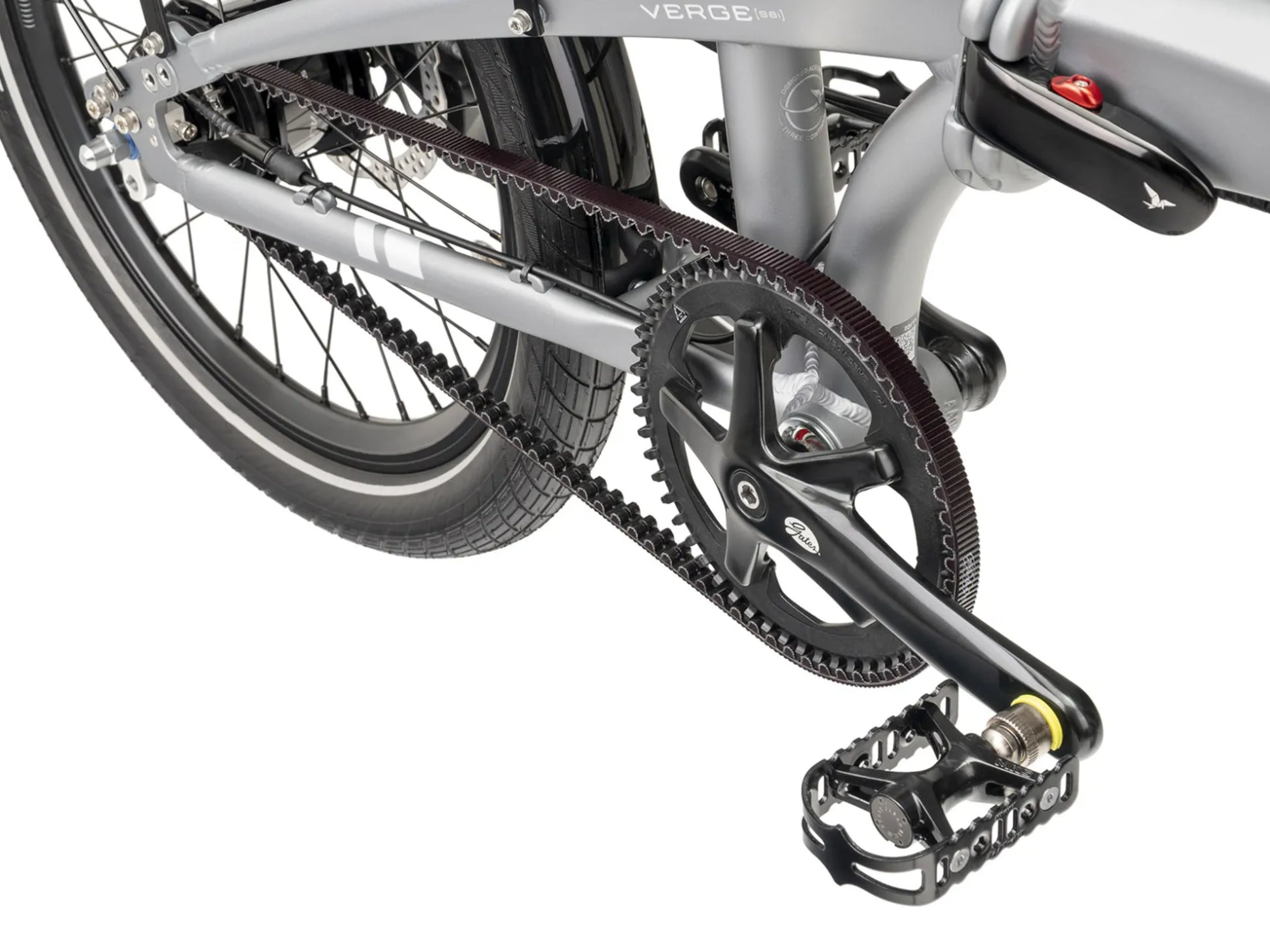

| Chain | Gates Carbon Drive belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Gates Carbon Drive |
| Chain Ring | Spec not provided |
| Chain Guard | Not applicable |
| Rims / wheels | Kinetix Comp, doublewall |
| Front Hub | BioLogic Joule 3 dynamo, disc |
| Rear Hub | Shimano Alfine, 8 spd |
| Front Tire | Schwalbe Big Apple 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple 55-406, puncture protection, Reflex |
| Handlebar | Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm |
| Headset | Flux Pro, angular contact bearings, Physis integrated |
| Grips | Phorm, w/ bar end |
| Saddle | Tern Porter+, patented GripPad design, PrimeGel padding |
| Seatpost | Stasis by Syntace, 7050-AL, hard-anodized |
| Pedals | MKS UB-LITE EZY, QR |
| Front Light | Tern Valo 2, integrated, 41 lux/150 lumens |
| Rear Light | Spanninga Pixeo XDS |
| Kickstand | Rear mount, Pletscher design |
| Rear Carrier | Tern Cargo Rack; Max load weight: 25 kg (55 lb) |
| Fenders | SplashGuard, stainless hardware |
| Bell | Pitch, brass |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Tern Verge S8i
Description
The Verge S8i is the world’s most versatile ultra-low-maintenance folding bike. It’s designed around a Gates belt drive and Shimano’s 8-speed internal-gear Alfine hub. The result is a practically silent super-commuter with no greasy parts or protruding derailleurs, plus a gear range for any incline. The S8i has an extra-long wheelbase and Schwalbe Big Apple tires, so it rolls confidently over any and all potholes. It will get you there quickly, cleanly and most importantly, in style.
*Components subject to manufacture change without notice.
Components
| Frame | Tern Verge, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies |
| Fork | Tern Tarsus, 6061-AL, hydroformed |
| Rear Shock | Not applicable |
| Front Brake | Shimano, hydraulic disc |
| Rear Brake | Shimano, hydraulic disc |
| Rear Derailleur | Spec not provided |
| Shift Levers | Shimano Alfine, 1 x 8 spd |
| Chain | Gates Carbon Drive belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Gates Carbon Drive |
| Chain Ring | Spec not provided |
| Chain Guard | Not applicable |
| Rims / wheels | Kinetix Comp, doublewall |
| Front Hub | BioLogic Joule 3 dynamo, disc |
| Rear Hub | Shimano Alfine, 8 spd |
| Front Tire | Schwalbe Big Apple 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple 55-406, puncture protection, Reflex |
| Handlebar | Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 350 mm |
| Headset | Flux Pro, angular contact bearings, Physis integrated |
| Grips | Phorm, w/ bar end |
| Saddle | Tern Porter+, patented GripPad design, PrimeGel padding |
| Seatpost | Stasis by Syntace, 7050-AL, hard-anodized |
Extras
| Pedals | MKS UB-LITE EZY, QR |
| Front Light | Tern Valo 2, integrated, 41 lux/150 lumens |
| Rear Light | Spanninga Pixeo XDS |
| Kickstand | Rear mount, Pletscher design |
| Rear Carrier | Tern Cargo Rack; Max load weight: 25 kg (55 lb) |
| Fenders | SplashGuard, stainless hardware |
| Bell | Pitch, brass |
| Lock | Not applicable |
| Mirror | Not applicable |

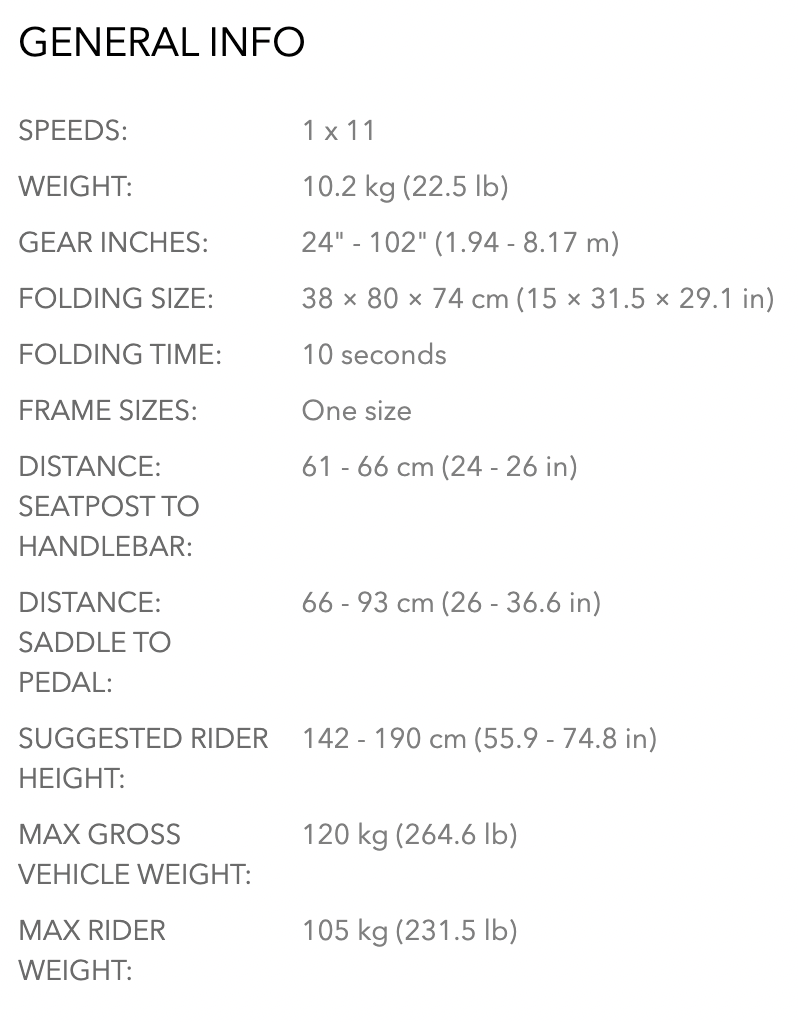

Geometry
