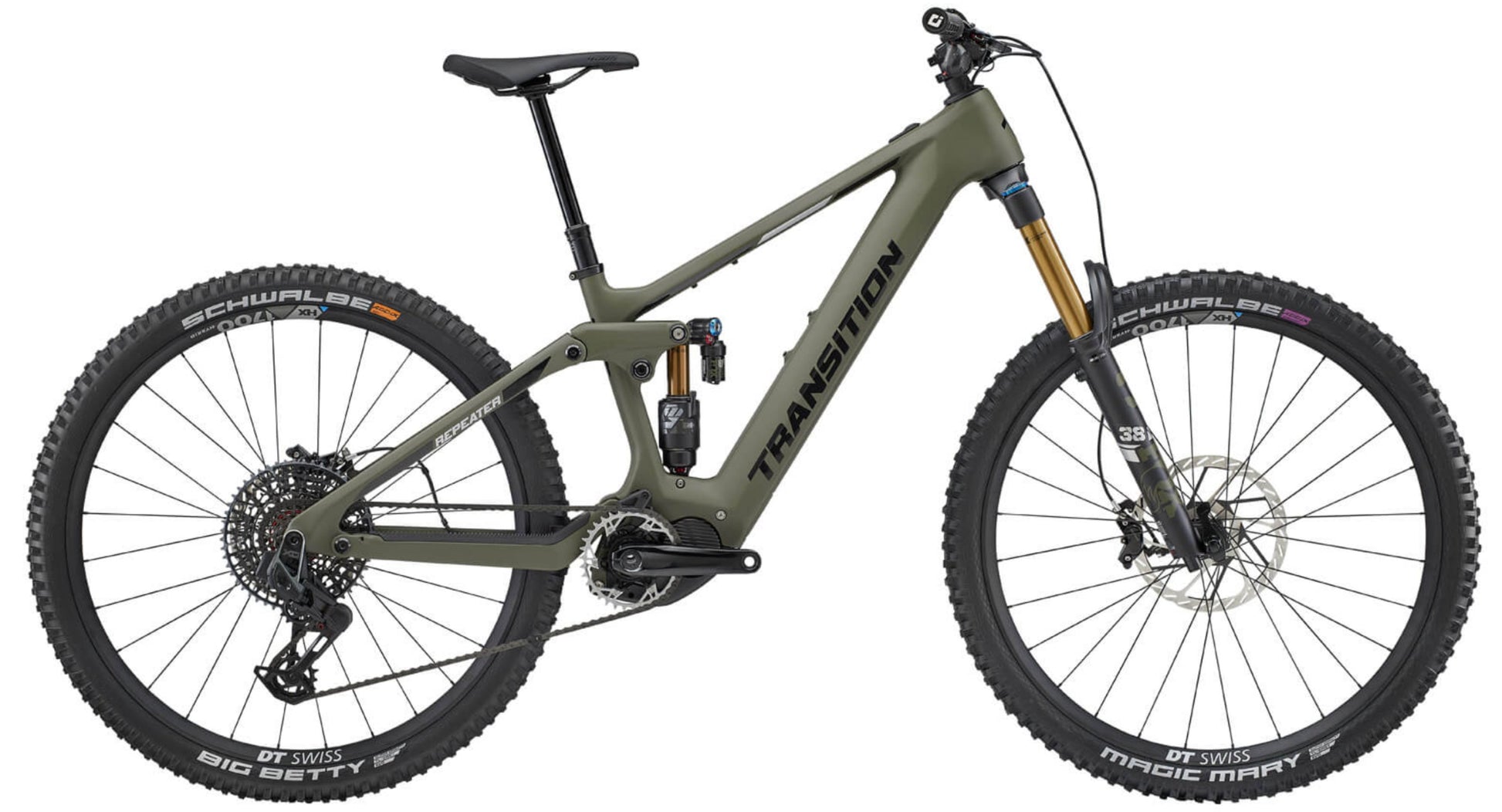

The Full Scoop on the Tranisition Repeater EP8
The Repeater EP8 is down for anything. With 160mm travel, 29 inch wheels, the Shimano EP8 motor system, and a 630w battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.
*Components subject to manufacturer changes.
| Motor | Shimano DU-EP800 |
| Battery | Shimano BT-E8036 (630Wh) |
| Display | Shimano SC-EM800 |
| Charger | Shimano EC-E6002 Charger |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| D | Seattube length | 375mm | 400mm | 440mm | 470mm |
| C | Toptube length | 559mm | 589mm | 617mm | 650mm |
| J | Bottom bracket drop | 30mm | 30mm | 30mm | 30mm |
| K | Bottom bracket height | 340mm | 340mm | 340mm | 340mm |
| H | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| E | Seat tube angle | 72.5° | 72.5° | 72.5° | 72.5° |
| E | Effective seattube angle | 78.4° | 77.9° | 77.4° | 77.1° |
| G | Headtube angle | 64° | 64° | 64° | 64° |
| M | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| I | Wheelbase | 1221mm | 1251mm | 1280mm | 1315mm |
| F | Headtube length | 110mm | 110mm | 120mm | 130mm |
| A | Reach | 425mm | 455mm | 480mm | 510mm |
| B | Stack | 631mm | 631mm | 640mm | 649mm |
The Full Scoop on the Tranisition Repeater EP8
The Repeater EP8 is down for anything. With 160mm travel, 29 inch wheels, the Shimano EP8 motor system, and a 630w battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.
*Components subject to manufacturer changes.

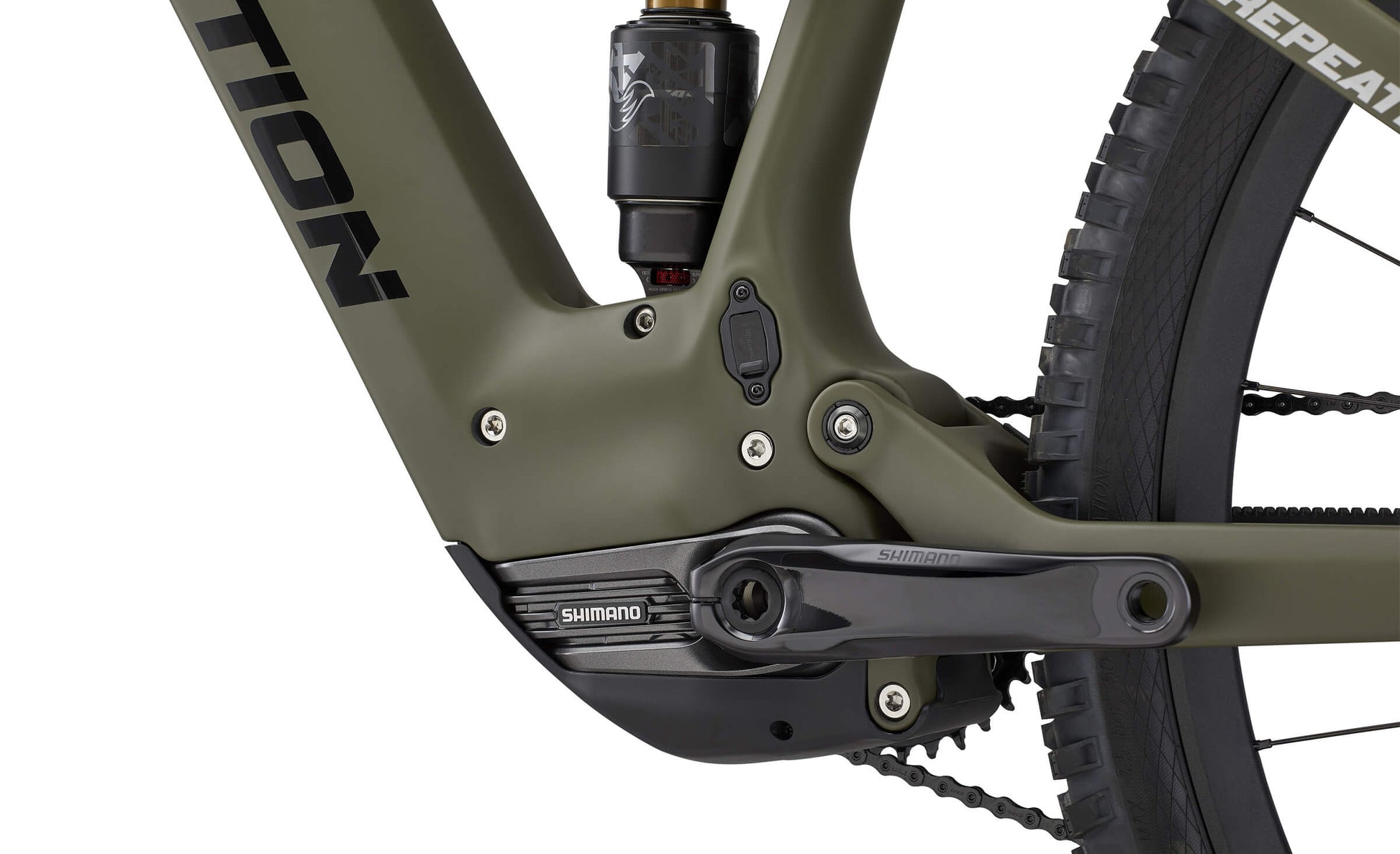

Motor System
| Motor | Shimano DU-EP800 |
| Battery | Shimano BT-E8036 (630Wh) |
| Display | Shimano SC-EM800 |
| Charger | Shimano EC-E6002 Charger |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

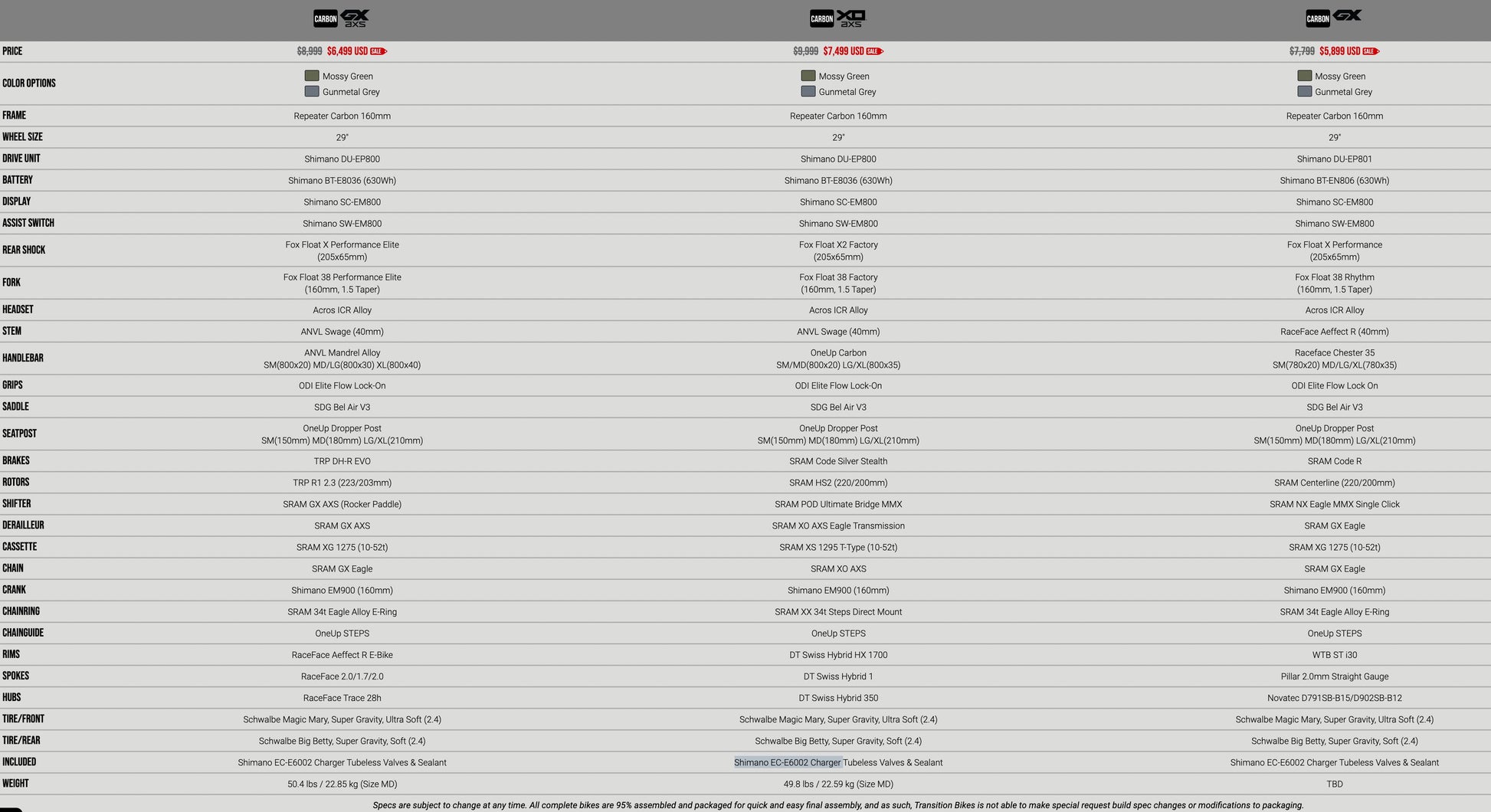

Spec chart & Geometry
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| D | Seattube length | 375mm | 400mm | 440mm | 470mm |
| C | Toptube length | 559mm | 589mm | 617mm | 650mm |
| J | Bottom bracket drop | 30mm | 30mm | 30mm | 30mm |
| K | Bottom bracket height | 340mm | 340mm | 340mm | 340mm |
| H | Chainstay length | 455mm | 455mm | 455mm | 455mm |
| E | Seat tube angle | 72.5° | 72.5° | 72.5° | 72.5° |
| E | Effective seattube angle | 78.4° | 77.9° | 77.4° | 77.1° |
| G | Headtube angle | 64° | 64° | 64° | 64° |
| M | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| I | Wheelbase | 1221mm | 1251mm | 1280mm | 1315mm |
| F | Headtube length | 110mm | 110mm | 120mm | 130mm |
| A | Reach | 425mm | 455mm | 480mm | 510mm |
| B | Stack | 631mm | 631mm | 640mm | 649mm |
