The Full Scoop on the Yamaha Civante
Integrated technology. Great comfort. Fantastic ride quality. With pedal assist up to 28mph and geometry that is comfortable at higher speeds, our proprietary drive unit feels natural and smooth so that you can enjoy the ride and get there faster. You might be big on social media, but you’ll have even more followers when you’re riding your Civante.
*Components subject to manufacturer changes.
Motor | Yamaha PW Series SE, Center mount, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max.), Max. torque: 70Nm, Max. cadence support: 110rpm, Max. speed support: 28mph, Support modes: ECO+, ECO, STANDARD, HIGH |
Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display Side exiting dock station with anti-vibration mounting plate Weight 6.61lb 500Wh 36V 4-hour charge time |
Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator. Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
Charger | Spec not provided |
Frame | Yamaha Hydroformed and butted Aluminum tubing, Integrated cable/housing routing, Accessory mount, Fender and rack compatible, 3 bolt motor mount, 12x 142 rear spacing, integrated speed sensor harness |
Fork | Alloy, 12mm thru-axle, fender compatible, Internal cable housing routing, 1 1/8" steerer |
Rear Shock | Not applicable |
Front Brake | Shimano Tiagra Hydraulic Disc 160mm / SM-RT68 Centerlock Rotor |
Rear Brake | Shimano Tiagra Hydraulic Disc 160mm / SM-RT68 Centerlock Rotor |
Rear Derailleur | Shimano Tiagra GS 10-Speed |
Shift Levers | Shimano Tiagra Hydraulic Disc Brake Dual Control Lever 2x10 |
Chain | KMC e10 Sport |
Cassette | Shimano 11-32t |
Crankset | Square taper, 165mm (S) 170mm (M,L) |
Chain Ring | 50/34T E-Ring 110 BCD |
Chain Guard | Spec not provided |
Rims | 700c Alloy aero rim 27mm depth Rim width: 22.2mm (OUTSIDE) 17mm (INSIDE) |
Front Hub | Anodized Centerlock brake mount, 12 x 100 thru axle |
Rear Hub | 12x142mm Shimano freehub and Yamaha Speed sensor |
Front Tire | CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use |
Rear Tire | CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use |
Handlebar | Alloy drop bar, 31.8mm diameter, 40cm width (53cm), 42cm width (55cm & 58cm sizes) |
Stem | Yamaha Alloy 4-both faceplate,31.8 diameter, S & M = 80mm, L=100mm length |
Headset | Integrated with 30mm of spacers |
Grips | Padded cork tape |
Saddle | YAMAHA Road Plus Cro-Mo rail |
Seatpost | Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Included |
Lock | Not applicable |
Mirror | Not applicable |
The Full Scoop on the Yamaha Civante
Description
Integrated technology. Great comfort. Fantastic ride quality. With pedal assist up to 28mph and geometry that is comfortable at higher speeds, our proprietary drive unit feels natural and smooth so that you can enjoy the ride and get there faster. You might be big on social media, but you’ll have even more followers when you’re riding your Civante.
*Components subject to manufacturer changes.
Motor System
Motor | Yamaha PW Series SE, Center mount, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max.), Max. torque: 70Nm, Max. cadence support: 110rpm, Max. speed support: 28mph, Support modes: ECO+, ECO, STANDARD, HIGH |
Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display Side exiting dock station with anti-vibration mounting plate Weight 6.61lb 500Wh 36V 4-hour charge time |
Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator. Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
Charger | Spec not provided |
Components
Frame | Yamaha Hydroformed and butted Aluminum tubing, Integrated cable/housing routing, Accessory mount, Fender and rack compatible, 3 bolt motor mount, 12x 142 rear spacing, integrated speed sensor harness |
Fork | Alloy, 12mm thru-axle, fender compatible, Internal cable housing routing, 1 1/8" steerer |
Rear Shock | Not applicable |
Front Brake | Shimano Tiagra Hydraulic Disc 160mm / SM-RT68 Centerlock Rotor |
Rear Brake | Shimano Tiagra Hydraulic Disc 160mm / SM-RT68 Centerlock Rotor |
Rear Derailleur | Shimano Tiagra GS 10-Speed |
Shift Levers | Shimano Tiagra Hydraulic Disc Brake Dual Control Lever 2x10 |
Chain | KMC e10 Sport |
Cassette | Shimano 11-32t |
Crankset | Square taper, 165mm (S) 170mm (M,L) |
Chain Ring | 50/34T E-Ring 110 BCD |
Chain Guard | Spec not provided |
Rims | 700c Alloy aero rim 27mm depth Rim width: 22.2mm (OUTSIDE) 17mm (INSIDE) |
Front Hub | Anodized Centerlock brake mount, 12 x 100 thru axle |
Rear Hub | 12x142mm Shimano freehub and Yamaha Speed sensor |
Front Tire | CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use |
Rear Tire | CST XPEDIUM AMPERO 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use |
Handlebar | Alloy drop bar, 31.8mm diameter, 40cm width (53cm), 42cm width (55cm & 58cm sizes) |
Stem | Yamaha Alloy 4-both faceplate,31.8 diameter, S & M = 80mm, L=100mm length |
Headset | Integrated with 30mm of spacers |
Grips | Padded cork tape |
Saddle | YAMAHA Road Plus Cro-Mo rail |
Seatpost | Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Included |
Lock | Not applicable |
Mirror | Not applicable |

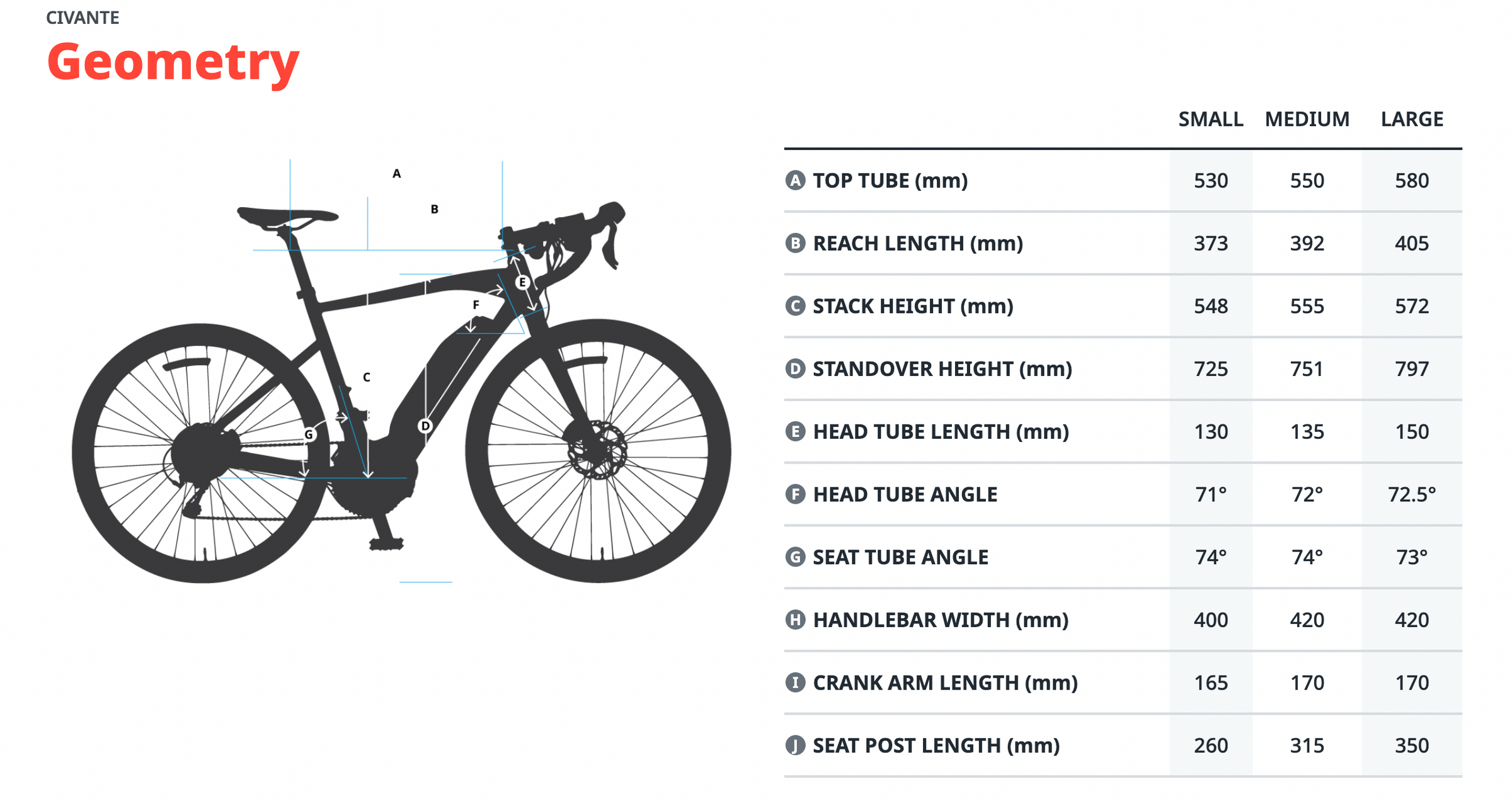

Geometry
