The Full Scoop on the Yamaha Wabash RT
The Wabash RT brings unaparalleled Adventure and Versatility. This Gravel road eBike features the PW Series ST Drive Unit, a Yamaha 500Wh battery, Shimano GRX, Gravel Specific handlebars, fork rack and fender mounts
*Components subject to manufacturer changes.
| Motor | Yamaha PW Series, ST 3-bolt Mount, Quad Sensor System with rear hub speed sensor, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max.), Max. torque: 70Nm, Max. cadence support: xxxrpm, Max. speed support: 28mph, Support modes: AUTO, ECO+, ECO, STANDARD, HIGH |
| Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display Side exiting dock station with anti-vibration mounting plate Weight 6.61lb 500Wh 36V 4-hour charge time |
| Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator. Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
| Charger | Spec not provided |
| Frame | Yamaha Hydroformed Aluminum, Integrated battery, Water bottle boss, Tapered Headtube,Internal shift/brake hose routing |
| Fork | One-Piece Aluminum, 12x100mm Thru-Axle, Fender and rack compatible, Internal brake hose routing |
| Rear Shock | Not applicable |
| Front Brake | RX400-front, 180mm Centerlock |
| Rear Brake | Shimano GRX RX600-rear, 180mm Centerlock |
| Rear Derailleur | Shimano SLX Long-Cage |
| Shift Levers | Shimano GRX |
| Chain | KMC e11 TURBO EPT |
| Cassette | Shimano CS-M7000, 11-42t, 11spd |
| Crankset | Square taper, 165mm (S,M), 170mm (L) |
| Chain Ring | Shimano GRX 44t |
| Chain Guard | Spec not provided |
| Rims | 32-Hole Dual Channel Welded pin w/ eyeleted spoke |
| Front Hub | 12x100mm TA |
| Rear Hub | 12x142mm TA with integrated speed sensor |
| Front Tire | Maxxis Rambler 700 x 45c TR EXO 120tpi |
| Rear Tire | Maxxis Rambler 700 x 45c TR EXO 120tpi |
| Handlebar | Alloy 35.0diameter, 780mm width, 30mm rise |
| Stem | Yamaha Alloy 4-both faceplate,31.8 diameter, S= 80mm, M=90mm, L=100mm length |
| Headset | Integrated bearing with 30mm of spacers |
| Grips | Padded cork tape |
| Saddle | YAMAHA Off-Road Cro-Mo rail |
| Seatpost | Alloy 30.9 x 340mm (S), 395mm (M), 440mm (L) with 2-bolt adjustable tilt saddle rail clamp |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Included |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Yamaha Wabash RT
Description
The Wabash RT brings unaparalleled Adventure and Versatility. This Gravel road eBike features the PW Series ST Drive Unit, a Yamaha 500Wh battery, Shimano GRX, Gravel Specific handlebars, fork rack and fender mounts
*Components subject to manufacturer changes.
Motor System
| Motor | Yamaha PW Series, ST 3-bolt Mount, Quad Sensor System with rear hub speed sensor, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max.), Max. torque: 70Nm, Max. cadence support: xxxrpm, Max. speed support: 28mph, Support modes: AUTO, ECO+, ECO, STANDARD, HIGH |
| Battery | Yamaha 500Wh with Charge-life indicator and Self-diagnosis display Side exiting dock station with anti-vibration mounting plate Weight 6.61lb 500Wh 36V 4-hour charge time |
| Display | Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator. Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
| Charger | Spec not provided |
Components
| Frame | Yamaha Hydroformed Aluminum, Integrated battery, Water bottle boss, Tapered Headtube,Internal shift/brake hose routing |
| Fork | One-Piece Aluminum, 12x100mm Thru-Axle, Fender and rack compatible, Internal brake hose routing |
| Rear Shock | Not applicable |
| Front Brake | RX400-front, 180mm Centerlock |
| Rear Brake | Shimano GRX RX600-rear, 180mm Centerlock |
| Rear Derailleur | Shimano SLX Long-Cage |
| Shift Levers | Shimano GRX |
| Chain | KMC e11 TURBO EPT |
| Cassette | Shimano CS-M7000, 11-42t, 11spd |
| Crankset | Square taper, 165mm (S,M), 170mm (L) |
| Chain Ring | Shimano GRX 44t |
| Chain Guard | Spec not provided |
| Rims | 32-Hole Dual Channel Welded pin w/ eyeleted spoke |
| Front Hub | 12x100mm TA |
| Rear Hub | 12x142mm TA with integrated speed sensor |
| Front Tire | Maxxis Rambler 700 x 45c TR EXO 120tpi |
| Rear Tire | Maxxis Rambler 700 x 45c TR EXO 120tpi |
| Handlebar | Alloy 35.0diameter, 780mm width, 30mm rise |
| Stem | Yamaha Alloy 4-both faceplate,31.8 diameter, S= 80mm, M=90mm, L=100mm length |
| Headset | Integrated bearing with 30mm of spacers |
| Grips | Padded cork tape |
| Saddle | YAMAHA Off-Road Cro-Mo rail |
| Seatpost | Alloy 30.9 x 340mm (S), 395mm (M), 440mm (L) with 2-bolt adjustable tilt saddle rail clamp |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Included |
| Lock | Not applicable |
| Mirror | Not applicable |

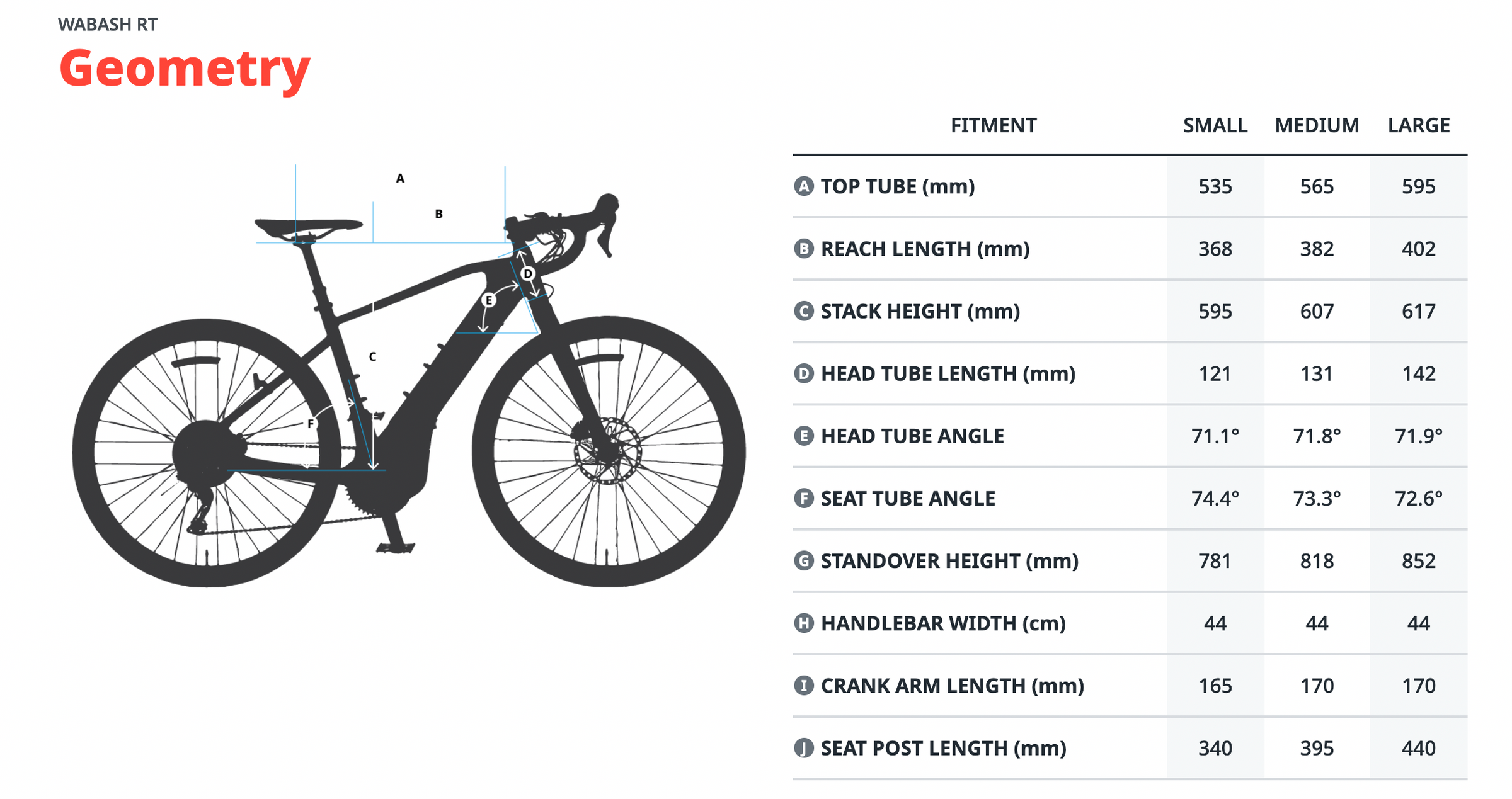

Geometry
