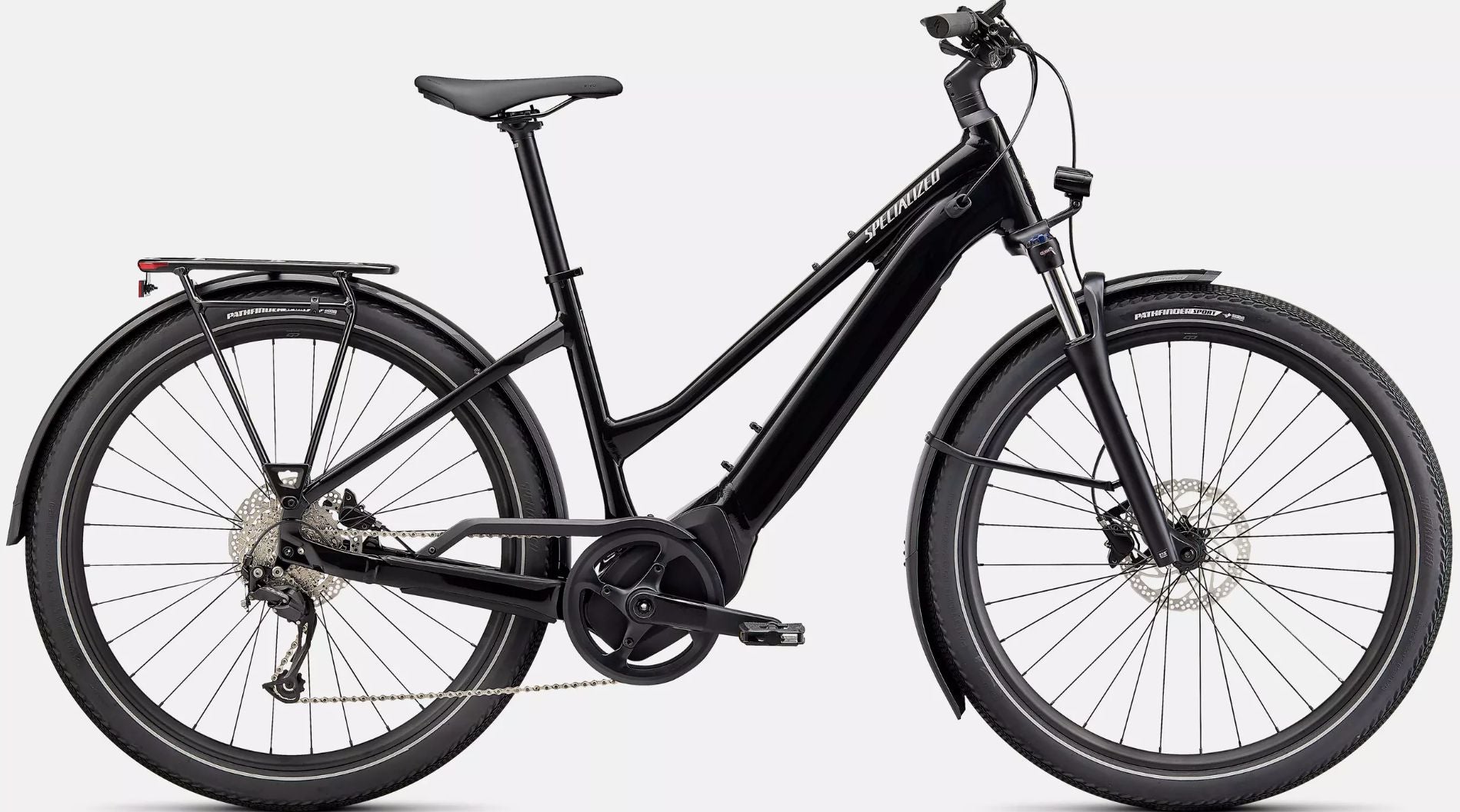

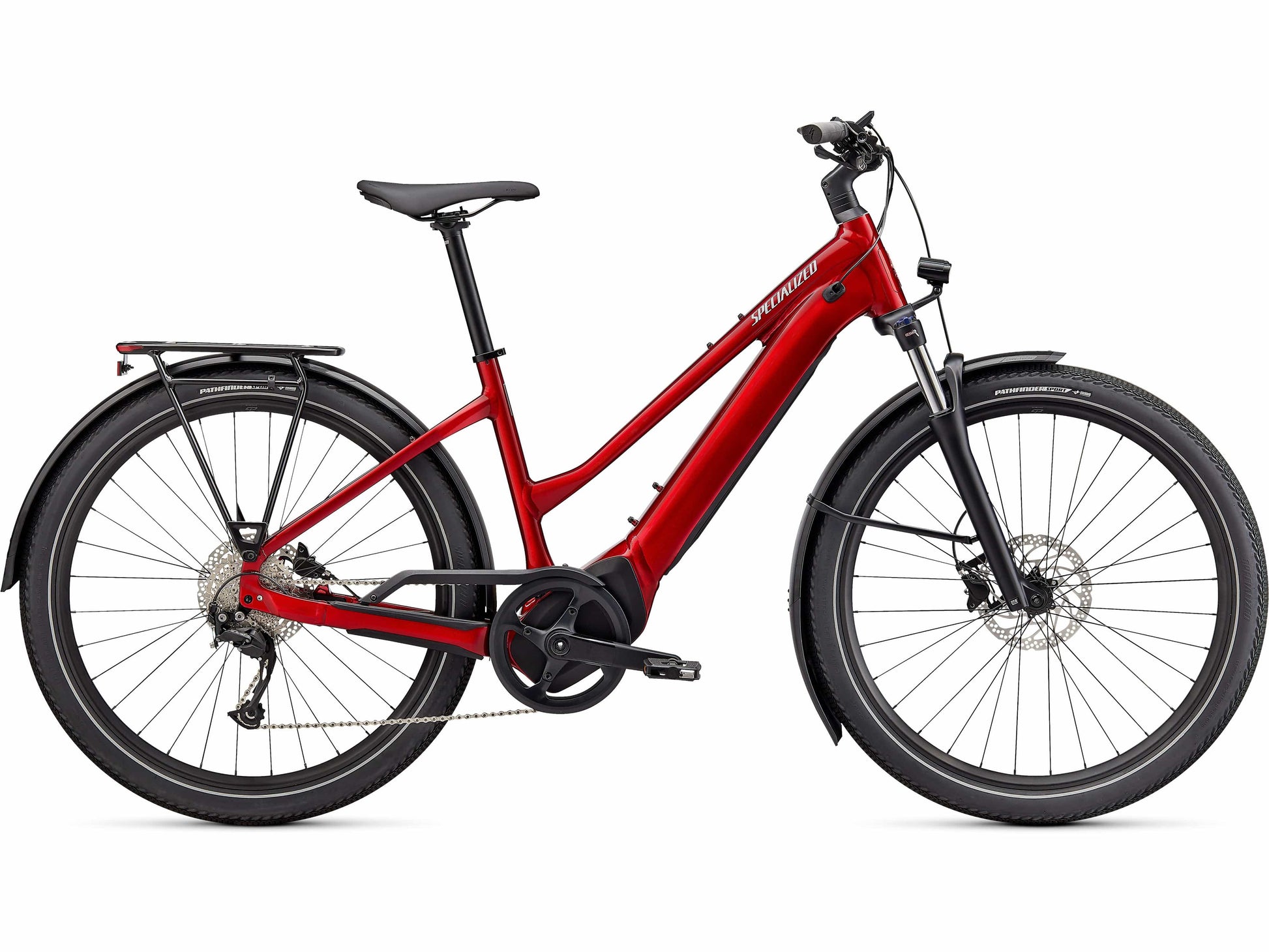

Specialized Turbo Vado 3.0 Step through

The Full Scoop on the Specialized Turbo Vado 3.0 Step through

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•
  If you can characterize your life as on-the-go, busy, or not having enough time, we made a bike for you—the Turbo Vado 3.0. It's made to accommodate busy lives that are always in movement. Whether you're looking for a city cruiser, quick commuter, or a full-suspension mountain bike, Specialized has you covered. Fly Rides has the biggest in store collection of Specialized electric bikes in Southern California. Why? Because electric bikes is what we do! Come check out the full lineup today!


  Check out the full lineup of Specialized electric bikes here!

  Components subject to manufacturer changes

• Motor	Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
  Battery	Specialized U2-530, alloy casing, state of charge display, 530Wh
  Display	MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
  Charger	Custom charger, 42V4A w/ Rosenberger plug, 100-240V

• Frame	E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
  Fork	SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200, hydraulic disc, 180mm Centerlock
  Rear Brake	Shimano BR-MT200, hydraulic disc, 180mm Centerlock
  Rear Derailleur	Shimano Alivio, SGS, 9-speed
  Shift Levers	Shimano Alivio, 9-speed w/ Optical Gear Display
  Chain	KMC e9T, 9-speed w/ Missing Link™
  Cassette	Shimano CS-HG400, 9-speed, 11-36t
  Crankset	Custom alloy forged crankarms
  Chain Ring	Praxis, 48T, 104BCD
  Chain Guard	Custom chaincover
  Rims	650b disc, double-wall alloy, pinned, 32h
  Front Hub	Shimano MT400, Centerlock, 15x100mm, 32h
  Rear Hub	Shimano MT400-B, Centerlock, 12x148 Boost, 32h
  Front Tire	Pathfinder Sport Reflect, 650Bx2.3
  Rear Tire	Pathfinder Sport Reflect, 650Bx2.3

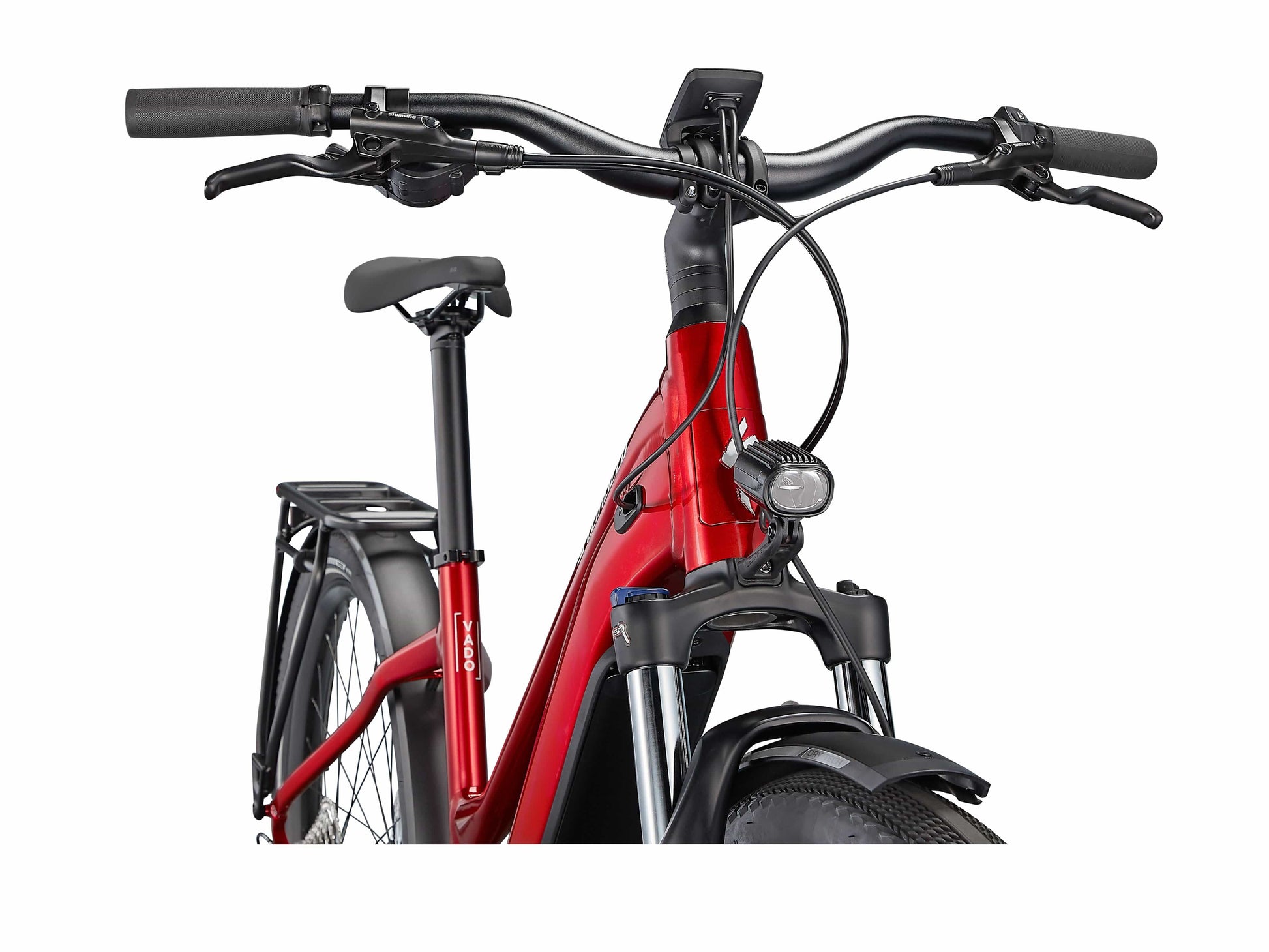

  Handlebar	Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
  Stem	Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
  Headset	Spec not provided
  Grips	Specialized Body Geometry Contour, lock-on
  Saddle	Rivo Sport, steel rails, 155mm
  Seatpost	Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

• Pedals	Specialized Commuter w/ grip tape & reflectors
  Front Light	Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V
  Rear Light	Spanninga Commuter Glow XE, 12V
  Kickstand	Specialized kickstand, 40mm mount
  Rear Carrier	Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
  Fenders	Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
  Bell	Simple bell
  Lock	Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
  Mirror	Not applicable

• Size S M L XL BB Drop 70mm 70mm 70mm 70mm BB Height 285 285 285 285 Bike Standover Height 618 617 617 626 Chainstay Length 470 470 470 470 Crank Length 170mm 170mm 170mm 170mm Fork Length 480 480 480 480 Fork Rake 44 44 44 44 Front Center 699 724 750 777 Handlebar Width 680mm 680mm 680mm 680mm Head Tube Angle 68 68 68 68 Head Tube Length 135 150 165 190 Reach 423 444 464 481 Saddle Width 155mm 155mm 155mm 155mm Seat Tube Angle 75.5 75 74.5 74 Seat Tube Length, BB Center to Top Vertical 400 450 460 500 Seatpost Length 300mm 400mm 400mm 400mm Stack 625 639 652 676 Stem Length 60mm 60mm 75mm 75mm Toptube Length 585 615 645 675 Trail 96 96 96 96 Wheelbase 1160 1186 1212 1239
