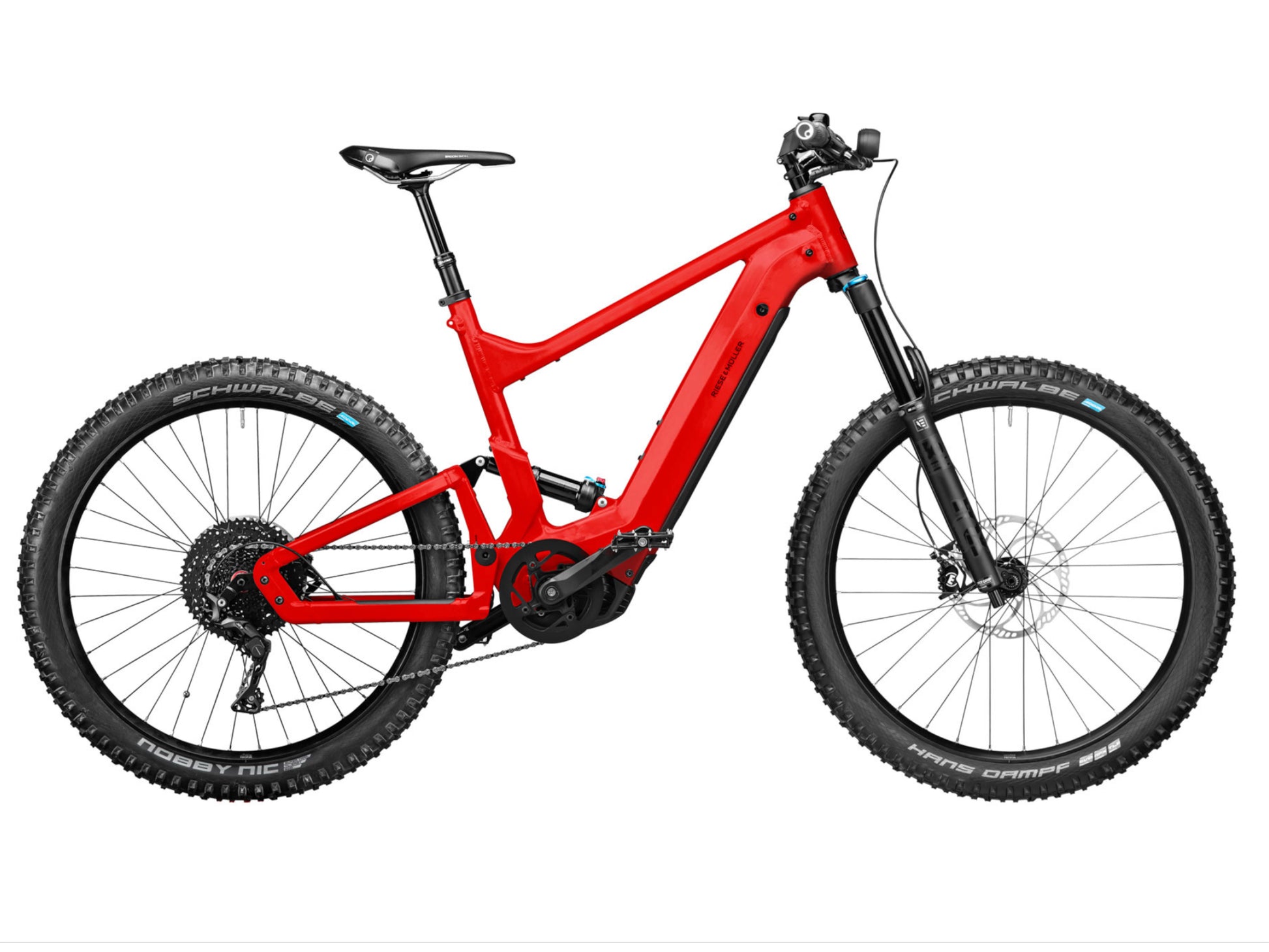

Riese and Muller Delite Mountain Touring

The Full Scoop on the Riese and Muller Delite Mountain Touring

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Head out of the town and into adventure: sprint up steep mountains, master stony paths with ease, safely overcome bumpy descents. This is where the Delite mountain comes into its own.
  If you love the challenges offered by off-road trails, you’ll love the Delite mountain. Control Technology with Fox Float full suspension and 150 mm travel, the latest generation of powerful Bosch Performance CX motor and Schwalbe Hans Dampf tires are just a few of the many highlights that make the Delite mountain such an exceptional bike off-road. A powerful and extremely reliable training partner, simply waiting to head off on your next trip. So what’s keeping you?

• Motor	Performance Line CX (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*

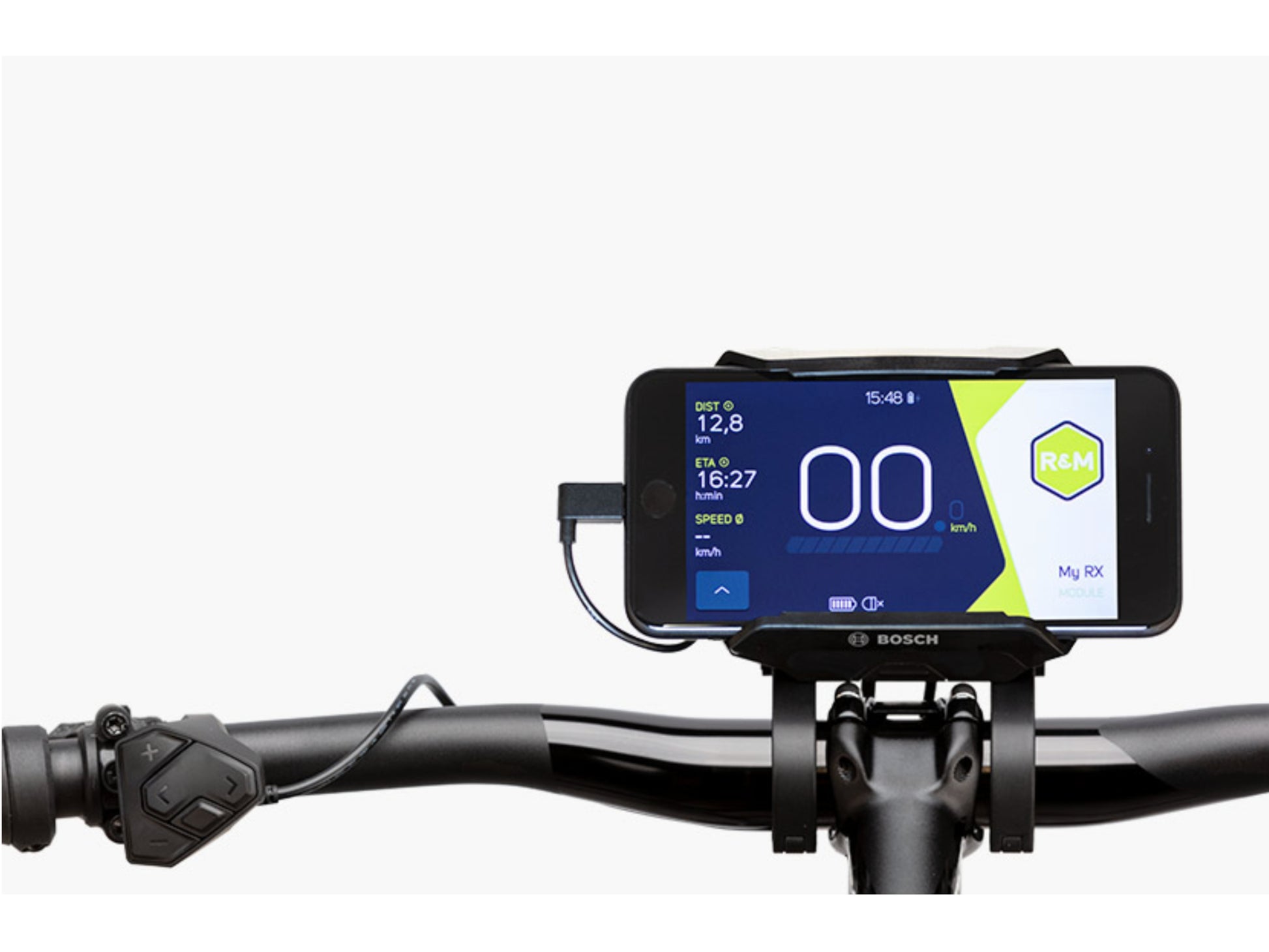

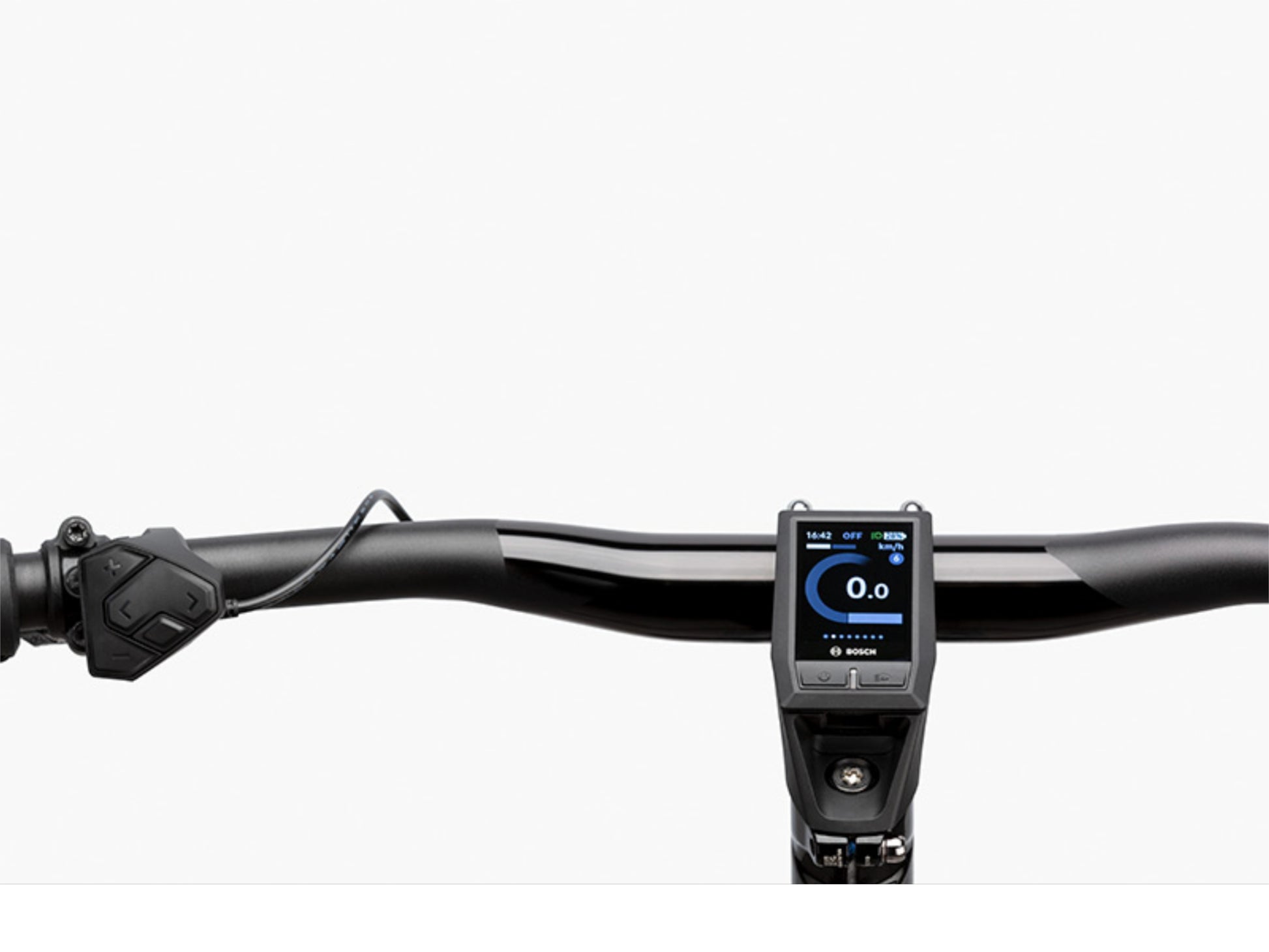

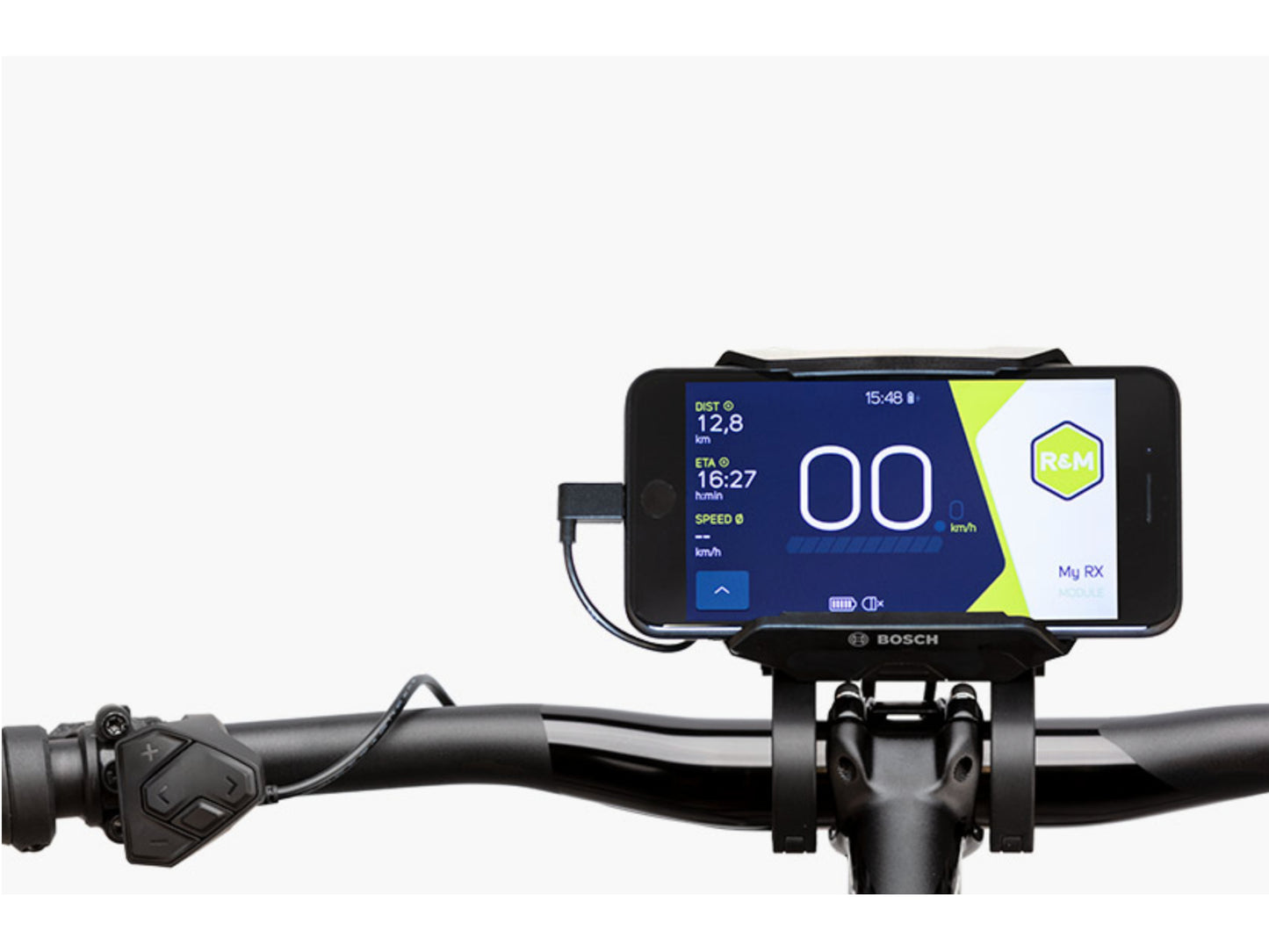

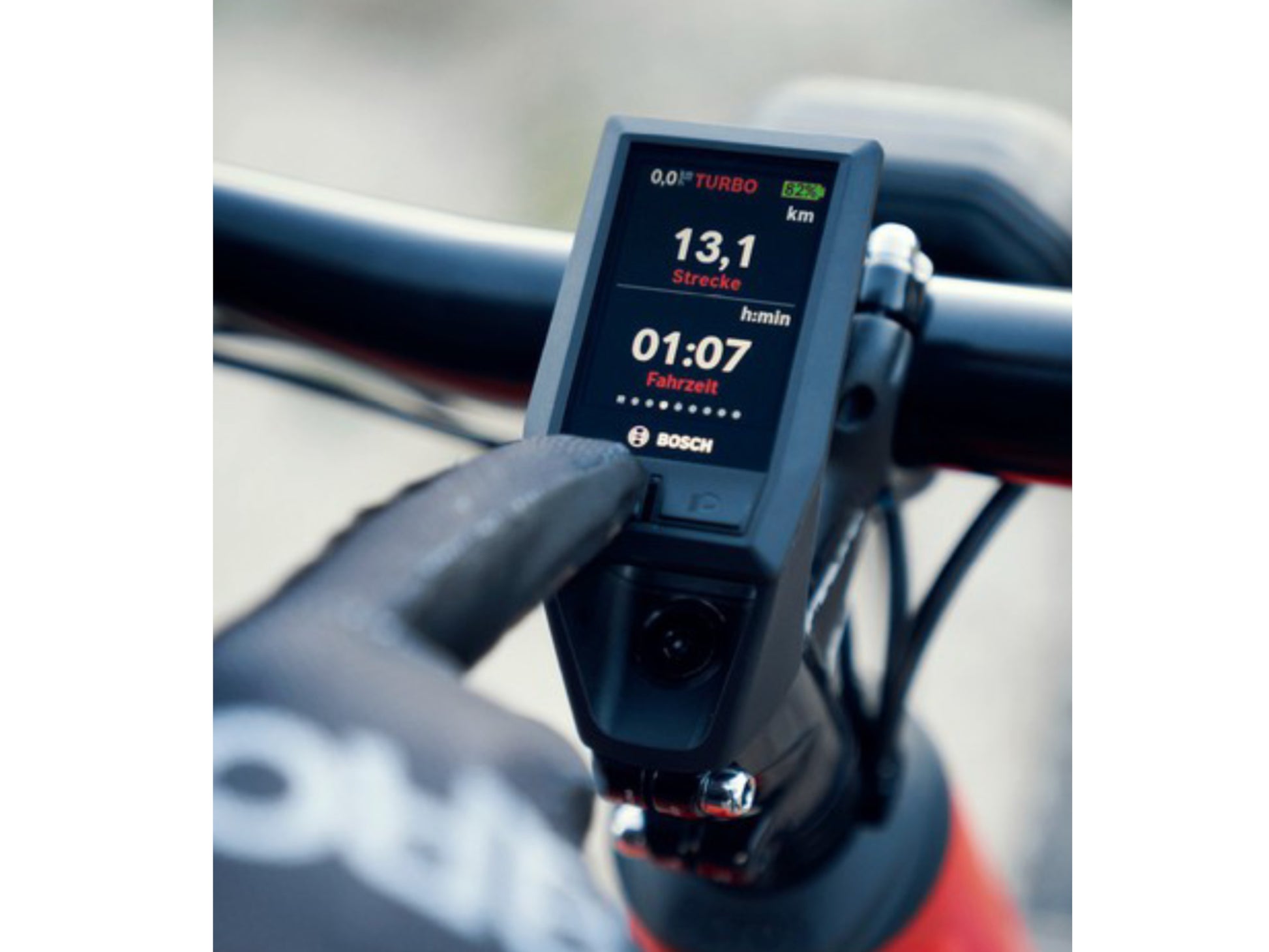

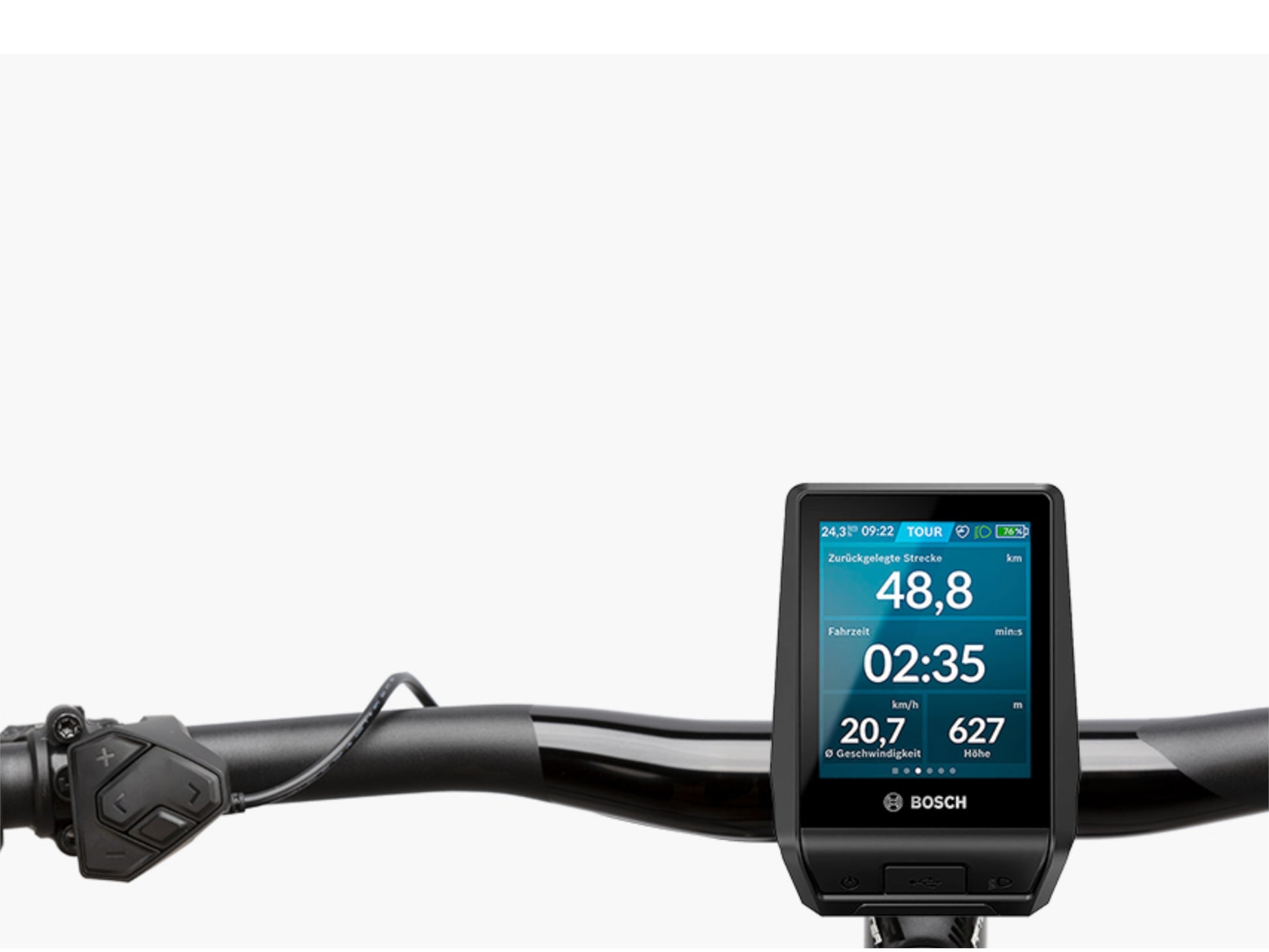

  Display	Bosch Nyon*; Bosch Kiox; Bosch SmartphoneHub*
  Charger	Bosch 4a

• Frame	chili matt*; urban grey matt*

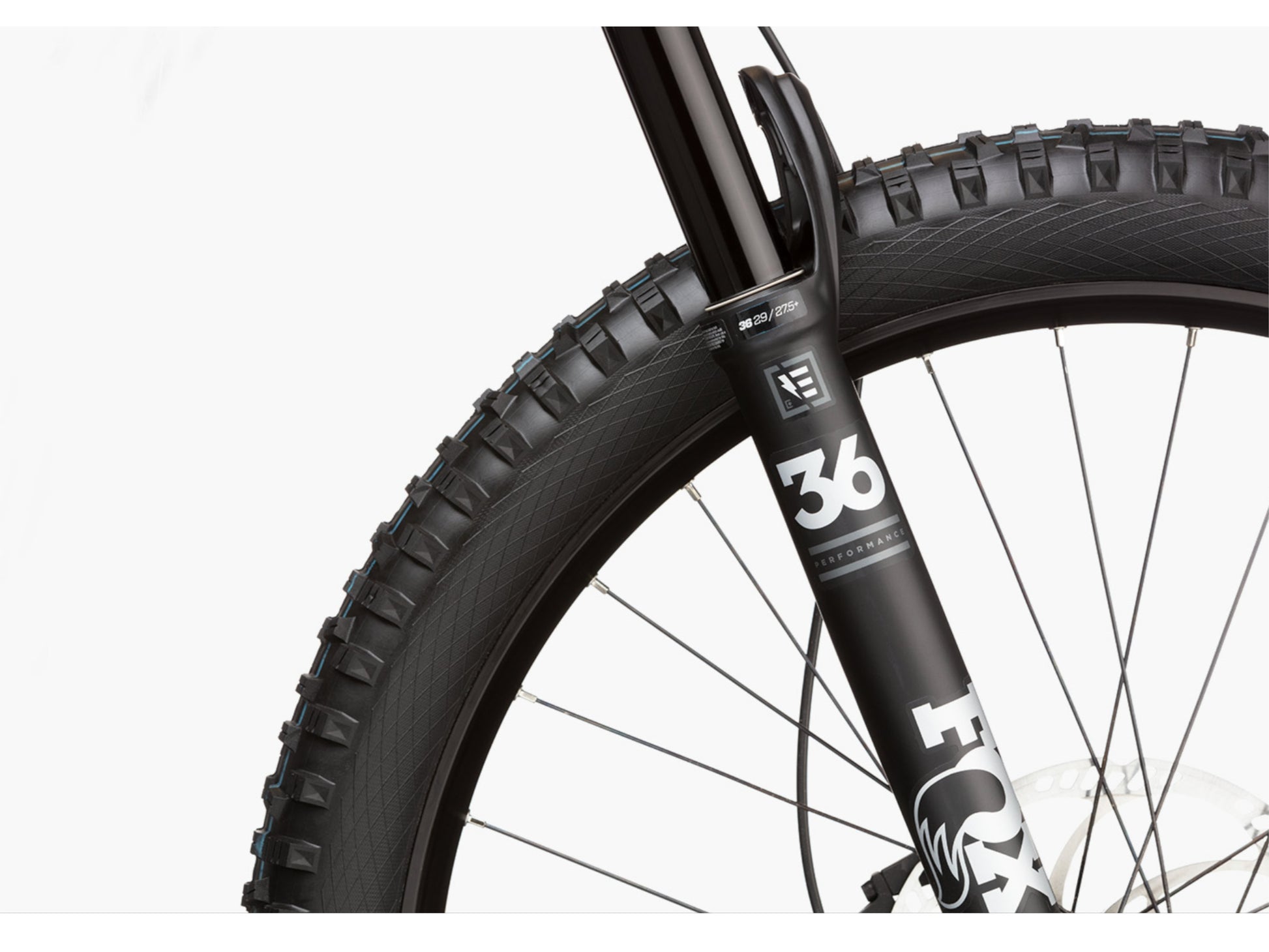

  Fork	Fox Float 36 Performance, Air, 150mm, Boost

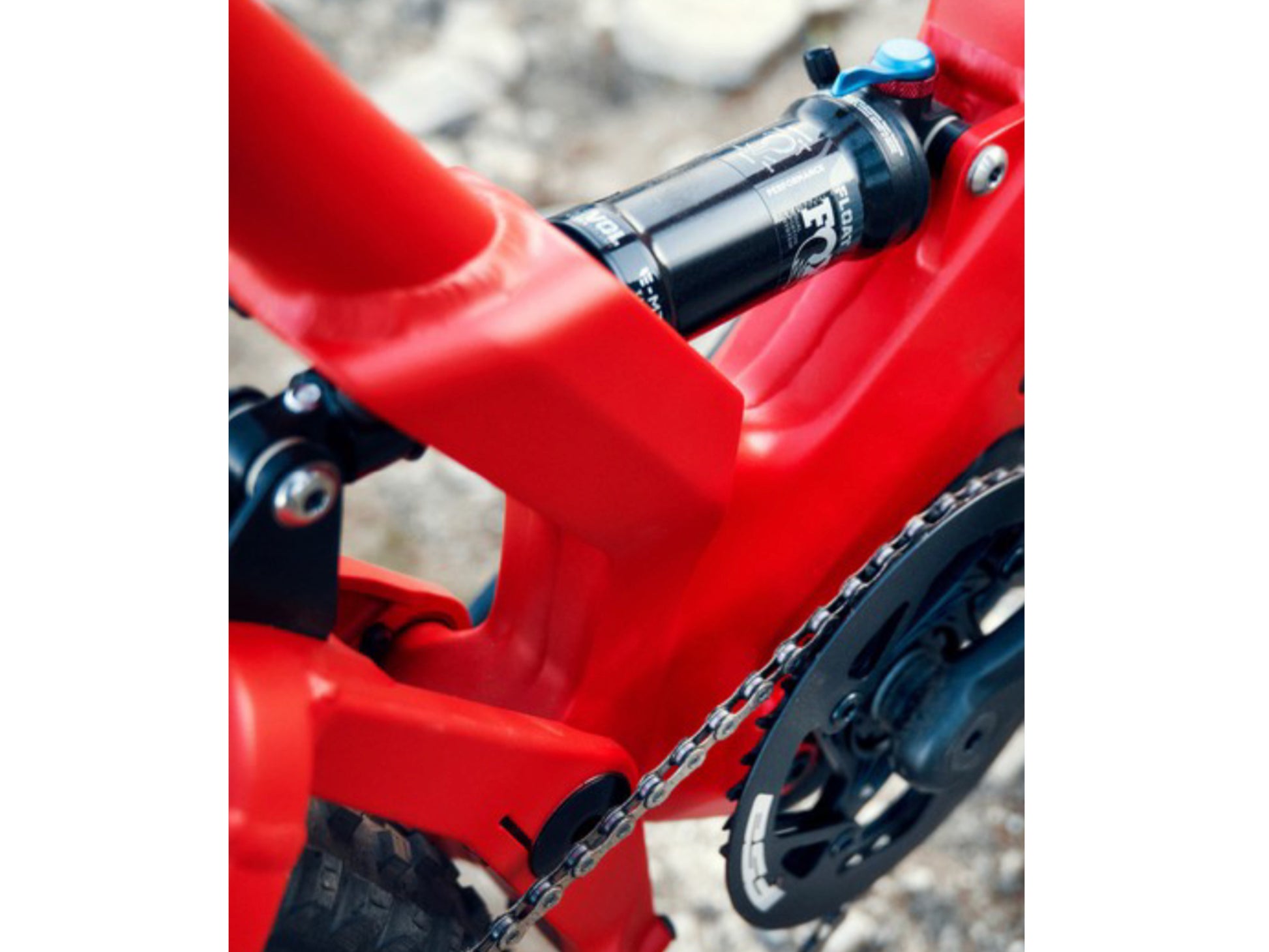

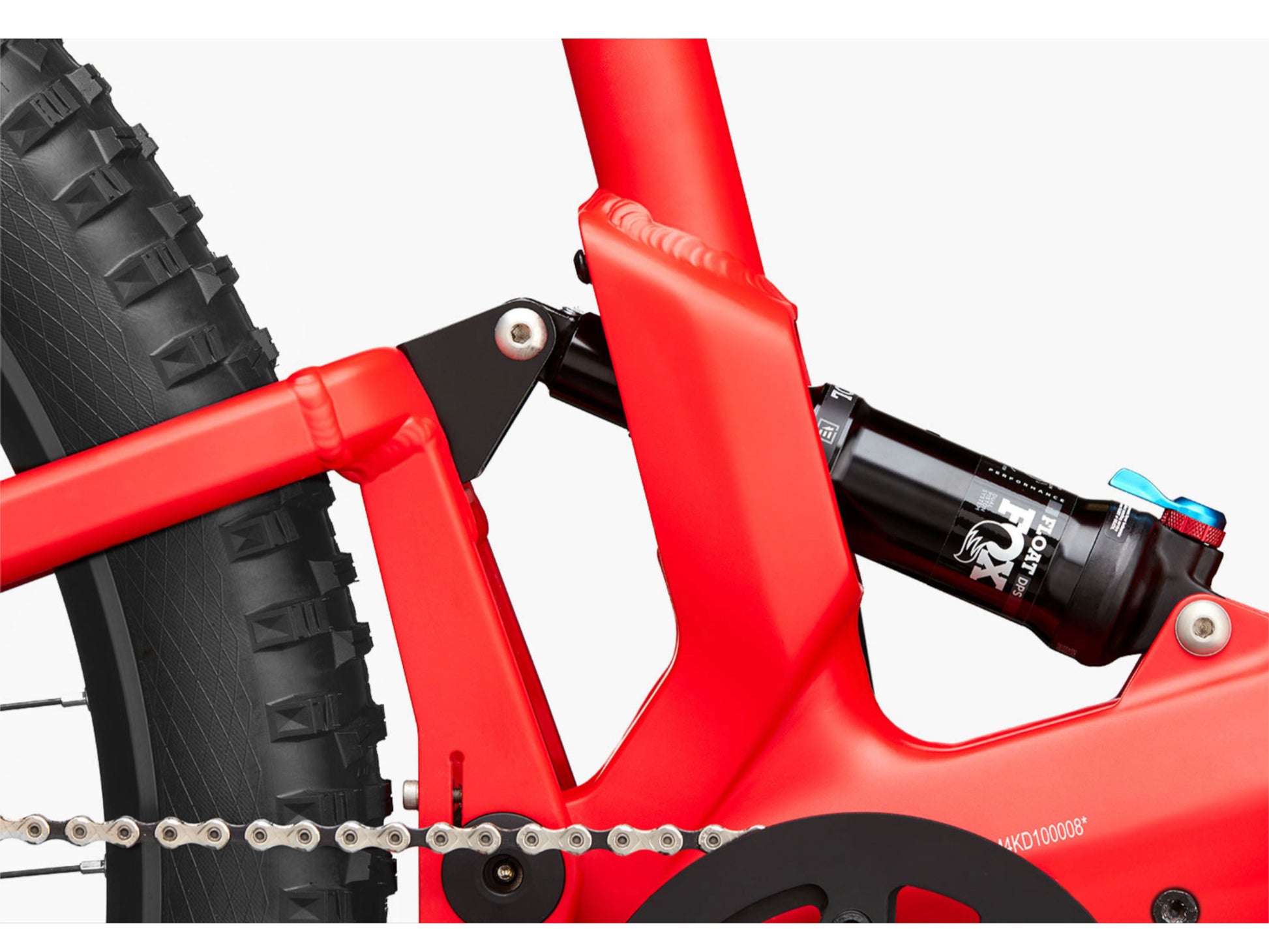

  Rear Shock	Fox Float DPS Performance 210x50

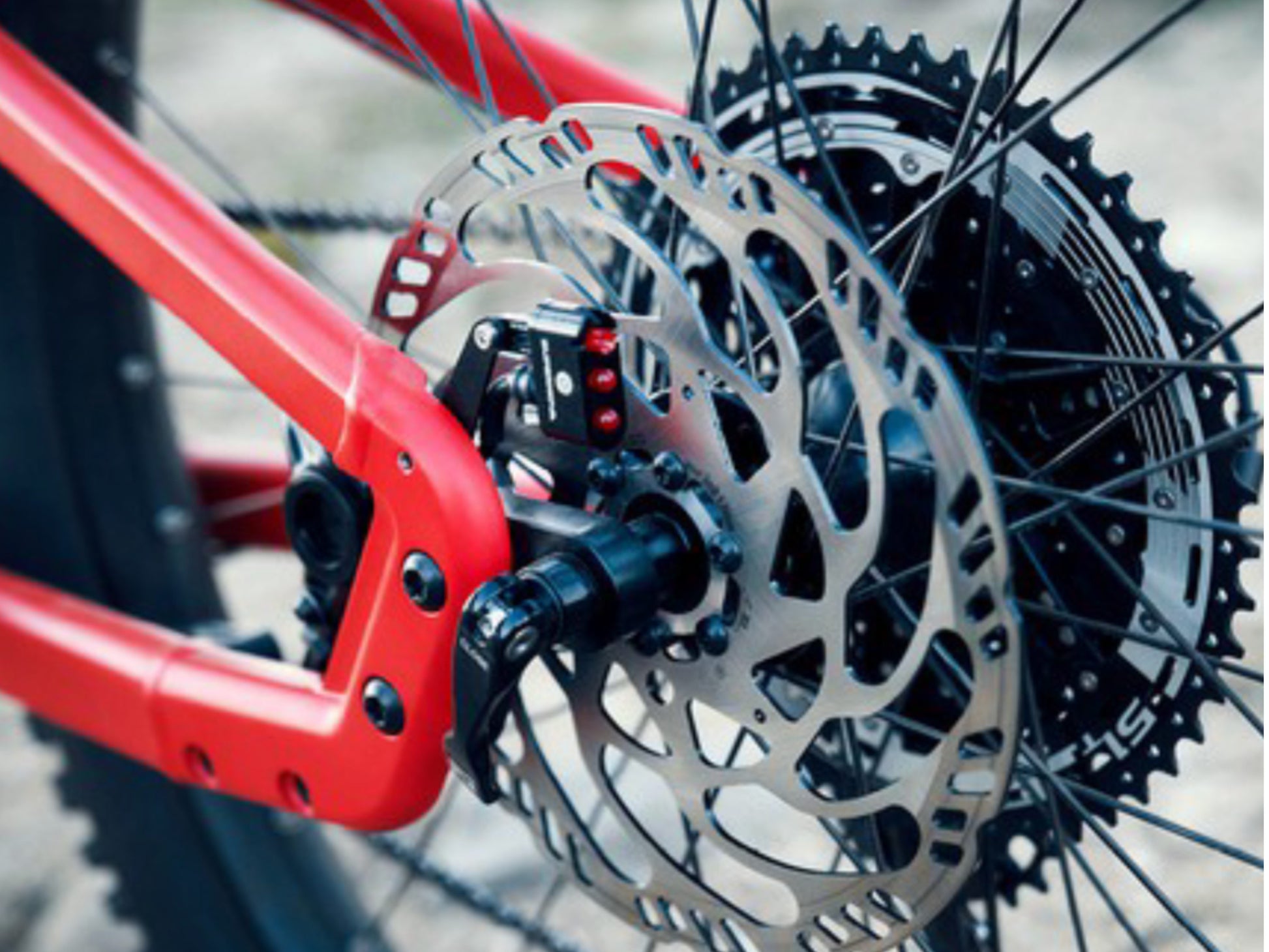

  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur / Pinion	Shimano XT, 12-speed
  Shift Levers	Shimano SLX, 12 Speed
  Chain	KMC X12 ( 125x )
  Cassette	Sunrace 12-speed, 11-50
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	38T
  Chain Guard	Chain Guard
  Rims	Rodi Tryp35, 27,5"
  Front Hub	Novatec Boost, QR, 32H
  Rear Hub	Novatec Boost, QR, 36H
  Front Tire	Schwalbe Nobby Nic Evo 70-584
  Rear Tire	Schwalbe Nobby Nic Evo 70-584
  Handlebar	FSA Afterburner, 31,8 mm
  Stem	FSA Afterburner 6", 60mm
  Headset	Acros AZX-221, block lock; Acros IntegrationX AZX-221, block lock
  Grips	Ergon GA20 black
  Saddle	FIZIK Monte MG

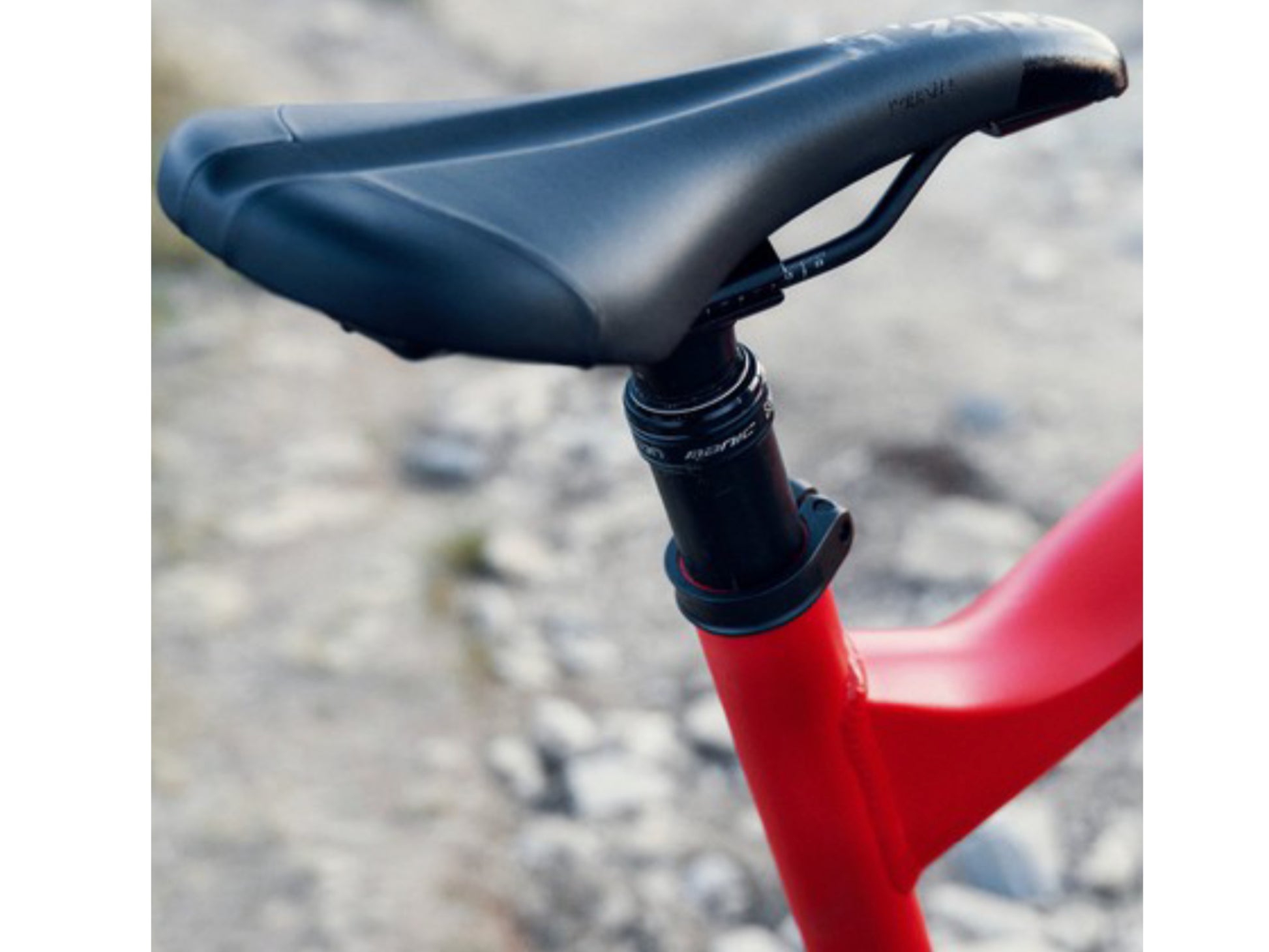

  Seatpost	Dropper Post X-Fusion Manic 100

• Pedals	VP-531 Flat Pedal, Alu

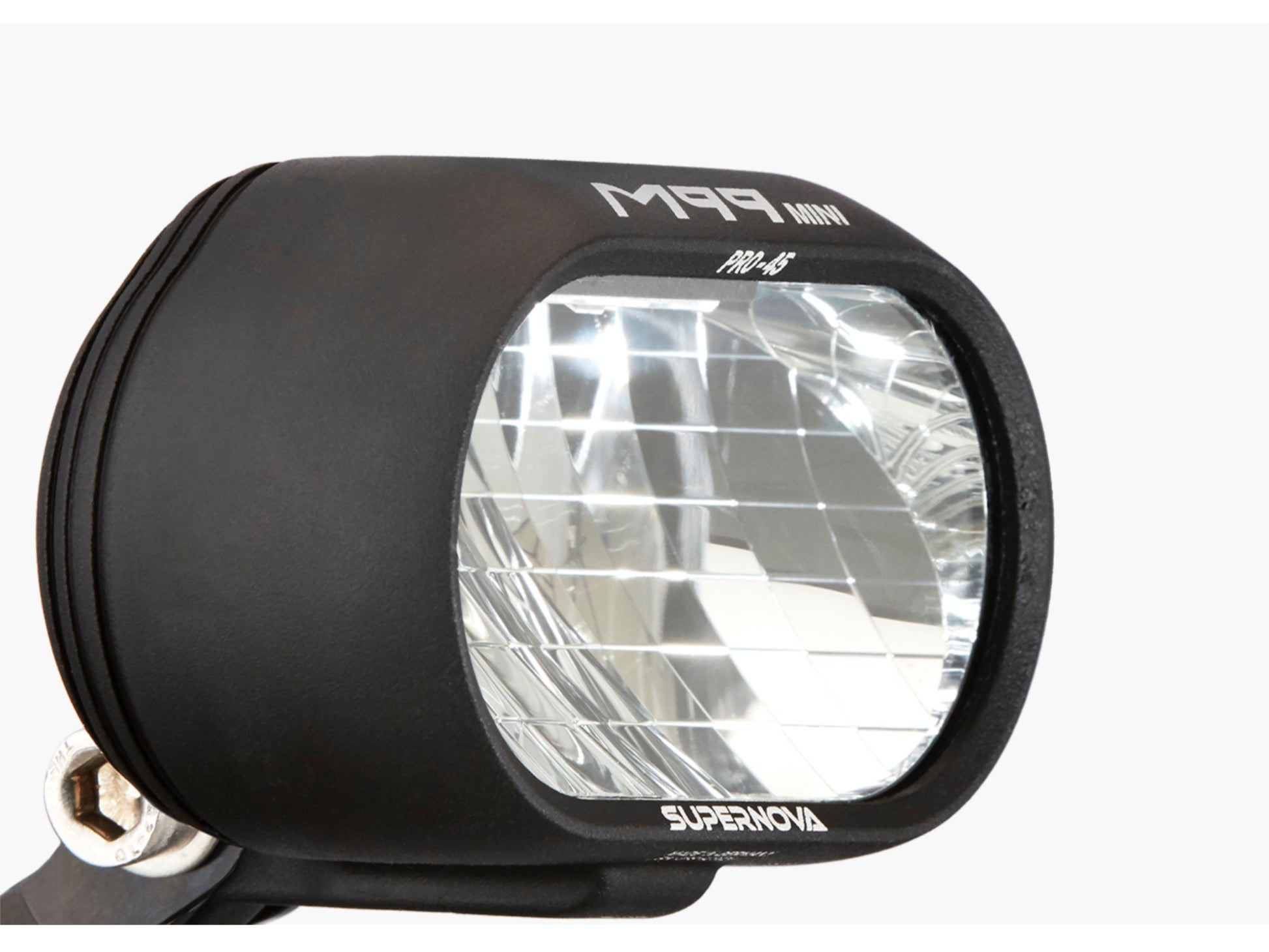

  Front Light	Supernova M99 Mini Pro-25
  Rear Light	Supernova E3 E-Bike; Supernova E3 E-Bike Tail Light 2*; Supernova E3 E-Bike Tail Light 2
  Kickstand	Not applicable

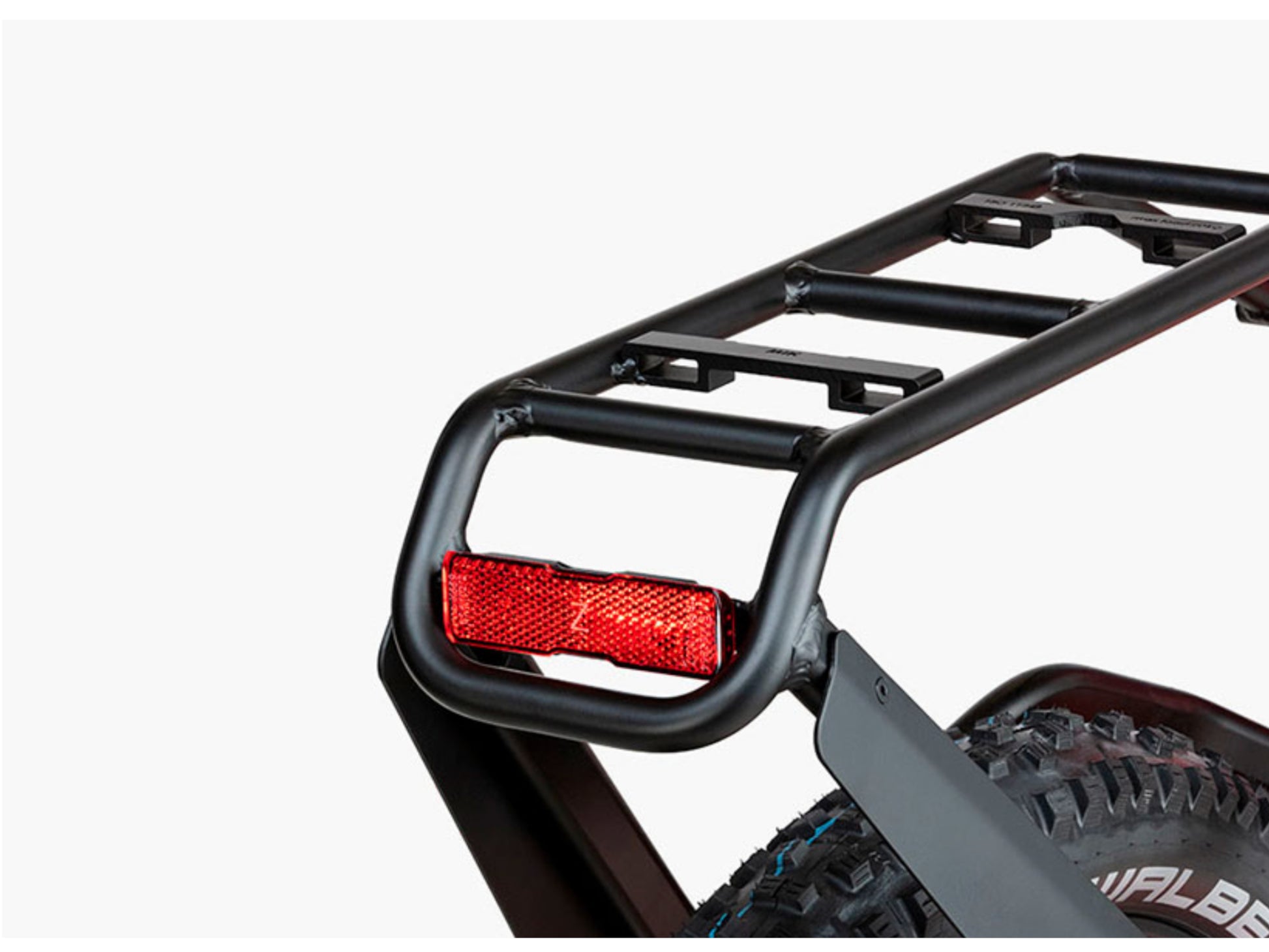

  Rear Carrier	Riese & Müller
  Fenders	Not applicable
  Bell	Billy

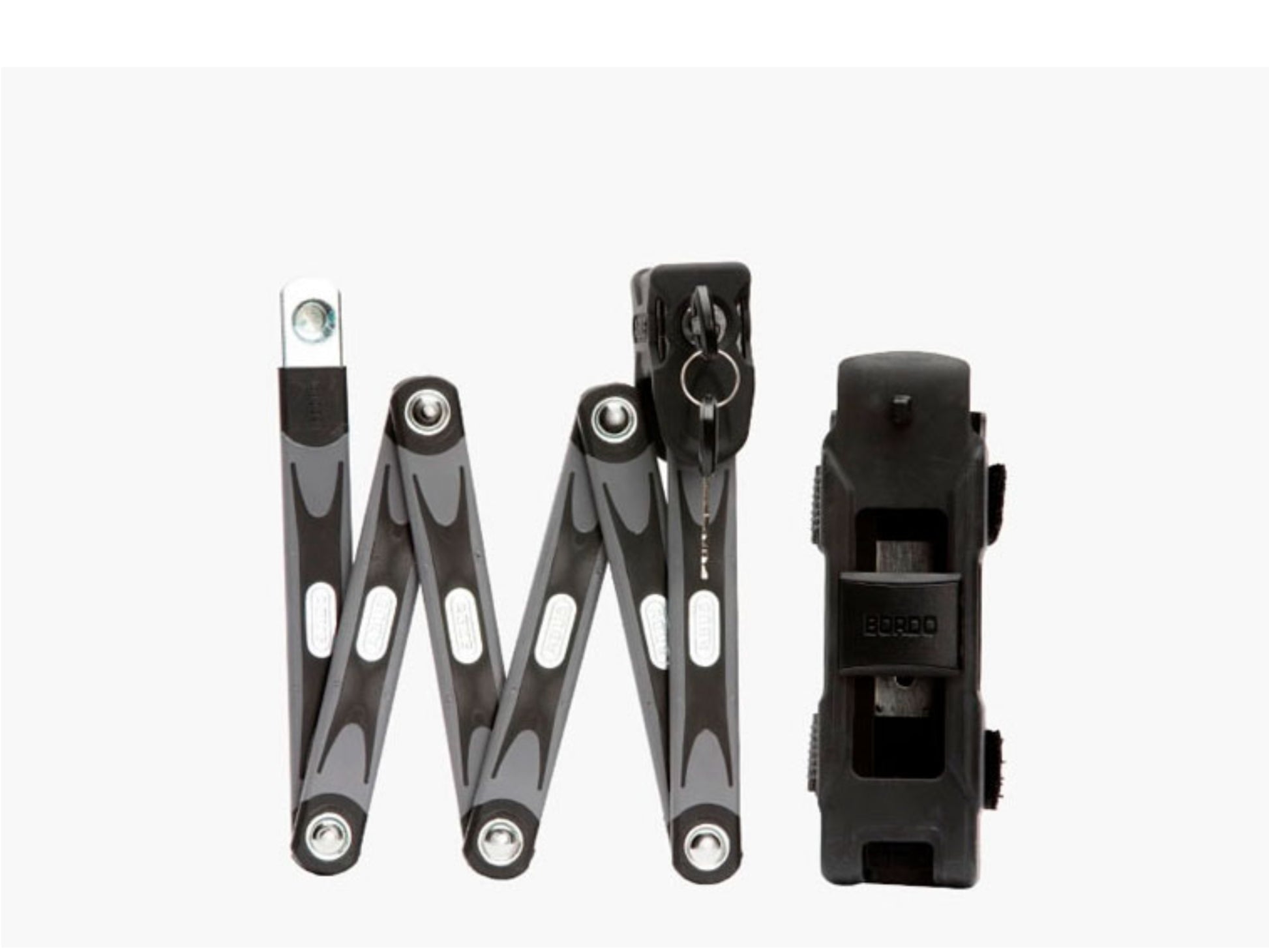

  Lock	ABUS Bordo X+ 6000/90cm black

•


  	47	51	56
  Height	5'3" - 5'9"	5'7" - 6'1"	5'11" - 6'7"
  Top tube length [cm]	59	62	65
  Reach [cm]	39,5	42,5	45,5
  Stack [cm]	64	64	65
  Head tube angle [°]	66,5	66,5	66,5
  Seat tube angle [°]	73	73	73
  Trail [mm]	103	103	103
  Wheelbase [cm]	122,5	125,5	128,5
  Bottom bracket height [cm]	33,5	33,5	33,5
  Stand-over height [cm]	84,5	83,5	84
  Chainstay length [cm]	50,5	50,5	50,5
  Overall length [cm]	194	197	200
  Wheel size ['']	27,5+	27,5+	27,5+
  Head tube length [mm]	140	140	150
  Headset size ['']	1 1/2	1 1/2	1 1/2
  Front suspension travel [mm]	150	150	150
  Effective rear suspension travel [mm]	140	140	140
  Rear shock length [mm]	210	210	210
  Front shock mounting width [mm]	30	30	30
  Rear shock mounting width [mm]	22	22	22
  Front shock locking screw	M8	M8	M8
  Rear shock locking screw	M8	M8	M8
  Rear suspension ratio	2,8	2,8	2,8
  Rear dropout width [mm]	148	148	148
  Gear ratio [m]	1,74-7,91	1,74-7,91	1,74-7,91
  Weight [kg]	25,3	25,4	25,5
  Weight [lbs]	56	56	56
  Gross vehicle weight rating [kg]	140	140	140
  Weight rating: Rear Luggage rack [kg]	20	20	20
  Weight rating: Handlebar bag/basket [kg]	5	5	5
  Childseat compatibility	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	No	No	No
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes
