Mondraker Dune R - BF
Mondraker Dune R - BF
Regular price
$6,495.00
Sale price
$6,495.00
Regular price
$7,999.00
Unit price
per
Shipping calculated at checkout.

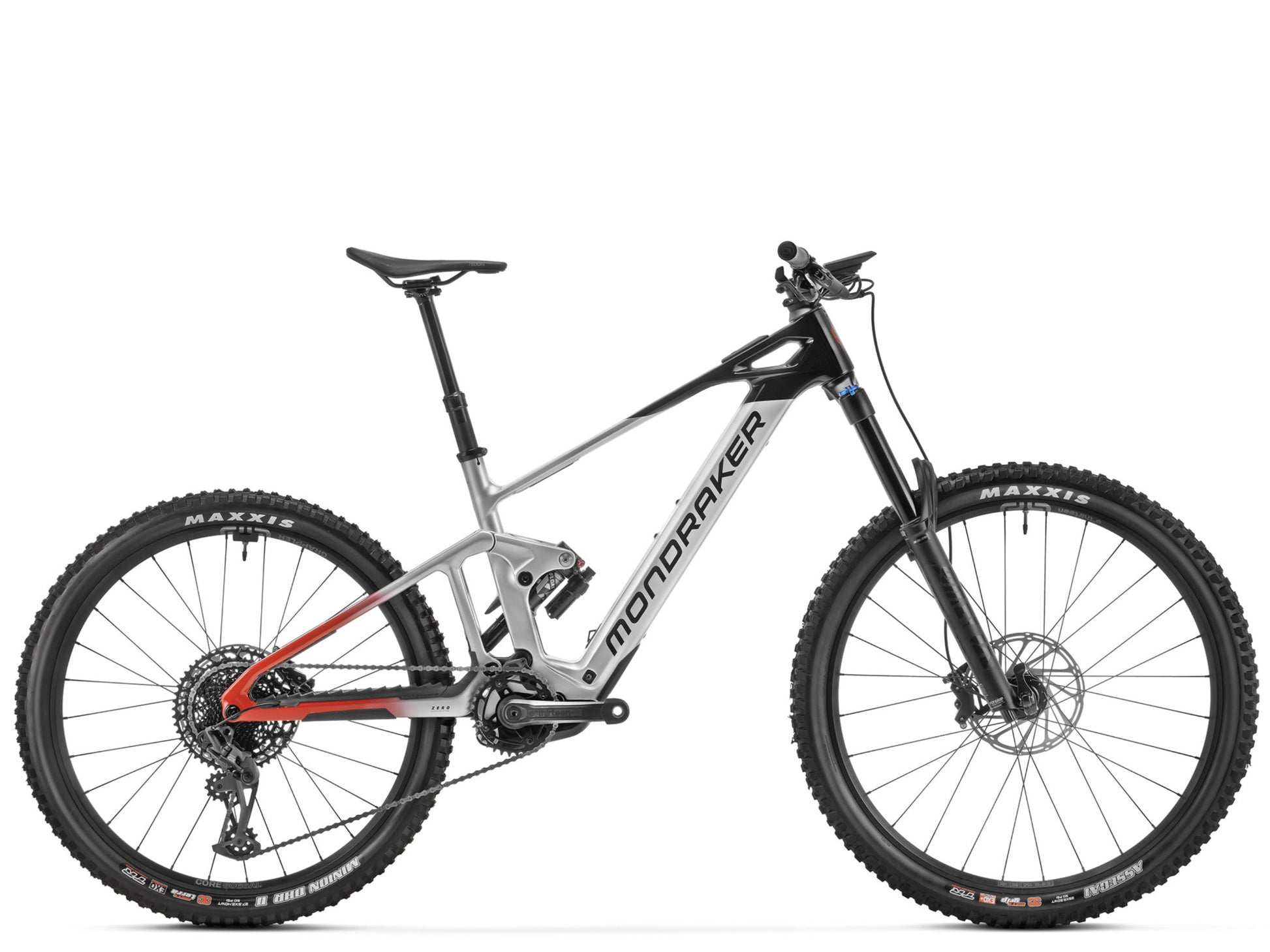

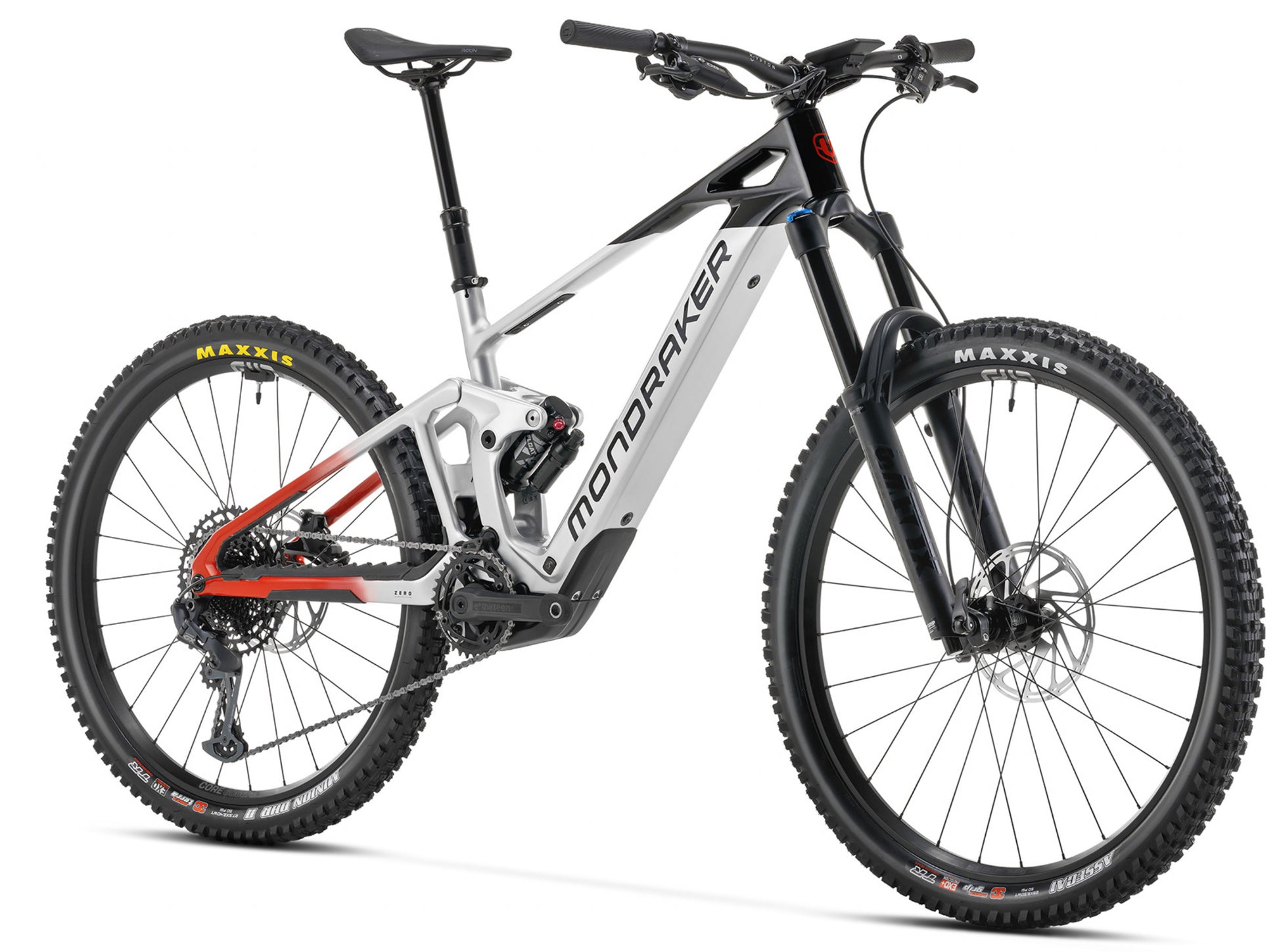

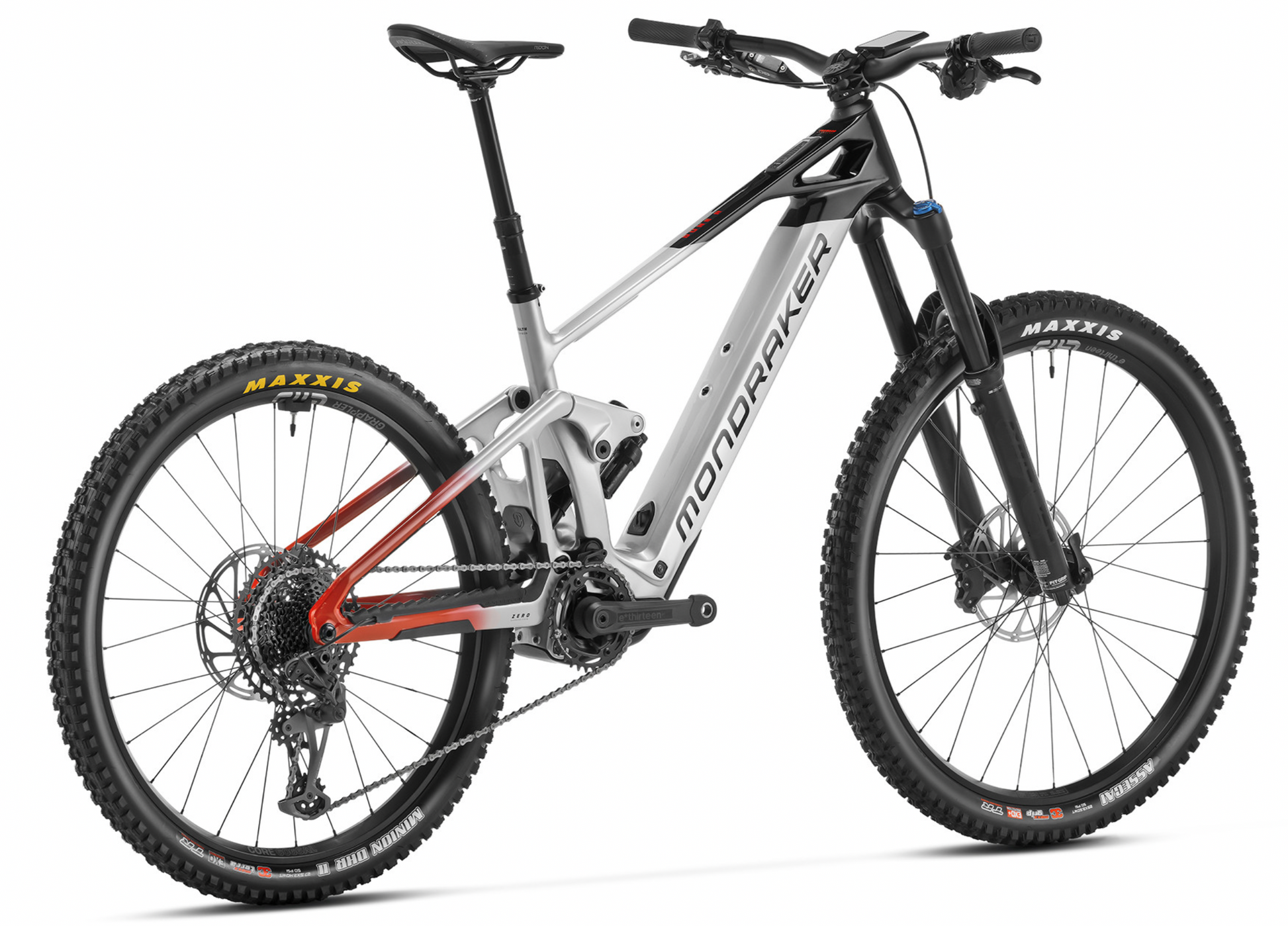

The Full Scoop on Mondraker Dune R
Meet the all-new Mondraker Dune R, a top contender in the lightweight superenduro eMTB scene this year. From the downhill pros at Mondraker comes a bike that’s all about nimble moves, speedy rides, and smooth performance thanks to their signature Zero Suspension and Forward Geometry. Wrapped in a sleek Stealth Air Full Carbon Frame, this eMTB tips the scales at just around 40 pounds. Powering your adventures is the fresh Bosch SX motor, packing a punch with 600 watts—just like its powerful CX sibling. Ready to ride?
The result is an efficient, sophisticated, and exhilarating riding experience.
*Components subject to manufacturer changes. Call for details for 2024 Specs
| Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
| Battery | Bosch Compact Powertube 400Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Charger | 2Ah |
| Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Fork | FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Front Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Chain | SRAM NX Eagle, 12s, Powerlock |
| Cassette | SRAM PG-1230, 11-50T, 12s |
| Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
| Chain Ring | SRAM X-Sync 2 Eagle, 34 teeth, steel, narrow and wide design, 104 BCD |
| Chain Guard | Spec not provided |
| Rims | e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Handlebars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Grips | ONOFF Forest, 1 lock-on, 135mm |
| Saddle | Fizik Terra Aidon Slim X5 |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 380mm | 420mm | 450mm | 490mm |
| B | Toptube length | 600mm | 620mm | 645mm | 665mm |
| C | Bottom bracket drop | -21mm | -21mm | -21mm | -21mm |
| D | Bottom bracket height | 352mm | 352mm | 352mm | 352mm |
| E | Chainstay length | 445mm | 445mm | 445mm | 445mm |
| F | Seat tube angle | 74° | 74° | 74° | 74° |
| G | Effective seattube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| H | Headtube angle | 64° | 64° | 64° | 64° |
| I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
| J | Wheelbase | 1232mm | 1260mm | 1285mm | 1309mm |
| K | Headtube length | 100mm | 110mm | 130mm | 140mm |
| L | Reach | 445mm | 465mm | 485mm | 505mm |
| M | Stack | 621mm | 630mm | 648mm | 658mm |
