Mondraker Dune XR
Mondraker Dune XR

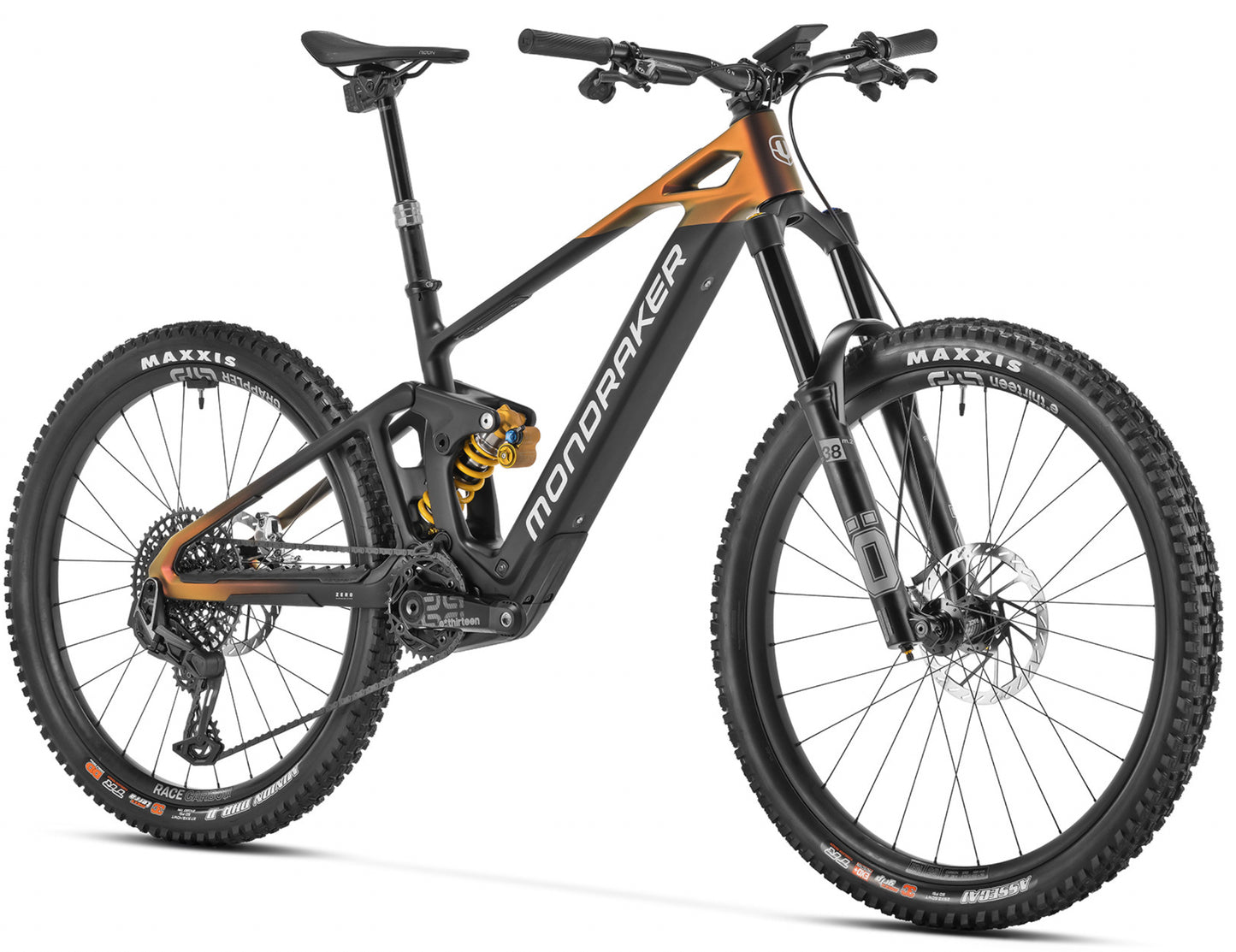

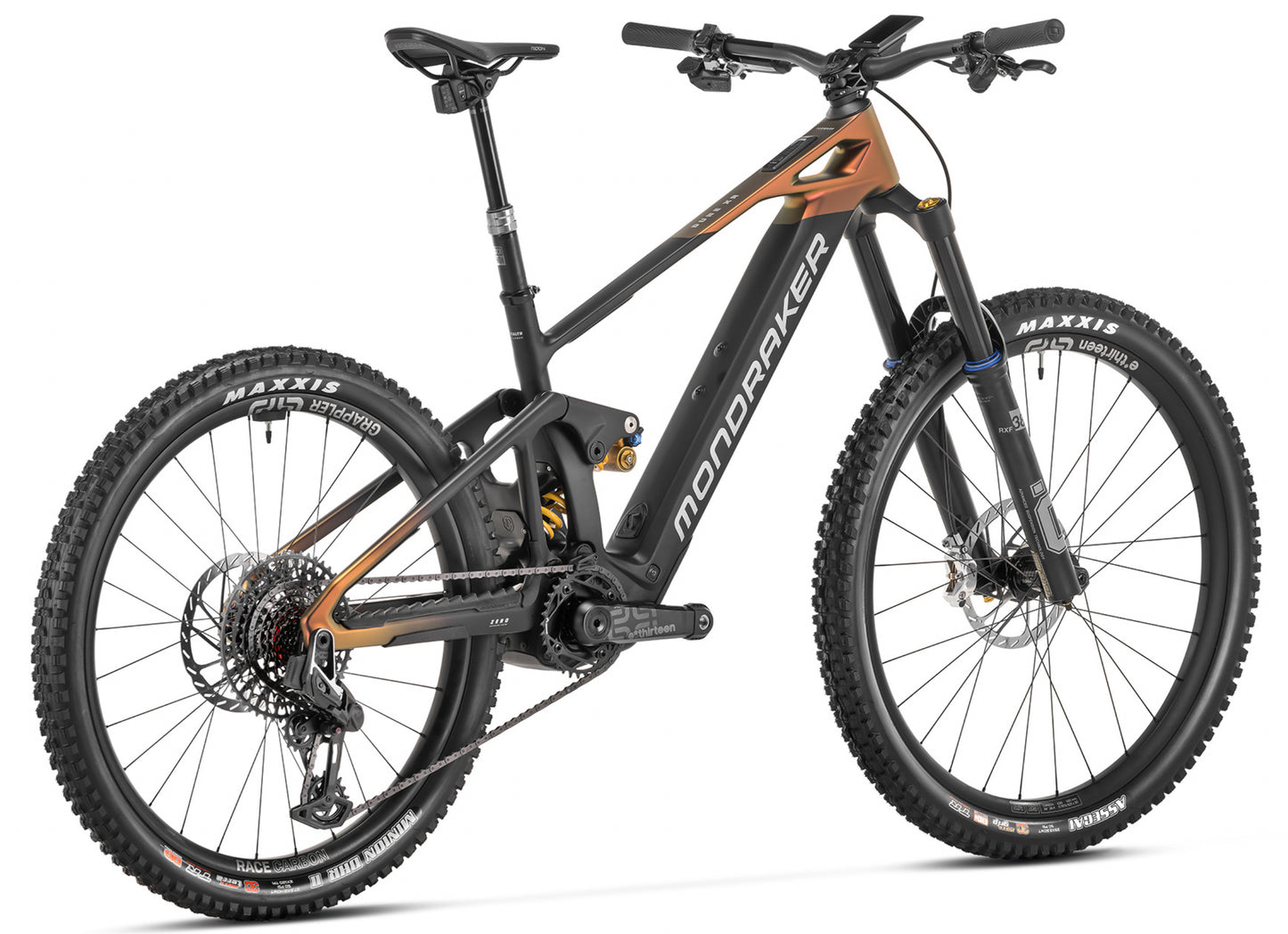

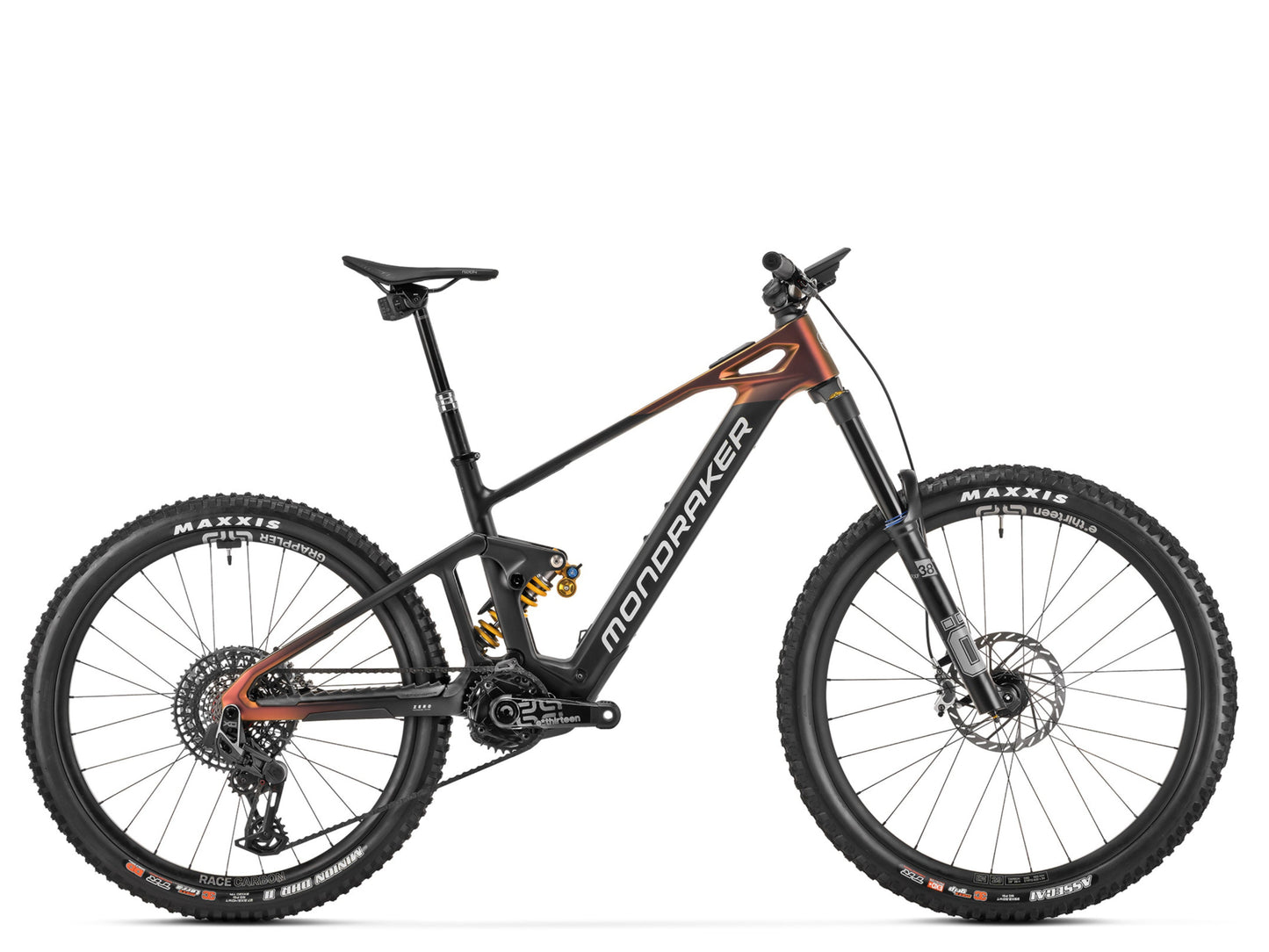

The Full Scoop on Mondraker Dune XR
The Dune XR is a light weight eMTB. The Dune XR is the only build with a 180mm fork and coil shock. It’s got a 180mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX22M.2 205x65mm shock, SRAM X0 Eagle AXS transmission with T-Type rear mech, E.13 TRS Race carbon cranks, SRAM Code Ultimate Stealth brakes, RockShox Reverb Stealth AXS seatpost and e*thirteen Grappler Race Carbon wheels.
*Components subject to manufacture change
Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
Battery | Bosch Compact Powertube 400Wh |
Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
Charger | 2Ah |
Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
Fork | Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
Rear Shock | Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
Front Brake | Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Shift Levers | Sram Eagle AXS Pod MMX, 12s |
Chain | Sram X0 Eagle T-Type, 12s, Powerlock |
Cassette | Sram XG-1295, 10-52T, T-Type, 12s |
Crankset | size: 170mm XL size: 170mm |
Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
Chain Guard | Spec not provided |
Rims | e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''5 rear |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Handlebars | 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Grips | ONOFF Desert, 1 lock-on, 135mm |
Saddle | Fizik Terra Aidon Slim X5 |
Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 605mm | 625mm | 650mm | 670mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 76° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 622mm | 622mm | 640mm | 640mm |
The Full Scoop on Mondraker Dune XR
Description
The Dune XR is a light weight eMTB. The Dune XR is the only build with a 180mm fork and coil shock. It’s got a 180mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX22M.2 205x65mm shock, SRAM X0 Eagle AXS transmission with T-Type rear mech, E.13 TRS Race carbon cranks, SRAM Code Ultimate Stealth brakes, RockShox Reverb Stealth AXS seatpost and e*thirteen Grappler Race Carbon wheels.
*Components subject to manufacture change
Motor System
Motor | Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide |
Battery | Bosch Compact Powertube 400Wh |
Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
Charger | 2Ah |
Components
Frame | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
Fork | Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
Rear Shock | Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
Front Brake | Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Rear Brake | Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
Shift Levers | Sram Eagle AXS Pod MMX, 12s |
Chain | Sram X0 Eagle T-Type, 12s, Powerlock |
Cassette | Sram XG-1295, 10-52T, T-Type, 12s |
Crankset | size: 170mm XL size: 170mm |
Chain Ring | Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
Chain Guard | Spec not provided |
Rims | e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''5 rear |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
Rear Tire | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Handlebars | 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Grips | ONOFF Desert, 1 lock-on, 135mm |
Saddle | Fizik Terra Aidon Slim X5 |
Seatpost | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |

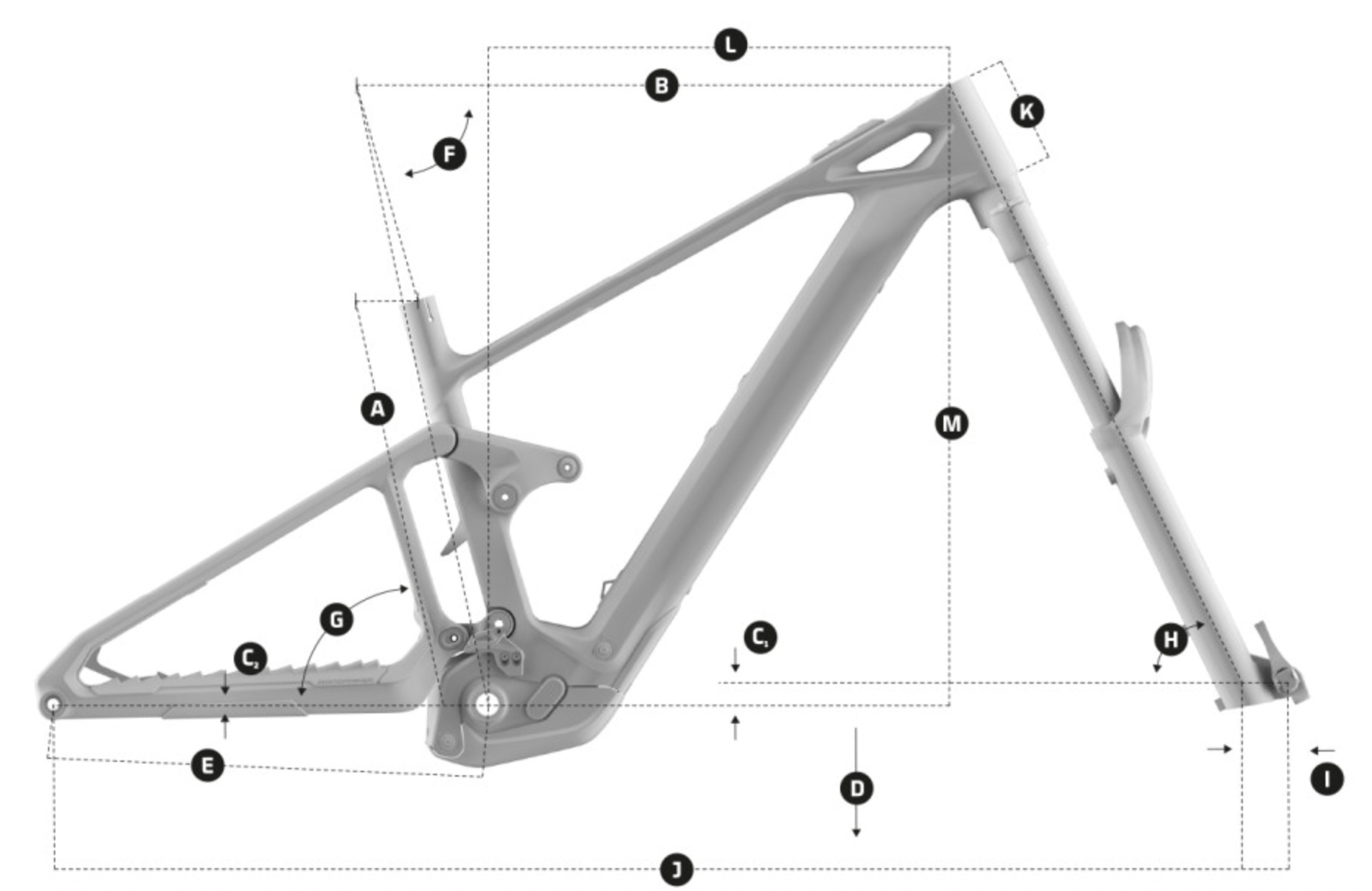

Geometry
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 380mm | 420mm | 450mm | 490mm |
B | Toptube length | 605mm | 625mm | 650mm | 670mm |
C | Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
D | Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
E | Chainstay length | 455mm | 455mm | 455mm | 455mm |
F | Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
G | Effective seattube angle | 76° | 76° | 76° | 76° |
H | Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
I | Fork Offset | 44mm | 44mm | 44mm | 44mm |
J | Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
K | Headtube length | 110mm | 110mm | 130mm | 130mm |
L | Reach | 450mm | 470mm | 490mm | 510mm |
M | Stack | 622mm | 622mm | 640mm | 640mm |
