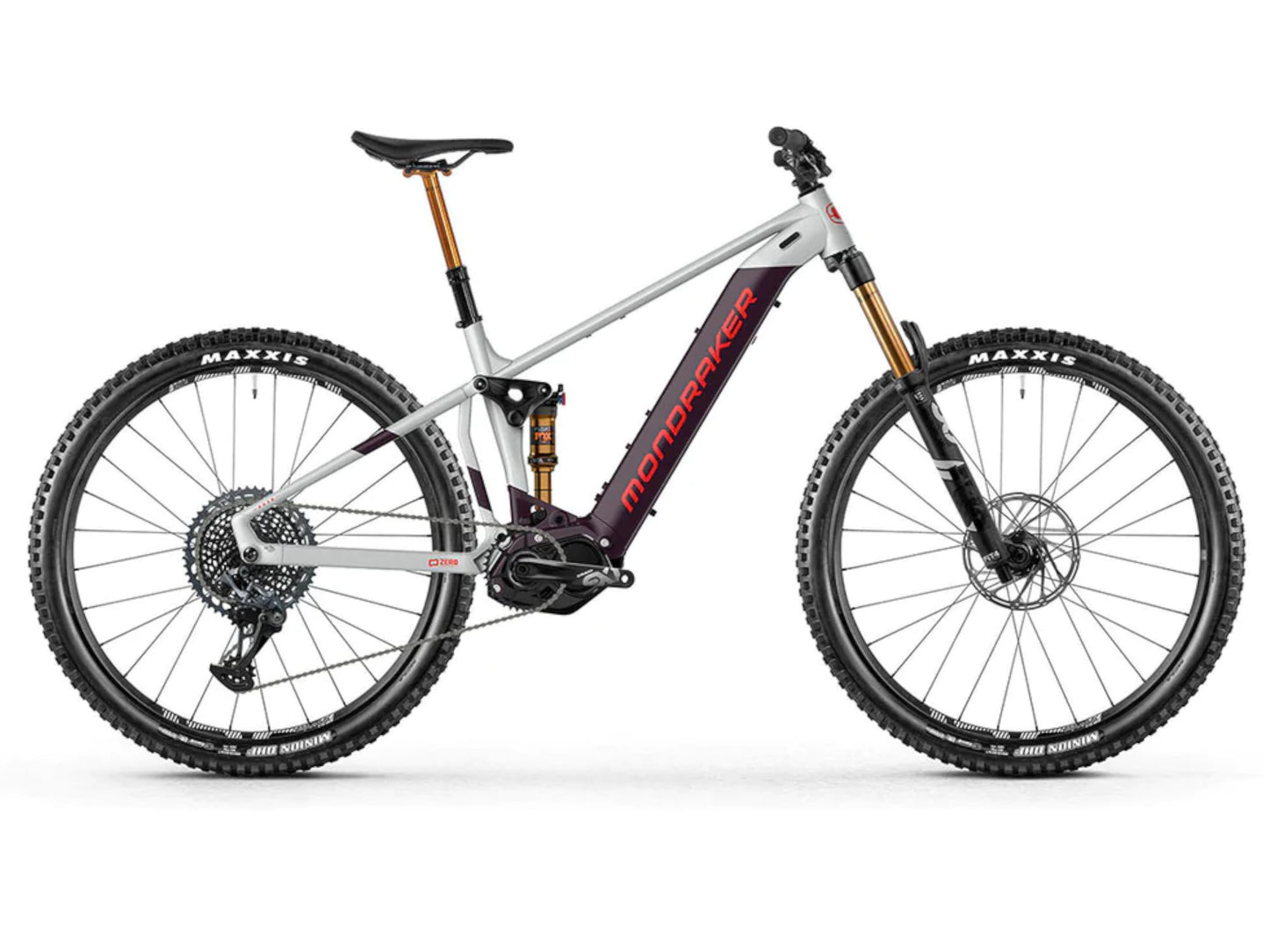

Mondraker Dusk RR SE

The Full Scoop on the Mondraker Dusk RR SE

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Mondraker Dusk RR SE sure packs a punch!  Featuring Shimano's lightest and strongetst eMotor system to date.  Forward Geometry, Zero E-Bike Optimized, Stealth Side alloy structure, ability to add range via additional battery pack.  Mondraker has really thought through the design and how you could use this bike in a number of applications from allmtn riders to bikepacking!

  Not familiar with Mondraker's Zero Suspension System, well let's dig into the details on why this system is so popular among the MTB community.

  Zero Suspension System - is a dual link design with the shock floating between the two suspension links and compressed from both ends. This makes the rear suspension extremely sensitive on small bumps and big hit capable.

  Advantages
  • Zero power loss. High pedalling efficiency. The power applied to pedals is transformed to immediate forward motion without any extra compression or extension of the rear shock.
  • Zero pedal kickback. Chain length growth throughout the suspension travel is minimum, so pedalling is as effective and efficient as possible.
  • Zero brake jack. Rear brake forces do not work against suspension forces. The rear shock works supple and freely and absorb impacts without any suspension stiffening caused for the rear brake action.
  • Zero bumps. The most remarkable feature of the system is its excellent suppleness on rough terrain and a completely stable ride when pedalling.


  Stealth Alloy - encompasses all processes in the creation of the frame, from the industrial design to the specific production of each of its tubes with the calculation of the most precise details. Each tube and part is carefully designed to carry out a specific function while striving to achieve the lowest possible weight. Stealth technology is evolving every year with optimised shapes and internal updates to deliver the best riding experience in our aluminium frames.





• Components subject to manufacturer changes

• Motor	Shimano STEPS EP800
  Battery	Simplo internal 630Wh w/ option for additional external  battery of 360WH
  Display	Shimano STEPS E8000
  Charger	Spec not provided

• Frame	Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor. *Optional external battery
  Fork	Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
  Rear Shock	Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
  Front Brake	Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  Rear Brake	Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
  Rear Derailleur	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
  Shift Levers	Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
  Chain	Sram SX Eagle, 12s, Powerlock
  Cassette	Sram PG-1230, 11-50T, 12s
  Crankset	FSA, 165mm
  Chain Ring	Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
  Chain Guard	Spec not provided
  Rims	DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
  Front Hub	DT 370, Boost 15x110mm, IS 6 bolts
  Rear Hub	DT 370, Boost 12x148mm, Ratchet LN system, IS 6 bolts
  Front Tire	Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  Rear Tire	Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
  Handlebar	Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore
  Stem	Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
  Headset	Spec not provided
  Grips	Onoff Diamond, 1lock-on, 135mm
  Saddle	Fizik Terra Aidon X5 145mm
  Seatpost	Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x170mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L	XL
  Seattube length	A	380mm	420mm	450mm	490mm
  Toptube length	B	605mm	625mm	650mm	670mm
  Bottom bracket drop	C	-25mm	-25mm	-25mm	-25mm
  Bottom bracket height	D	336mm	336mm	336mm	336mm
  Chainstay length	E	455mm	455mm	455mm	455mm
  Seat tube angle	F	73.5°	73.5°	73.5°	73.5°
  Effective seattube angle	G	76°	76°	76°	76°
  Headtube angle	H	65.5°	65.5°	65.5°	65.5°
  Fork Offset	I	44mm	44mm	44mm	44mm
  Wheelbase	J	1225mm	1245mm	1265mm	1285mm
  Headtube length	K	110mm	110mm	130mm	130mm
  Reach	L	450mm	470mm	490mm	510mm
  Stack	M	622mm	622mm	640mm	640mm
