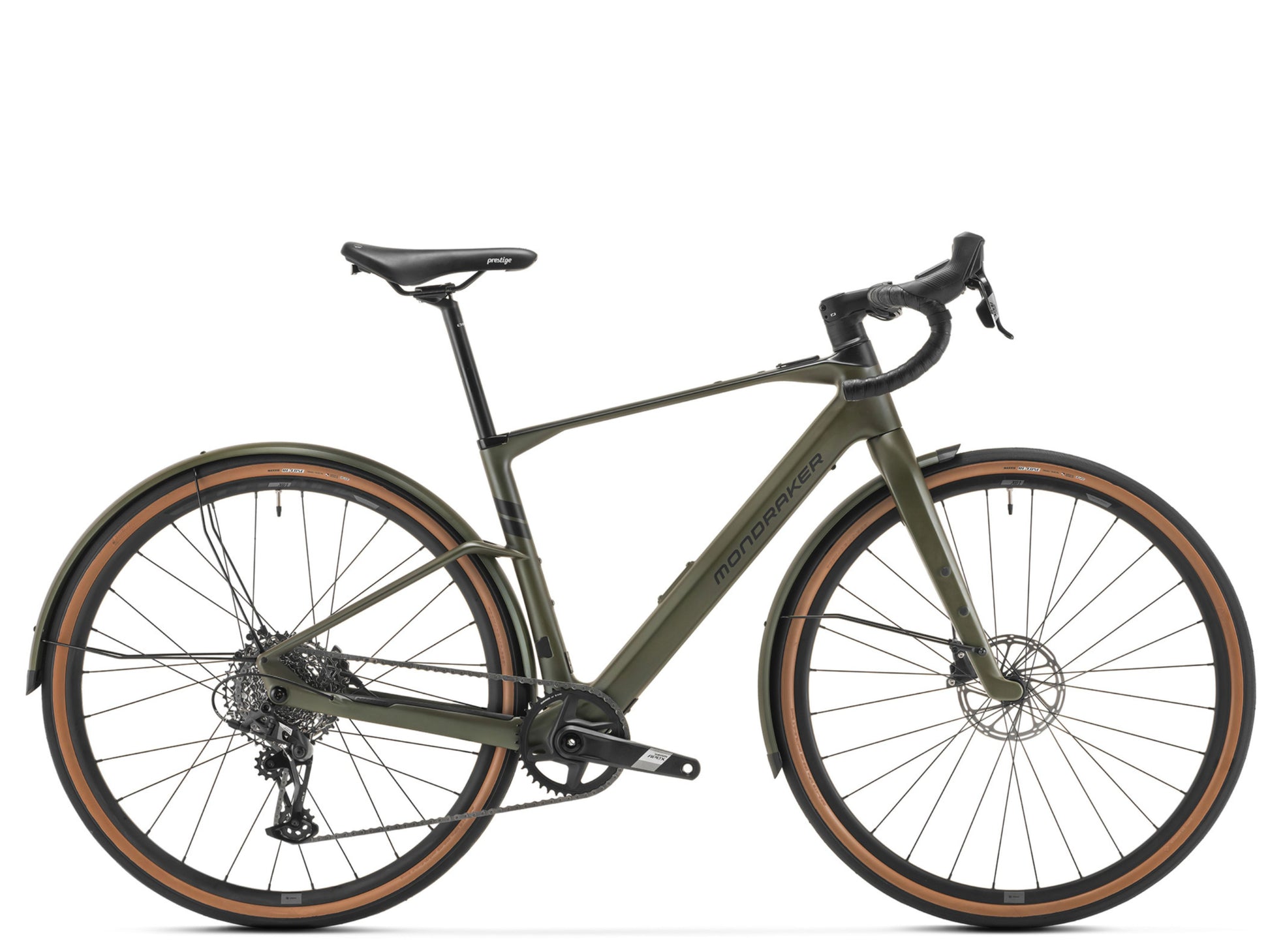

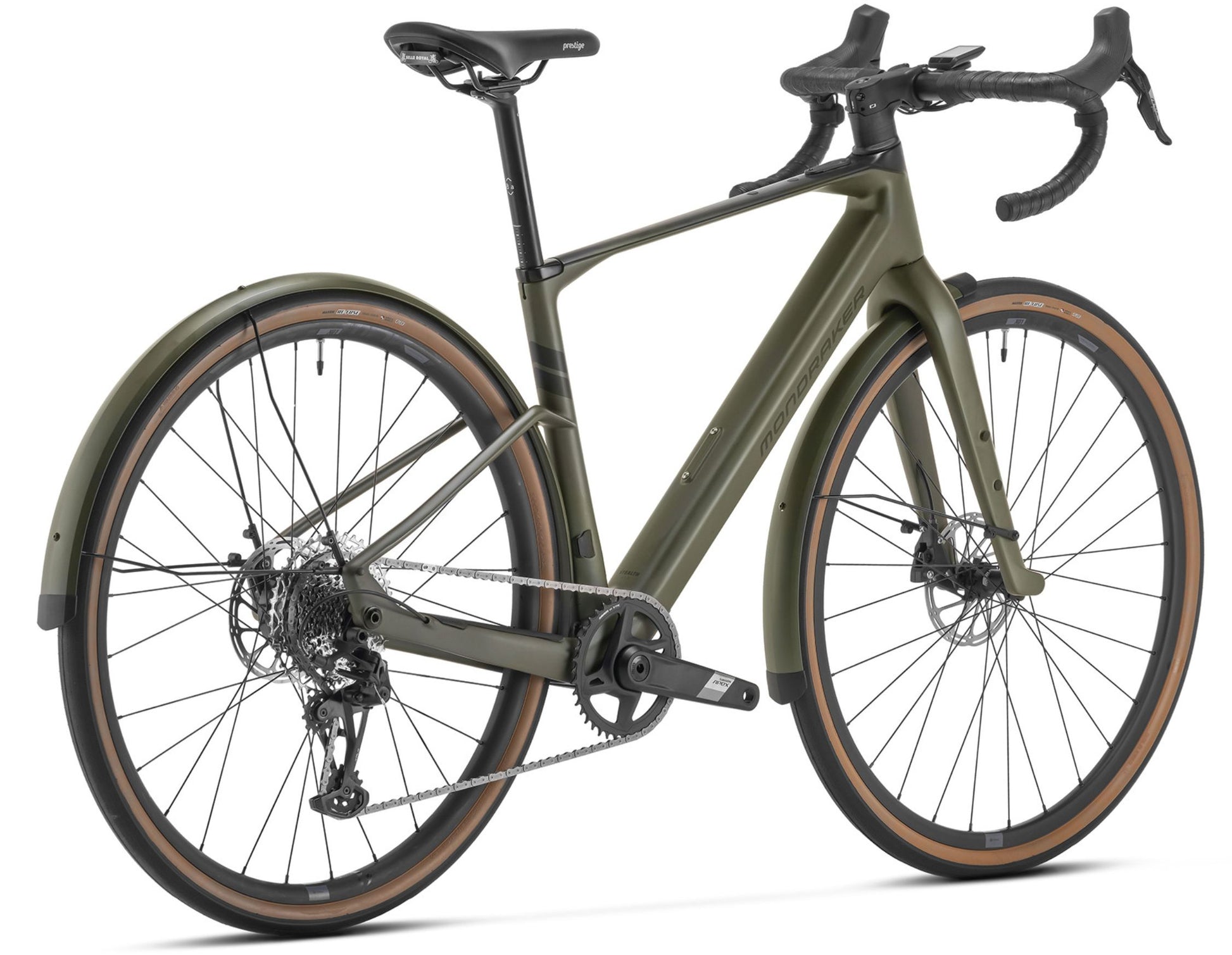

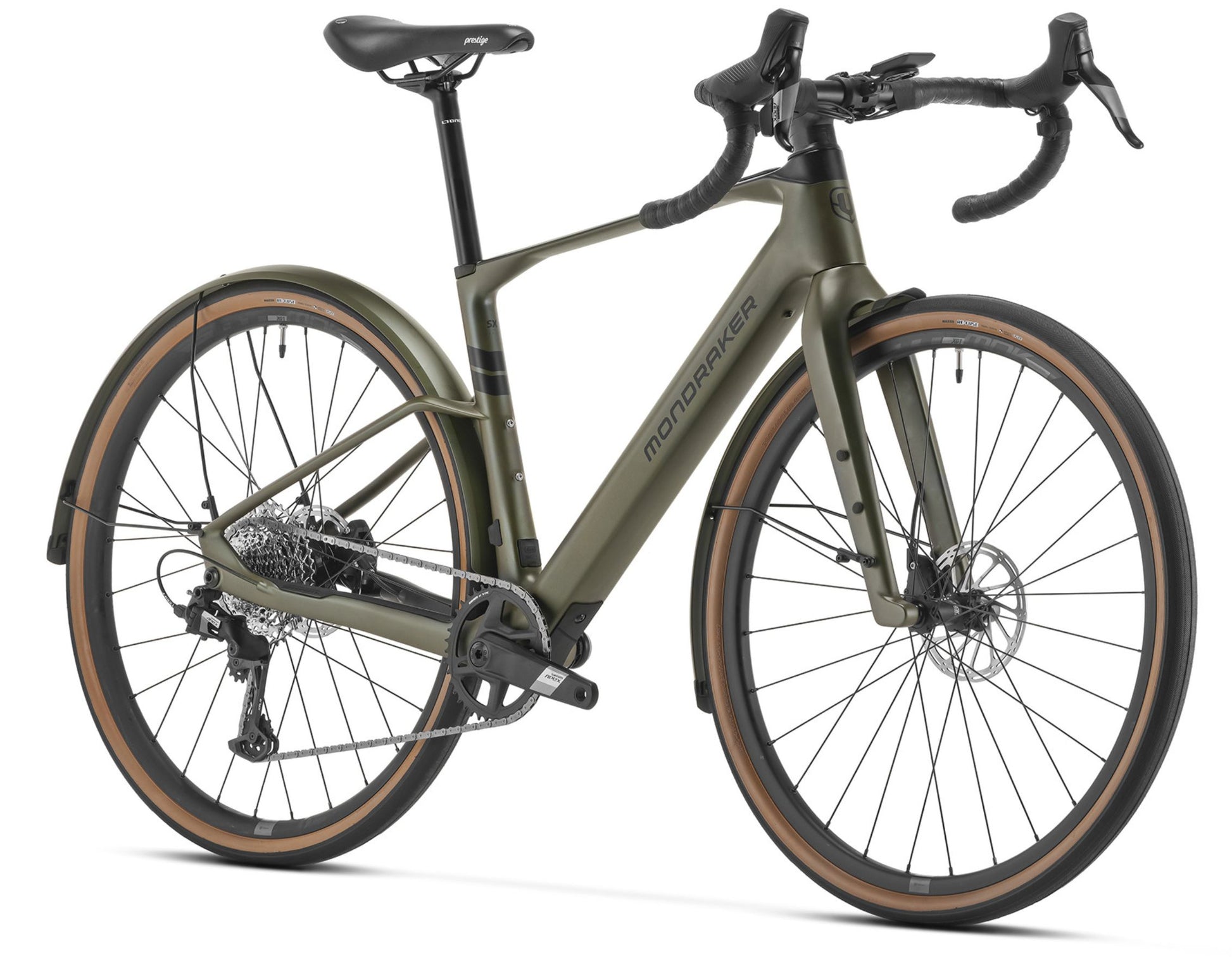

Mondraker Dusty SX R
Mondraker Dusty SX R
The Full Scoop on Mondraker Dusty SX R
The Urban Cross by Mondraker are a perfect combination of endurance and technology which let you use them daily as well as enjoying nature when you get a moment to disconnect from your daily grind. Best of all is that you get pedal assistance with enough range to ride all day. The SX version comes with components and extras to make it the fastest URBAN bike around. It’s both a city bike, and perfect tool for your weekend getaways out of town.
*Components are subject to manufacturer changes.
Motor | Mahle X20 Drive Unit |
Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185, 172Wh) |
Display | Pulsar One Wireless |
Charger | Spec not provided |
Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
Rear Shock | Not applicable |
Front Brake | SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Brake | Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Derailleur | Version 1 - Sram Apex XPLR 12s / Version 2 - Sram Apex 1, 11s |
Shift Levers | Version 1 - Sram Apex D1 12s, X-Actuation 1:1, single click / Version 2 - Sram Apex 11s, X-Actuation 1:1, single click |
Chain | Version 1 - SRAM Apex, 12s, Powerlock / Version 2 - Sram PC-1110, 11s, Powerlock |
Cassette | Version 1 - Sram PG-1231 11-44, 12s / Version 2 - Sram PG-1130 11-42, 11s |
Crankset | Version 1 - SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm / Version 2 - SRAM Rival 1 GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm |
Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
Chain Guard | Spec not provided |
Rims | Version 1 - MDK-XG1, 23mm internal width, tubeless ready, 28 spokes / Version 2 - MDK-XG1, 23mm internal width, tubeless ready, 32 spokes |
Front Hub | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
Rear Hub | Version 1 - Mahle X20 Drive Unit, HG freehub / Version 2 - Mahle X20 12x142mm, sealed bearings, IS 6 bolts |
Front Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
Rear Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
Handlebars | Version 1 - OnOff gravel 0º bar flare. Width 440mm all sizes / Version 2 - OnOff Barium Gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Grips | Barium gravel dark grey |
Saddle | Selle Royal Prestige 139mm |
Seatpost | Version 1 - OnOff Barium gravel microadjust diameter 27.2mm, length 400mm / Version 2 - OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | *Optional = Front and rear custom e-gravel dedicated fenders |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 440mm | 460mm | 500mm | 530mm |
B | Toptube length | 550mm | 570mm | 595mm | 620mm |
C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
F | Seat tube angle | 74° | 74° | 74° | 74° |
G | Effective seattube angle | 74° | 74° | 74° | 74° |
H | Headtube angle | 70° | 70° | 70° | 70° |
I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
K | Headtube length | 125mm | 150mm | 175mm | 210mm |
L | Reach | 393mm | 405mm | 424mm | 440mm |
M | Stack | 548mm | 576mm | 595mm | 628mm |
The Full Scoop on Mondraker Dusty SX R
The Urban Cross by Mondraker are a perfect combination of endurance and technology which let you use them daily as well as enjoying nature when you get a moment to disconnect from your daily grind. Best of all is that you get pedal assistance with enough range to ride all day. The SX version comes with components and extras to make it the fastest URBAN bike around. It’s both a city bike, and perfect tool for your weekend getaways out of town.
*Components are subject to manufacturer changes.
Motor System
Motor | Mahle X20 Drive Unit |
Battery | Mahle X20 IX350Wh (Optional external battery: Mahle e185, 172Wh) |
Display | Pulsar One Wireless |
Charger | Spec not provided |
Components
Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
Rear Shock | Not applicable |
Front Brake | SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Brake | Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Derailleur | Version 1 - Sram Apex XPLR 12s / Version 2 - Sram Apex 1, 11s |
Shift Levers | Version 1 - Sram Apex D1 12s, X-Actuation 1:1, single click / Version 2 - Sram Apex 11s, X-Actuation 1:1, single click |
Chain | Version 1 - SRAM Apex, 12s, Powerlock / Version 2 - Sram PC-1110, 11s, Powerlock |
Cassette | Version 1 - Sram PG-1231 11-44, 12s / Version 2 - Sram PG-1130 11-42, 11s |
Crankset | Version 1 - SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm / Version 2 - SRAM Rival 1 GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm |
Chain Ring | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
Chain Guard | Spec not provided |
Rims | Version 1 - MDK-XG1, 23mm internal width, tubeless ready, 28 spokes / Version 2 - MDK-XG1, 23mm internal width, tubeless ready, 32 spokes |
Front Hub | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
Rear Hub | Version 1 - Mahle X20 Drive Unit, HG freehub / Version 2 - Mahle X20 12x142mm, sealed bearings, IS 6 bolts |
Front Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
Rear Tire | Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall |
Handlebars | Version 1 - OnOff gravel 0º bar flare. Width 440mm all sizes / Version 2 - OnOff Barium Gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
Stem | OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
Headset | OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Grips | Barium gravel dark grey |
Saddle | Selle Royal Prestige 139mm |
Seatpost | Version 1 - OnOff Barium gravel microadjust diameter 27.2mm, length 400mm / Version 2 - OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | *Optional = Front and rear custom e-gravel dedicated fenders |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
Geometry
FRAME SIZE | S | M | L | XL | |
---|---|---|---|---|---|
A | Seattube length | 440mm | 460mm | 500mm | 530mm |
B | Toptube length | 550mm | 570mm | 595mm | 620mm |
C | Bottom bracket drop | -70mm | -70mm | -70mm | -70mm |
D | Bottom bracket height | 286mm | 286mm | 286mm | 286mm |
E | Chainstay length | 425mm | 425mm | 425mm | 425mm |
F | Seat tube angle | 74° | 74° | 74° | 74° |
G | Effective seattube angle | 74° | 74° | 74° | 74° |
H | Headtube angle | 70° | 70° | 70° | 70° |
I | Fork Offset | 45mm | 45mm | 45mm | 45mm |
J | Wheelbase | 1034mm | 1056mm | 1082mm | 1110mm |
K | Headtube length | 125mm | 150mm | 175mm | 210mm |
L | Reach | 393mm | 405mm | 424mm | 440mm |
M | Stack | 548mm | 576mm | 595mm | 628mm |
