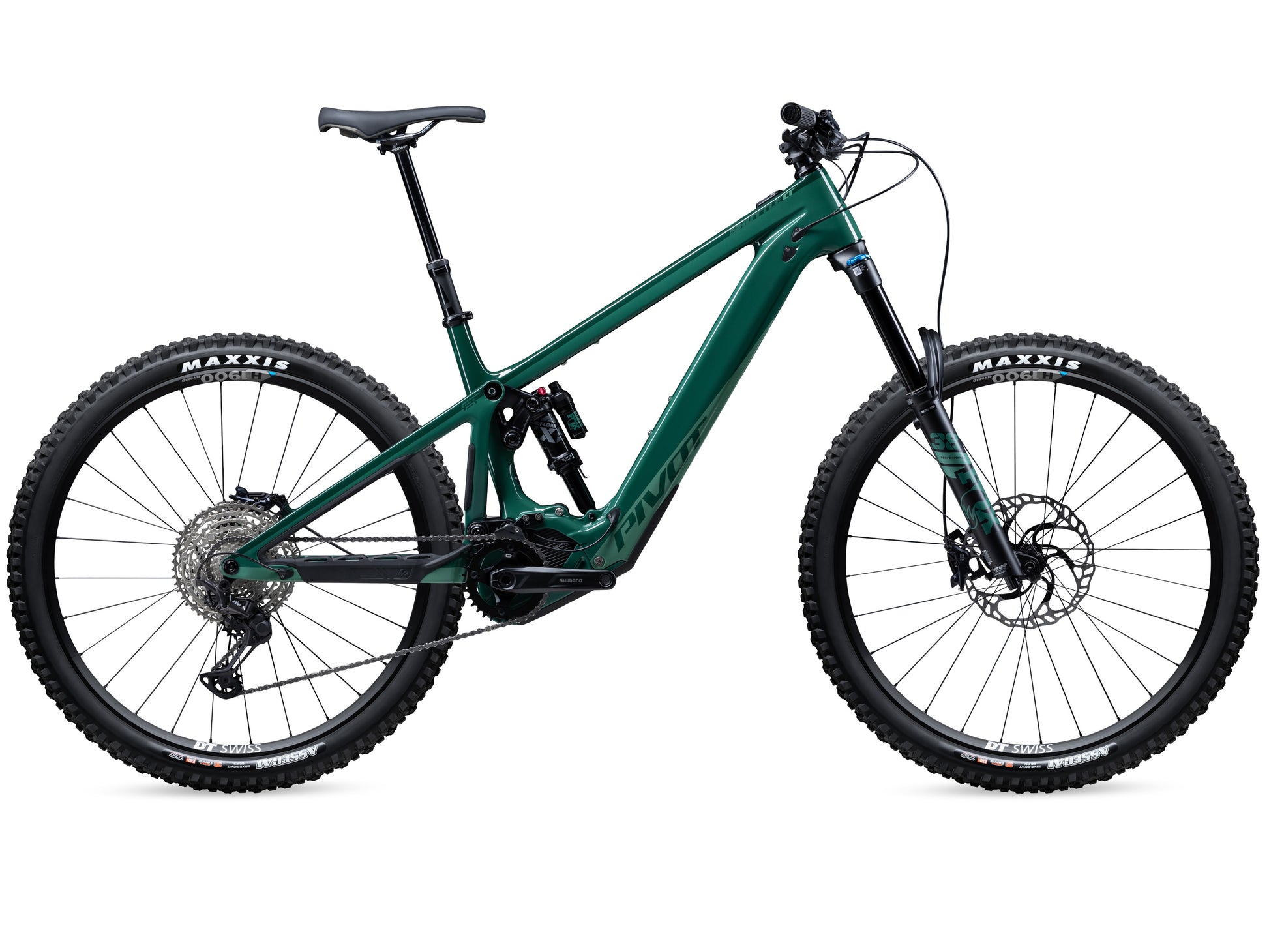

The Full Scoop on the Pivot Shuttle LT Ride
Race ready and ultra-refined, the new Shuttle LT is the hyper capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot’s deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.
Motor Shimano Steps DU-EP800, 85Nm Battery Integrated 756Wh Display Spec not provided Charger Spec not provided
Frame Full-carbon Frame Fork Fox Performance E-MTB 38 29”, 44mm offset, GRIP - 170mm Rear Shock Fox Performance Float X Front Brake Shimano SLX M7120 4-piston / Galfer 223mm Rear Brake Shimano SLX M7120 4-piston / Galfer 203mm Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers Shimano SLX M7100 ISPEC EV 12-Speed Chain Shimano Deore CN-M6100 12-Speed Cassette Shimano deore M6100 10-51t Crankset PRAXIS ETOR E-MTB 32t Chain Ring Spec not provided Chain Guard Spec not provided Rims DT Swiss Hybrid M1900 30mm - 29"
15x110 F/12x157 R
Front Hub Spec not provided Rear Hub Spec not provided
Front Tire Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+ Rear Tire
Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+
Handlebar Phoenix Race Low Rise Aluminum Stem Phoenix Team Enduro/Trail Headset Pivot precision sealed cartridge Grips Phoenix Factory Lock-On Saddle Pivot Pro E-Bike Seatpost E13 Vario 150mm - 180mm (SM-MD), 180mm - 210mm (LG-XL)
Pedals Not applicable Front Light Not applicable Rear Light Not applicable Kickstand Not applicable Rear Carrier Not applicable Fenders Not applicable Bell Not applicable Lock Not applicable Mirror Not applicable
Small Med Large X-large Rider Height 5'3" - 5'8" 5'7 -6'0 5'10" - 6'2" 6'1" + Seat Tube Length (C-T) A 14.6 in 15.7 in 16.9 in 18.5 in Top Tube Length B 23.6 in 24.5 in 25.4 in 26.5 in
Head Tube Length C 4.3 in 4.7 in 5.1 in 5.5 in Head Tube Angle D 64.5* 64.5° 64.5° 64.5* Seat Tube Angle (Eff.) E 77° 77° 77.5° 78°
Chainstay Length F 17.3 in 17.3 in 17.3 in 17.3 in Bottom Bracket Height G 14.1 in 14.1 in
14.1 in 14.1 in Bottom Bracket Drop H .07 in .07 in .07 in .07 in Standover I 27.3 in 27.5 in 27.6 in 27.6 in Wheelbase J 48.4 in 49 in 50.4 in 51.5 in Stack 24.8 in 25.2 in 25.6 in 25.9 in Reach 17.7 in 18.5 in 19.3 in 20.2 in
