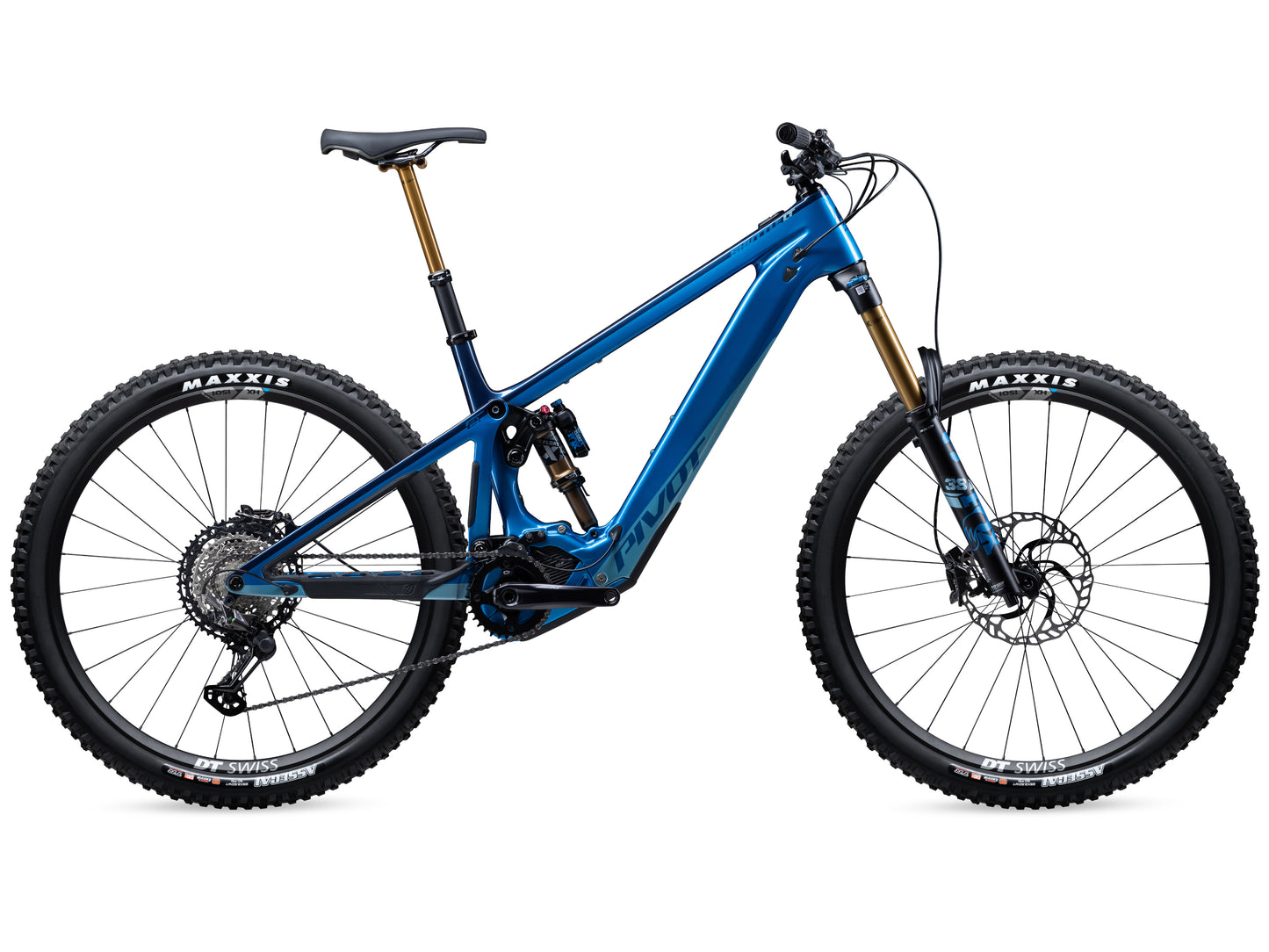

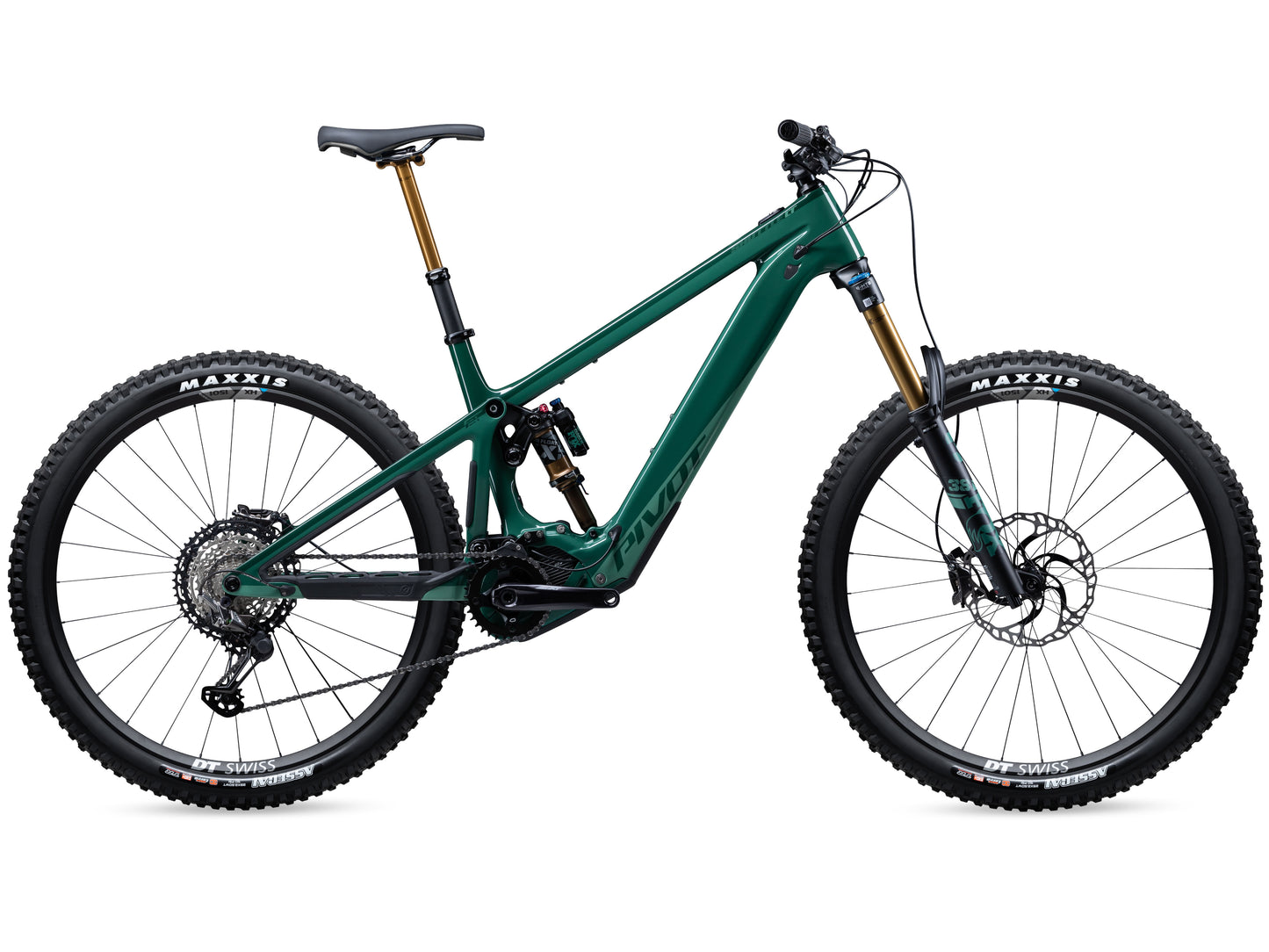

Pivot Shuttle LT Team XTR

Sizing Guide


The Full Scoop on the Pivot Shuttle LT Team XTR


  • Race ready and ultra-refined, the new Shuttle LT is the hyper capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot’s deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.

  • Motor Shimano Steps DU-EP800, 85Nm
    Battery Integrated 756Wh
    Display Spec not provided
    Charger Spec not provided
  • Frame Full-carbon Frame
    Fork Fox Factory E-MTB 38 29”, 44mm offset, GRIP - 170mm
    Rear Shock Fox Factory Float X

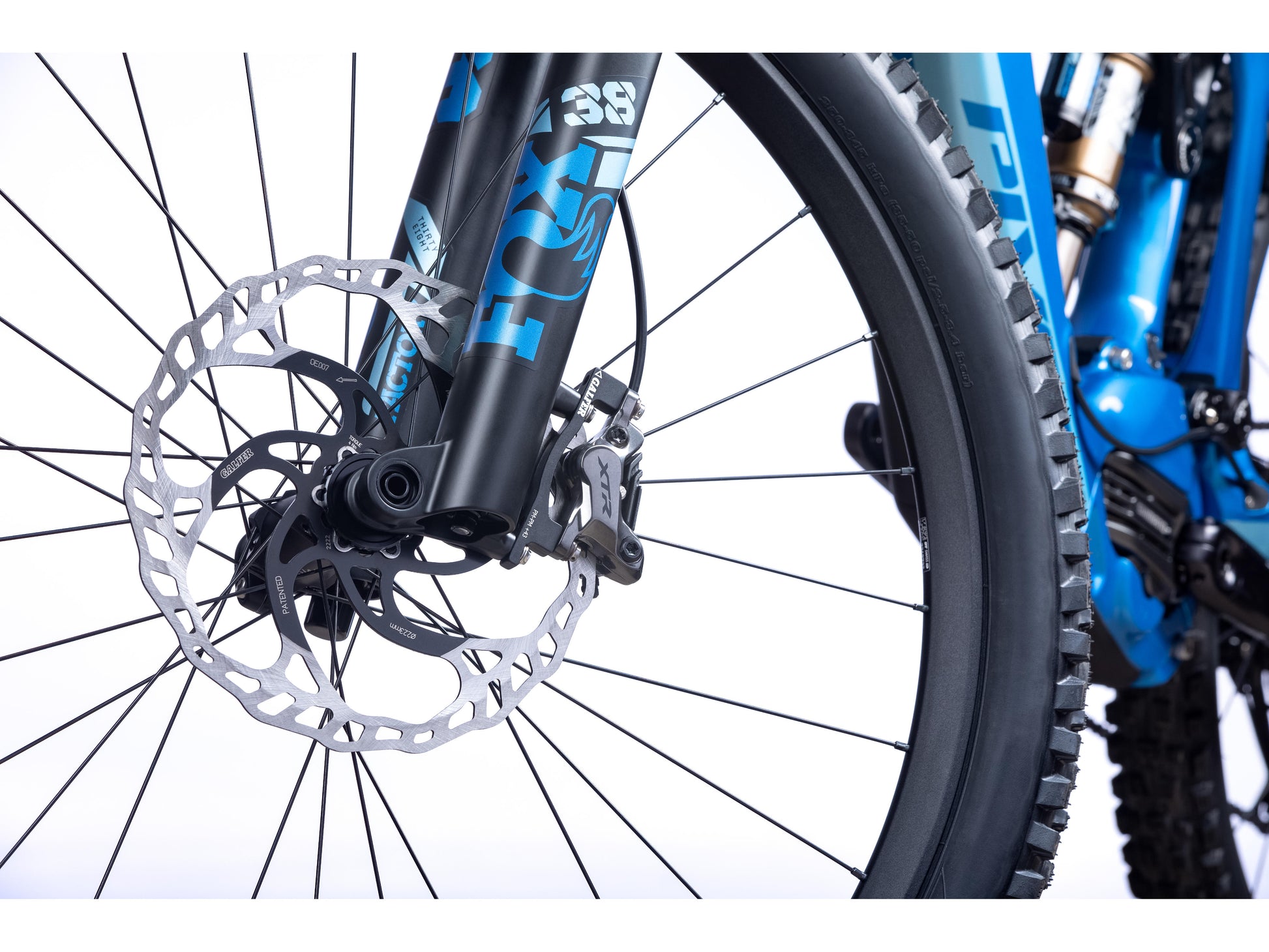

    Front Brake Shimano XTR M9120 4-piston / Galfer 223mm
    Rear Brake Shimano XTR M9120 4-piston / Galfer 203mm
    Rear Derailleur

    Shimano XTR SGS 12-Speed

    Shift Levers Shimano XTR M9100 12-Speed
    Chain Shimano CN-M8100 12-Speed
    Cassette Shimano XT M8100 10-51t
    Crankset Shimano XT M8150 w/ Shimano e-MTB 34t
    Chain Ring Spec not provided
    Chain Guard Spec not provided
    Rims DT Swiss Hybrid HX1501 30mm  - 29"
    15x110 F/12x157 R
    Front Hub Spec not provided
    Rear Hub Spec not provided
    Front Tire Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+
    Rear Tire

    Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+

    Handlebar Phoenix Team Low Rise Carbon
    Stem Phoenix Team Enduro/Trail
    Headset Pivot precision sealed cartridge
    Grips Phoenix Factory Lock-On
    Saddle Pivot Pro E-Bike
    Seatpost Fox Transfer Factory Series 150mm 9SM), 175mm (MD-LG), 200mm (XL)
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable
  • Small Med Large X-large
    Rider Height 5'3" - 5'8" 5'7 -6'0 5'10" - 6'2" 6'1" +
    Seat Tube Length (C-T) A 14.6 in 15.7 in 16.9 in 18.5 in
    Top Tube Length B 23.6 in 24.5 in 25.4 in 26.5 in
    Head Tube Length C 4.3 in 4.7 in 5.1 in 5.5 in
    Head Tube Angle D 64.5* 64.5° 64.5° 64.5*
    Seat Tube Angle (Eff.) E 77° 77° 77.5° 78°
    Chainstay Length F 17.3 in 17.3 in 17.3 in 17.3 in
    Bottom Bracket Height G 14.1 in 14.1 in
    14.1 in 14.1 in
    Bottom Bracket Drop H .07 in .07 in .07 in .07 in
    Standover I 27.3 in 27.5 in 27.6 in 27.6 in
    Wheelbase J 48.4 in 49 in 50.4 in 51.5 in
    Stack
    24.8 in 25.2 in 25.6 in 25.9 in
    Reach
    17.7 in 18.5 in 19.3 in 20.2 in
