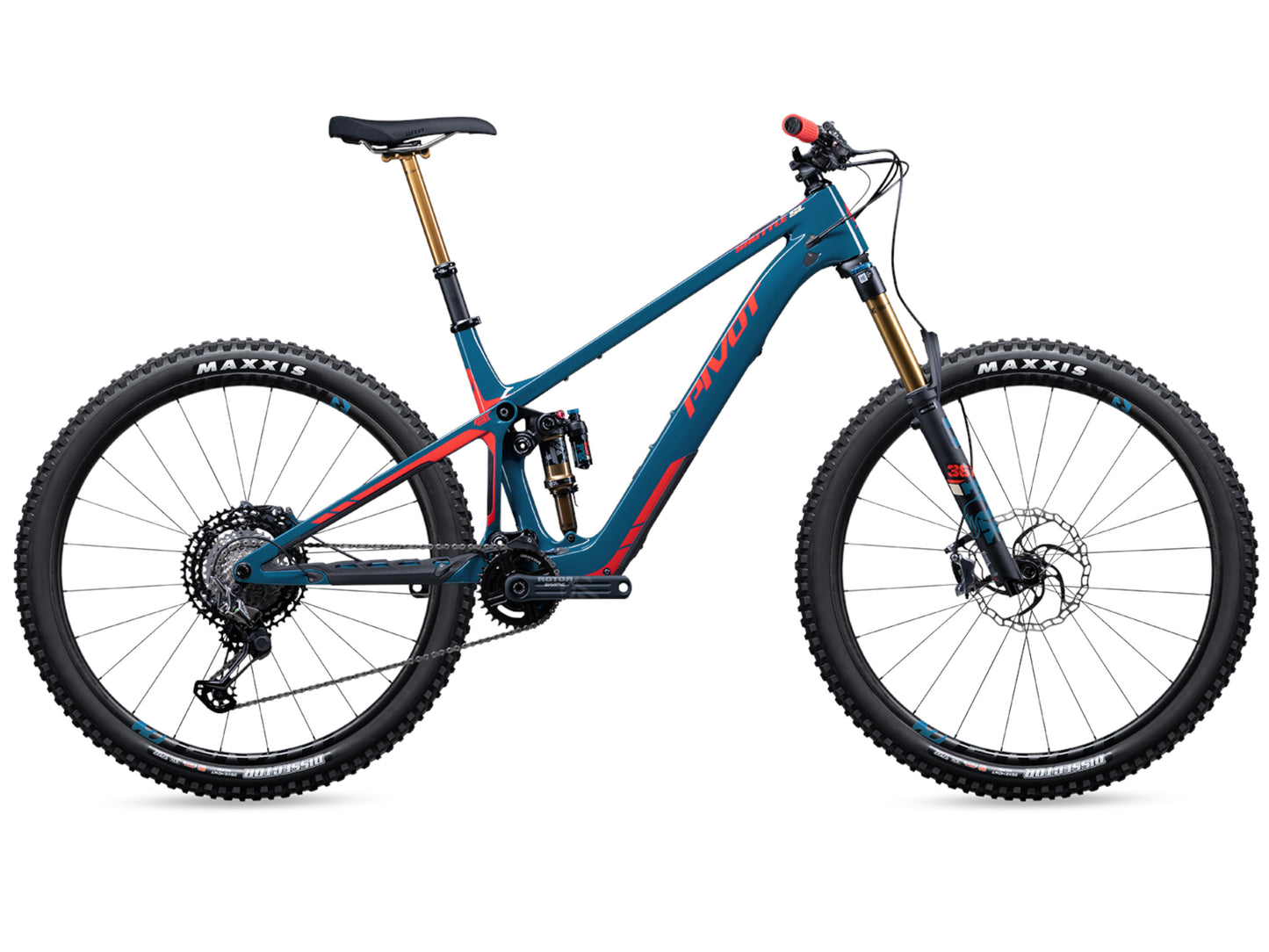

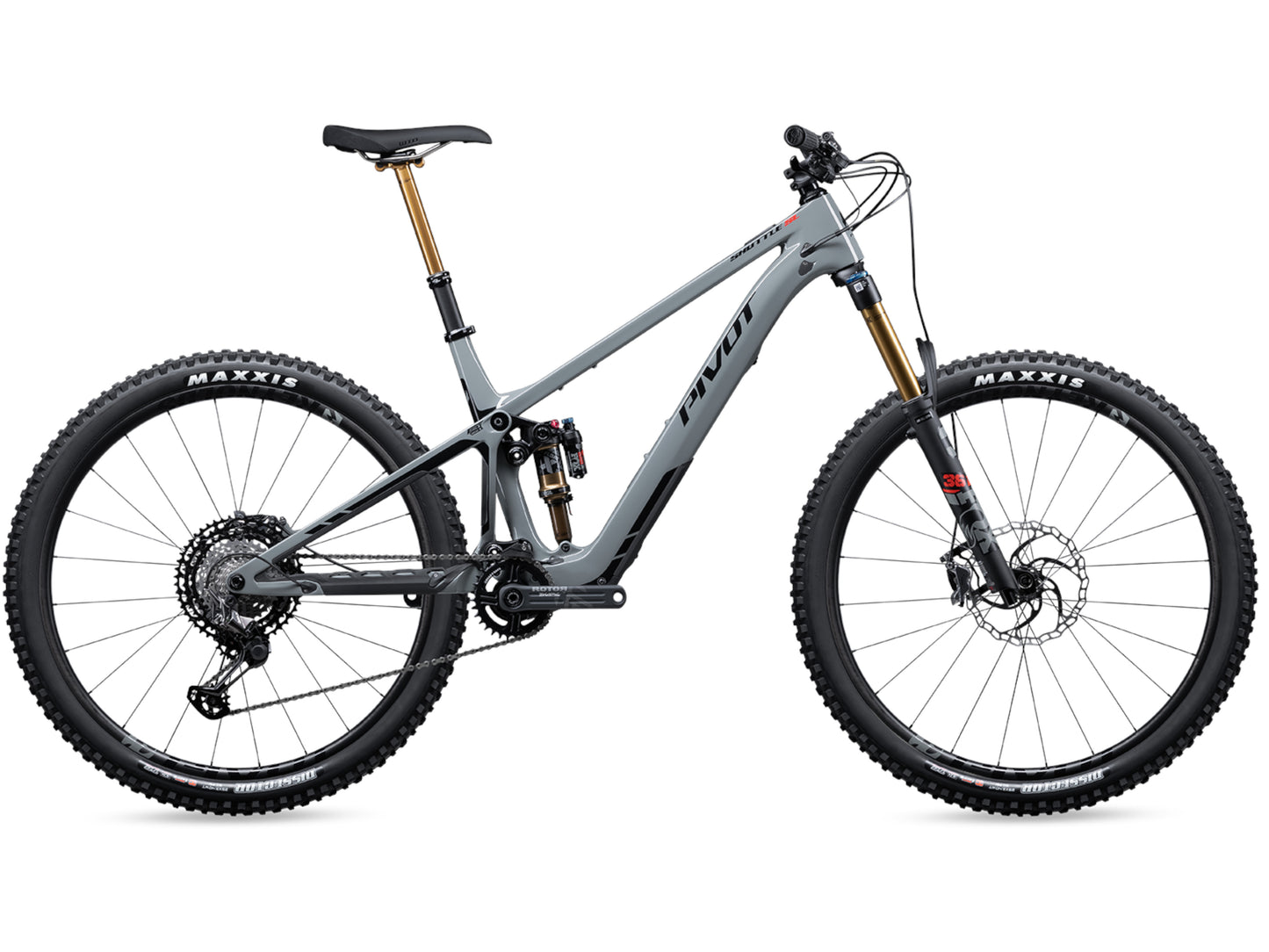

Pivot Shuttle SL Team XTR

The Full Scoop on the Pivot Shuttle SL Team XTR

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Flipping the script that most e-bike builders are following, Pivot decided to focus on what matters - the dynamic of trail riding - and placed an emphasis on light weight, refined suspension, crisp handling, and game-changing performance.

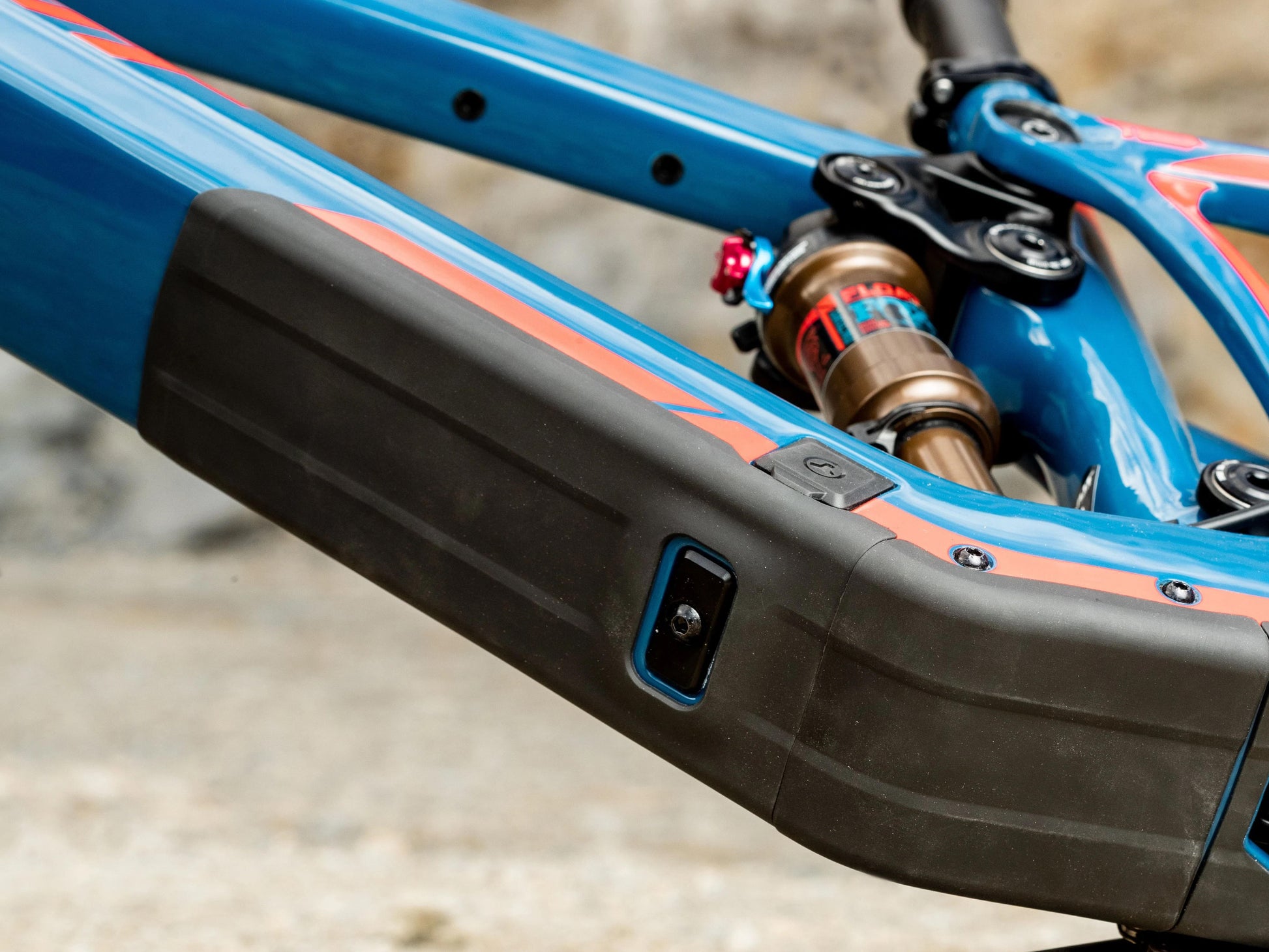

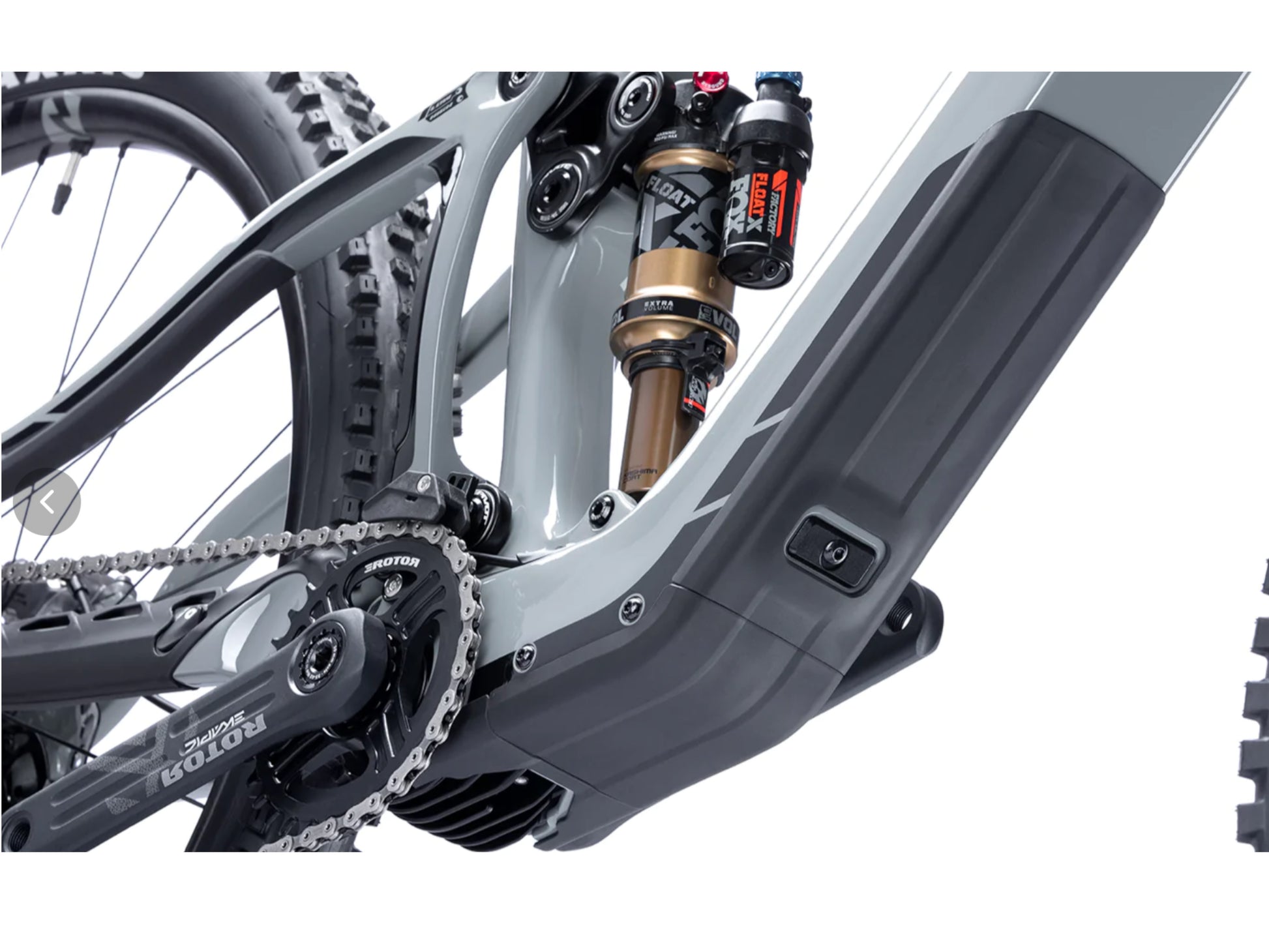

  The Pivot Shuttle SL Team XTR boasts a 60Nm FAZUA motor, combined with a 430Wh battery, that is nestled in the downtube provides added punch to your ride, giving you the power to smash climbs and the pop for bigger moves, letting you ride farther, better, and faster. The Pivot Shuttle SL Team XTR 's motor and battery are situated low and close to the center of gravity - a key aspect of the Shuttle SL's dynamic handling.


• Motor	FAZUA RIDE 60, 43V, 60 Nm max torque, 250 W continuous power, 450 W max
  Battery	Integrated 430 Watt/Hour Battery

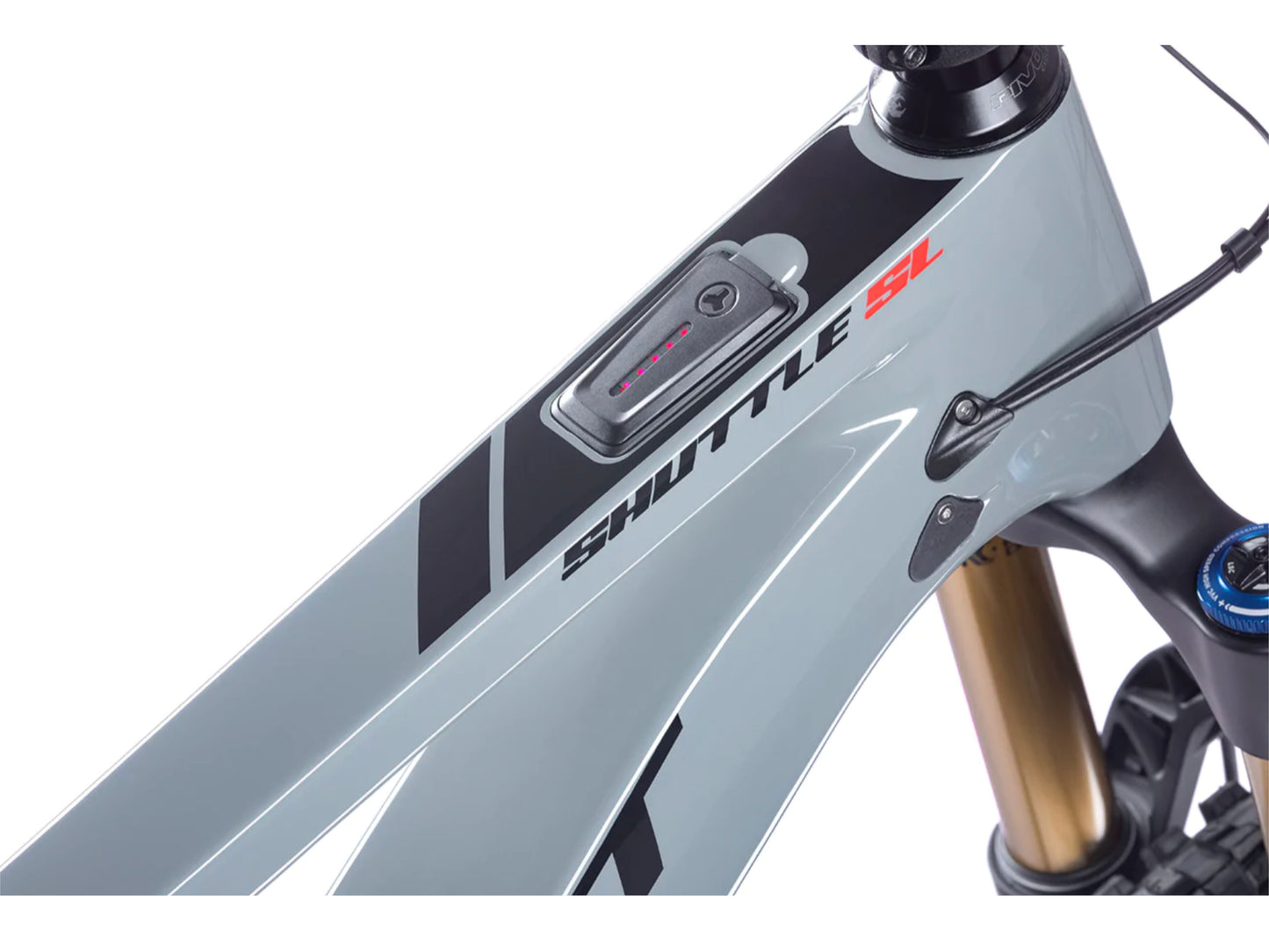

  Display	Spec not provided
  Charger	Magnetic Charging Port & Cover

• Frame	Shuttle SL Full Carbon Hollow Core Frame
  Fork	Fox Performance E-MTB 36 29", 44mm offset, GRIP - 150mm
  Rear Shock	Fox Factory Float X
  Front Brake	Shimano XTR M9120 4-piston
  Rear Brake	Shimano XTR M9120 4-piston
  Rear Derailleur	Shimano XTR SGS 12-Speed
  Shift Levers	Shimano XTR M9100 ISPEC EV 12-Speed
  Chain	Shimano CN-M9100 12-Speed
  Cassette	Shimano XTR M9100 10-51t
  Crankset	ROTOR EKAPIC E-MTB
  Chain Ring	ROTOR EKAPIC E-MTB 32t
  Chain Guard	Spec not provided
  Rims	Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R
  Front Hub	Industry Nine Hydra hub
  Rear Hub	Industry Nine Hydra hub
  Front Tire	Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
  Rear Tire	Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
  Handlebar	Phoenix Team Low Rise Carbon -780mm
  Stem	Phoenix Team Enduro/Trail
  Headset	Pivot Precision Sealed Cartridge
  Grips	Phoenix Factory Lock-On
  Saddle	Phoenix WTB Volt Team (Medium Width)
  Seatpost	Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

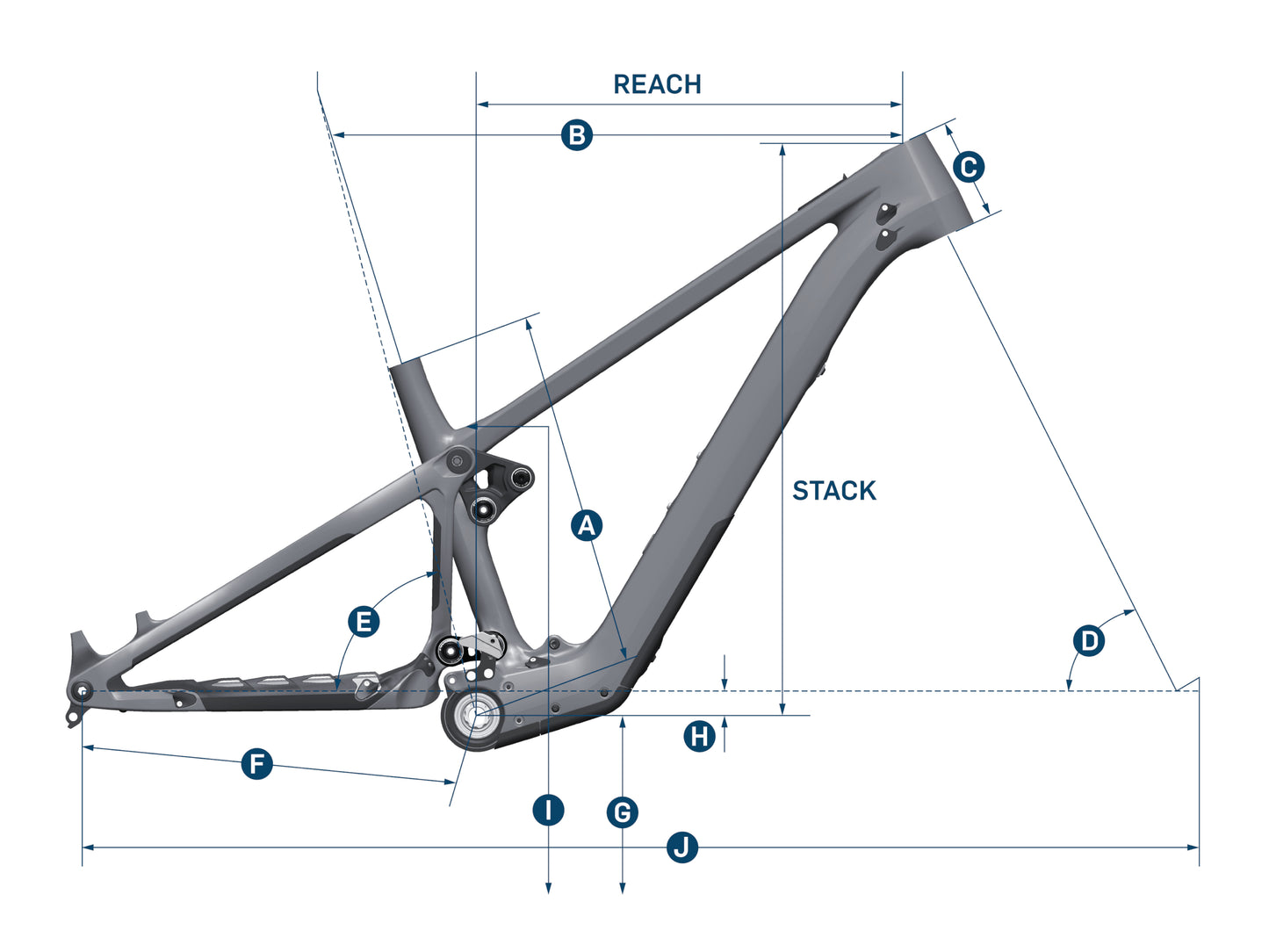

• 		S(Low/High BB)	M(Low/High BB)	L(Low/High BB)	XL(Low/High BB)
  Rider Height		5'2" - 5'8"	5'7 -6'0	5'10" - 6'2"	6'1" +
  Seat Tube Length (C-T)	A	14.5 in	15.5 in	17 in	18.5 in
  Top Tube Length	B	23.5 in	24.9 in/24.8 in	25.4 in	26 in/25.9 in
  Head Tube Length	C	3.7 in	4.4 in	4.6 in	5.1 in
  Head Tube Angle	D	65°/65.5°	65°/65.5°	65°/65.5°	65°/65.4°
  Seat Tube Angle (Eff.)	E	76°/76.5°	76°/76.5°	76°/76.5°	76.8°/77.2°
  Chainstay Length	F	17 in/16.9 in	17 in/16.9 in	17.1 in/17 in	17.2 in
  Bottom Bracket Height	G	13.7 in/13.9 in	13.7 in/13.9 in	13.7 in/13.9 in	13.7 in/13.9 in
  Bottom Bracket Drop	H	1.06 in/.84 in	1.06 in/.84 in	1.06 in/.83 in	1.06 in/.83 in
  Standover	I	26.2 in/26.5 in	26.3 in/26.7 in	26.5 in/26.9 in	26.7 in/27 in
  Wheelbase	J	46.7 in	48.1 in	48.8 in	50.1 in/50 in
  Stack		24 in/23.9 in	24.6 in/24.5 in	24.8 in/24.6 in	25.3 in/25.1 in
  Reach		17.1 in/17.3 in	18.3 in/18.5 in	18.8 in/19 in	19.7 in/19.8 in
