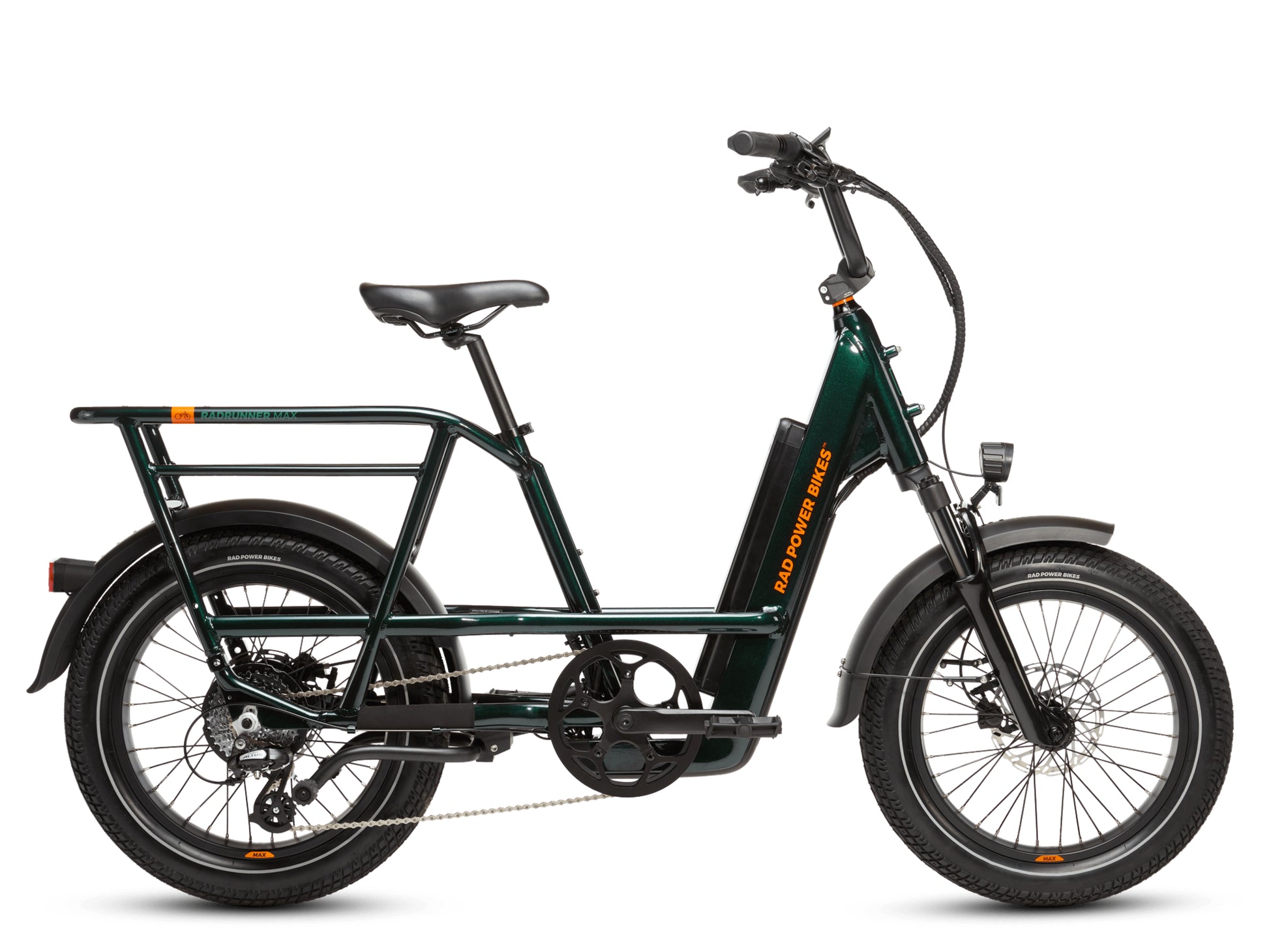

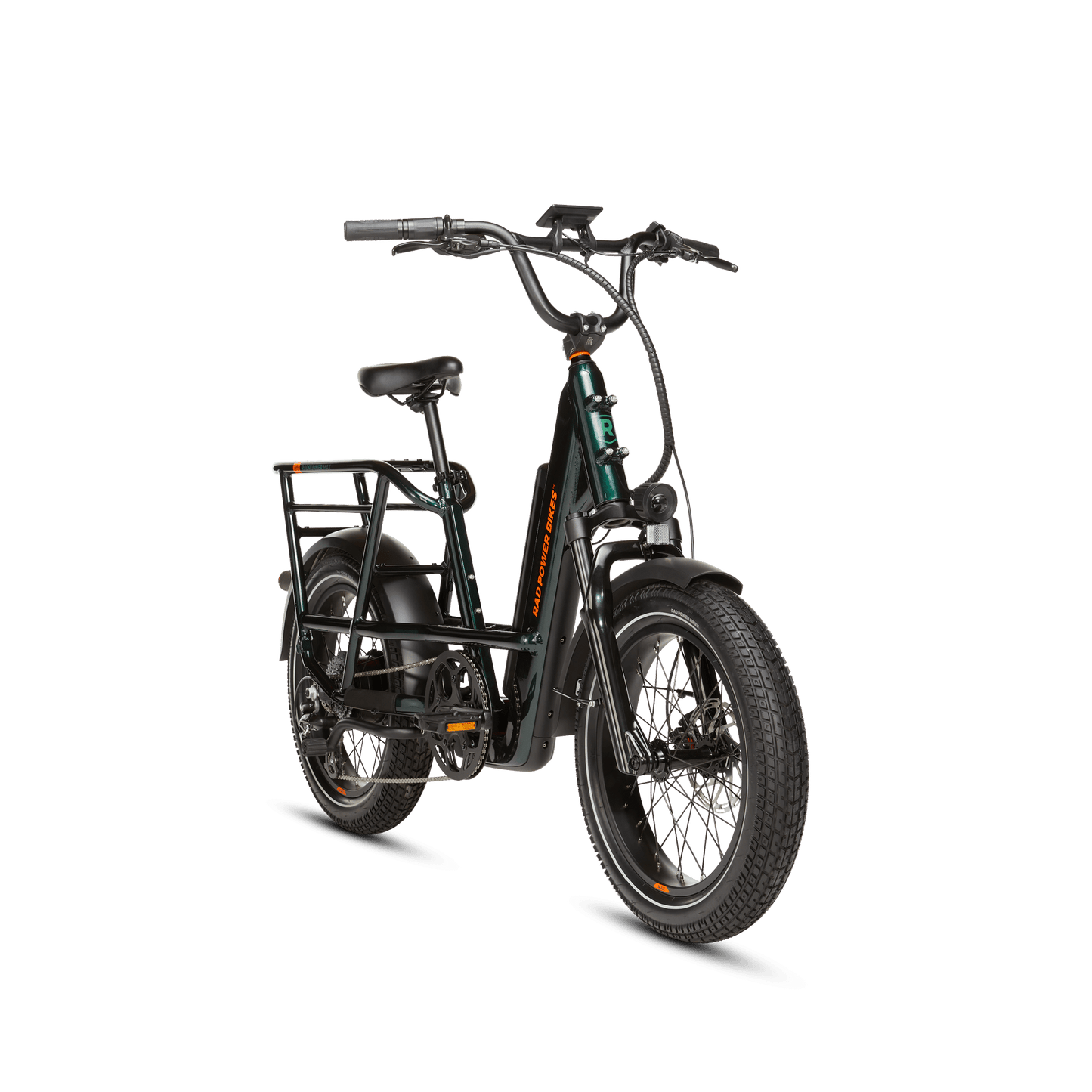

Rad Power RadRunner™ Max Electric Cargo Utility Bike
Rad Power RadRunner™ Max Electric Cargo Utility Bike
The Full Scoop on RadRunner™ Max Electric Cargo Utility Bike

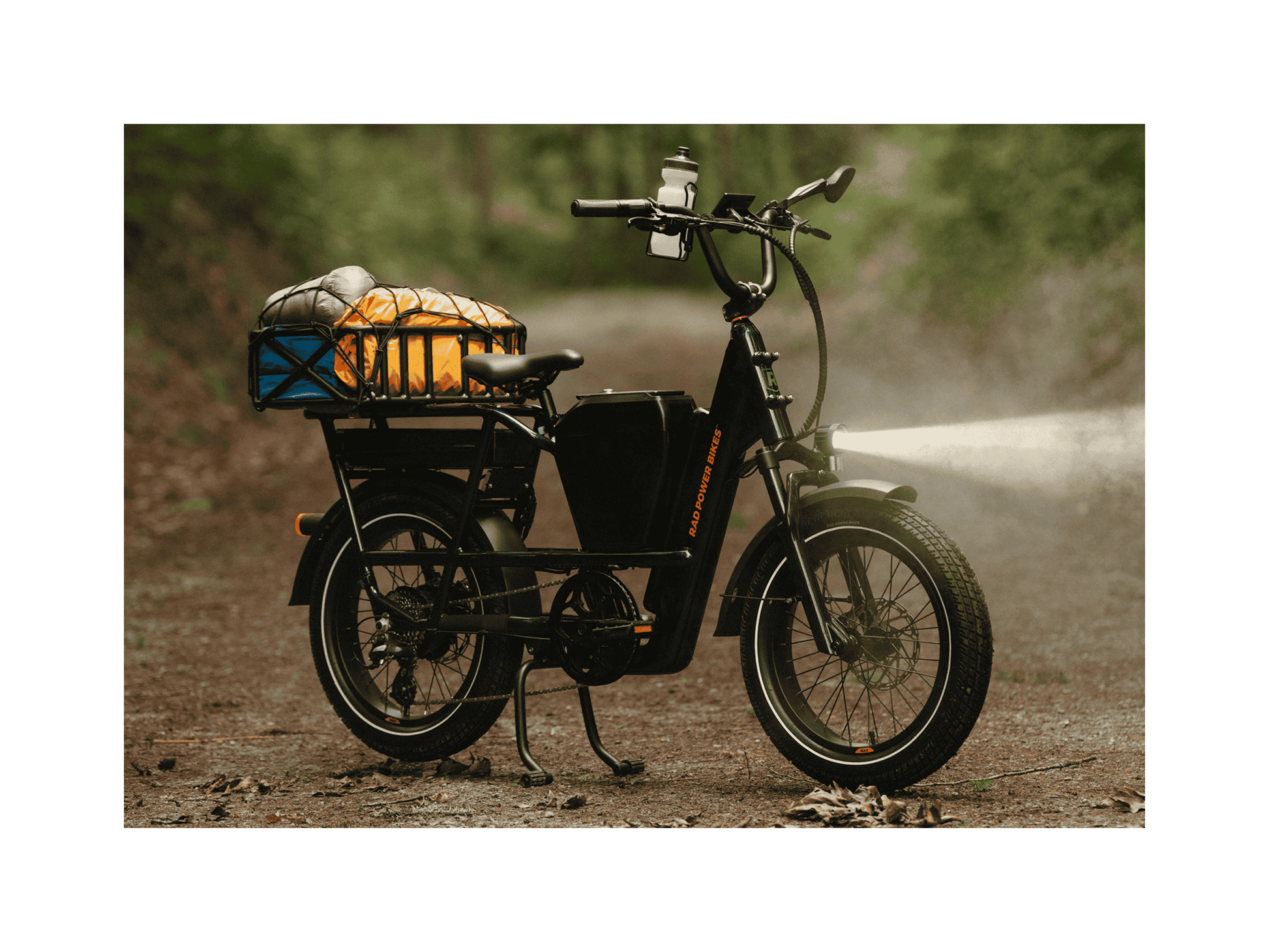

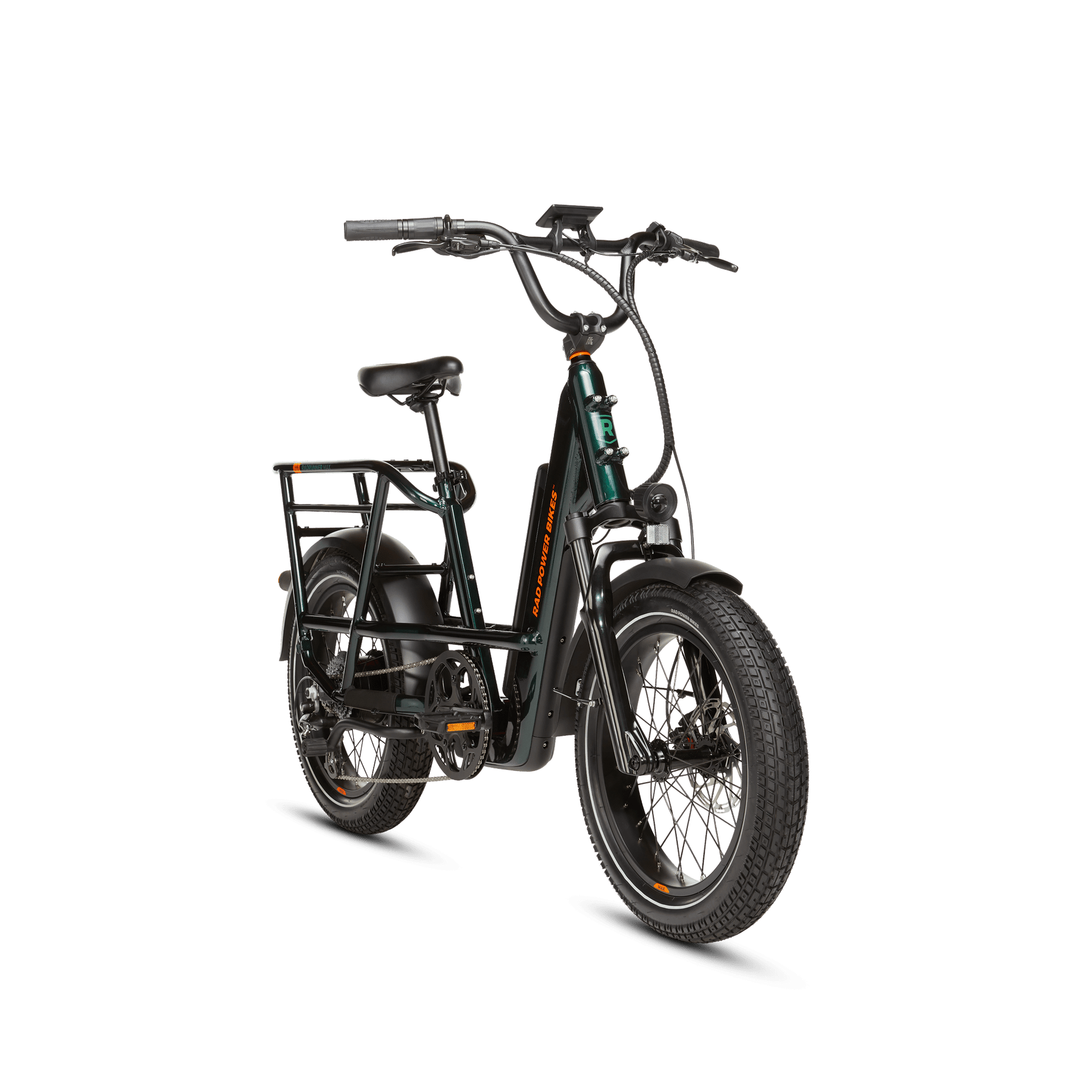

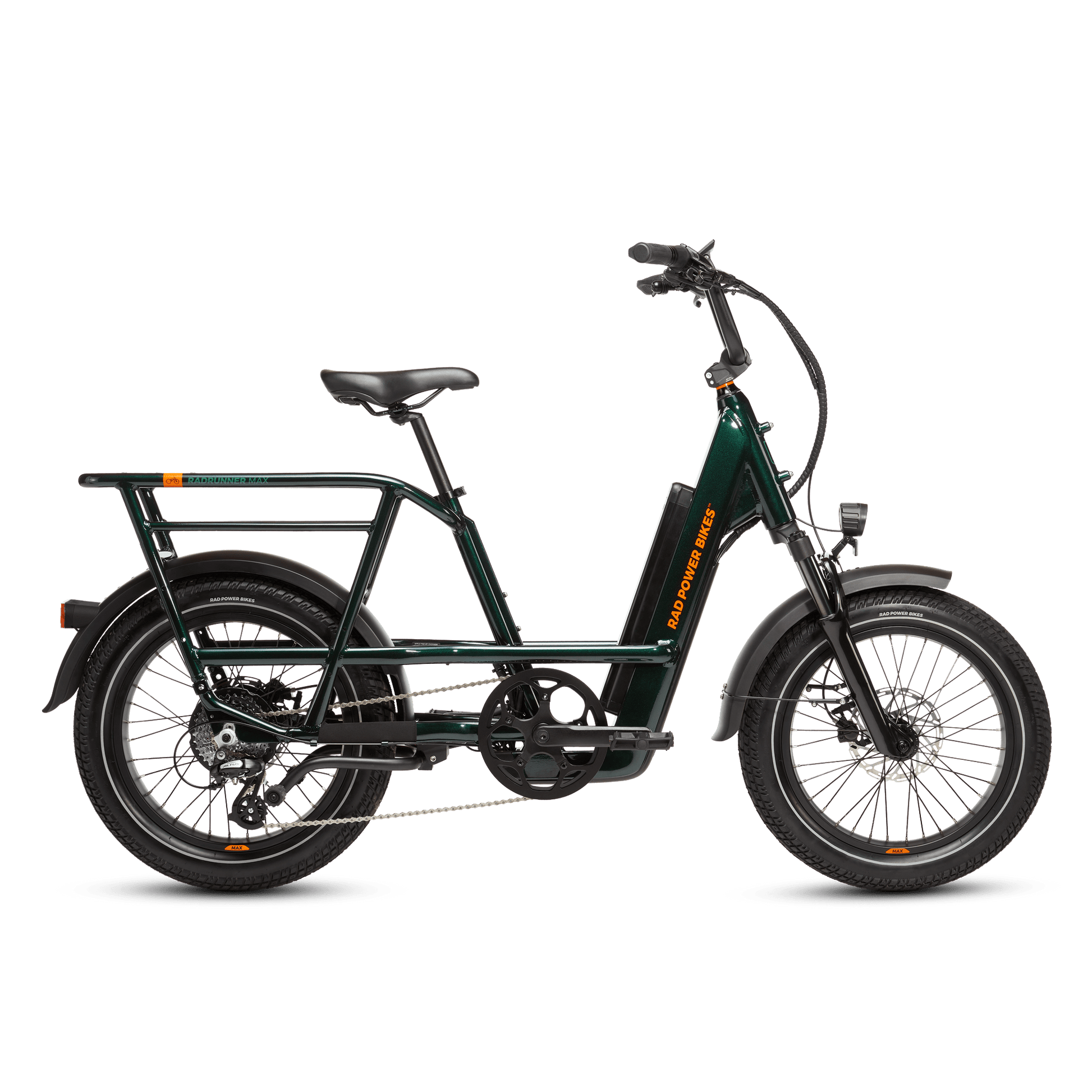

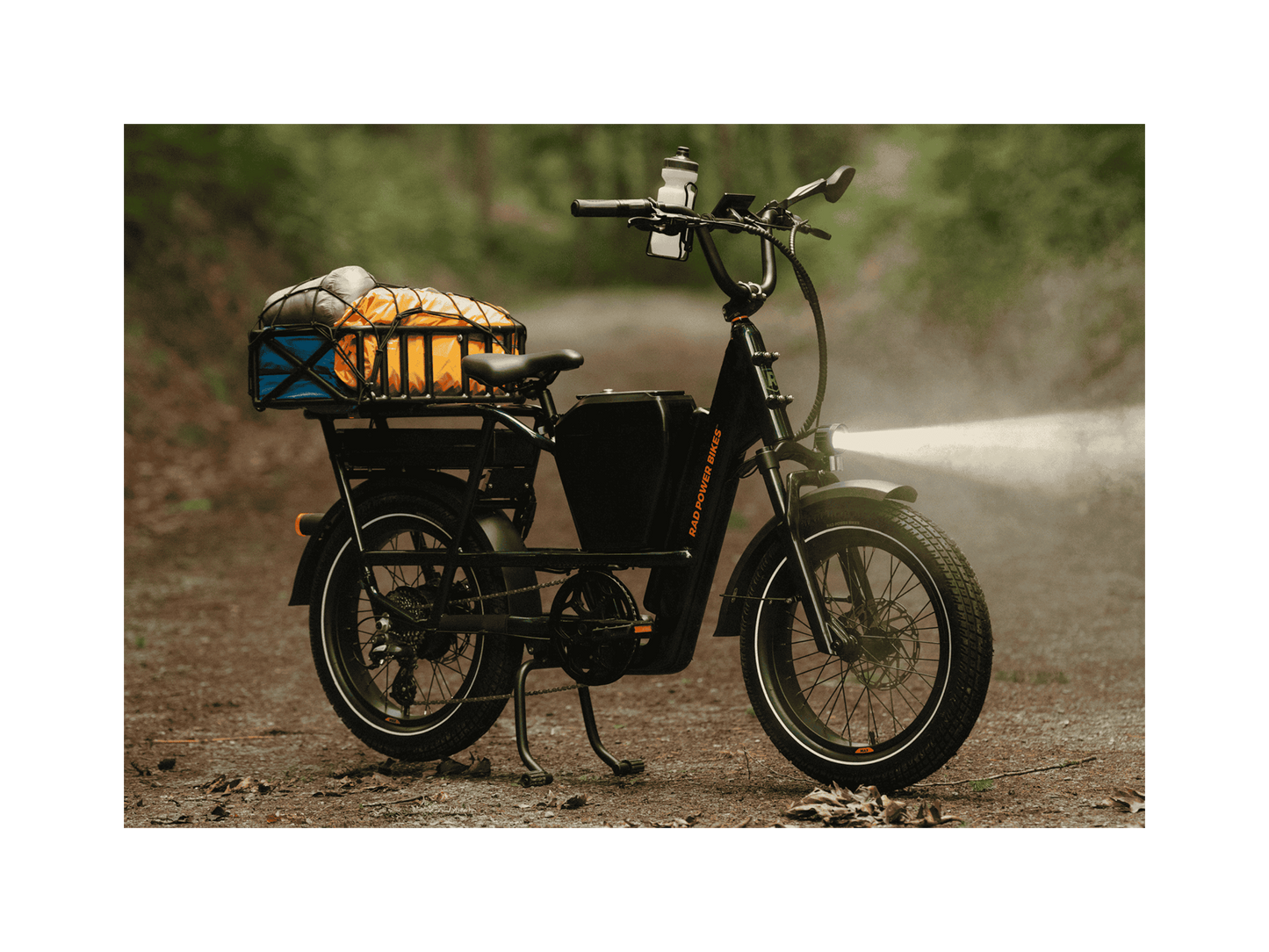

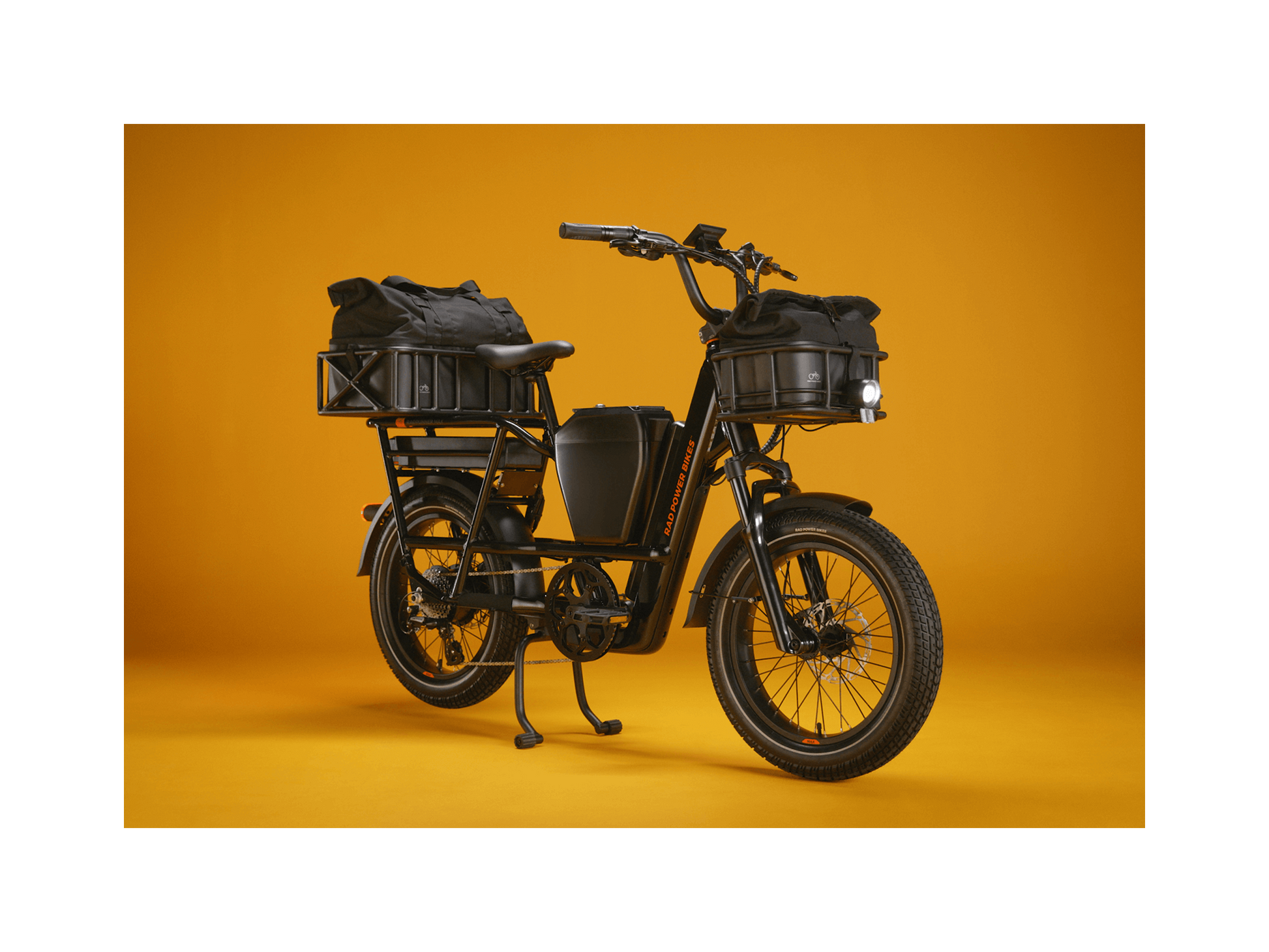

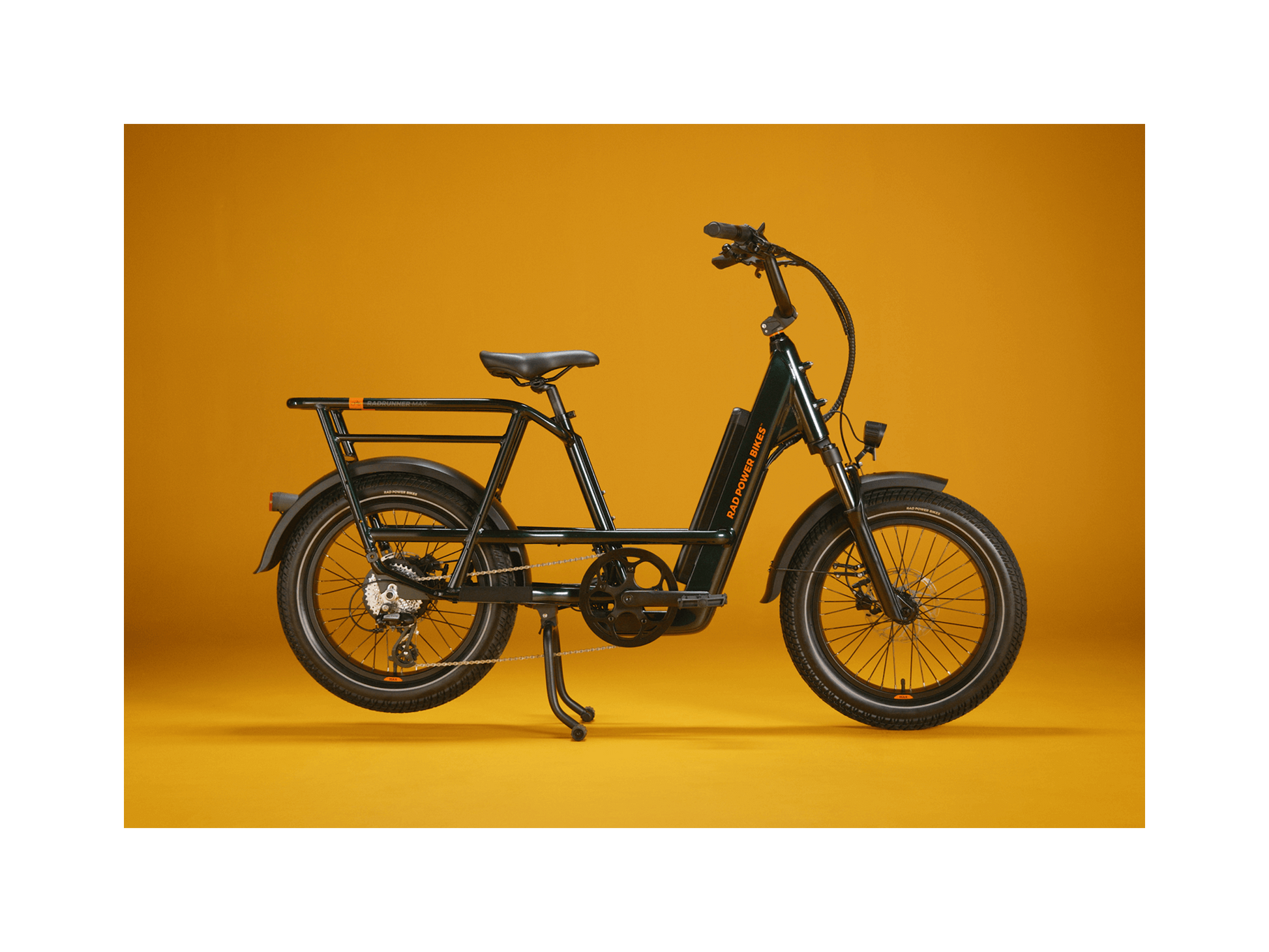

Meet the Rad Power RadRunner™ Max—a sleek cargo e-bike packed with powerhouse features. Equip yourself with the Safe Shield battery, hydraulic disc brakes, radar detection, and a 100 Nm torque sensor for a ride that’s smooth, strong, and downright addictive. Haul up to 420 lbs and zoom at speeds reaching 28 mph. Craving more? Connect the Range Extender to push your adventure as far as 125 miles. Get ready to conquer the unexpected in style!
Range: Up to 61 miles
Payload: 420 lb. (275 lb. max rider)
Top speed:
Class 1, 2 & 3

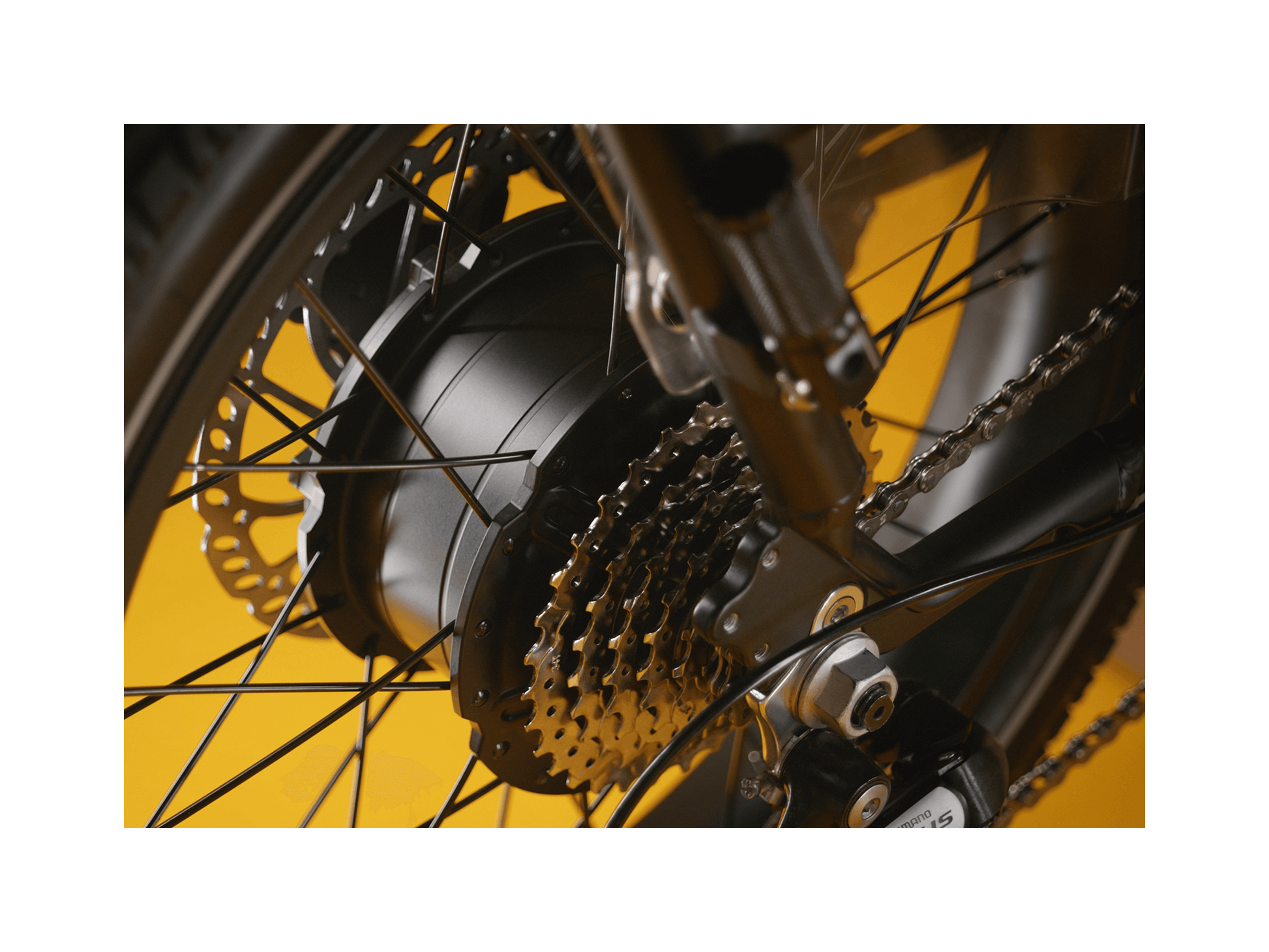

Motor: 750W Rear Hub, 90 Nm torque
UL status: Certified to the UL 2849 standard

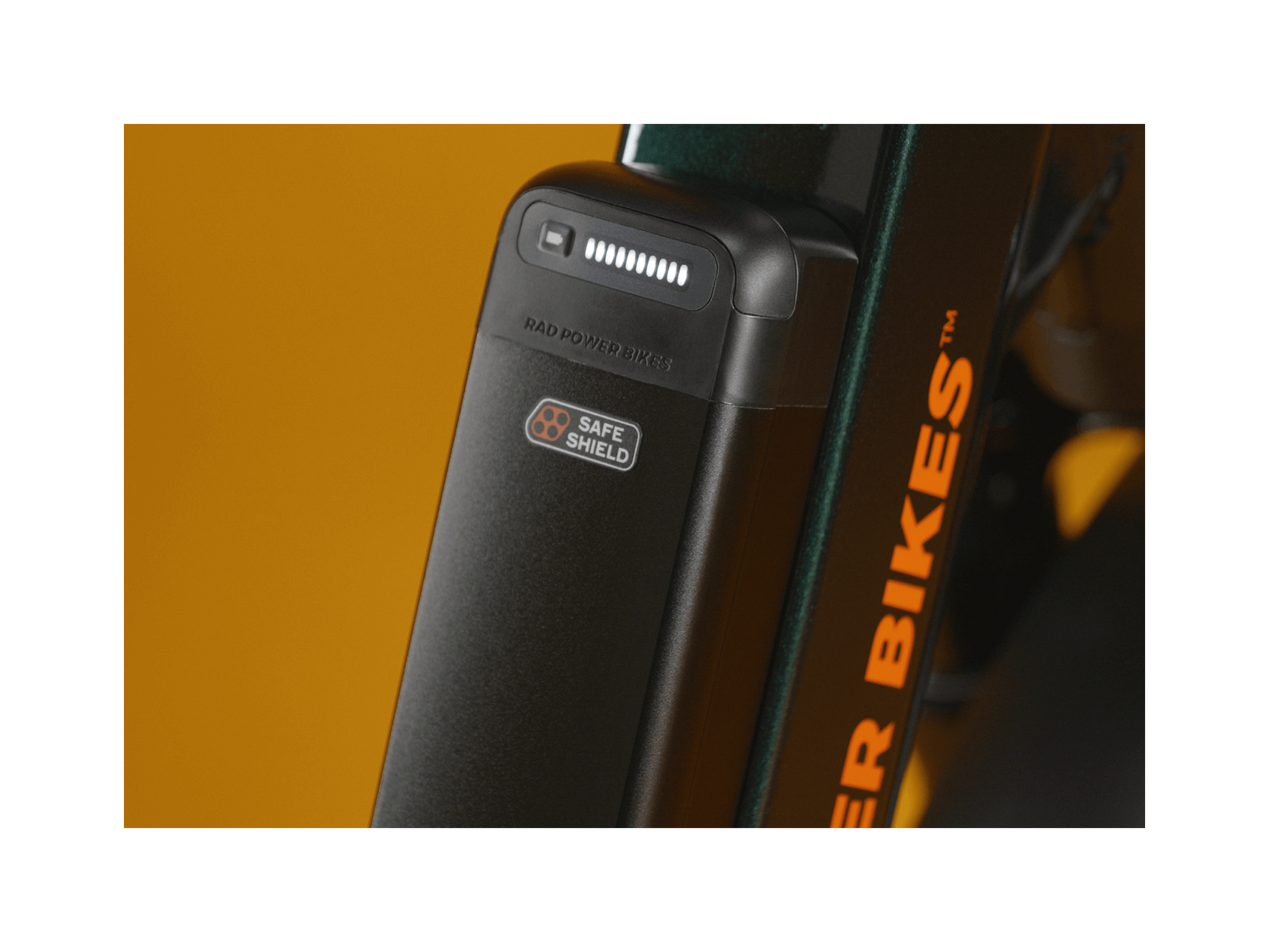

Battery type: 14 Ah Safe Shield Semi-Integrated Battery
| Motor | Rear hub 750W 60 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions |
| Throttle | Half-twist grip throttle |
| Battery | Safe Shield Advanced External Battery (14 Ah), 672 Wh, UL Certified |

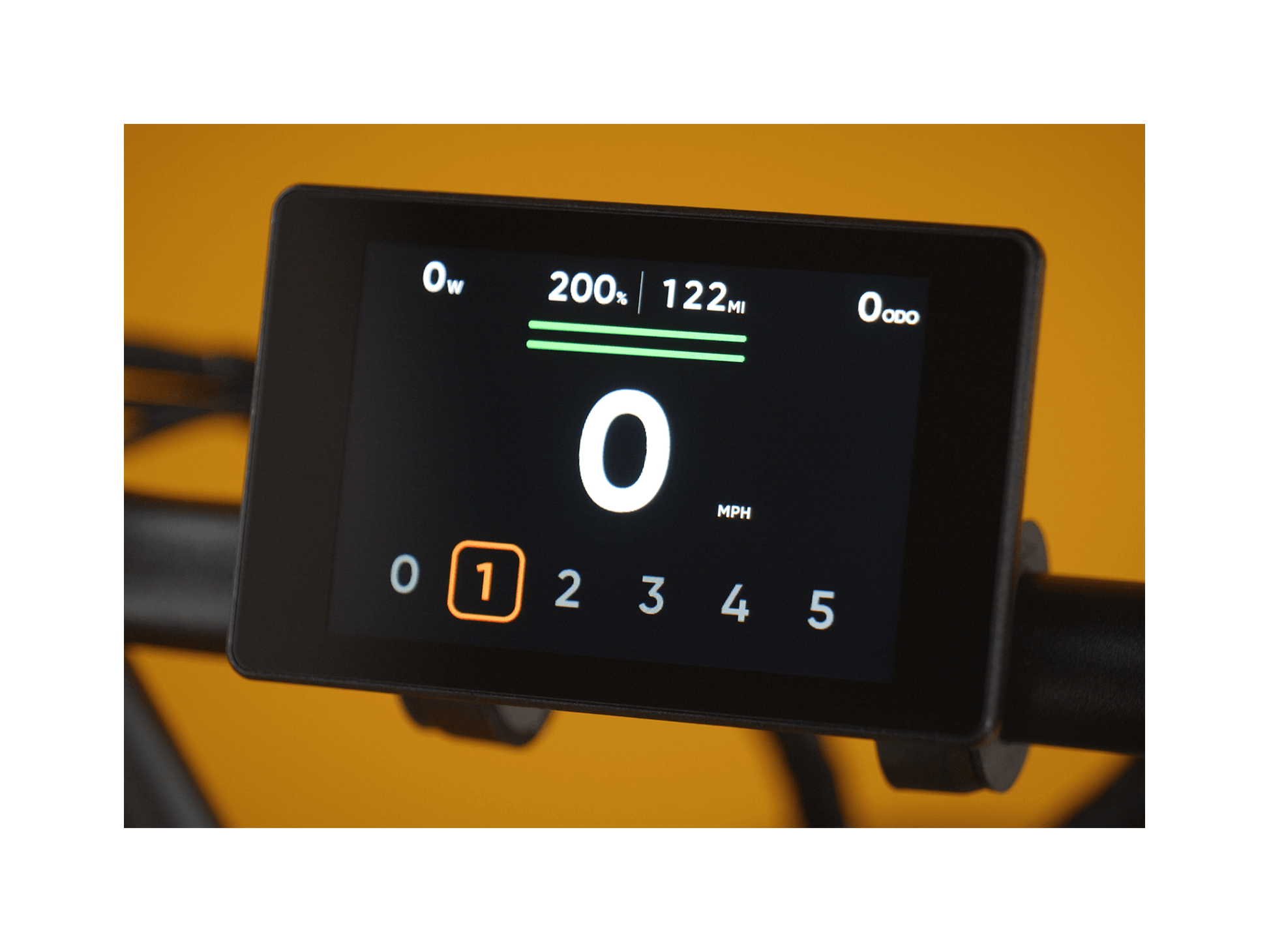

| Display | Rad Power Bikes color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Frame | Aluminum |
| Fork | Exsho suspension, 80mm, tapered, thru |
| Rear Shock | Not applicable |
| Front Brake | Gemma Hydraulic GA-1000B |
| Rear Brake | Gemma Hydraulic GA-1000B |
| Rear Derailleur | 8 Speed |
| Shift Levers | Shimano, 7 speed, thumb |
| Chain | Spec not provided |
| Cassette | 8 speed 11-34T |
| Crankset | 50T with dual-sided aluminum chainring guard, 170 mm crank arms |
| Chain Ring | 34 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |

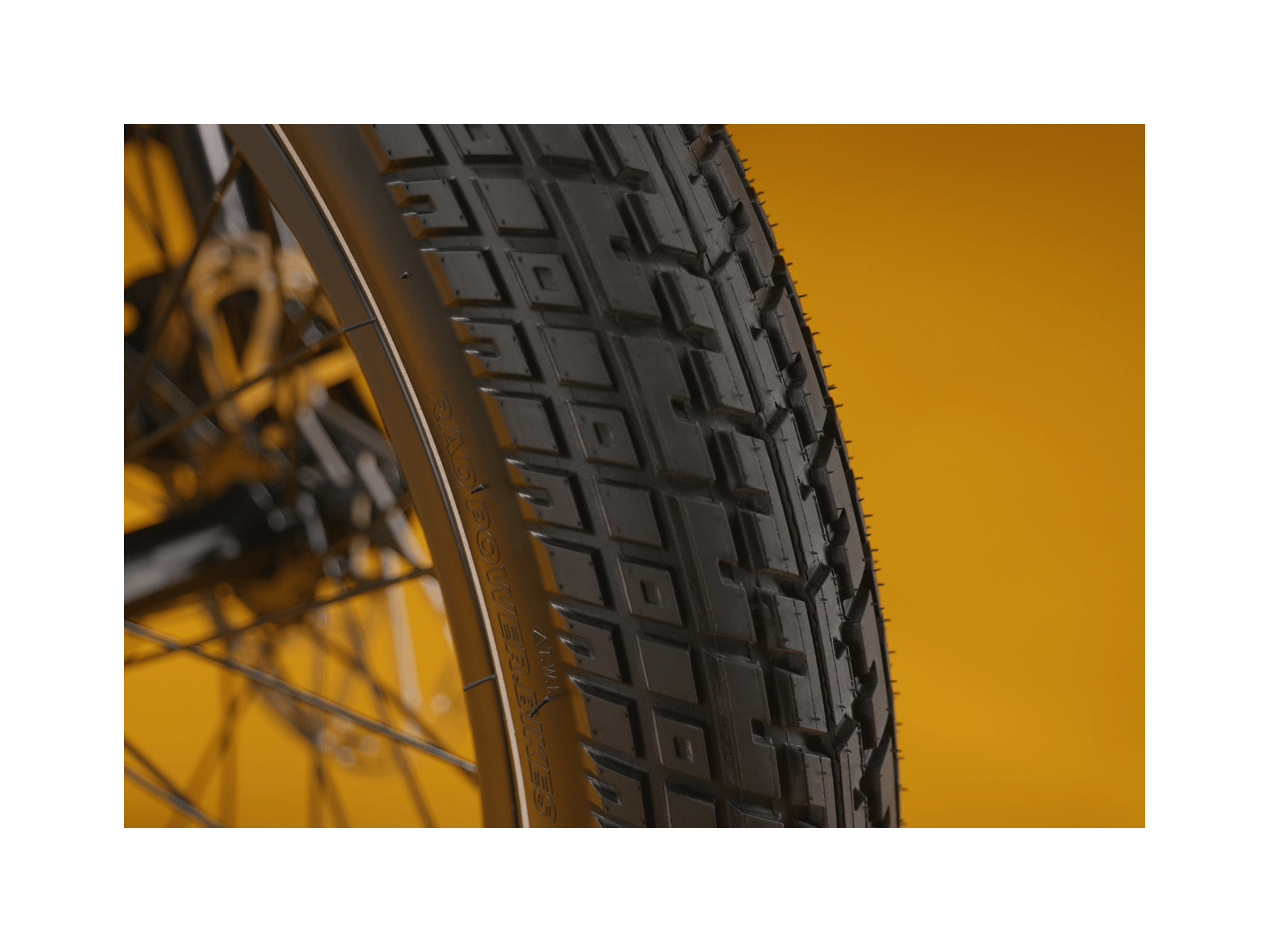

| Front Tire | Custom Rad tire 20" x 3.5" with puncture protection and reflective stripe Multi-surface tread pattern |
| Rear Tire | Custom Rad tire 20" x 3.5" with puncture protection and reflective stripe Multi-surface tread pattern |
| Handlebar | Aluminum, 28" (71.1 cm) wide |
| Stem | 50 mm + 30º (35 mm rise) |
| Headset | Spec not provided |
| Grips | Lock-on ergonomic comfort grips |
| Saddle | Moped-style saddle with extra padding |
| Seatpost | Integrated steel 390 mm x 27.2 mm |
| Pedals | Forged aluminum platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Lights | Auto ambient light sensor, daytime flashing lights, memory setting, 4 lighting modes |
| Front Light | 100 lux 450 lumen LED headlight, 130 lux 750 lumen high beam |
| Rear Light | Spanning HALO+ with radar and turn signals |
| Kickstand | Dual leg center stand |
| Rear Carrier | Integrated, 120 lb (54 kg) carrying capacity |
| Fenders | Full-coverage front and rear, hardware included |
| Bell | Handlebar mount |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on RadRunner™ Max Electric Cargo Utility Bike
Meet the Rad Power RadRunner™ Max—a sleek cargo e-bike packed with powerhouse features. Equip yourself with the Safe Shield battery, hydraulic disc brakes, radar detection, and a 100 Nm torque sensor for a ride that’s smooth, strong, and downright addictive. Haul up to 420 lbs and zoom at speeds reaching 28 mph. Craving more? Connect the Range Extender to push your adventure as far as 125 miles. Get ready to conquer the unexpected in style!
Range: Up to 61 miles
Payload: 420 lb. (275 lb. max rider)
Top speed:
Class 1, 2 & 3
Motor: 750W Rear Hub, 90 Nm torque
UL status: Certified to the UL 2849 standard
Battery type: 14 Ah Safe Shield Semi-Integrated Battery
Motor System
| Motor | Rear hub 750W 60 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions |
| Throttle | Half-twist grip throttle |
| Battery | Safe Shield Advanced External Battery (14 Ah), 672 Wh, UL Certified |
| Display | Rad Power Bikes color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Components
| Frame | Aluminum |
| Fork | Exsho suspension, 80mm, tapered, thru |
| Rear Shock | Not applicable |
| Front Brake | Gemma Hydraulic GA-1000B |
| Rear Brake | Gemma Hydraulic GA-1000B |
| Rear Derailleur | 8 Speed |
| Shift Levers | Shimano, 7 speed, thumb |
| Chain | Spec not provided |
| Cassette | 8 speed 11-34T |
| Crankset | 50T with dual-sided aluminum chainring guard, 170 mm crank arms |
| Chain Ring | 34 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |

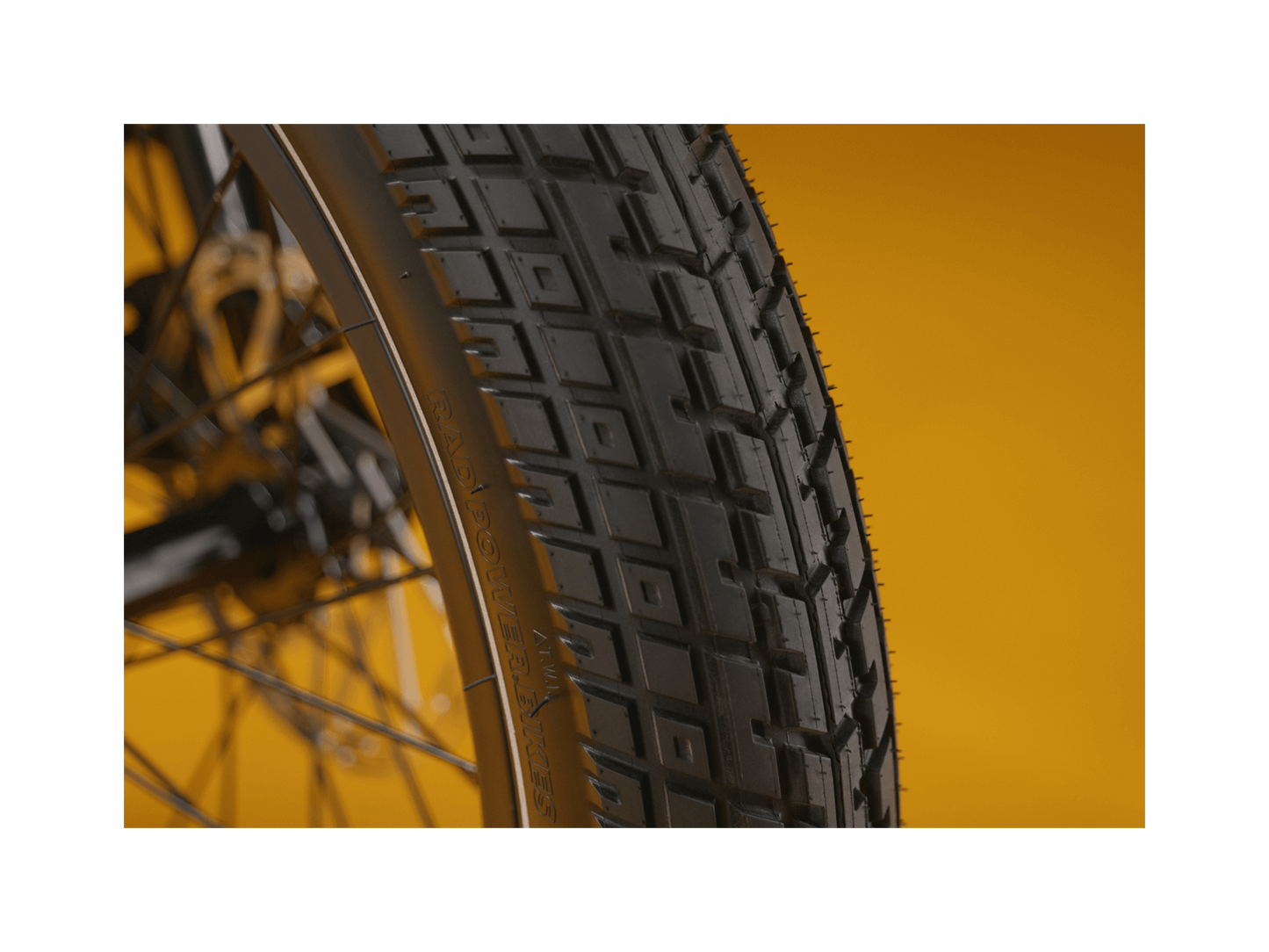

| Front Tire | Custom Rad tire 20" x 3.5" with puncture protection and reflective stripe Multi-surface tread pattern |
| Rear Tire | Custom Rad tire 20" x 3.5" with puncture protection and reflective stripe Multi-surface tread pattern |
| Handlebar | Aluminum, 28" (71.1 cm) wide |
| Stem | 50 mm + 30º (35 mm rise) |
| Headset | Spec not provided |
| Grips | Lock-on ergonomic comfort grips |
| Saddle | Moped-style saddle with extra padding |
| Seatpost | Integrated steel 390 mm x 27.2 mm |
Extras
| Pedals | Forged aluminum platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Lights | Auto ambient light sensor, daytime flashing lights, memory setting, 4 lighting modes |
| Front Light | 100 lux 450 lumen LED headlight, 130 lux 750 lumen high beam |
| Rear Light | Spanning HALO+ with radar and turn signals |
| Kickstand | Dual leg center stand |
| Rear Carrier | Integrated, 120 lb (54 kg) carrying capacity |
| Fenders | Full-coverage front and rear, hardware included |
| Bell | Handlebar mount |
| Lock | Not applicable |
| Mirror | Not applicable |

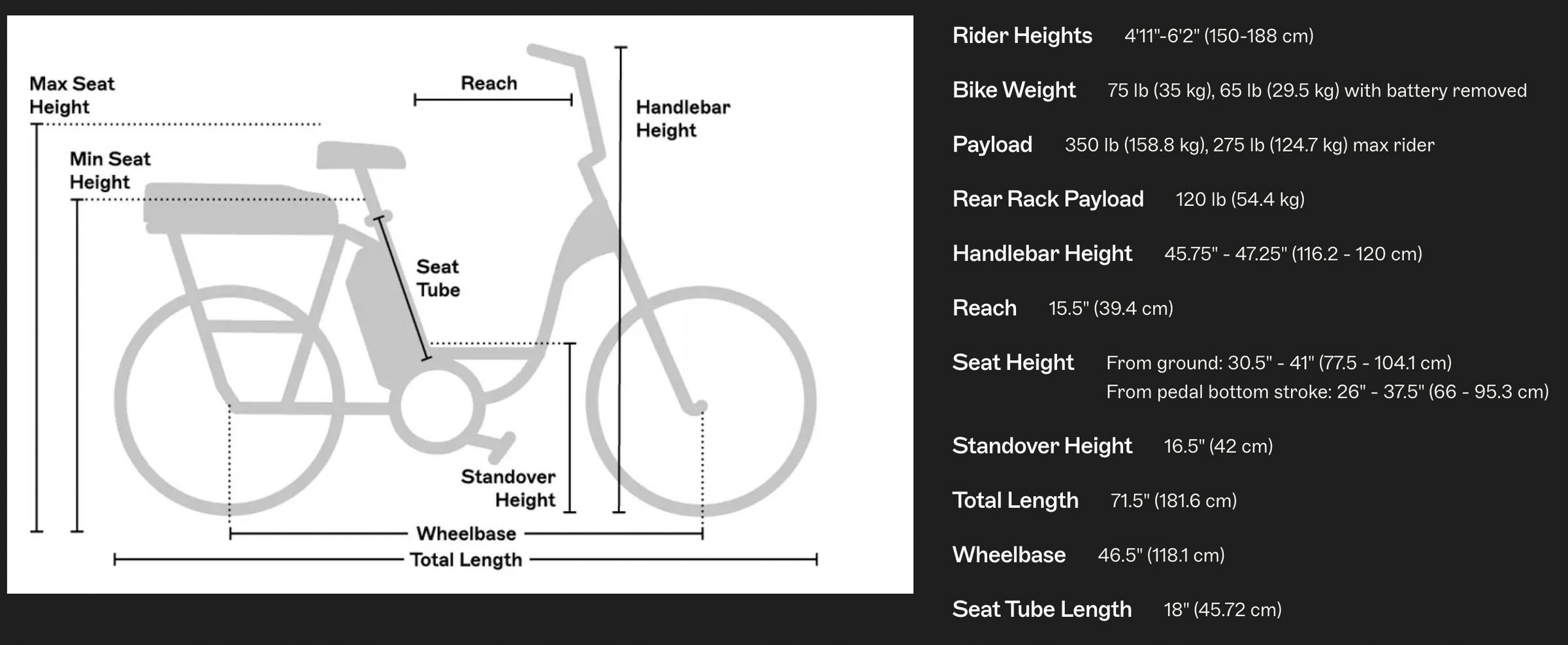

Geometry
