Riese and Muller Load4 75 Touring

The Full Scoop on the Riese and Muller Load4 75 Touring

• Description
• Motor System
• Components
• Extras
• Geometry

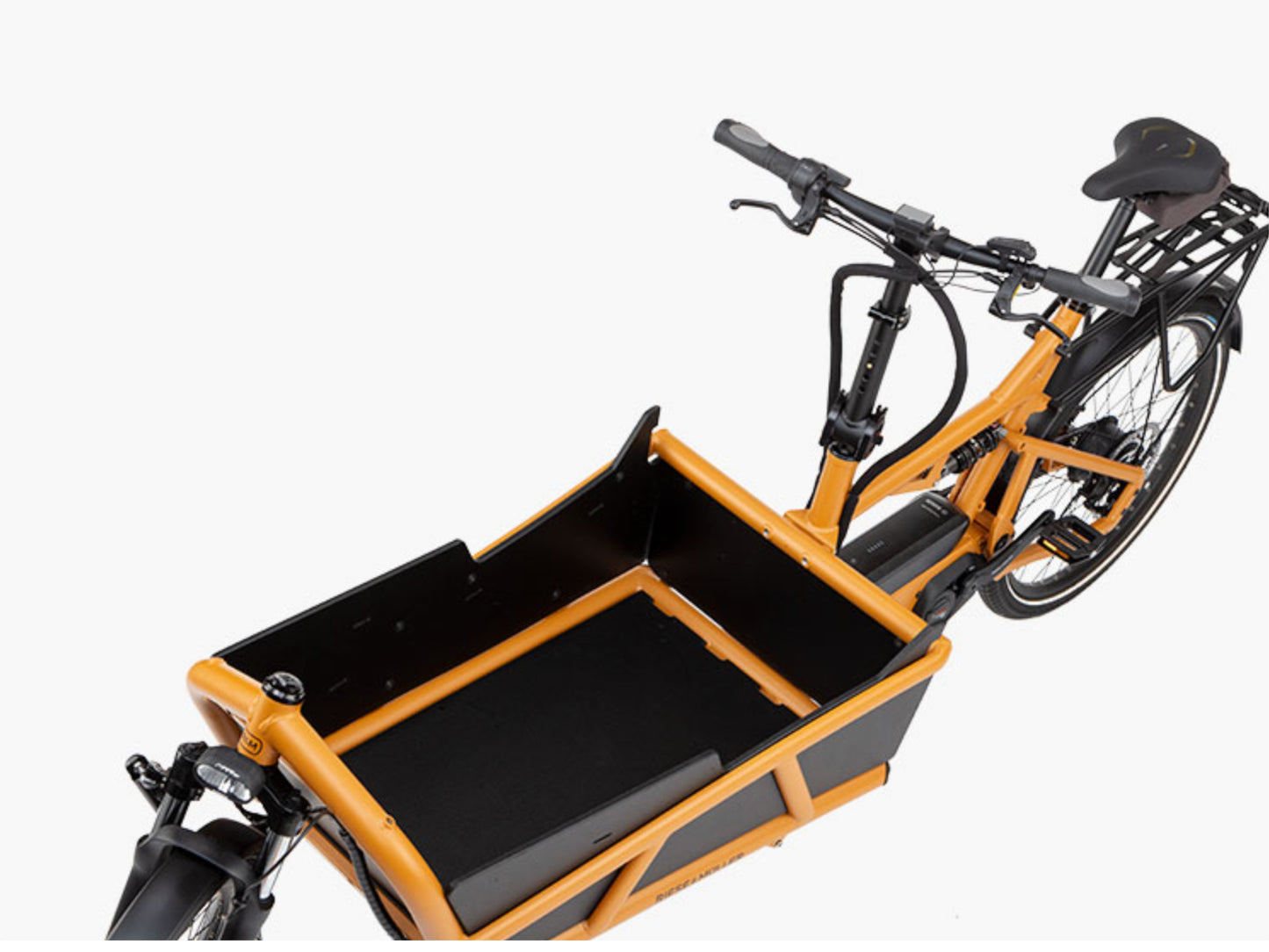

• With its low center of gravity, Riese & Müller Control Technology and a huge loading surface, the Load4 75 Touring combines riding dynamics and load options, like no other cargo bike. The strong Bosch Cargo Line motor delivers hitherto unknown power. And the Load4 75 Touring is also extremely reliable, thanks to its high-grade components.





  • Components subject to manufacturer changes

• Motor	Bosch Cargo Line (smart system)
  Battery	Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*

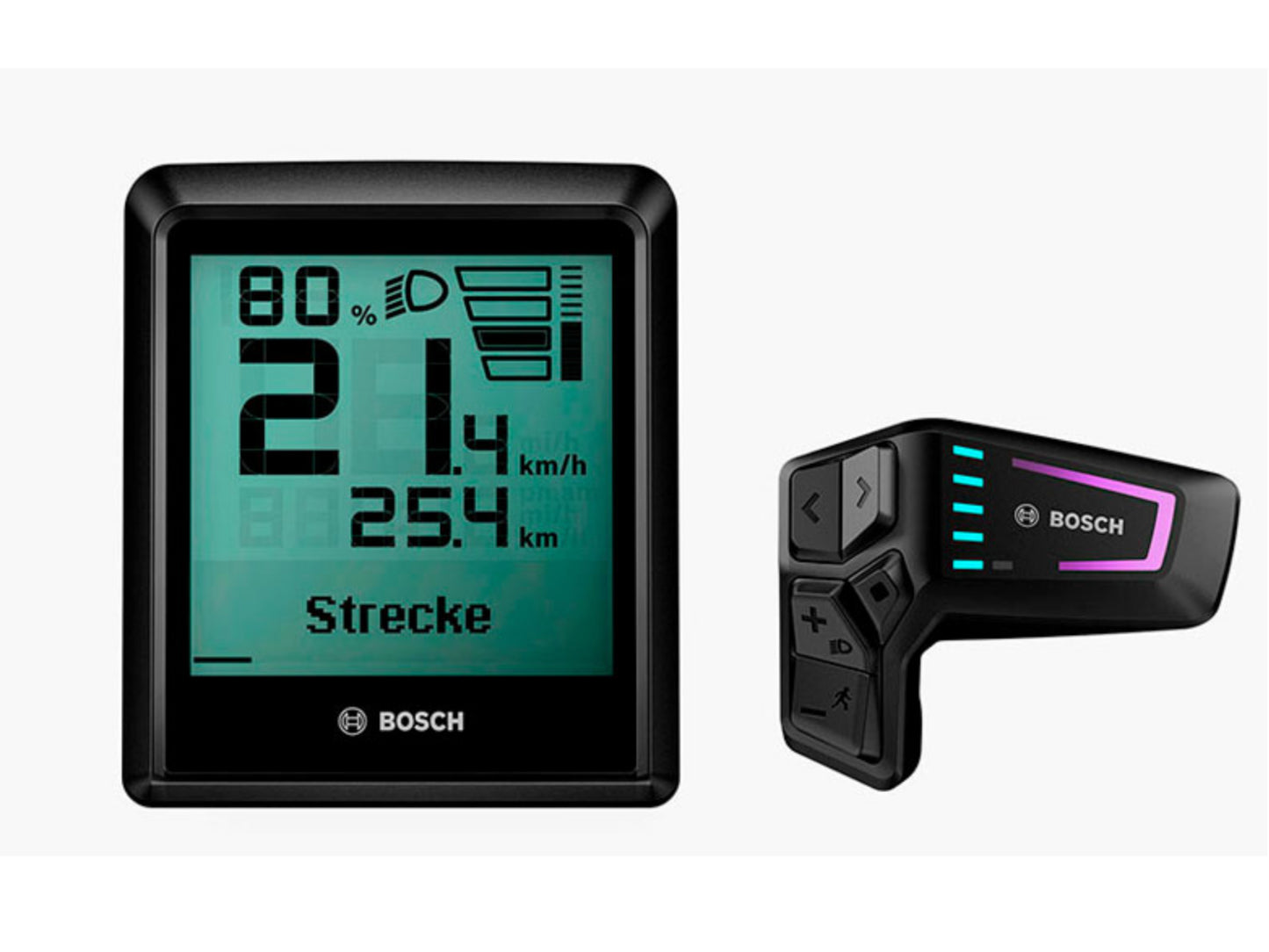

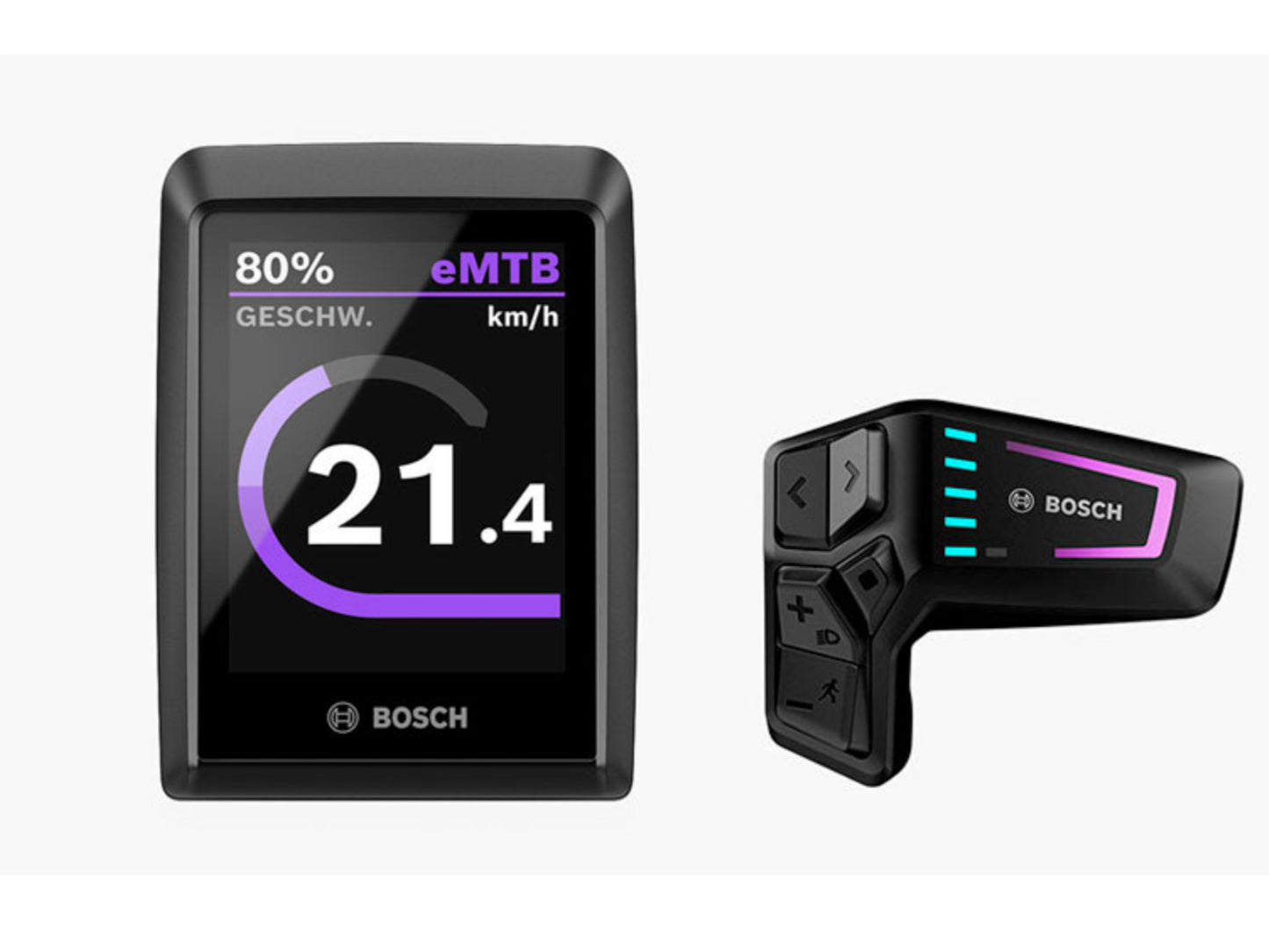

  Display	Bosch Intuvia 100; Bosch Kiox 300*
  Charger	Bosch

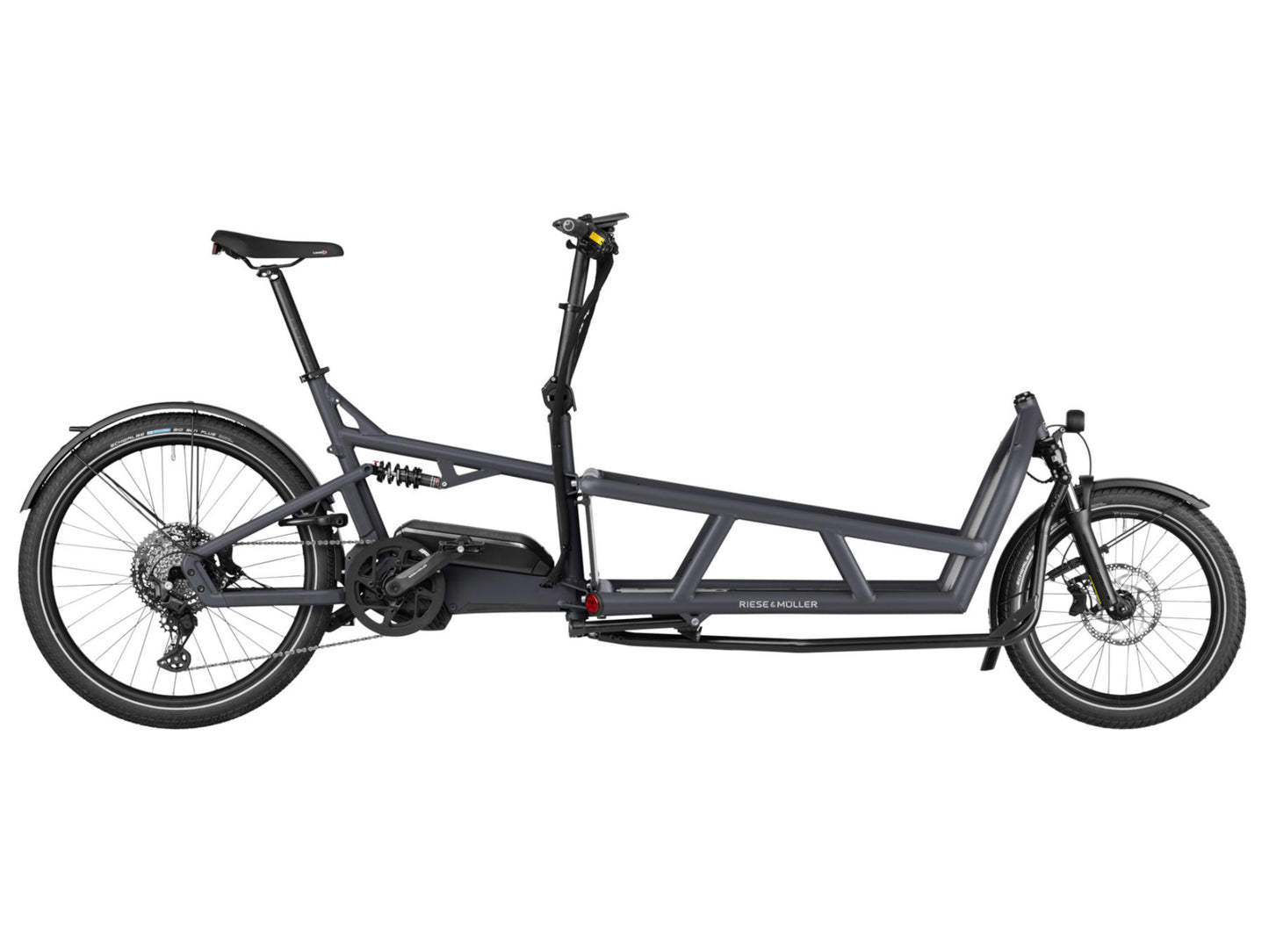

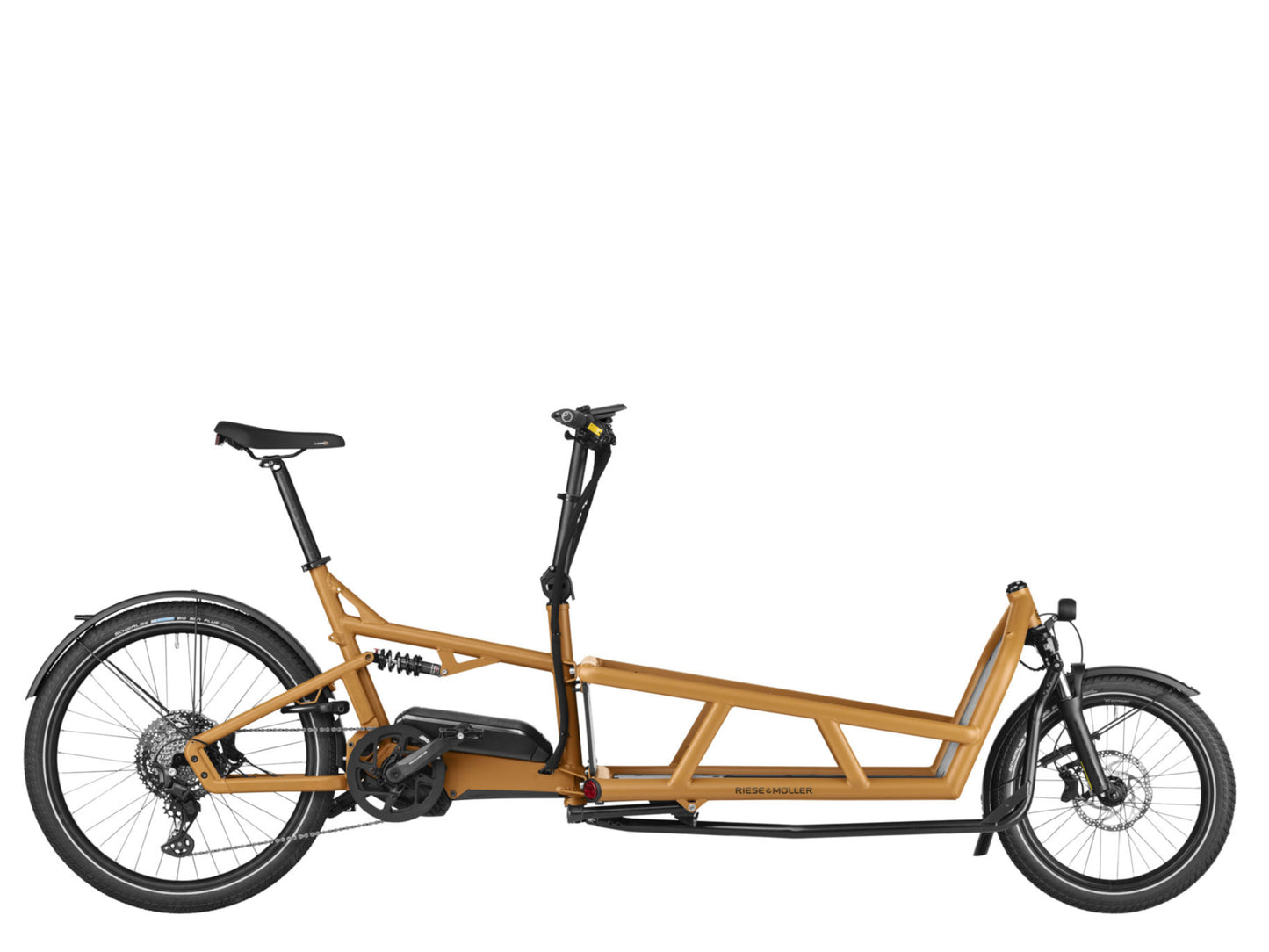

• Frame	coal grey matt*; peanut matt*
  Fork	Suntour Mobie A32, 20", 50mm; Suntour Mobie A34 CGO Boost, 20", 80mm*

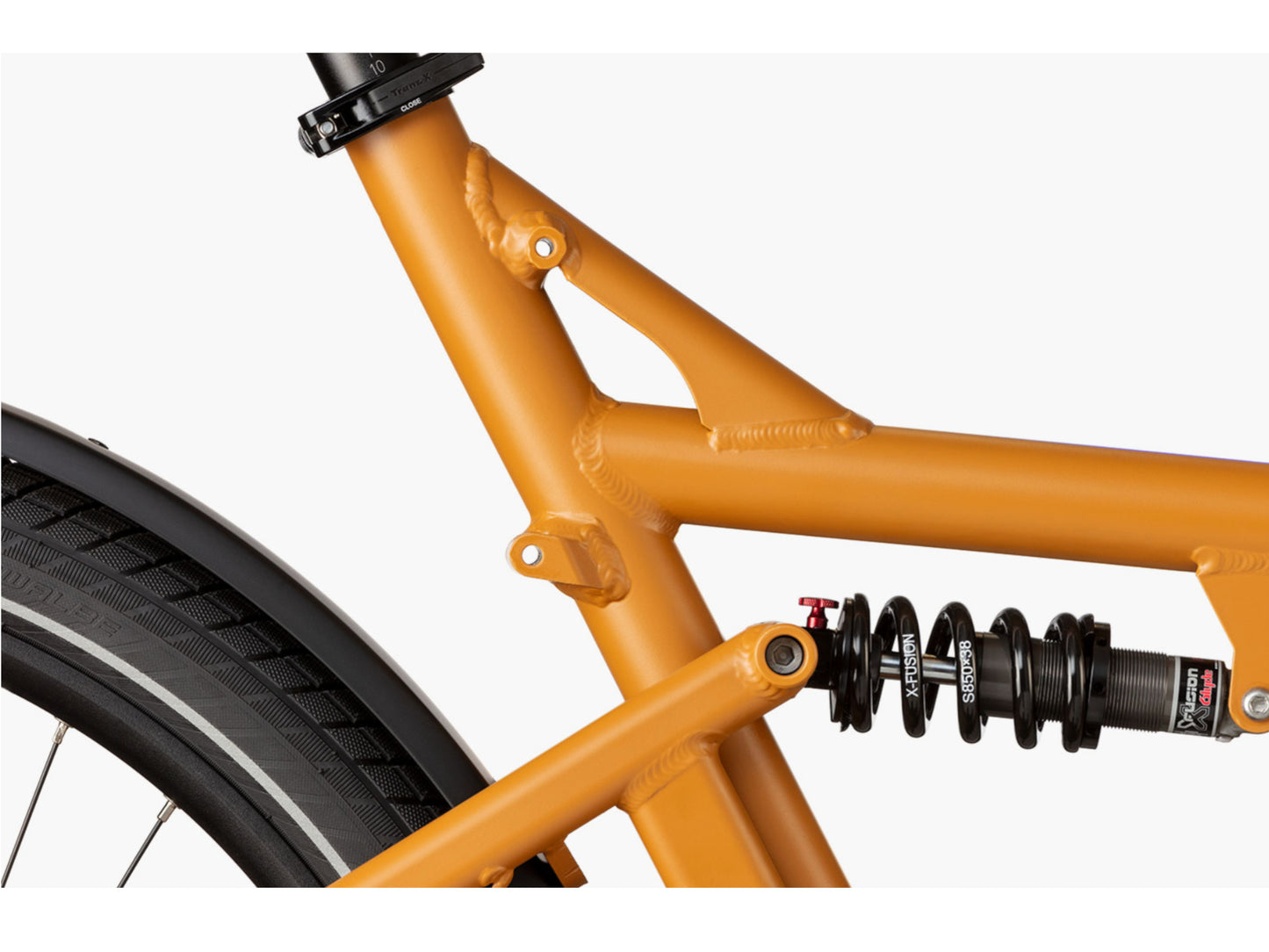

  Rear Shock	X-Fusion Glyde
  Front Brake	Tektro TRP C 2.3 disc brake
  Rear Brake	Tektro TRP C 2.3 disc brake
  Rear Derailluer /Pinion	Spec not provided
  Shift Levers	Shimano Deore XT 11-S Linkglide
  Chain	KMC X11 ( 125x )
  Cassette	Shimano XT 11-S 11-50 Linkglide
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	48T
  Chain Guard	Chain guard
  Rims	Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
  Front Hub	Novatec Disc 32H
  Rear Hub	Novatec Boost, QR, 36H

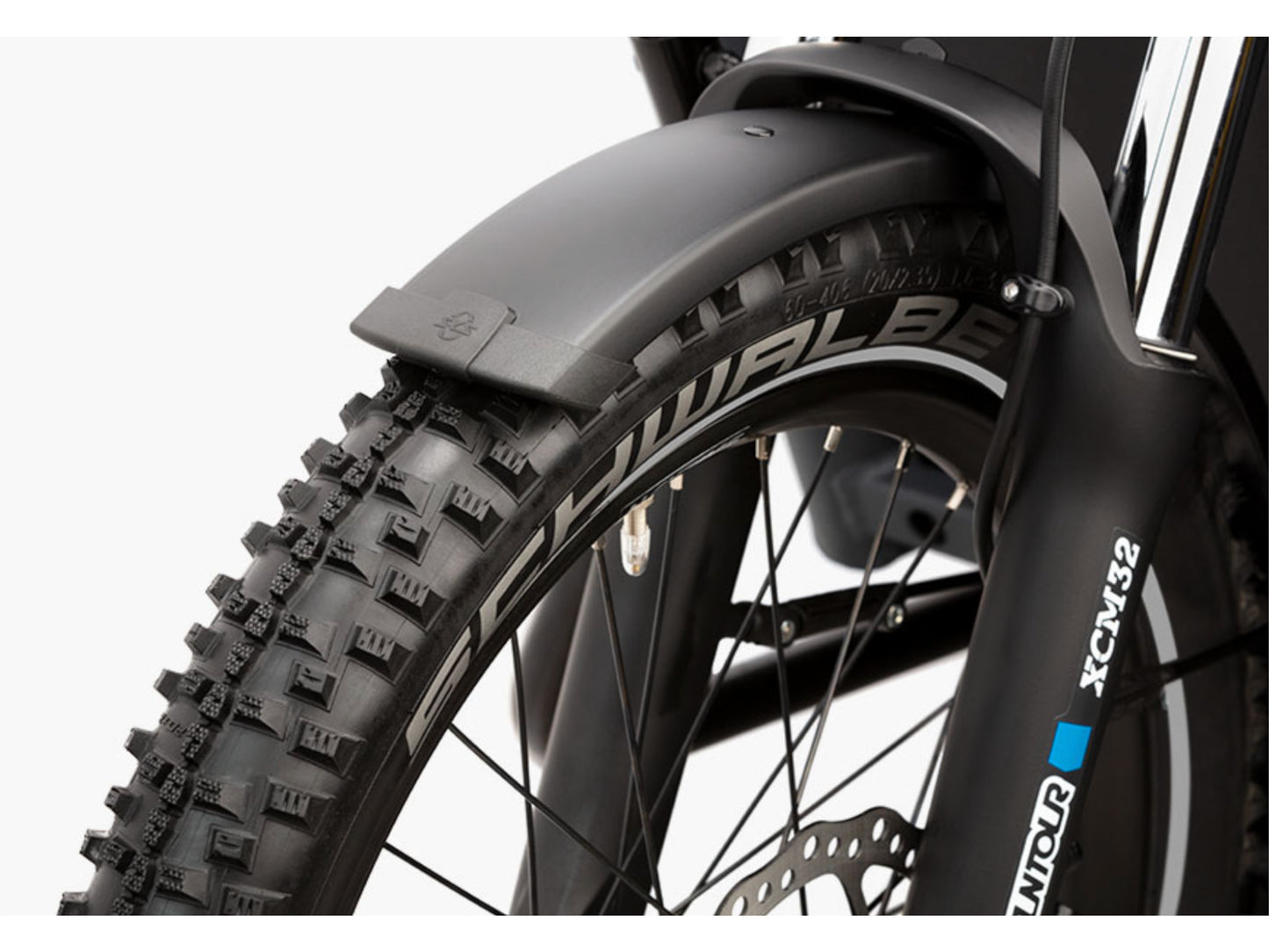

  Front Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Rear Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Handlebar	FSA V-Drive, 31,8 mm, Alu

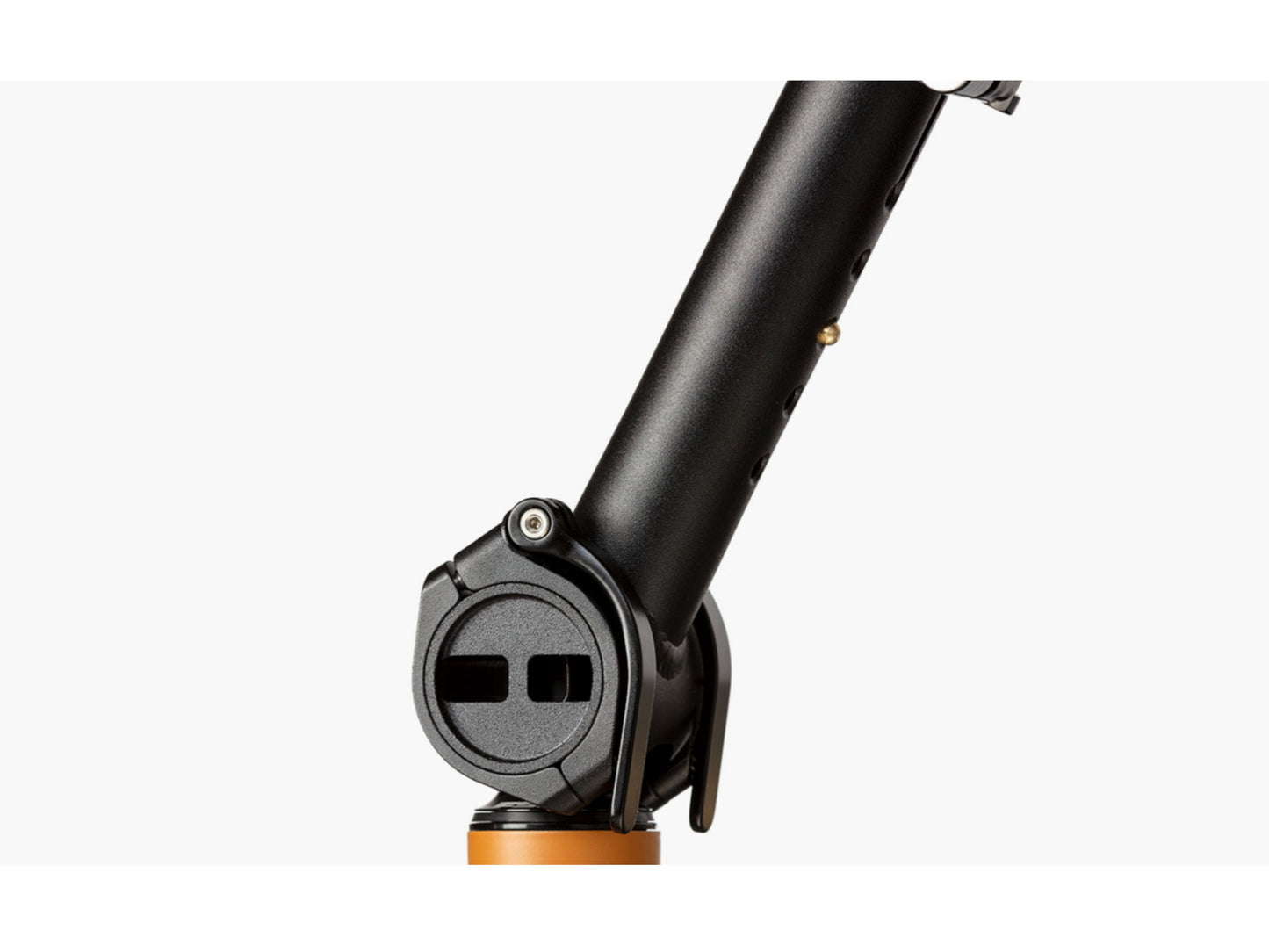

  Stem	Riese & Müller, adjustable height and angle
  Headset	Acros AZX-221, block lock; TH No. 9, semi-integrated (2x)
  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Male Eco
  Seatpost	JD/Riese & Müller, Alu, 34,9 x 430mm

• Pedals	VP R&M Custom

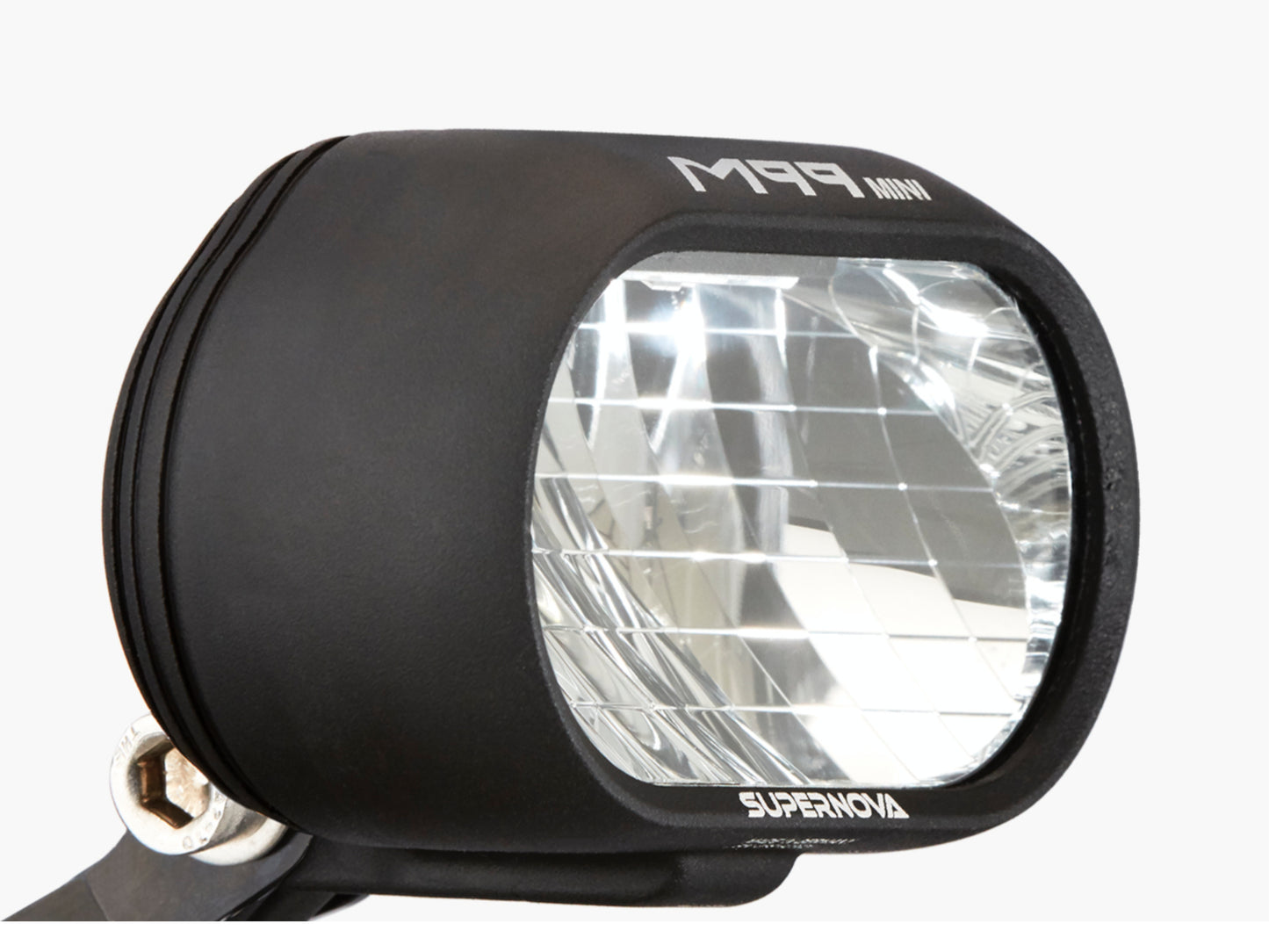

  Front Light	Supernova M99 Mini Pro-25
  Rear Light	Supernova M99, integrated brake light
  Kickstand	Riese & Muller
  Rear carrier	Riese & Müller
  Fenders	SKS A65R
  Bell	Billy

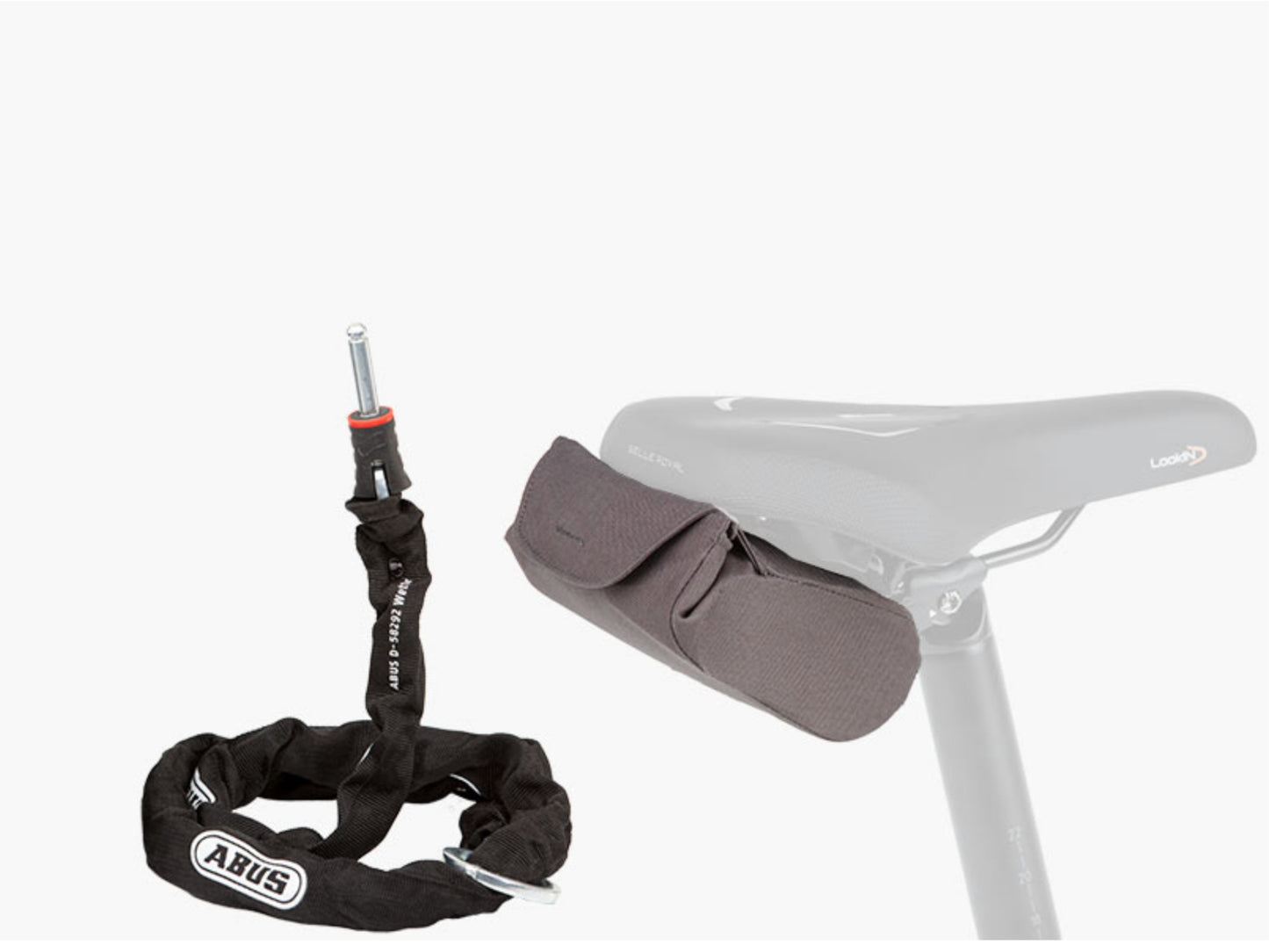

  Lock	ABUS Shield X+

•


  Frame Size	Universal
  Top tube length [cm]	59-77
  Head tube angle [°]	70
  Seat tube angle [°]	68
  Trail [mm]	54
  Wheelbase [cm]	200,5
  Bottom bracket height [cm]	30,5
  Top tube height [cm]	62,5
  Stand-over height [cm]	59
  Chainstay length [cm]	46,5
  Overall length [cm]	264,5
  Wheel size ['']	front: 20/rear:26
  Head tube length [mm]	85
  Headset size ['']	1 1/8
  Front suspension travel [mm]	50
  Effective rear suspension travel [mm]	80
  Rear shock length [mm]	165
  Front shock mounting width [mm]	22
  Rear shock mounting width [mm]	22
  Front shock locking screw	8
  Rear shock locking screw	8
  Rear suspension ratio	2,2
  Rear dropout width [mm]	148
  Gear ratio [m]	2,02-9,17
  Weight [kg]	37,1
  Weight [lbs]	81.8
  Gross vehicle weight rating [kg]	200
  Weight rating: Rear Luggage rack [kg]	15
  Weight rating: Handlebar bag/basket [kg]	No

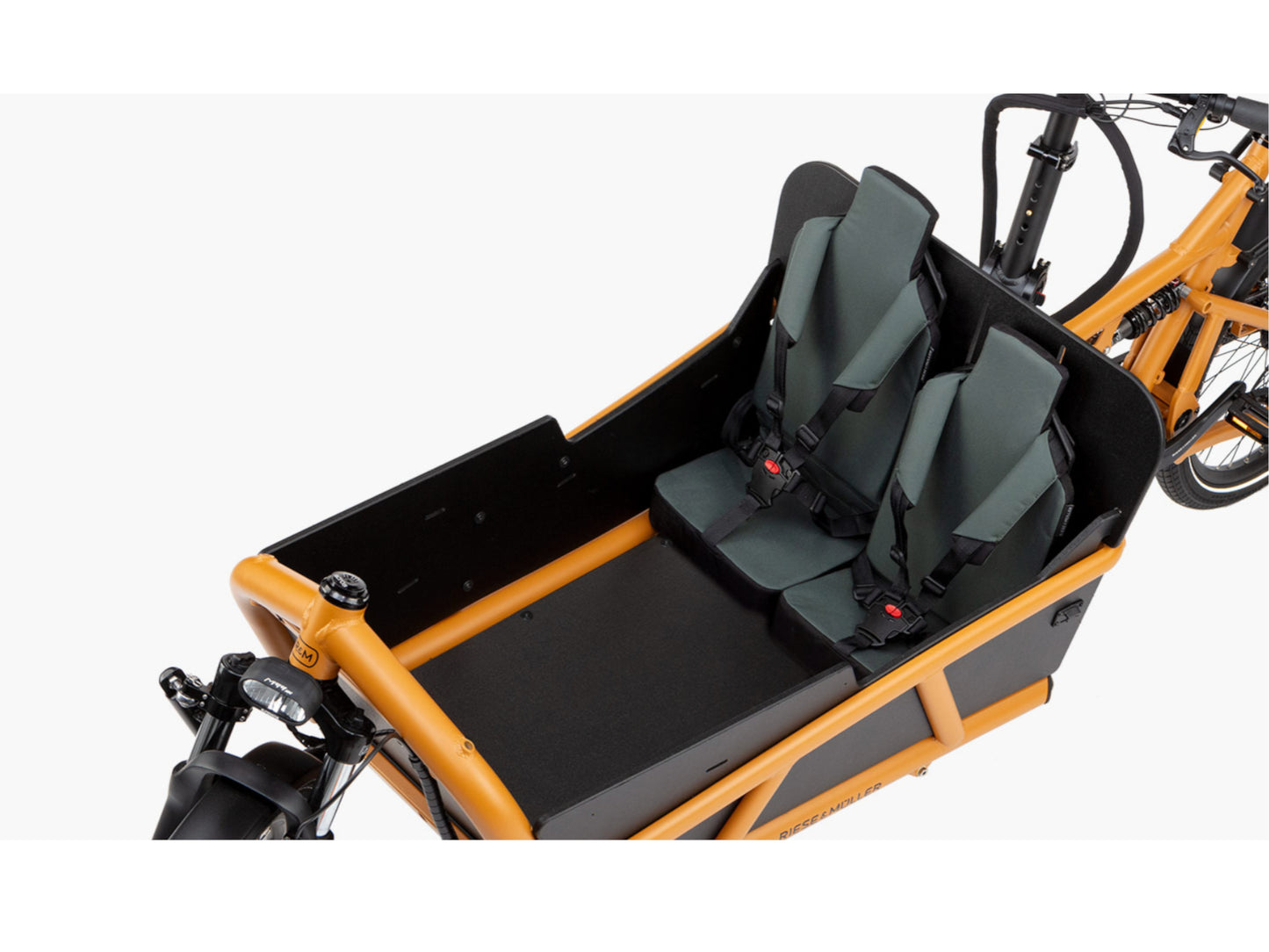

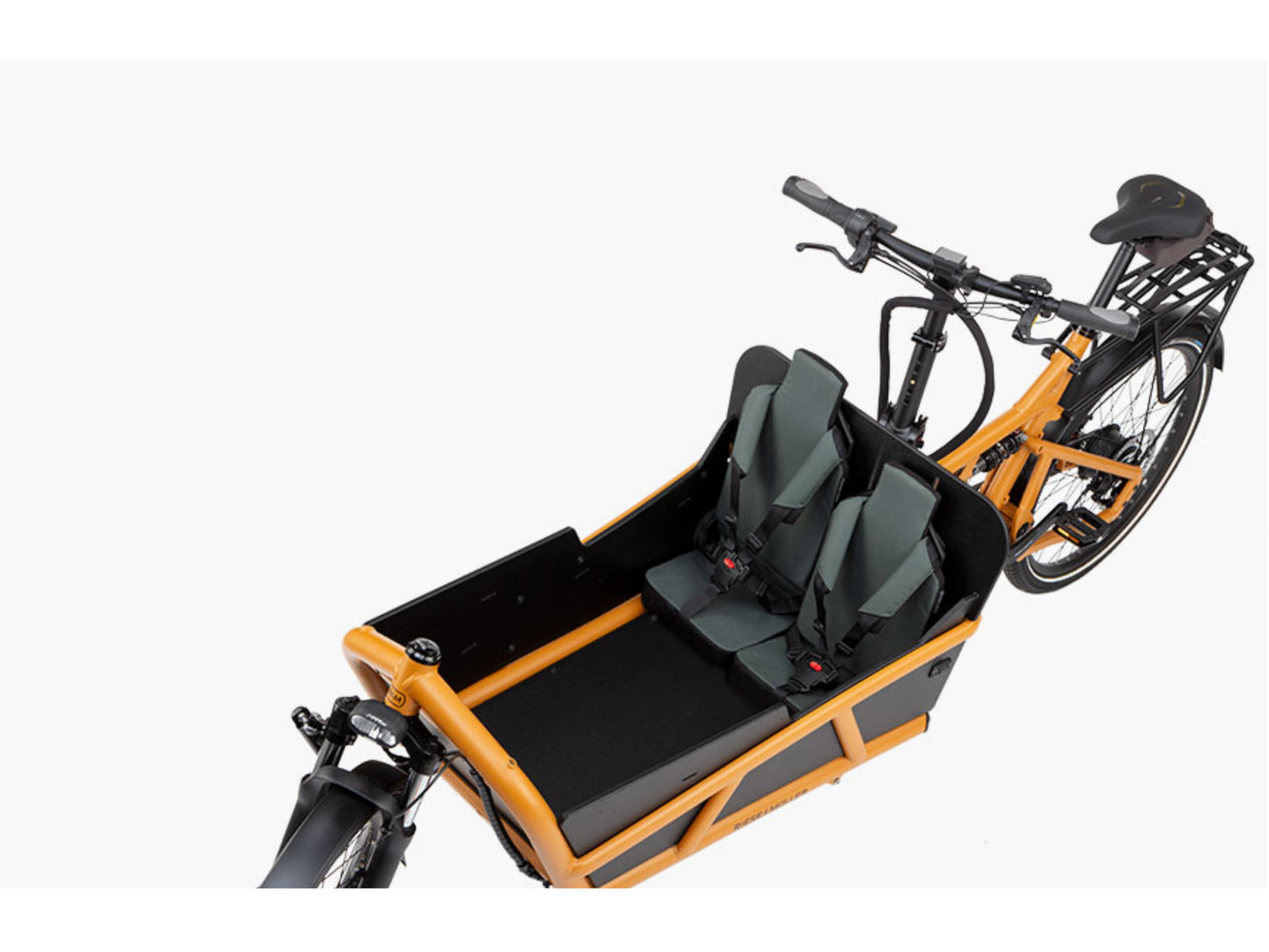

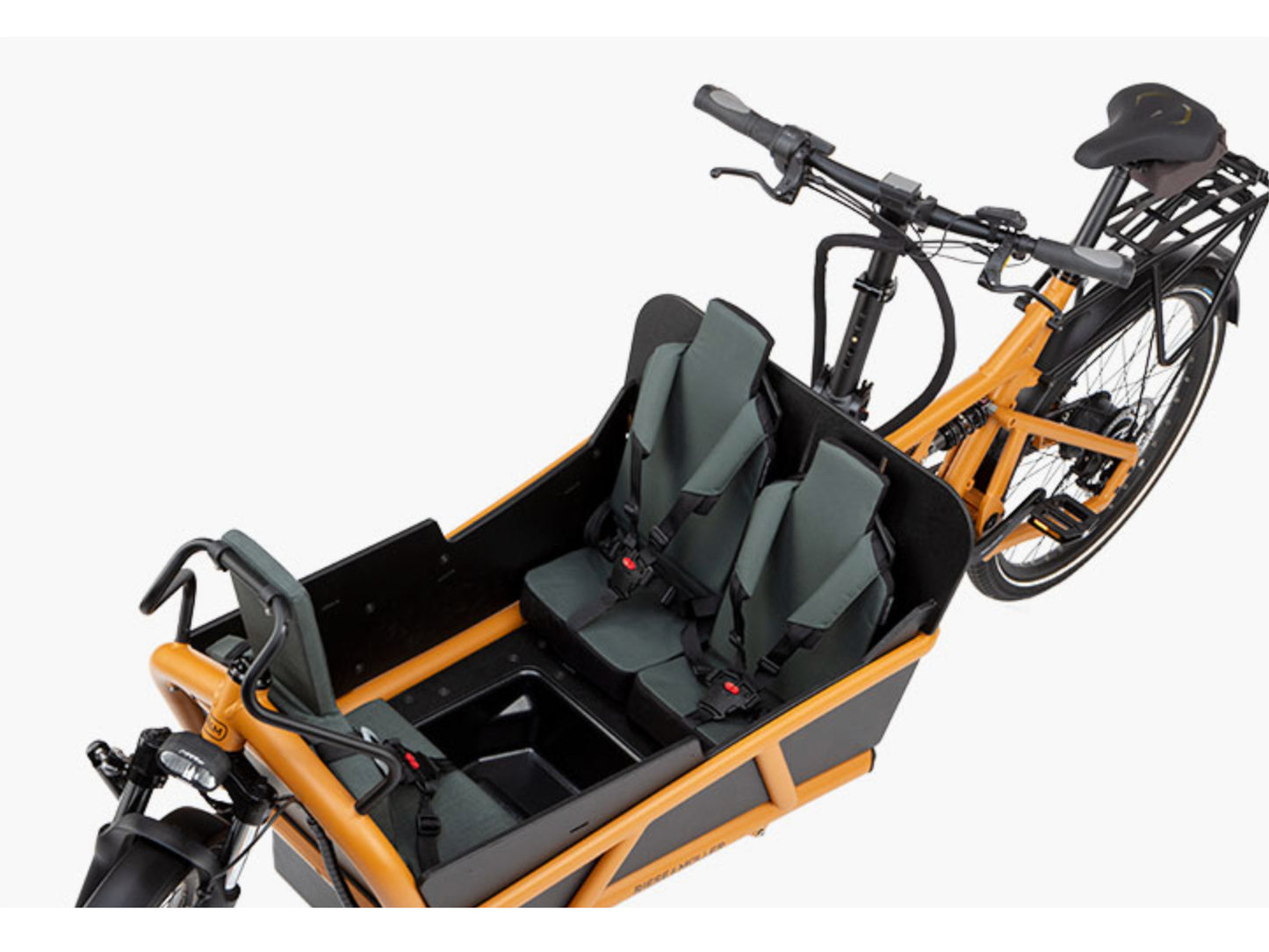

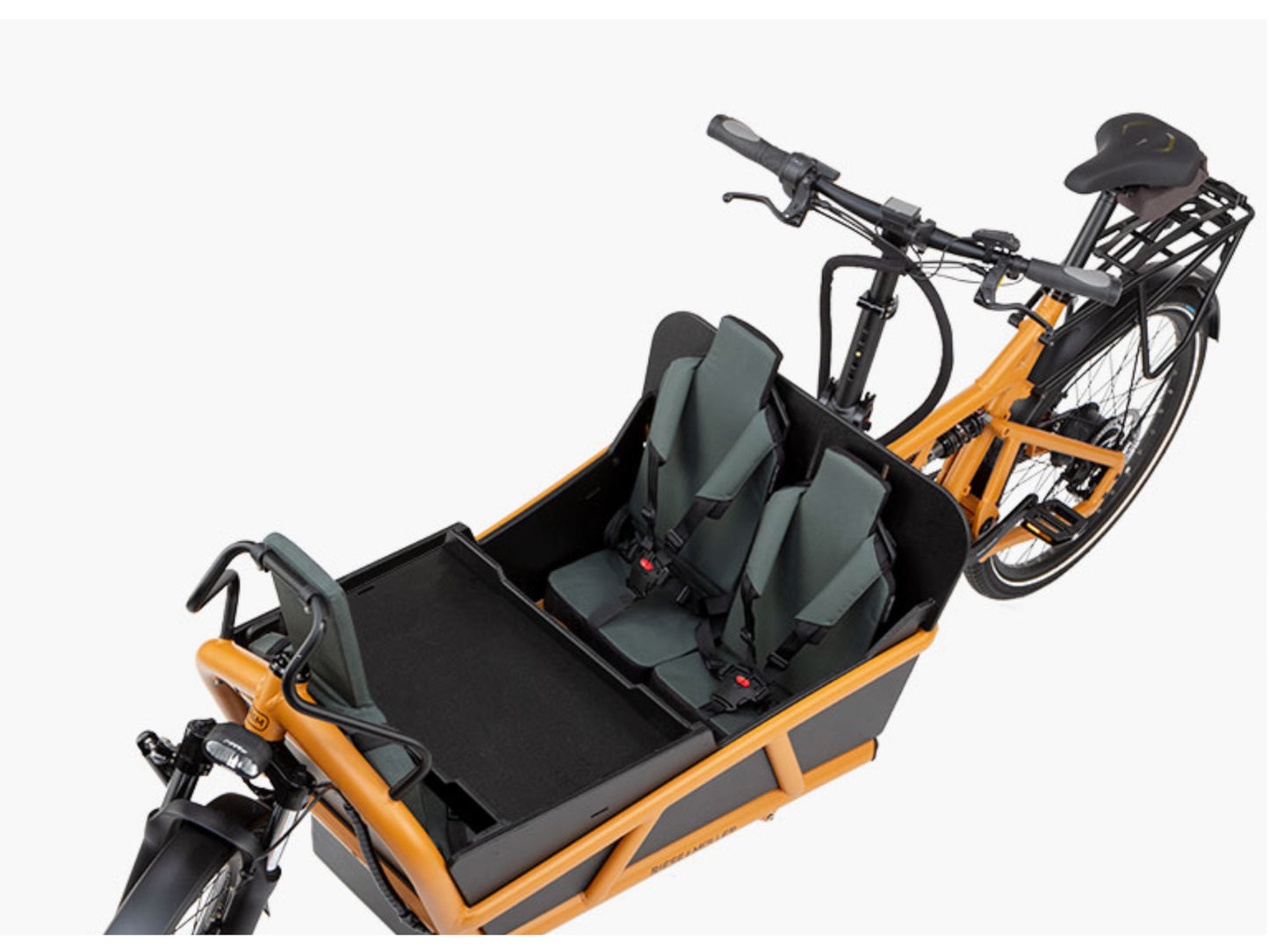

  Childseat compatibility	Yes
  Trailer compatibility: Single wheel/single attachment point	No
  Trailer compatibility: Two wheel/single attachment point	Yes
  Compatibility: Tagalong trailer bike	No
