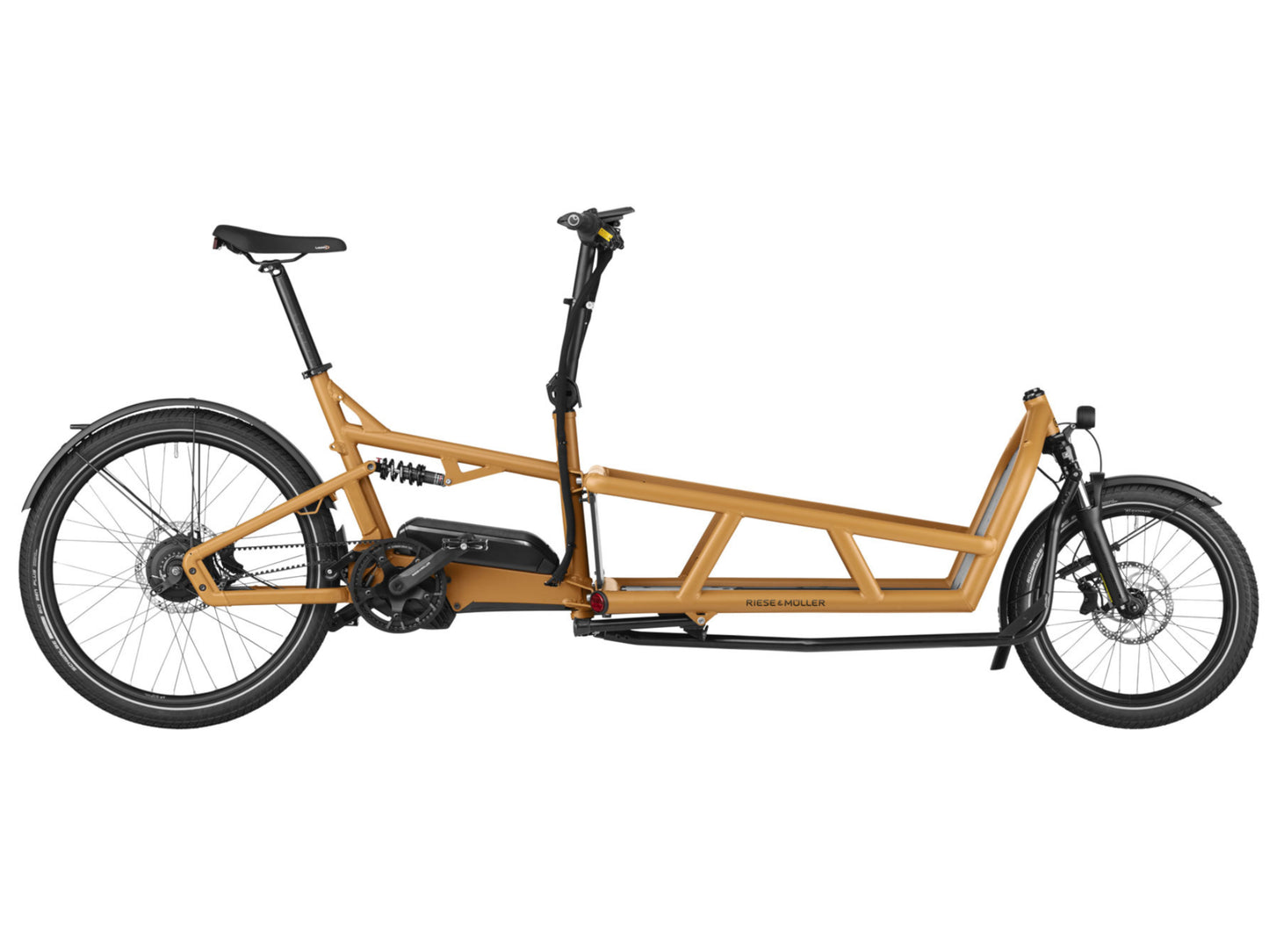

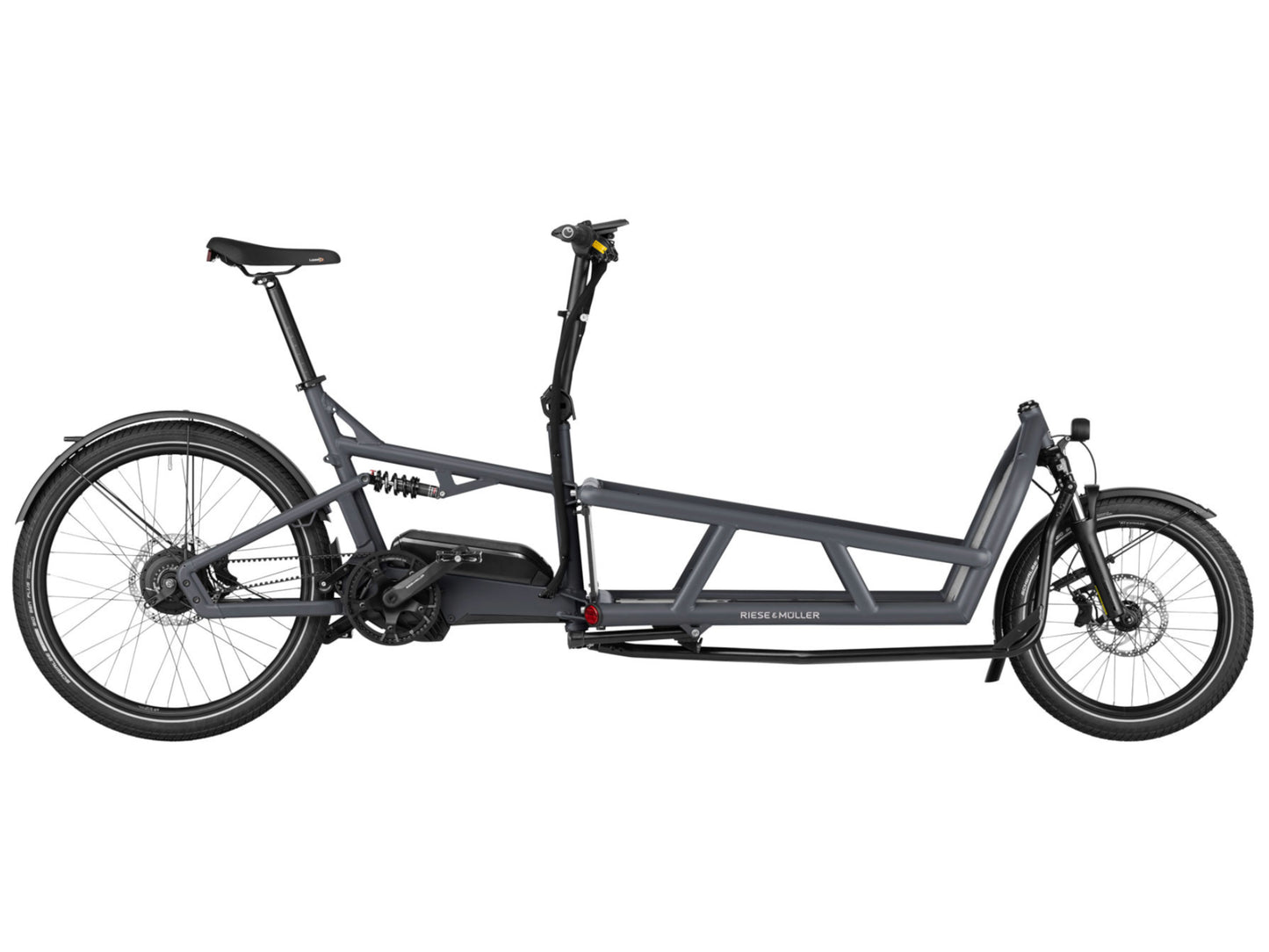

Riese and Muller Load4 75 Vario

  • PLEASE NOTE: Riese & Muller bikes can be purchased locally from Fly Rides at either our San Diego or Los Angeles store.
  • We are also happy to ship these bikes to addresses that are at least 100 miles away from another Riese & Muller dealer.
  • Call or text us at (619) 344-0211 to build your dream bike and discuss deliverability!”
Sizing Guide


The Full Scoop on the Riese and Muller Load4 75 Vario

  • With its low center of gravity, Riese & Müller Control Technology and a huge loading surface, the Load4 75 Vario combines riding dynamics and load options, like no other cargo bike. The strong Bosch Cargo Line motor delivers hitherto unknown power. And the Load4 75 Vario is also extremely reliable, thanks to its high-grade components.




    • Components subject to manufacturer changes
  • Motor Bosch Cargo Line (smart system)
    Battery Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*
    Display

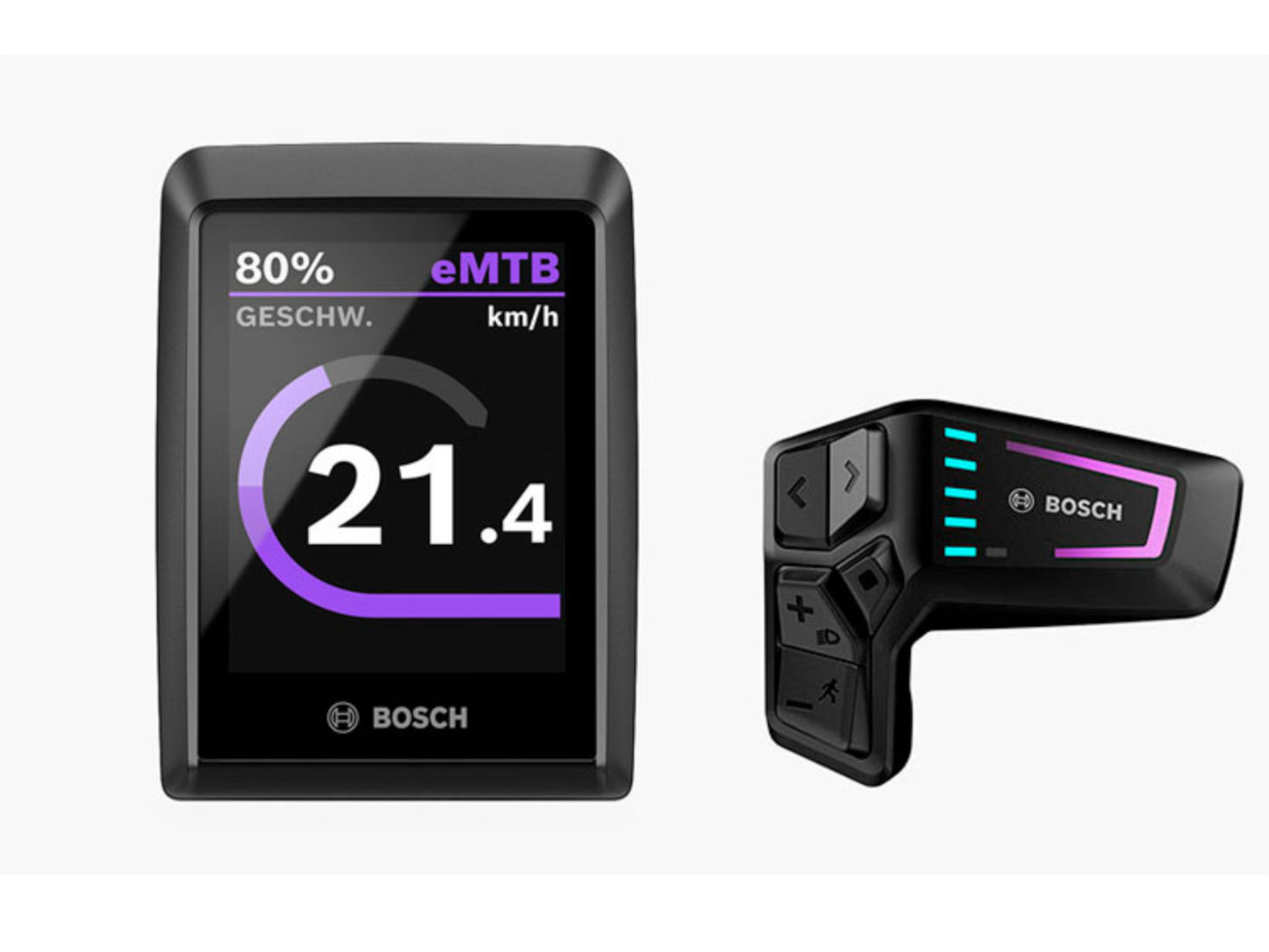

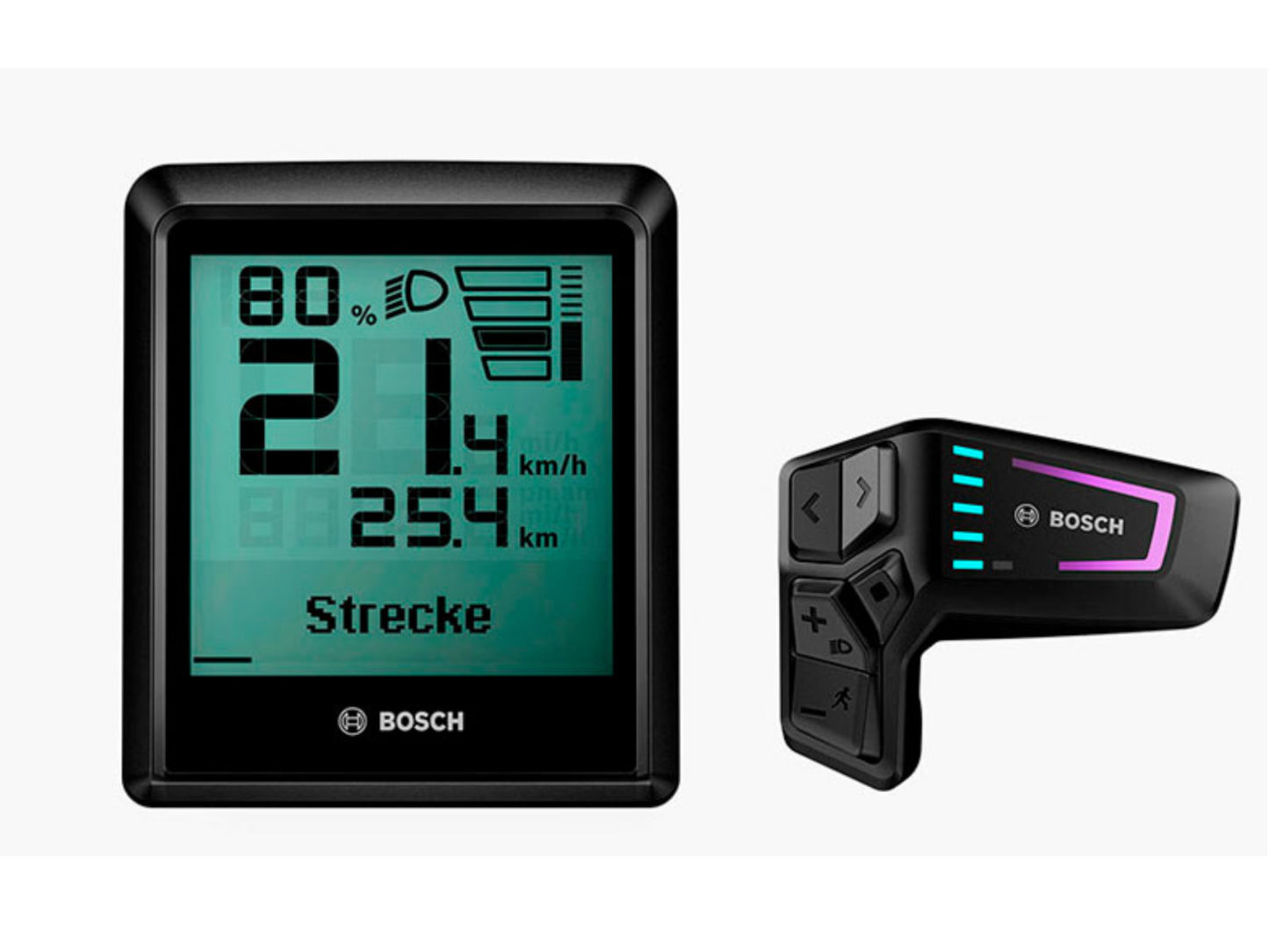

    Bosch Intuvia 100; Bosch Kiox 300*
    Charger
    Bosch
  • Frame
    coal grey matt*; peanut matt*
    Fork
    Suntour Mobie A32, 20", 50mm; Suntour Mobie A34 CGO Boost, 20", 80mm*

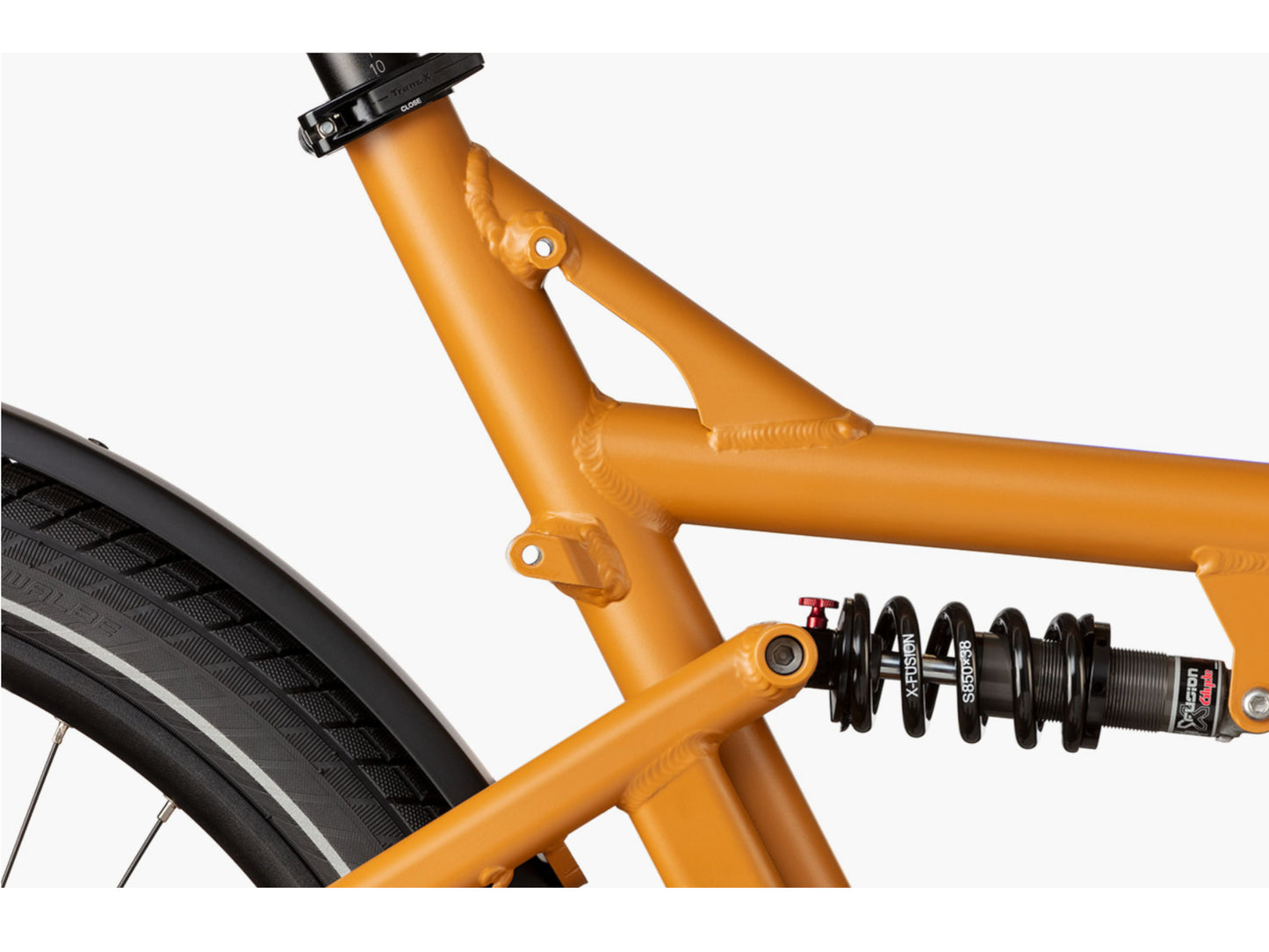

    Rear Shock X-Fusion Glyde
    Front Brake
    Tektro TRP C 2.3 disc brake
    Rear Brake
    Tektro TRP C 2.3 disc brake
    Rear Derailluer /Pinion 22T, for Gates drive belt CDX
    Shift Levers Enviolo grip shift Twist Display Pure, continuous

    Chain
    Gates drive belt CDX
    Cassette Spec not provided
    Crankset
    FSA/Riese & Müller, 170 mm
    Chain Ring
    55T, for Gates drive belt CDX
    Chain Guard Belt guard
    Rims
    Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
    Front Hub
    Novatec Disc 32H
    Rear Hub
    Enviolo 380, 36H

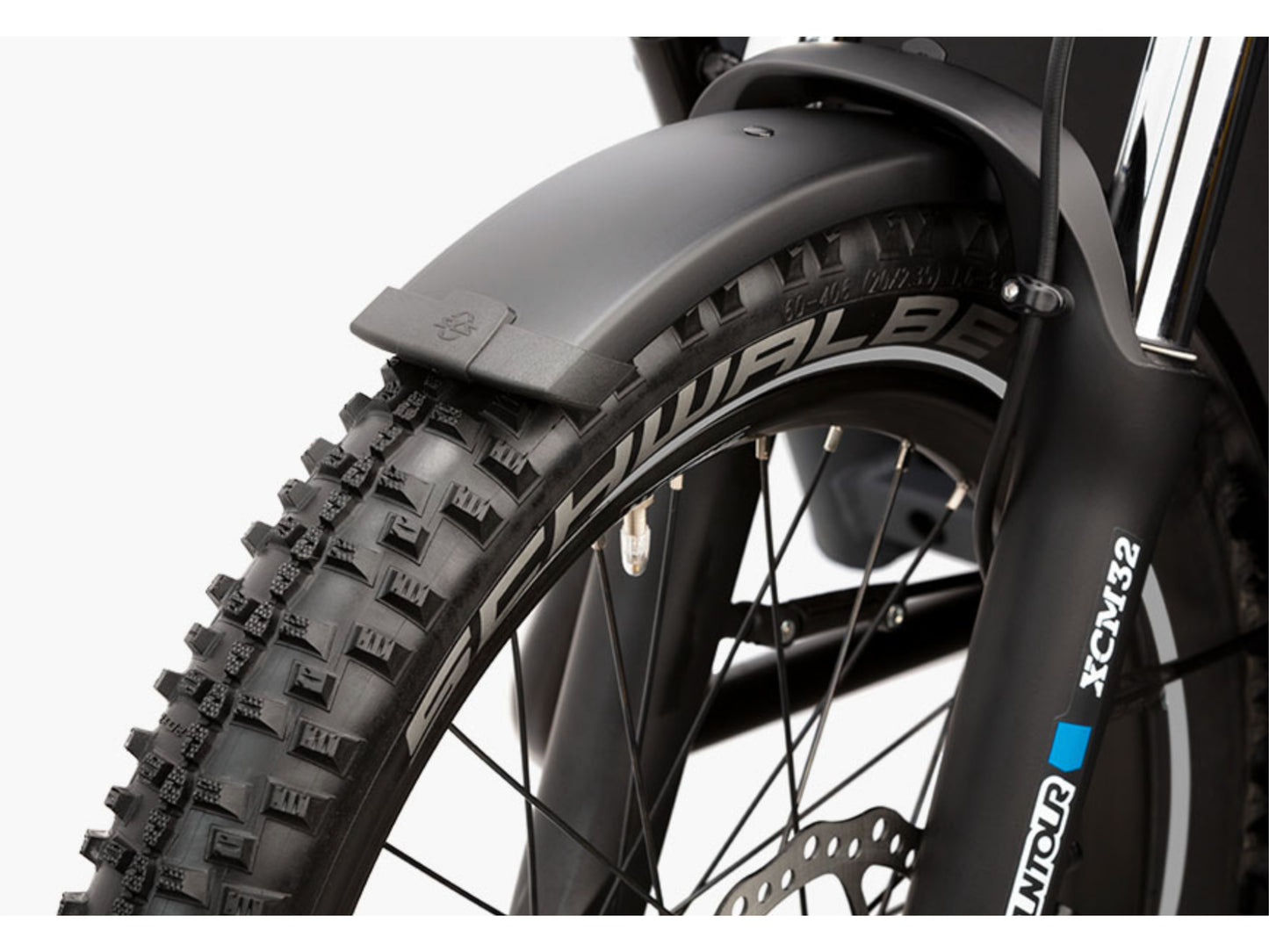

    Front Tire Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
    Rear Tire
    Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
    Handlebar
    FSA V-Drive, 31,8 mm, Alu

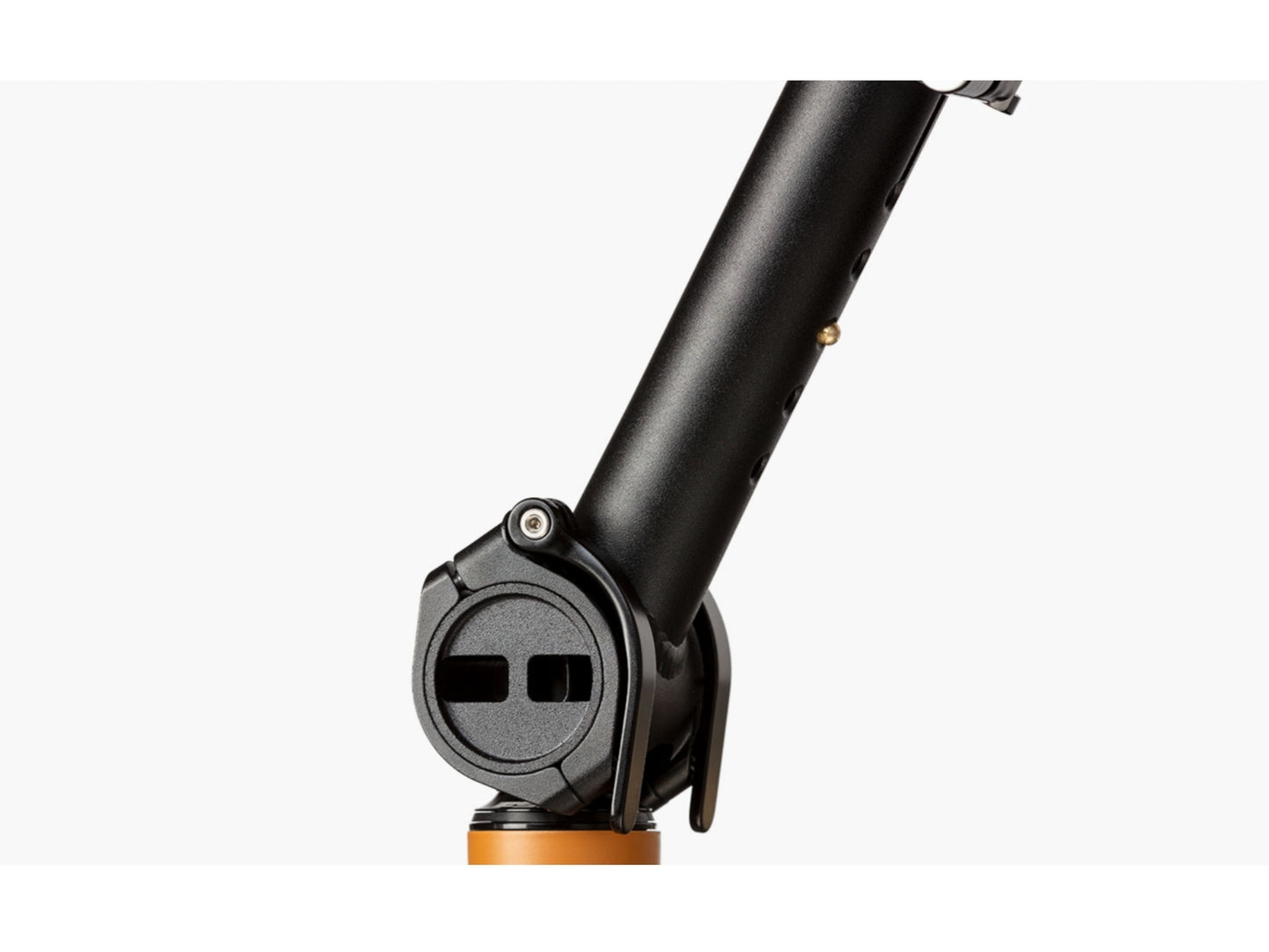

    Stem Riese & Müller, adjustable height and angle
    Headset Acros AZX-221, block lock; TH No. 9, semi-integrated (2x)
    Grips Ergon ergonomic
    Saddle
    Selle Royal New Lookin Male Eco
    Seatpost JD/Riese & Müller, Alu, 34,9 x 430mm
  • Pedals VP R&M Custom

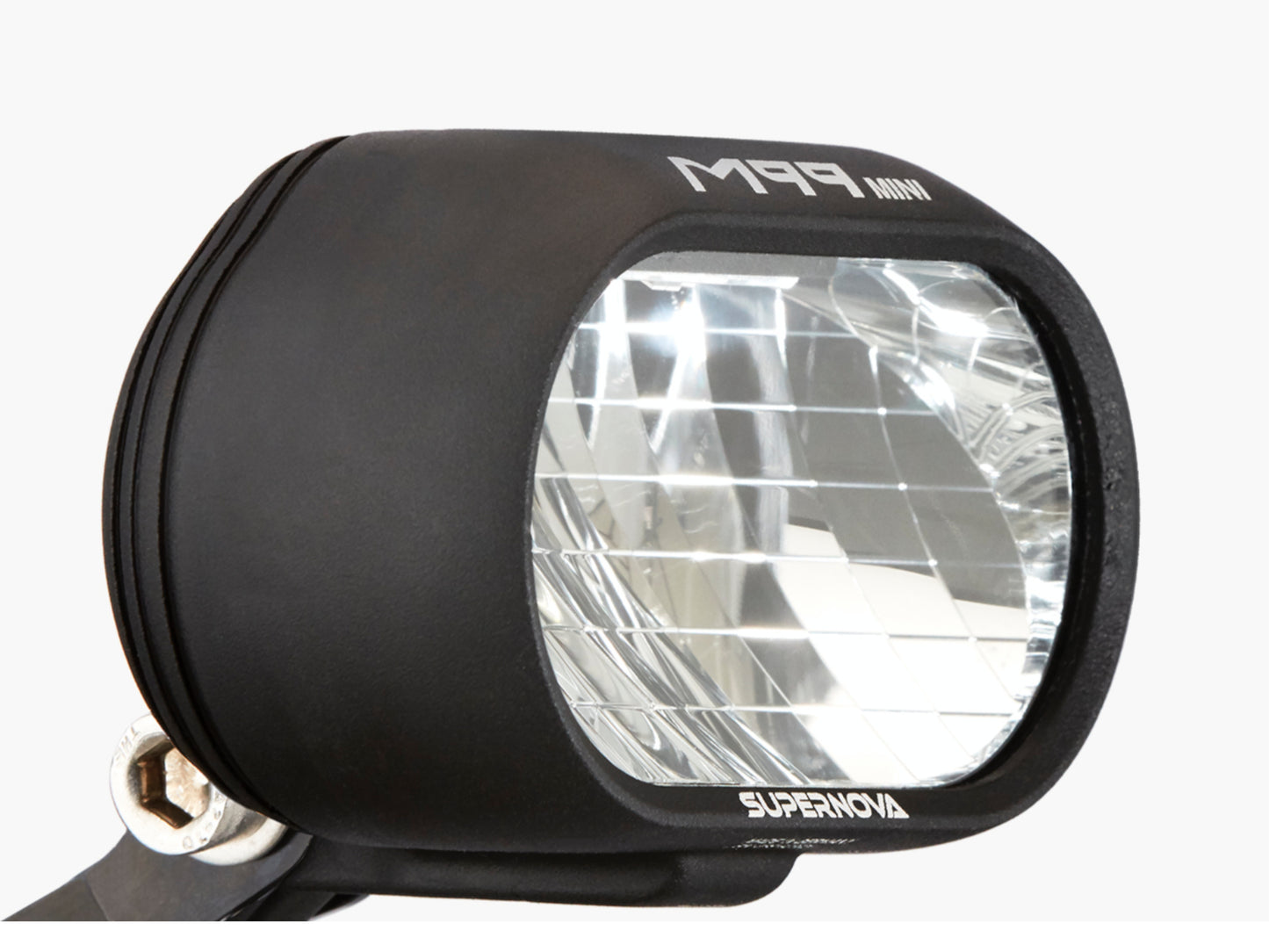

    Front Light Supernova M99 Mini Pro-25
    Rear Light Supernova M99, integrated brake light
    Kickstand Riese & Muller
    Rear carrier Riese & Müller
    Fenders SKS A65R
    Bell Billy

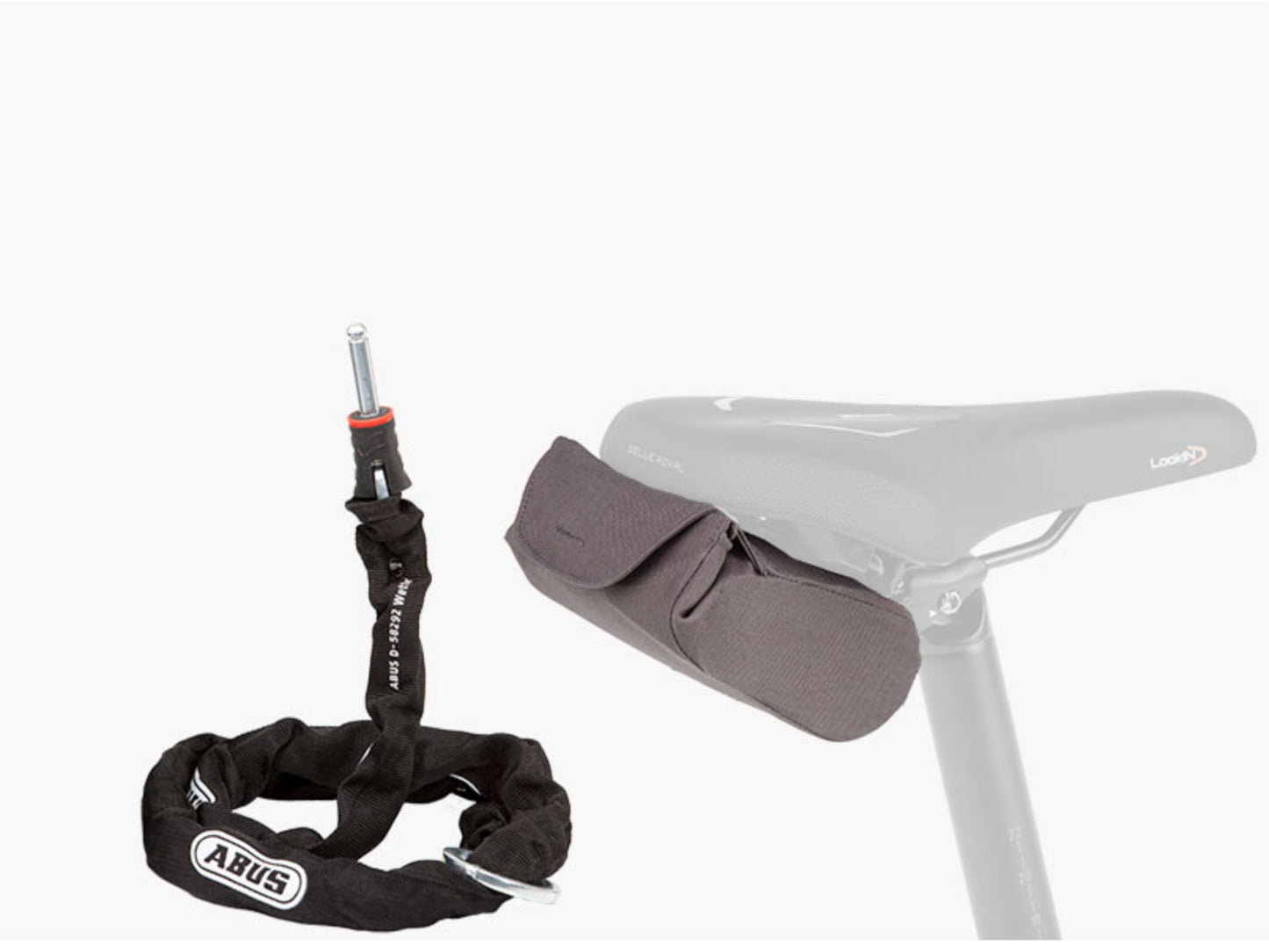

    Lock ABUS Shield X+



  • Frame Size Universal
    Top tube length [cm]
    59-77
    Head tube angle [°] 70
    Seat tube angle [°]
    68
    Trail [mm]
    54
    Wheelbase [cm] 200,5
    Bottom bracket height [cm]
    30,5
    Top tube height [cm] 62,5
    Stand-over height [cm] 59
    Chainstay length [cm]
    46,5
    Overall length [cm]
    264,5
    Wheel size ['']
    front: 20/rear:26
    Head tube length [mm] 85
    Headset size [''] 1 1/8
    Front suspension travel [mm] 50
    Effective rear suspension travel [mm] 80
    Rear shock length [mm] 165
    Front shock mounting width [mm] 22
    Rear shock mounting width [mm] 22
    Front shock locking screw 8
    Rear shock locking screw 8
    Rear suspension ratio 2,2
    Rear dropout width [mm] 135
    Gear ratio [m]
    2,63-9,98
    Weight [kg]
    38,1
    Weight [lbs]
    84.2
    Gross vehicle weight rating [kg]
    200
    Weight rating: Rear Luggage rack [kg]
    15
    Weight rating: Handlebar bag/basket [kg] No

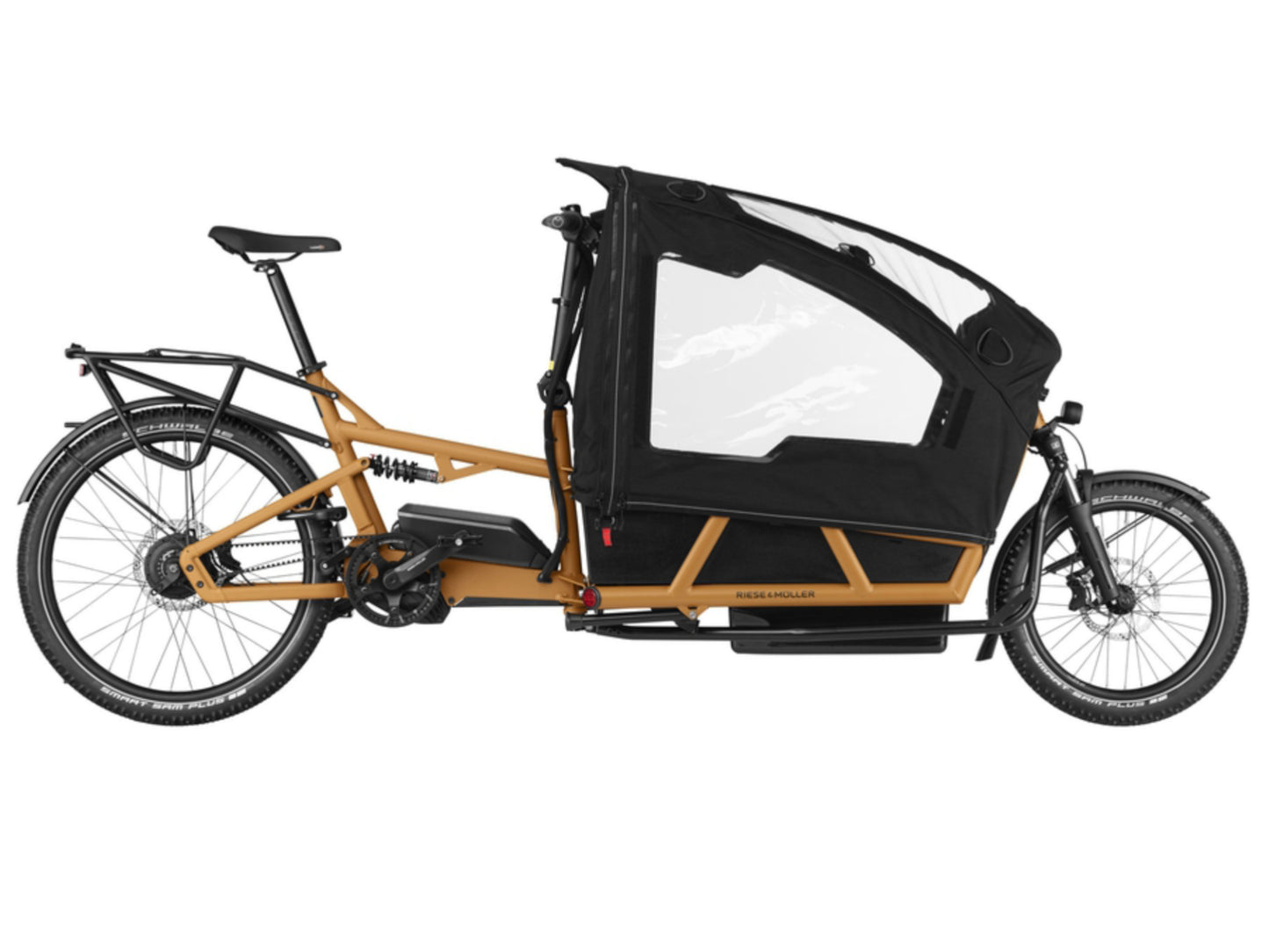

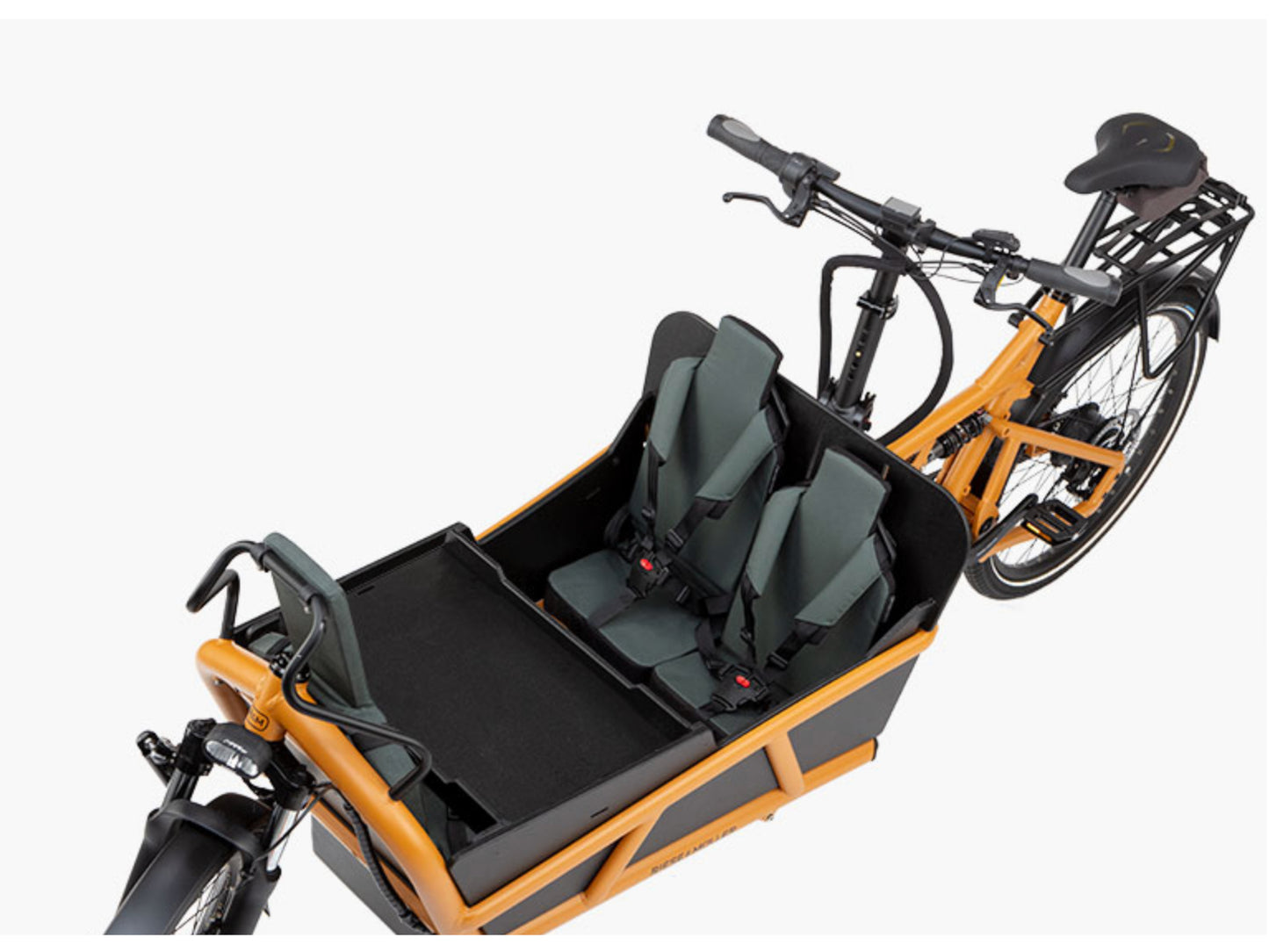

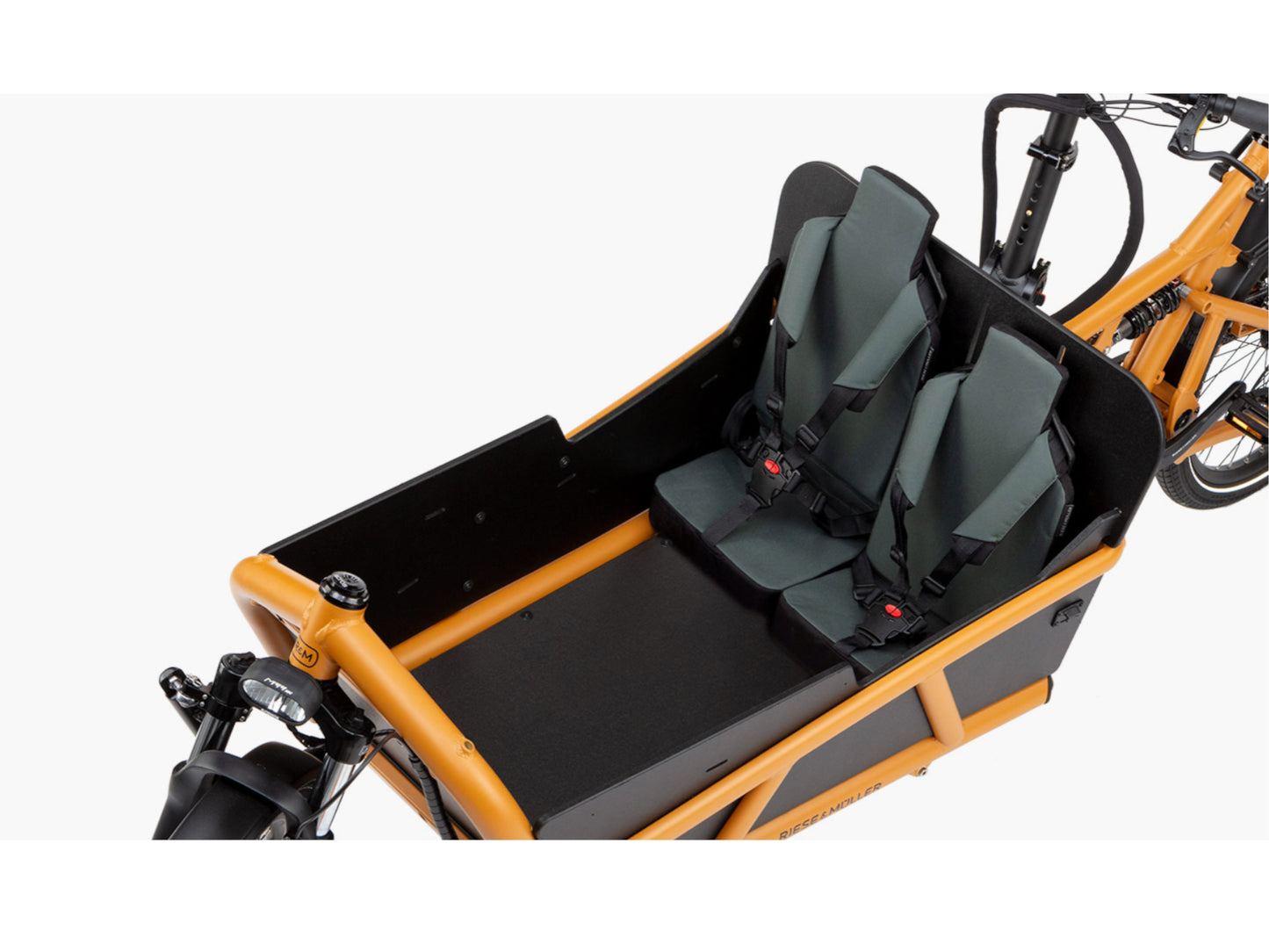

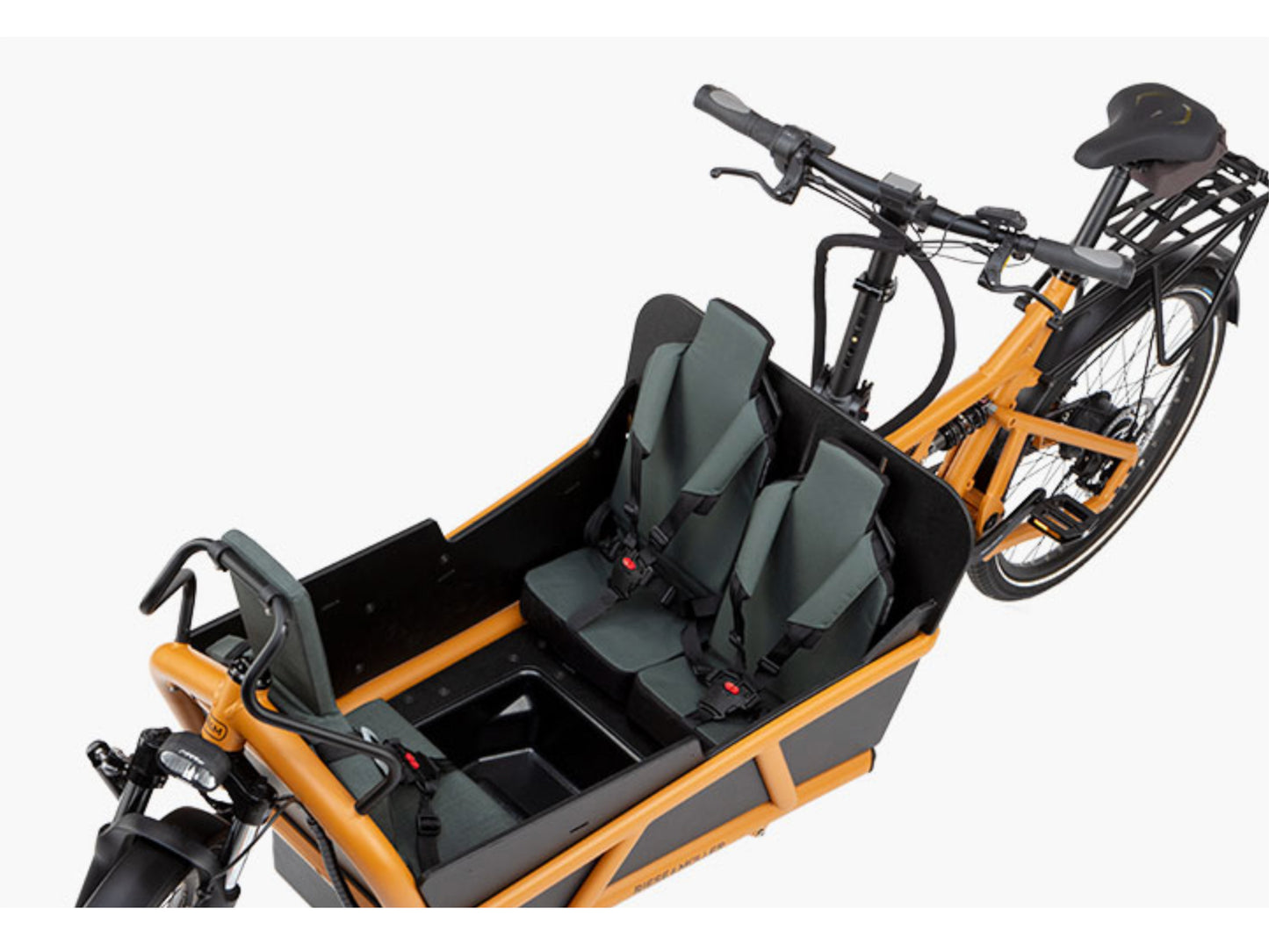

    Childseat compatibility
    Yes
    Trailer compatibility: Single wheel/single attachment point
    No
    Trailer compatibility: Two wheel/single attachment point
    Yes
    Compatibility: Tagalong trailer bike
    No
