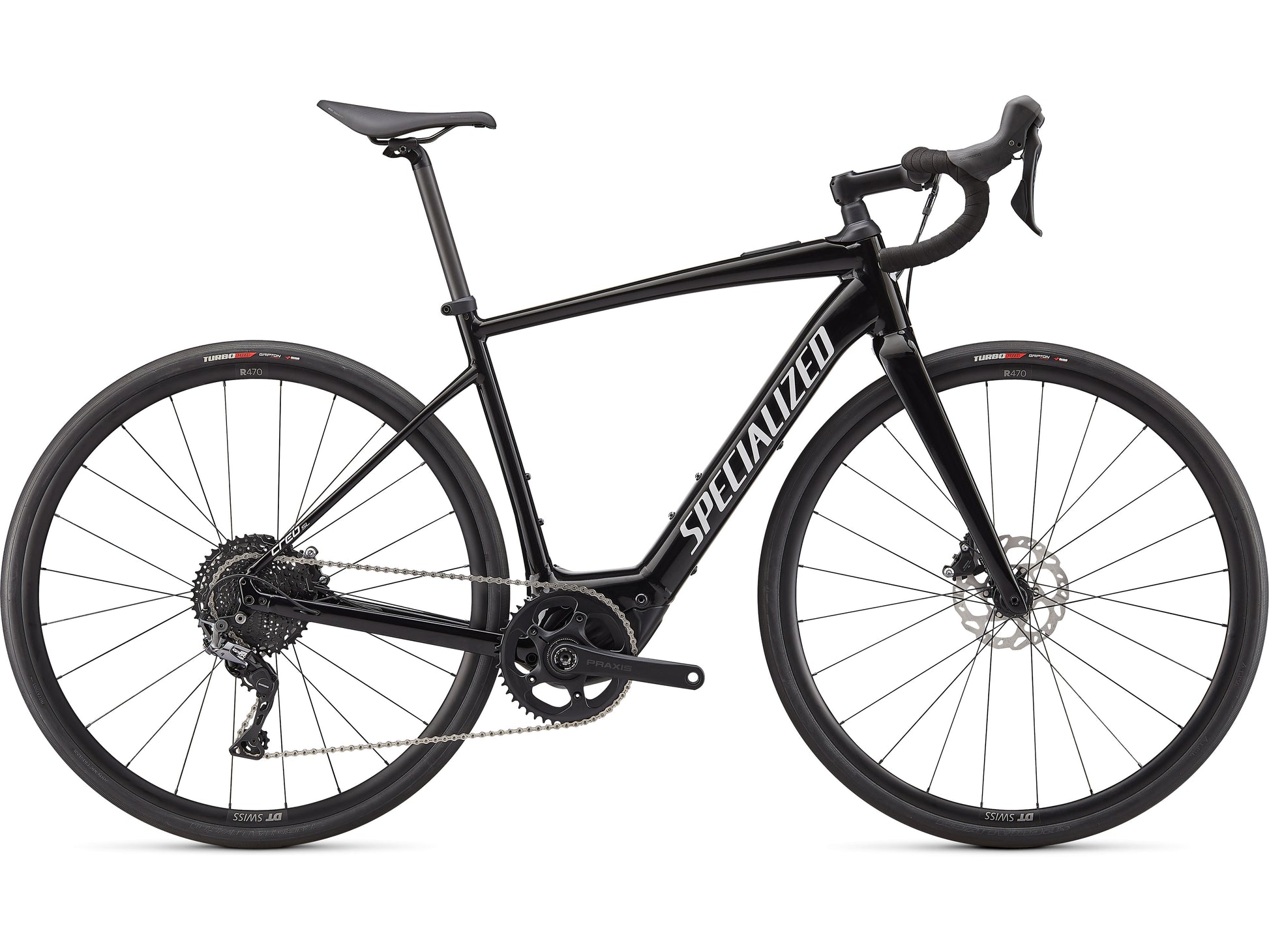

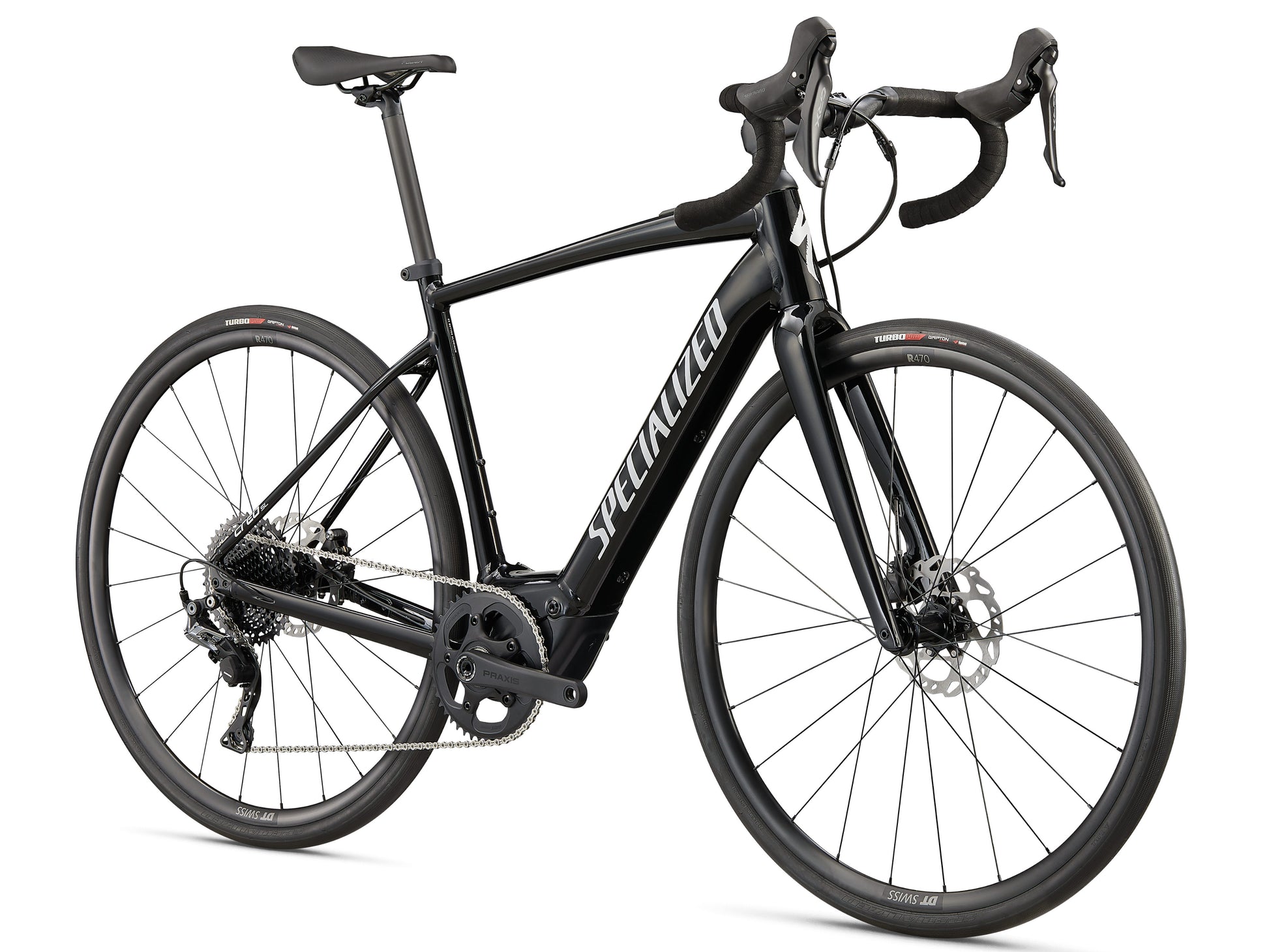

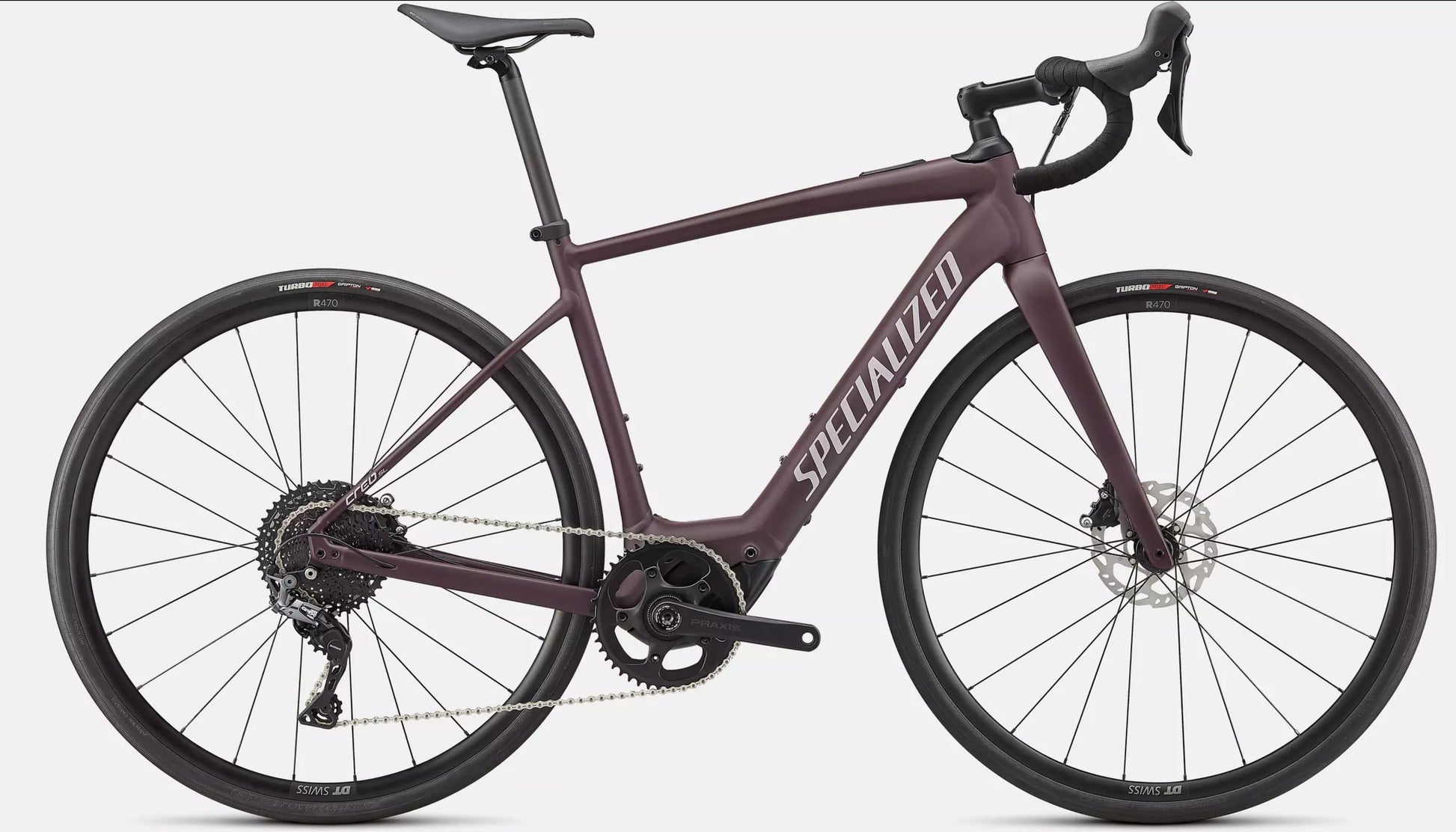

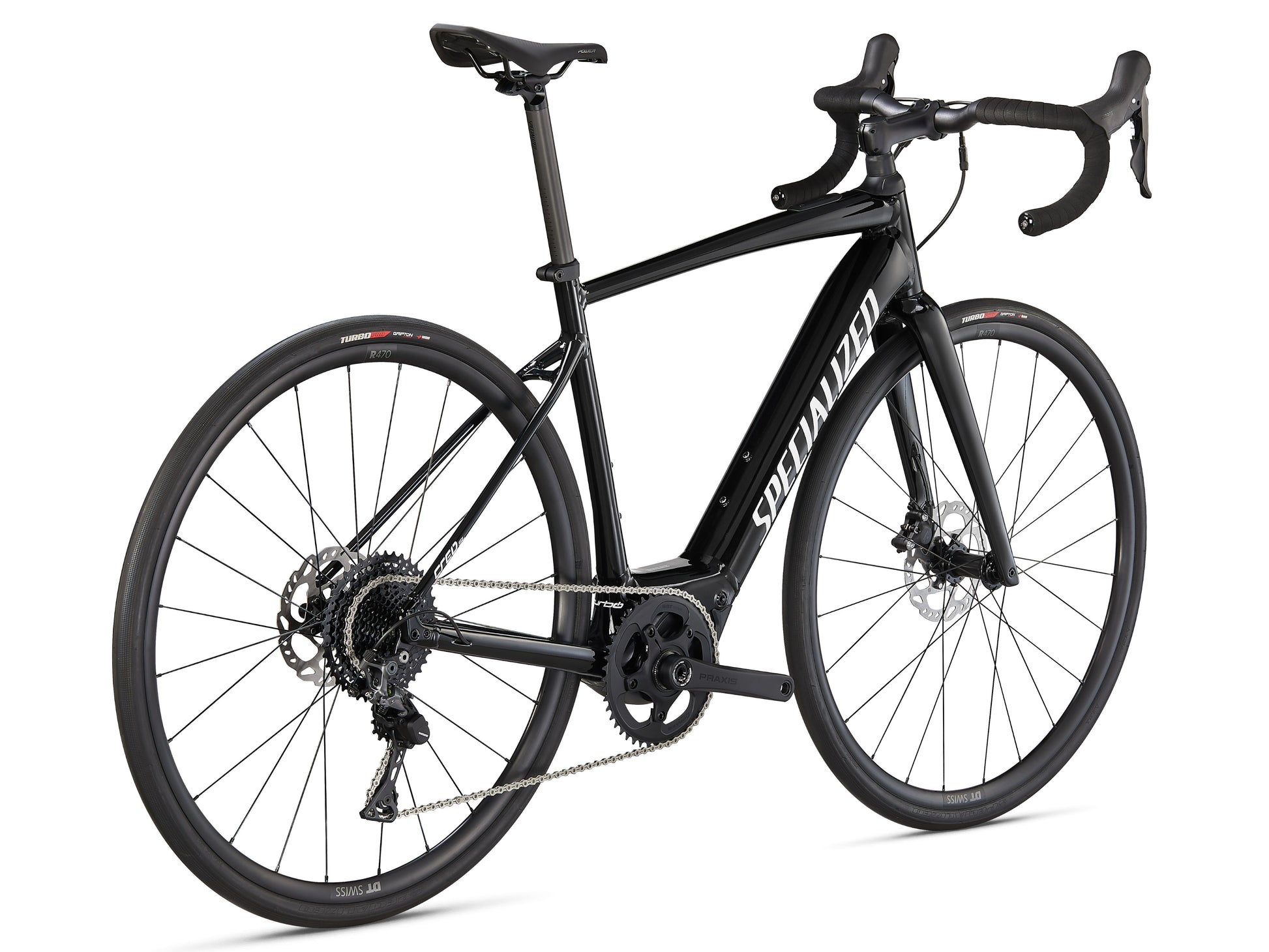

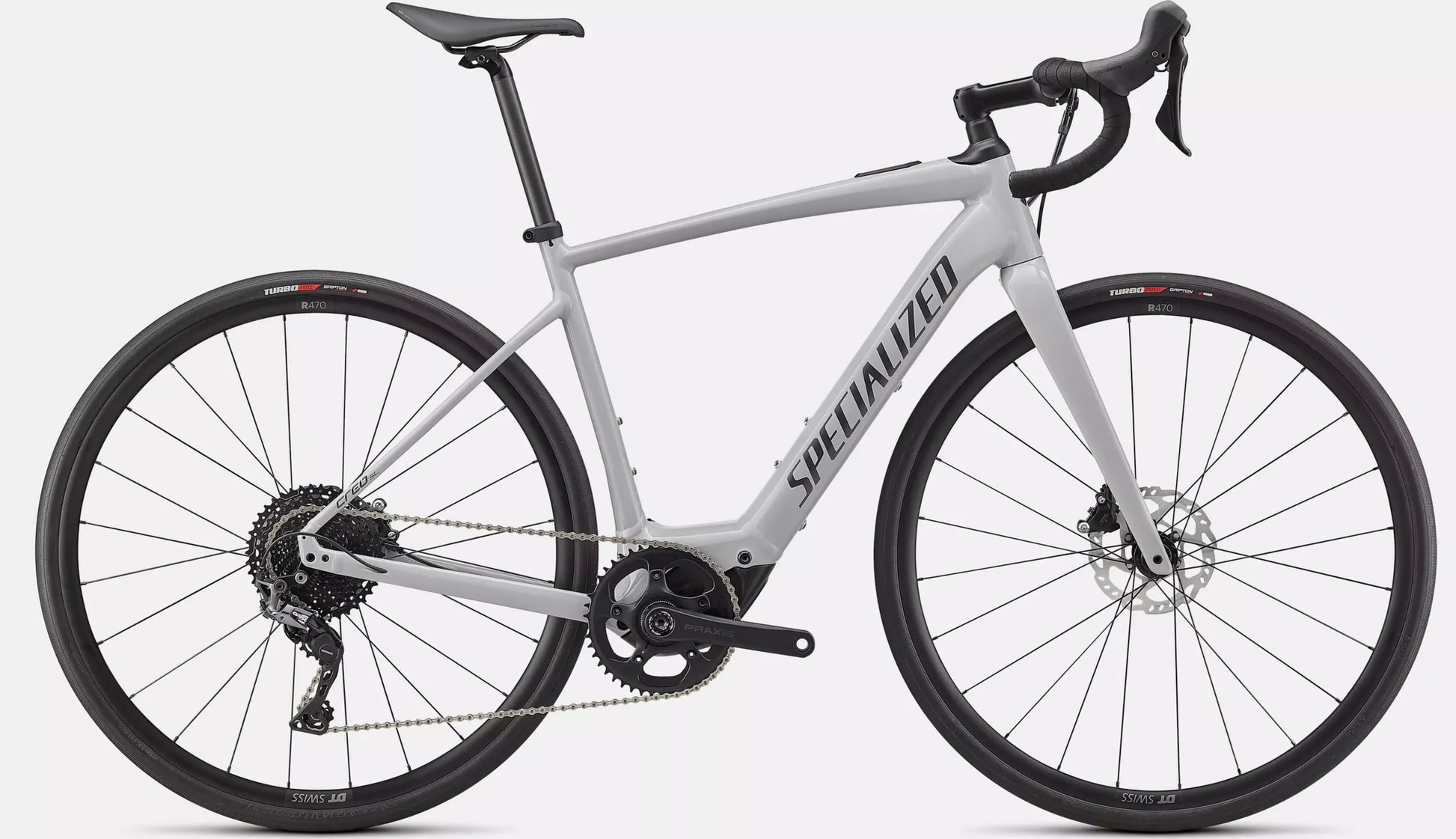

Specialized Turbo Creo SL Comp E5

The Full Scoop on the Specialized Turbo Creo SL Comp E5

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry
• Previous Model Year Specs

• The Creo SL is the lightest e-bike in its class—actual kilograms lighter than the competition. Not only does the lightweight and stiff premium E5 alloy frame inspire dancing on the pedals and diving into corners, it also reduces overall system weight and increases the range. It handles like the bike you've been dreaming of.

• Components subject to manufacturer changes

• Motor	Motor, PLW
  Battery	Specialized SL1-320, fully integrated, 320 Wh
  UI/Remote	Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®

• Fork	Future Shock 2.0 w/ Damper, Smooth Boot, Boost™ 12x110 mm thru-axle, flat-mount disc
  Brakes	Shimano 105, hydraulic disc
  Drivetrain	Shimano Deore XT Di2, Shadow Plus, 11-speed
  Shift Levers	Shimano Ultegra Di2 Disc R8070
  Stem	Future Stem, Pro
  Seatpost	Roval Terra Carbon Seat Post, 20 mm Offset
  Front Hub	Tubeless Valve
  Tires	Specialized Turbo Pro, 700x30
  Front Wheel	Roval C 38 Disc, carbon, tubeless-ready, 38 mm depth, 24h
  Rear Wheel	Roval C 38 Disc, carbon, tubeless-ready, 38 mm depth, 24h
  Crankset	Praxis Alloy cranks
  Cassette	Shimano XT, 11-speed, 11-42t
  Chain	Shimano Ultegra, 11-speed
  Saddle	Body Geometry Power Expert

• N/A

•


  FRAME SIZE S M L XL XXL RIDER HEIGHT (in) 5'4" - 5'7" 5'7" - 5'10" 5'10" - 6'0" 5'11" - 6'2" 6'2" - 6'9" RIDER HEIGHT (cm) 163 - 170 170 - 178 175 - 183 180 - 188 188 - 205 CRANK LENGTH (mm) 170 172.5 172.5 175 175 STEM  LENGTH (mm) 80 90 100 110 110 SEATPOST  LENGTH (mm) 350 350 400 400 400 SADDLE WIDTH  (mm) 155 143 143 143 143 HANDLEBAR  WIDTH (mm) 400 420 420 440 440 REACH (mm) 373 379 384 391 399 STACK (mm) 575 592 615 643 675 WHEELBASE (mm) 1009 1016 1023 1040 1055 BIKE STANDOVER HEIGHT (mm) 791 811 836 861 892 HEAD-TUBE  LENGTH (mm) 145.5 163.5 185.5 217 250 FRONT-CENTER (mm) 592 599 605 621 636 FORK RAKE/OFFSET (mm) 50 50 50 50 50 HEAD-TUBE ANGLE (deg.) 72 72.5 73 73 73.25 TRAIL (mm) 65 61 58 58 56 B-B HEIGHT (mm) 280.5 283 283 285.5 285.5 CHAIN-STAY LENGTH (mm) 430 430 430 430 430 FORK LENGTH (FULL) (mm) 390 390 390 390 390 SEAT-TUBE ANGLE (deg.) 74 74 73.5 73.5 73 B-B DROP (mm) 80.5 78 78 75.5 75.5 SEAT-TUBE LENGTH (mm) 450 475 500 525 555 TOP-TUBE LENGTH (HORIZONTAL) (mm) 538 549 566 581 605

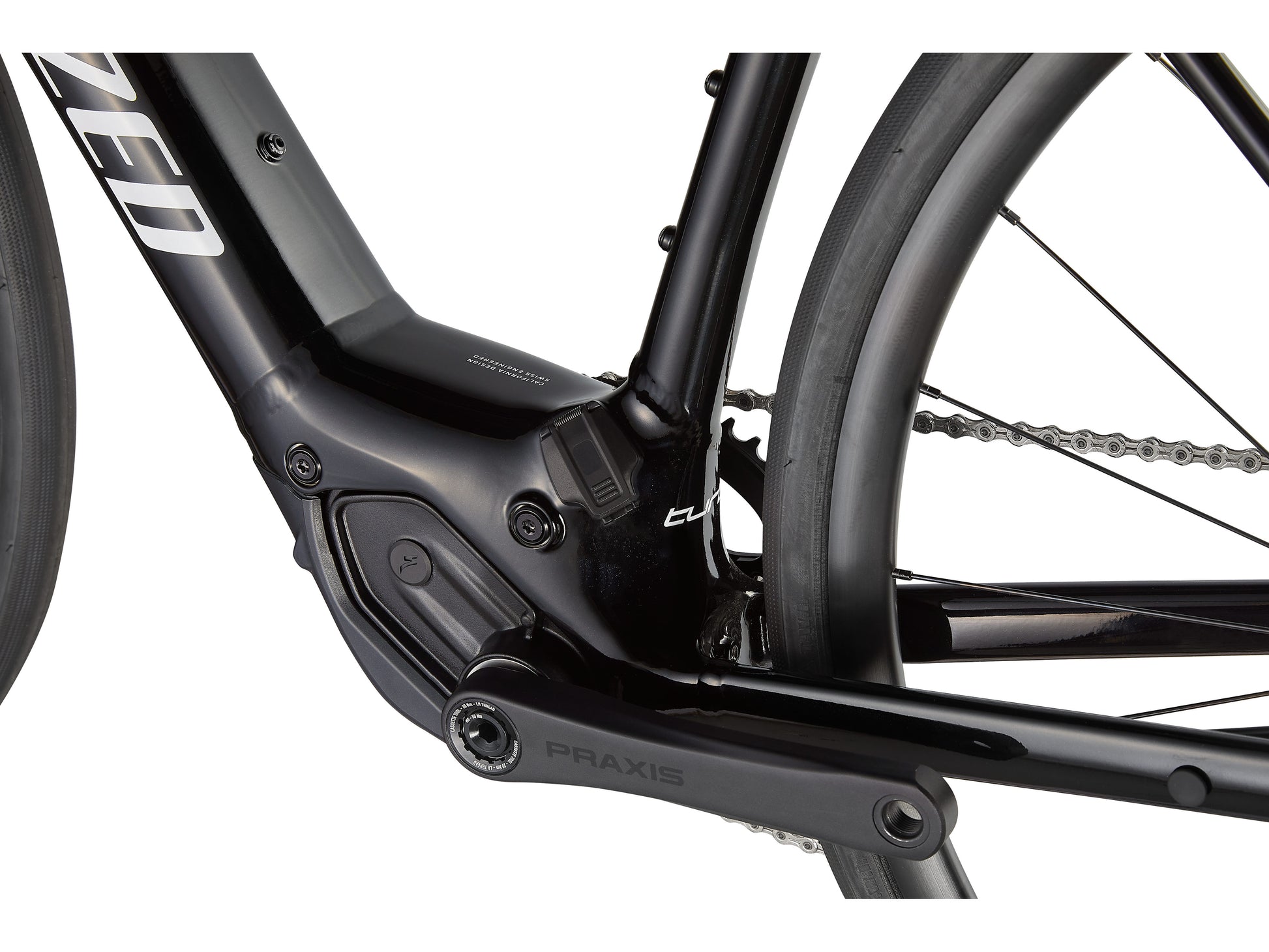

• Motor	Specialized SL 1.1, custom lightweight motor

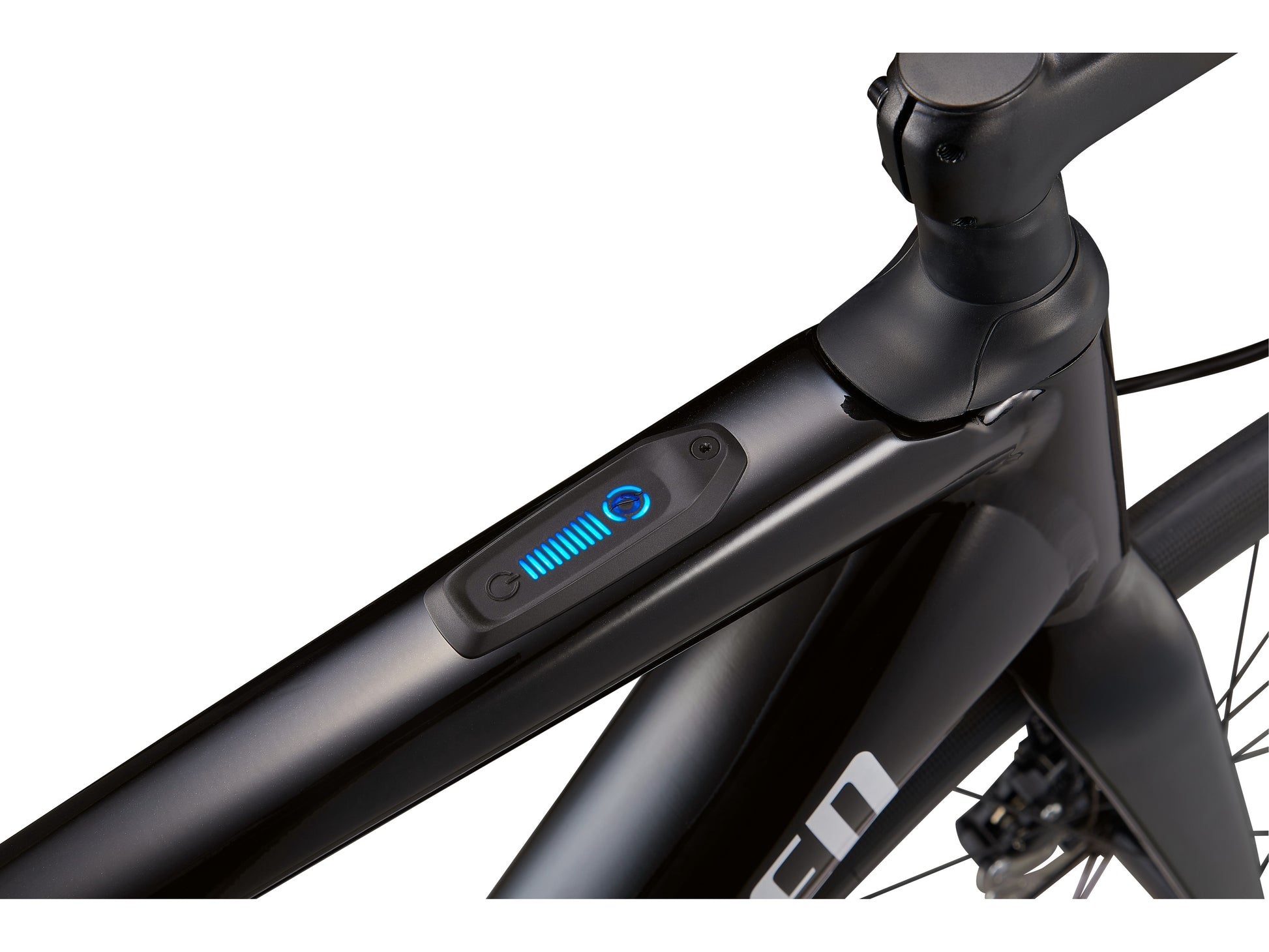

  Display	Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®
  Battery	Specialized SL1-320, fully integrated, 320 Wh
  Brakes	Shimano GRX 400 hydraulic disc
  Drivetrain	ShimanoRX812 GX, Shadow Plus, 11-speed
  Fork	Future Shock 1.5 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc
  Crankset	Praxis, Forged alloy M30, custom offset
  Chain	Shimano HG601, 11-spd
  Shift Levers	Shimano  GRX 600 hydraulic brake levers, mechanical shifting
  Cassette	Sunrace, 11-speed, alloy spider, 11-42t
  Chainrings	Praxis, 46t, 110 BCD
  Front Wheel	DT R470 Boost, 12x110 mm
  Rear Wheel	DT R470 Boost, 12x148 mm
  Tires	Specialized Turbo Pro, 700x28 mm
  Saddle	Body Geometry PowerSport, hollow Cr-Mo rails

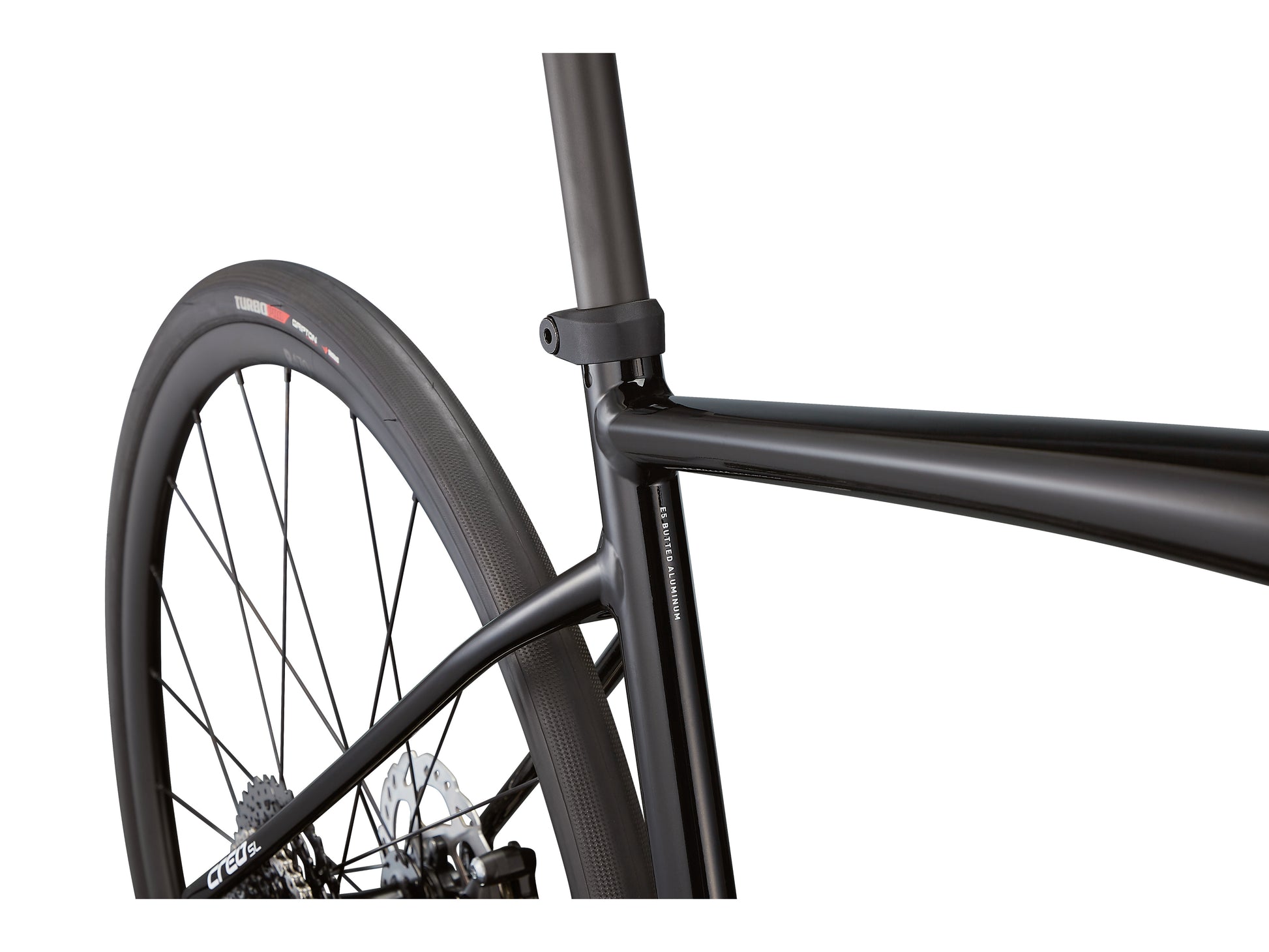

  Seatpost	Comp Carbon Seat Post, Single Bolt
  Stem	Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

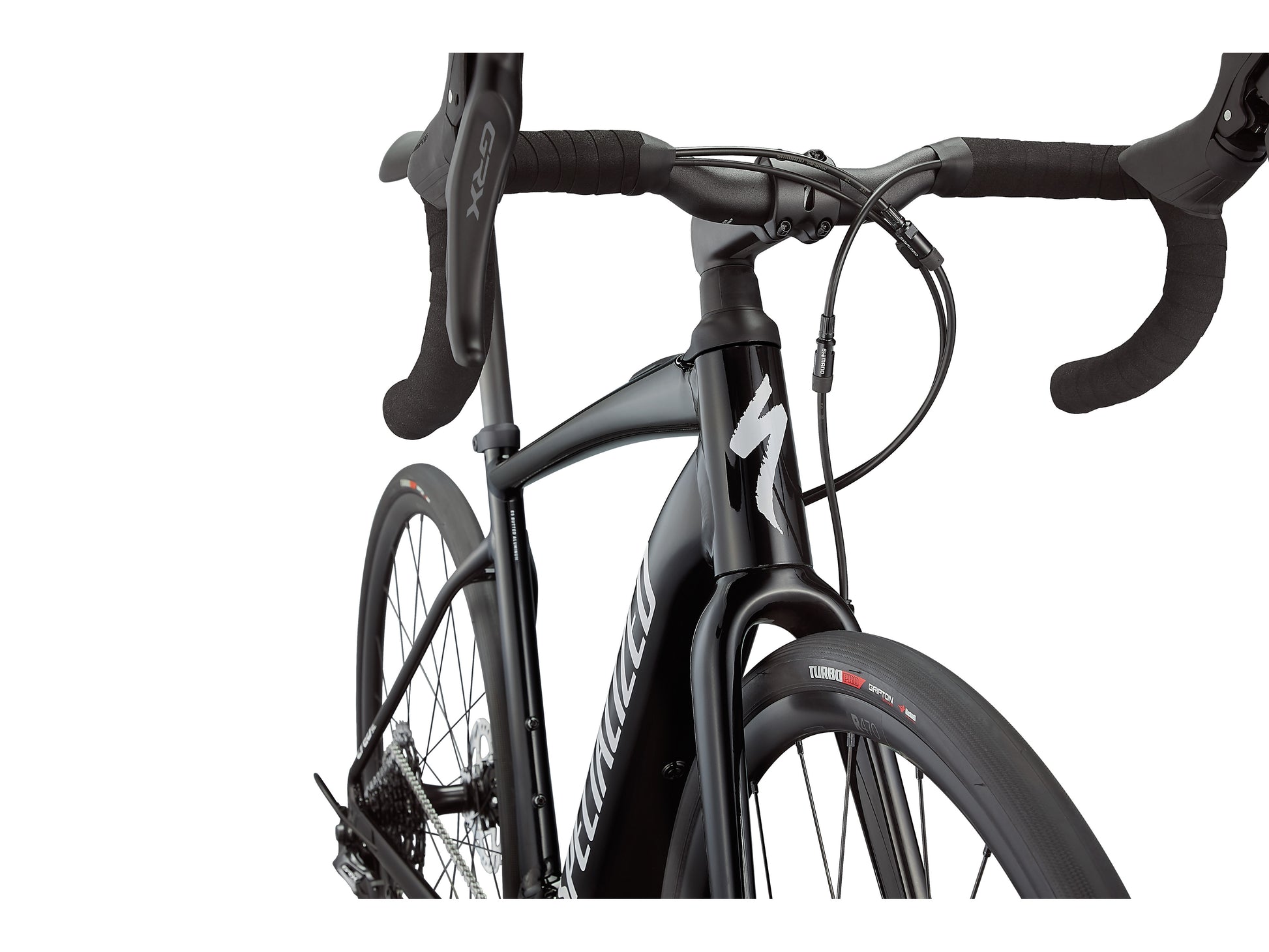

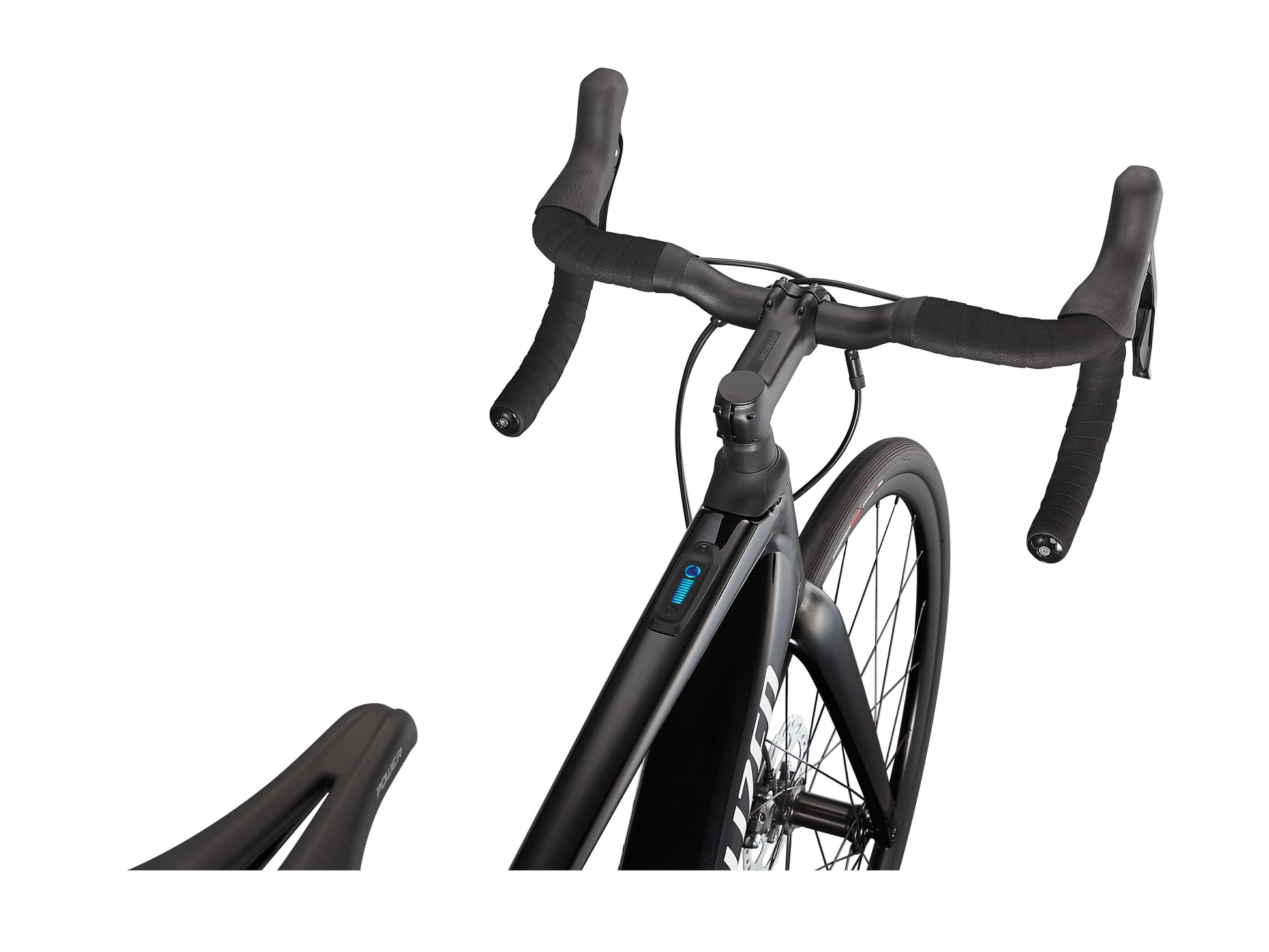

  Handlebar	Specialized Hover Comp Alloy Bar, 125 Drop x 75 Reach
  Grips	Roubaix S-Wrap
